de.hpp File Reference

C++ veneer for unified data exchange. More...

#include <occtl/occtl_de.h>
#include <occtl-hpp/core.hpp>
#include <occtl-hpp/topo.hpp>
#include <cstddef>
#include <cstdint>
#include <optional>
#include <string>
#include <utility>
#include <vector>

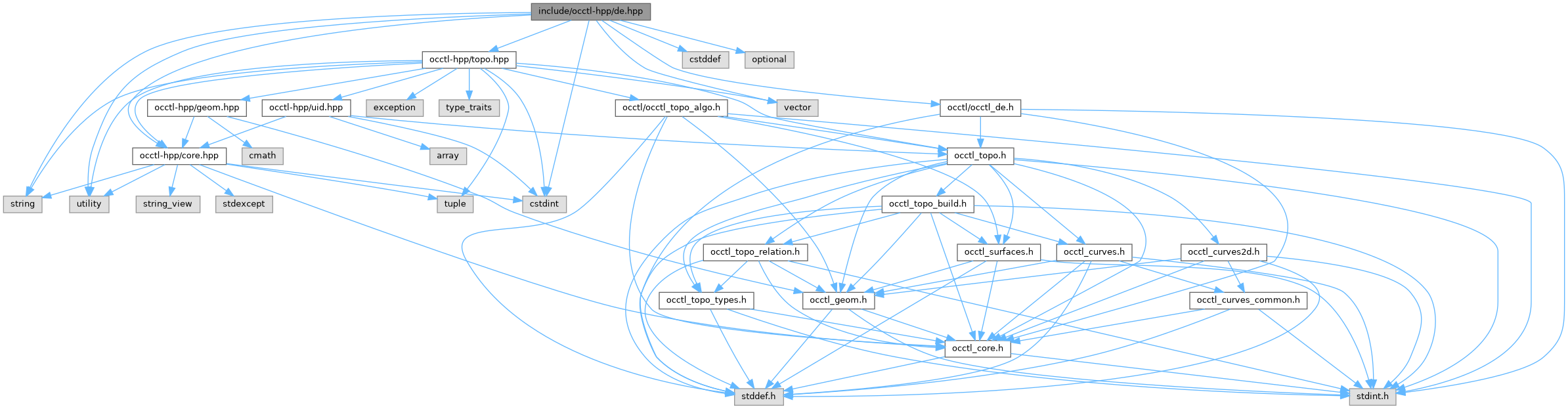

Include dependency graph for de.hpp:

Go to the source code of this file.

Classes
struct	occtl::de::FormatInfo

Functions
std::pair< Graph, NodeId >	occtl::de::read (const std::string &thePath)
	Reads a file dispatched by extension and returns (graph, root).
std::pair< Graph, NodeId >	occtl::de::read_memory (const std::string &theFormatId, const uint8_t *const theData, const std::size_t theSize)
	Reads a memory payload using an explicit format id and returns (graph, root).
std::pair< Graph, NodeId >	occtl::de::read_memory (const std::string &theFormatId, const std::vector< uint8_t > &theData)
	Reads a memory payload using an explicit format id and returns (graph, root).
void	occtl::de::write (const Graph &theGraph, const NodeId theRoot, const std::string &thePath)
	Writes a graph root to a file dispatched by extension.
std::vector< uint8_t >	occtl::de::write_memory (const Graph &theGraph, const NodeId theRoot, const std::string &theFormatId)
	Writes a graph root into a memory payload using an explicit format id.
std::vector< std::string >	occtl::de::supported_formats ()
	Returns the stable lowercase format ids the build supports.
std::vector< FormatInfo >	occtl::de::format_infos ()
	Returns rich descriptors for every supported data-exchange format.
FormatInfo	occtl::de::format_info (const std::string &theFormatId)
	Returns a descriptor for one supported data-exchange format.
std::optional< std::string >	occtl::de::format_id_for_path (const std::string &thePath)
	Returns the format id for thePath, or std::nullopt if no extension matches.

Detailed Description

C++ veneer for unified data exchange.

Function Documentation

read()

std::pair< Graph, NodeId > occtl::de::read ( const std::string &  thePath )

inline

Reads a file dispatched by extension and returns (graph, root).

Exceptions

Error

on failure.

read_memory() [1/2]

std::pair< Graph, NodeId > occtl::de::read_memory ( const std::string &  theFormatId, const std::vector< uint8_t > &  theData  )

inline

Reads a memory payload using an explicit format id and returns (graph, root).

Exceptions

Error

on failure.

read_memory() [2/2]

std::pair< Graph, NodeId > occtl::de::read_memory ( const std::string &  theFormatId, const uint8_t *const  theData, const std::size_t  theSize  )

inline

Reads a memory payload using an explicit format id and returns (graph, root).

Exceptions

Error

on failure.

write_memory()

std::vector< uint8_t > occtl::de::write_memory ( const Graph &  theGraph, const NodeId  theRoot, const std::string &  theFormatId  )

inline

Writes a graph root into a memory payload using an explicit format id.

Exceptions

Error

on failure.
