heal.hpp File Reference

C++ veneer for the heal module. More...

#include <occtl-hpp/core.hpp>
#include <occtl-hpp/topo.hpp>
#include <occtl/occtl_heal.h>

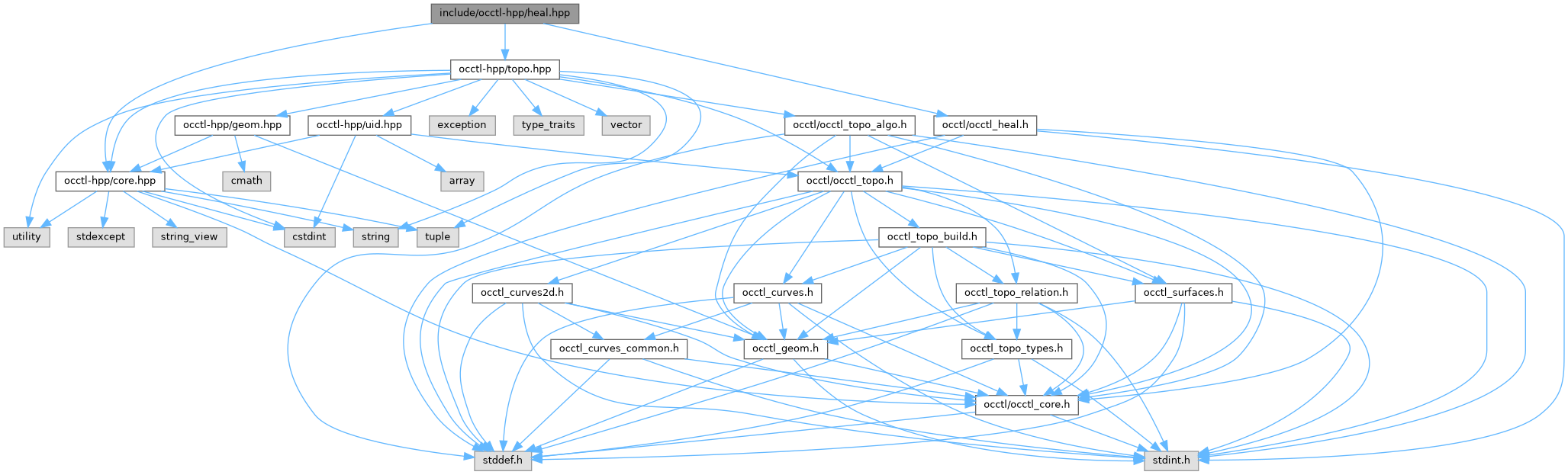

Include dependency graph for heal.hpp:

Go to the source code of this file.

Classes
struct	occtl::heal::Options
	Versioned options for shape healing. More...
struct	occtl::heal::UnifySameDomainOptions
	Versioned options for same-domain unification. More...

Typedefs
using	occtl::heal::Mode = ::occtl_heal_mode_t
	Healing mode selector.

Functions
void	occtl::heal::heal_shape (Graph &theGraph, NodeId theNodeId, const Options &theOptions=Options{})
	Heals the shape referenced by theNodeId and ingests the result as a new topology root into theGraph.
NodeId	occtl::heal::unify_same_domain (Graph &theGraph, NodeId theNodeId, const UnifySameDomainOptions &theOptions=UnifySameDomainOptions{})
	Unifies same-domain edges/faces and returns the new topology root.

Detailed Description

C++ veneer for the heal module.

Header-only options and exception translation over the C ABI. Local identifiers follow OCCT style.

Function Documentation

heal_shape()

void occtl::heal::heal_shape ( Graph &  theGraph, NodeId  theNodeId, const Options &  theOptions = Options{}  )

inline

Heals the shape referenced by theNodeId and ingests the result as a new topology root into theGraph.

Parameters

[in,out]	theGraph	Graph owning the shape to heal.
[in]	theNodeId	Root node of the shape to heal.
[in]	theOptions	Healing configuration; default is STABLE.

Exceptions

Error

on any non-OK status code.
