io_obj.hpp File Reference

C++ veneer for Wavefront OBJ I/O. More...

#include <occtl/occtl_io_obj.h>
#include <occtl-hpp/core.hpp>
#include <occtl-hpp/topo.hpp>
#include <string>
#include <utility>
#include <vector>

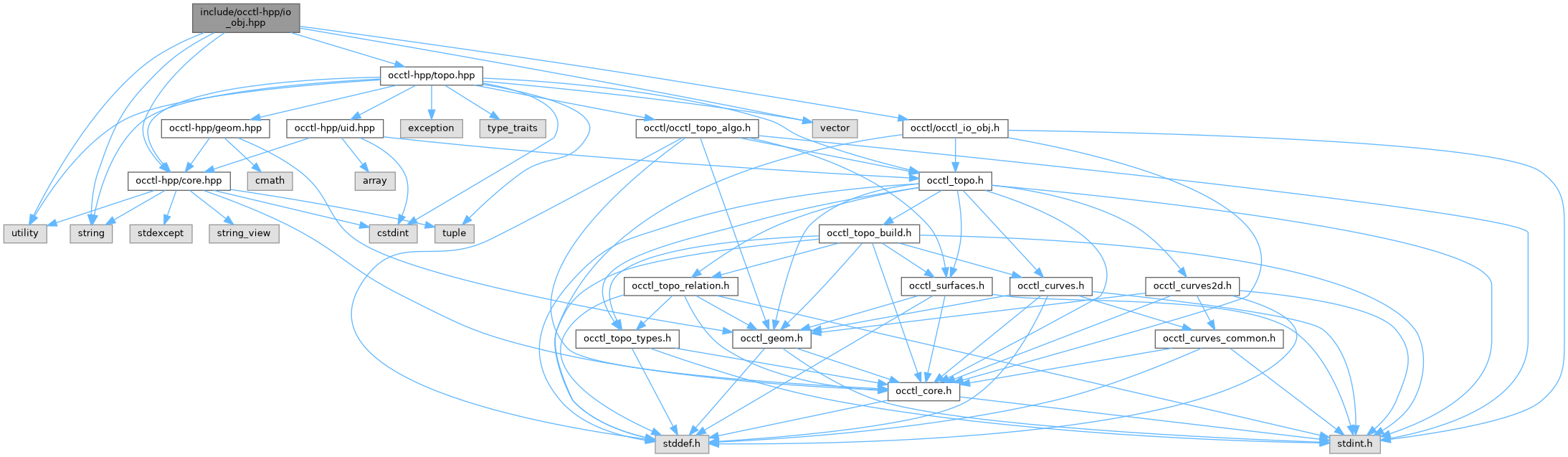

Include dependency graph for io_obj.hpp:

Go to the source code of this file.

Classes
struct	occtl::io_obj::ReadOptions
	Options for read. PascalCase mirror of occtl_io_obj_read_options_t. More...
struct	occtl::io_obj::WriteOptions
	Options for write. PascalCase mirror of occtl_io_obj_write_options_t. More...

Enumerations
enum class	occtl::io_obj::CoordinateSystem { YUp = OCCTL_IO_OBJ_COORDINATE_SYSTEM_Y_UP , ZUp = OCCTL_IO_OBJ_COORDINATE_SYSTEM_Z_UP , Gltf = OCCTL_IO_OBJ_COORDINATE_SYSTEM_GLTF }
	Coordinate system used by OBJ import/export conversion.

Functions
std::pair< Graph, NodeId >	occtl::io_obj::read (const std::string &thePath, const ReadOptions &theOptions=ReadOptions{})
	Reads an OBJ file into a fresh graph and returns (graph, root).
void	occtl::io_obj::write (const Graph &theGraph, const NodeId theRoot, const std::string &thePath, const WriteOptions &theOptions=WriteOptions{})
	Writes the topology rooted at theRoot to an OBJ file.

Detailed Description

C++ veneer for Wavefront OBJ I/O.

Function Documentation

read()

std::pair< Graph, NodeId > occtl::io_obj::read ( const std::string &  thePath, const ReadOptions &  theOptions = ReadOptions{}  )

inline

Reads an OBJ file into a fresh graph and returns (graph, root).

Exceptions

Error

on failure.

write()

void occtl::io_obj::write ( const Graph &  theGraph, const NodeId  theRoot, const std::string &  thePath, const WriteOptions &  theOptions = WriteOptions{}  )

inline

Writes the topology rooted at theRoot to an OBJ file.

Exceptions

Error

on failure.
