mesh.hpp File Reference

C++ veneer for the mesh module. More...

#include <occtl/occtl_mesh.h>
#include <occtl-hpp/core.hpp>
#include <occtl-hpp/geom.hpp>
#include <occtl-hpp/topo.hpp>
#include <cstddef>
#include <cstdint>
#include <optional>
#include <string>
#include <vector>

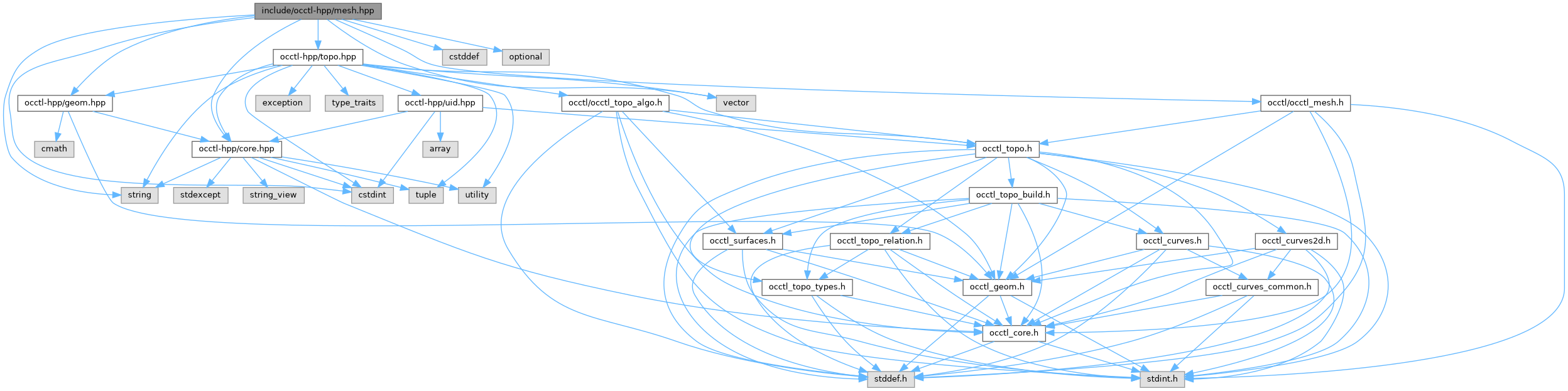

Include dependency graph for mesh.hpp:

Go to the source code of this file.

Classes
struct	occtl::mesh::AABB3
	Axis-aligned bounding box. Aggregate over the C POD. More...
struct	occtl::mesh::Options
	Idiomatic mirror of occtl_mesh_options_t. More...
class	occtl::mesh::TriangulationView
	Borrowed view of a face triangulation. Lifetime tied to the source graph. More...
class	occtl::mesh::Polygon3DView
	Borrowed view of a 3D polyline cached on an edge. More...
class	occtl::mesh::PolygonOnTriView
	Borrowed view of a coedge polyline indexed onto its parent face's triangulation. More...
class	occtl::mesh::TriangleBuffersView
	Borrowed aggregate triangle-soup buffers for a graph/root. More...
class	occtl::mesh::TriangleAnalysisView
	Borrowed per-triangle normals and adjacency for a graph/root. More...
class	occtl::mesh::TriangleComponentsView
	Borrowed normal-connected triangle component labels. More...
class	occtl::mesh::TriangleComponentTrianglesView
	Borrowed aggregate triangle indices belonging to one component. More...
class	occtl::mesh::TriangleComponentBoundaryView
	Borrowed boundary edges belonging to one triangle component. More...
class	occtl::mesh::TriangleComponentBoundaryChainsView
	Borrowed ordered boundary chains belonging to one triangle component. More...
class	occtl::mesh::TriangleComponentBoundaryPolylinesView
	Borrowed ordered boundary polylines belonging to one triangle component. More...
class	occtl::mesh::TriangleComponentSummariesView
	Borrowed summaries for normal-connected triangle components. More...
class	occtl::mesh::TrianglePlaneComponentsView
	Borrowed plane-like normal-connected triangle components. More...
class	occtl::mesh::TriangleSphereComponentsView
	Borrowed sphere-like normal-connected triangle components. More...
class	occtl::mesh::TriangleCylinderComponentsView
	Borrowed cylinder-like normal-connected triangle components. More...

Macros
#define	OCCTL_HPP_HAS_SPAN   0

Typedefs
using	occtl::mesh::FromBuffersOptions = ::occtl_mesh_from_buffers_options_t
	Input buffers for creating a graph-owned triangulated face.
using	occtl::mesh::TriangleComponentsOptions = ::occtl_mesh_triangle_components_options_t
using	occtl::mesh::TrianglePlaneComponentsOptions = ::occtl_mesh_triangle_plane_components_options_t
using	occtl::mesh::TriangleSphereComponentsOptions = ::occtl_mesh_triangle_sphere_components_options_t
using	occtl::mesh::TriangleCylinderComponentsOptions = ::occtl_mesh_triangle_cylinder_components_options_t

Functions
void	occtl::mesh::generate (Graph &theGraph, const Options &theOpts)
	Tessellate every active face and free edge in theGraph.
void	occtl::mesh::generate (Graph &theGraph, const std::vector< NodeId > &theNodes, const Options &theOpts)
	Tessellate the subtree(s) rooted at the supplied nodes.
std::pair< Graph, NodeId >	occtl::mesh::from_buffers (const FromBuffersOptions &theOptions)
	Creates a new graph containing one triangulated Face from caller buffers.
void	occtl::mesh::model_metadata_set (Graph &theGraph, const char *const theKey, const std::size_t theKeyLen, const char *const theValue, const std::size_t theValueLen)
	Sets mesh-model metadata on the graph metadata storage.
std::string	occtl::mesh::model_metadata_get (const Graph &theGraph, const char *const theKey, const std::size_t theKeyLen)
	Retrieves mesh-model metadata from the graph metadata storage.
std::vector< std::string >	occtl::mesh::model_metadata_keys (const Graph &theGraph)
	Lists mesh-model metadata keys from the graph metadata storage.
void	occtl::mesh::model_metadata_unset (Graph &theGraph, const char *const theKey, const std::size_t theKeyLen)
	Removes one mesh-model metadata key. Idempotent.
TriangulationView	occtl::mesh::face_triangulation (const Graph &theGraph, const NodeId theFace)
	Active cached triangulation of theFace.
uint32_t	occtl::mesh::face_triangulation_count (const Graph &theGraph, const NodeId theFace)
	Number of cached triangulations on theFace.
TriangulationView	occtl::mesh::face_triangulation_at (const Graph &theGraph, const NodeId theFace, const uint32_t theIndex)
	theIndex-th cached triangulation of theFace.
Polygon3DView	occtl::mesh::edge_polygon3d (const Graph &theGraph, const NodeId theEdge)
	Cached 3D polyline on theEdge.
PolygonOnTriView	occtl::mesh::coedge_polygon_on_tri (const Graph &theGraph, const NodeId theCoEdge)
	Cached polygon-on-triangulation for theCoEdge.
TriangleBuffersView	occtl::mesh::triangle_buffers (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Aggregate cached triangulations into graph-owned triangle-soup buffers.
TriangleAnalysisView	occtl::mesh::triangle_analysis (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Cached per-triangle normals and adjacency for graph-owned mesh buffers.
TriangleComponentsView	occtl::mesh::triangle_components (const Graph &theGraph, const TriangleComponentsOptions &theOptions)
	Normal-connected triangle components for graph-owned mesh buffers.
TriangleComponentsView	occtl::mesh::triangle_components (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Normal-connected triangle components with default tolerance.
TriangleComponentSummariesView	occtl::mesh::triangle_component_summaries (const Graph &theGraph, const TriangleComponentsOptions &theOptions)
	Summaries for normal-connected triangle components.
TriangleComponentSummariesView	occtl::mesh::triangle_component_summaries (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Summaries for normal-connected triangle components with default tolerance.
TriangleComponentTrianglesView	occtl::mesh::triangle_component_triangles (const Graph &theGraph, const TriangleComponentsOptions &theOptions, const uint32_t theComponentId)
	Aggregate triangle indices belonging to one component.
TriangleComponentTrianglesView	occtl::mesh::triangle_component_triangles (const Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Aggregate triangle indices for one component with default tolerance.
TriangleComponentBoundaryView	occtl::mesh::triangle_component_boundary (const Graph &theGraph, const TriangleComponentsOptions &theOptions, const uint32_t theComponentId)
	Boundary edges belonging to one triangle component.
TriangleComponentBoundaryView	occtl::mesh::triangle_component_boundary (const Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Boundary edges for one component with default tolerance.
TriangleComponentBoundaryChainsView	occtl::mesh::triangle_component_boundary_chains (const Graph &theGraph, const TriangleComponentsOptions &theOptions, const uint32_t theComponentId)
	Ordered boundary chains belonging to one triangle component.
TriangleComponentBoundaryChainsView	occtl::mesh::triangle_component_boundary_chains (const Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Ordered boundary chains for one component with default tolerance.
TriangleComponentBoundaryPolylinesView	occtl::mesh::triangle_component_boundary_polylines (const Graph &theGraph, const TriangleComponentsOptions &theOptions, const uint32_t theComponentId)
	Ordered boundary polylines belonging to one triangle component.
TriangleComponentBoundaryPolylinesView	occtl::mesh::triangle_component_boundary_polylines (const Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Ordered boundary polylines for one component with default tolerance.
TrianglePlaneComponentsView	occtl::mesh::triangle_plane_components (const Graph &theGraph, const TrianglePlaneComponentsOptions &theOptions)
	Plane-like normal-connected triangle components.
TrianglePlaneComponentsView	occtl::mesh::triangle_plane_components (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Plane-like normal-connected triangle components with default tolerance.
TriangleSphereComponentsView	occtl::mesh::triangle_sphere_components (const Graph &theGraph, const TriangleSphereComponentsOptions &theOptions)
	Sphere-like normal-connected triangle components.
TriangleSphereComponentsView	occtl::mesh::triangle_sphere_components (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Sphere-like normal-connected triangle components with default tolerance.
TriangleCylinderComponentsView	occtl::mesh::triangle_cylinder_components (const Graph &theGraph, const TriangleCylinderComponentsOptions &theOptions)
	Cylinder-like normal-connected triangle components.
TriangleCylinderComponentsView	occtl::mesh::triangle_cylinder_components (const Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Cylinder-like normal-connected triangle components with default tolerance.
NodeId	occtl::mesh::make_sphere_component_solid (Graph &theGraph, const TriangleSphereComponentsOptions &theOptions, const uint32_t theComponentId)
	Rebuild one sphere-like triangle component as an analytic Solid root.
NodeId	occtl::mesh::make_sphere_component_solid (Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Rebuild one sphere-like triangle component as an analytic Solid root with default tolerance.
NodeId	occtl::mesh::make_cylinder_component_solid (Graph &theGraph, const TriangleCylinderComponentsOptions &theOptions, const uint32_t theComponentId)
	Rebuild one cylinder-like triangle component as an analytic Solid root.
NodeId	occtl::mesh::make_cylinder_component_solid (Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Rebuild one cylinder-like triangle component as an analytic Solid root with default tolerance.
std::vector< NodeId >	occtl::mesh::make_sphere_component_solids (Graph &theGraph, const TriangleSphereComponentsOptions &theOptions)
	Rebuild all sphere-like triangle components as analytic Solid roots.
std::vector< NodeId >	occtl::mesh::make_sphere_component_solids (Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Rebuild all sphere-like triangle components as analytic Solid roots with default tolerance.
std::vector< NodeId >	occtl::mesh::make_cylinder_component_solids (Graph &theGraph, const TriangleCylinderComponentsOptions &theOptions)
	Rebuild all cylinder-like triangle components as analytic Solid roots.
std::vector< NodeId >	occtl::mesh::make_cylinder_component_solids (Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Rebuild all cylinder-like triangle components as analytic Solid roots with default tolerance.
NodeId	occtl::mesh::make_plane_component_face (Graph &theGraph, const TrianglePlaneComponentsOptions &theOptions, const uint32_t theComponentId)
	Rebuild one plane-like triangle component as a planar Face root.
NodeId	occtl::mesh::make_plane_component_face (Graph &theGraph, const uint32_t theComponentId, const NodeId theRoot=NodeId::invalid())
	Rebuild one plane-like triangle component as a planar Face root with default tolerance.
std::vector< NodeId >	occtl::mesh::make_plane_component_faces (Graph &theGraph, const TrianglePlaneComponentsOptions &theOptions)
	Rebuild all plane-like triangle components as planar Face roots.
std::vector< NodeId >	occtl::mesh::make_plane_component_faces (Graph &theGraph, const NodeId theRoot=NodeId::invalid())
	Rebuild all plane-like triangle components as planar Face roots with default tolerance.

Detailed Description

C++ veneer for the mesh module.

Provides idiomatic options, borrowed span views, and mesh generation helpers. Failures translate to occtl::Error via check().
