OCCT-Light: Types shared by 3D and 2D curve APIs. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"

Include dependency graph for occtl_curves_common.h:

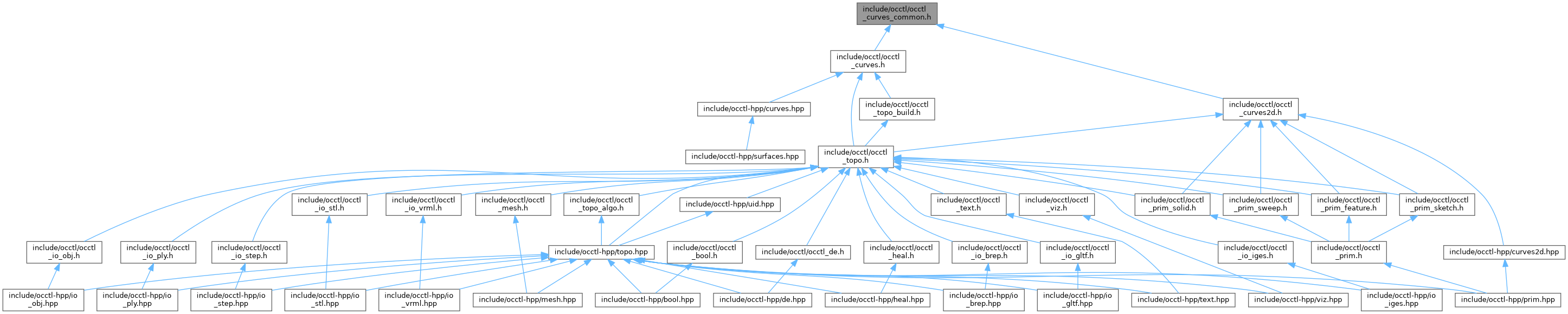

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_curve_trimmed_create_info

struct	occtl_curve_bezier_segments_options

Macros
#define	OCCTL_CURVE_TRIMMED_CREATE_INFO_VERSION_1 1u

#define	OCCTL_CURVE_TRIMMED_CREATE_INFO_INIT {OCCTL_CURVE_TRIMMED_CREATE_INFO_VERSION_1, NULL, {0}, 0.0, 1.0, 1}

#define	OCCTL_CURVE_BEZIER_SEGMENTS_OPTIONS_VERSION_1 1u

#define	OCCTL_CURVE_BEZIER_SEGMENTS_OPTIONS_INIT {OCCTL_CURVE_BEZIER_SEGMENTS_OPTIONS_VERSION_1, NULL, 0, 0.0, 0.0, 1.0e-9}

Typedefs
typedef enum occtl_curve_kind	occtl_curve_kind_t

typedef enum occtl_curve2d_tangency_qualifier	occtl_curve2d_tangency_qualifier_t

typedef struct occtl_curve_trimmed_create_info	occtl_curve_trimmed_create_info_t

typedef struct occtl_curve_bezier_segments_options	occtl_curve_bezier_segments_options_t

Enumerations
enum	occtl_curve_kind { OCCTL_CURVE_KIND_LINE = 0 , OCCTL_CURVE_KIND_CIRCLE = 1 , OCCTL_CURVE_KIND_ELLIPSE = 2 , OCCTL_CURVE_KIND_HYPERBOLA = 3 , OCCTL_CURVE_KIND_PARABOLA = 4 , OCCTL_CURVE_KIND_BSPLINE = 5 , OCCTL_CURVE_KIND_BEZIER = 6 , OCCTL_CURVE_KIND_TRIMMED = 7 , OCCTL_CURVE_KIND_OFFSET = 8 , OCCTL_CURVE_KIND_UNDEFINED = 9 , OCCTL_CURVE_KIND_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_curve2d_tangency_qualifier { OCCTL_GEOM_TANGENCY_UNQUALIFIED = 0 , OCCTL_GEOM_TANGENCY_ENCLOSING = 1 , OCCTL_GEOM_TANGENCY_ENCLOSED = 2 , OCCTL_GEOM_TANGENCY_OUTSIDE = 3 , OCCTL_GEOM_TANGENCY_NO_QUALIFIER = 4 , OCCTL_GEOM_TANGENCY_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_curve_trimmed_create_info_init (occtl_curve_trimmed_create_info_t *info)

void	occtl_curve_bezier_segments_options_init (occtl_curve_bezier_segments_options_t *options)

Detailed Description

OCCT-Light: Types shared by 3D and 2D curve APIs.

Defines enums and create-info structs that apply to both 3D and 2D curve representations. Individual curve headers (§occtl_curves.h, §occtl_curves2d.h) include this common foundation plus their dimension- specific types and functions.

Typedef Documentation

◆ occtl_curve2d_tangency_qualifier_t

typedef enum occtl_curve2d_tangency_qualifier occtl_curve2d_tangency_qualifier_t

Qualifies which side relation a tangent-circle solution must have with an input 2D curve.

These values mirror OCCT's GccEnt_Position without exposing OCCT types in the C ABI. For line inputs, only UNQUALIFIED, ENCLOSED, and OUTSIDE are meaningful to OCCT.

◆ occtl_curve_bezier_segments_options_t

typedef struct occtl_curve_bezier_segments_options occtl_curve_bezier_segments_options_t

Options for decomposing a curve into adjacent Bezier segments.

Shared by occtl_curve_to_bezier_segments and occtl_curve2d_to_bezier_segments.

◆ occtl_curve_kind_t

typedef enum occtl_curve_kind occtl_curve_kind_t

Discriminates the underlying geometry of a curve representation (3D or 2D). Values are stable; new kinds are appended before OCCTL_CURVE_KIND_RESERVED_FUTURE.

◆ occtl_curve_trimmed_create_info_t

typedef struct occtl_curve_trimmed_create_info occtl_curve_trimmed_create_info_t

Versioned create-info struct for a trimmed curve (3D or 2D).

The constructor makes an internal deep copy of the basis curve; basis may be freed after the call returns.

Enumeration Type Documentation

◆ occtl_curve2d_tangency_qualifier

enum occtl_curve2d_tangency_qualifier

Qualifies which side relation a tangent-circle solution must have with an input 2D curve.

These values mirror OCCT's GccEnt_Position without exposing OCCT types in the C ABI. For line inputs, only UNQUALIFIED, ENCLOSED, and OUTSIDE are meaningful to OCCT.

Enumerator
OCCTL_GEOM_TANGENCY_UNQUALIFIED	Accept every valid tangent solution.
OCCTL_GEOM_TANGENCY_ENCLOSING	Solution encloses the input curve.
OCCTL_GEOM_TANGENCY_ENCLOSED	Solution is enclosed by the input curve.
OCCTL_GEOM_TANGENCY_OUTSIDE	Solution and input are mutually external.
OCCTL_GEOM_TANGENCY_NO_QUALIFIER	Returned metadata only; invalid as input.

◆ occtl_curve_kind

enum occtl_curve_kind

Discriminates the underlying geometry of a curve representation (3D or 2D). Values are stable; new kinds are appended before OCCTL_CURVE_KIND_RESERVED_FUTURE.

Enumerator
OCCTL_CURVE_KIND_LINE	Straight line.
OCCTL_CURVE_KIND_CIRCLE	Full circle.
OCCTL_CURVE_KIND_ELLIPSE	Ellipse.
OCCTL_CURVE_KIND_HYPERBOLA	Hyperbola.
OCCTL_CURVE_KIND_PARABOLA	Parabola.
OCCTL_CURVE_KIND_BSPLINE	B-spline curve.
OCCTL_CURVE_KIND_BEZIER	Bezier curve.
OCCTL_CURVE_KIND_TRIMMED	Bounded section of a basis curve.
OCCTL_CURVE_KIND_OFFSET	Offset of a basis curve.
OCCTL_CURVE_KIND_UNDEFINED	Unknown or unrecognised subtype.

Function Documentation

◆ occtl_curve_bezier_segments_options_init()

void occtl_curve_bezier_segments_options_init ( occtl_curve_bezier_segments_options_t * options )

Runtime initialiser for occtl_curve_bezier_segments_options_t.

Parameters

[out] options Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_curve_to_bezier_segments, occtl_curve2d_to_bezier_segments

◆ occtl_curve_trimmed_create_info_init()

void occtl_curve_trimmed_create_info_init ( occtl_curve_trimmed_create_info_t * info )

Runtime initialiser for occtl_curve_trimmed_create_info_t.
