occtl_mesh_triangle_cylinder_component Struct Reference

#include <occtl_mesh.h>

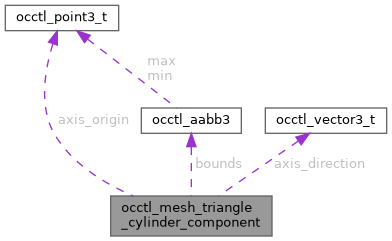

Collaboration diagram for occtl_mesh_triangle_cylinder_component:

Public Attributes
uint32_t	component_id
uint32_t	triangle_count
double	area
occtl_point3_t	axis_origin
occtl_vector3_t	axis_direction
double	radius
double	height_min
double	height_max
occtl_aabb3_t	bounds
double	max_distance

Detailed Description

Cylinder-like normal-connected triangle component.

The cylinder axis passes through axis_origin in unit direction axis_direction. height_min and height_max are the minimum and maximum vertex projections along that axis relative to axis_origin. max_distance is the largest absolute radial residual among all component triangle vertices.

Member Data Documentation

area

double occtl_mesh_triangle_cylinder_component::area

Total component area.

axis_direction

occtl_vector3_t occtl_mesh_triangle_cylinder_component::axis_direction

Unit fitted cylinder axis direction.

axis_origin

occtl_point3_t occtl_mesh_triangle_cylinder_component::axis_origin

Point on the fitted cylinder axis.

bounds

occtl_aabb3_t occtl_mesh_triangle_cylinder_component::bounds

Axis-aligned bounds of all component triangle vertices.

component_id

uint32_t occtl_mesh_triangle_cylinder_component::component_id

Source normal-connected component ID.

height_max

double occtl_mesh_triangle_cylinder_component::height_max

Maximum vertex projection on axis.

height_min

double occtl_mesh_triangle_cylinder_component::height_min

Minimum vertex projection on axis.

max_distance

double occtl_mesh_triangle_cylinder_component::max_distance

Maximum absolute radial residual.

radius

double occtl_mesh_triangle_cylinder_component::radius

Fitted cylinder radius.

triangle_count

uint32_t occtl_mesh_triangle_cylinder_component::triangle_count

Number of triangles in this component.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_mesh.h
