occtl_mesh_triangle_plane_component Struct Reference

#include <occtl_mesh.h>

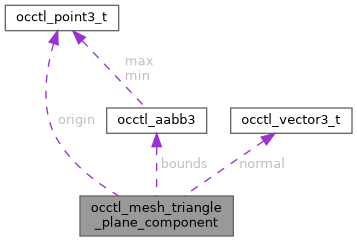

Collaboration diagram for occtl_mesh_triangle_plane_component:

Public Attributes
uint32_t	component_id
uint32_t	triangle_count
double	area
occtl_point3_t	origin
occtl_vector3_t	normal
occtl_aabb3_t	bounds
double	max_distance

Detailed Description

Plane-like normal-connected triangle component.

The plane passes through origin with unit normal. max_distance is the largest absolute OCCT plane distance among all component triangle vertices.

Member Data Documentation

area

double occtl_mesh_triangle_plane_component::area

Total component area.

bounds

occtl_aabb3_t occtl_mesh_triangle_plane_component::bounds

Axis-aligned bounds of all component triangle vertices.

component_id

uint32_t occtl_mesh_triangle_plane_component::component_id

Source normal-connected component ID.

max_distance

double occtl_mesh_triangle_plane_component::max_distance

Maximum vertex distance to the fitted plane.

normal

occtl_vector3_t occtl_mesh_triangle_plane_component::normal

Unit plane normal.

origin

occtl_point3_t occtl_mesh_triangle_plane_component::origin

Plane origin, equal to component centroid.

triangle_count

uint32_t occtl_mesh_triangle_plane_component::triangle_count

Number of triangles in this component.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_mesh.h
