C++ veneer for IGES I/O. More...

#include <occtl/occtl_io_iges.h>
#include <occtl-hpp/core.hpp>
#include <occtl-hpp/topo.hpp>
#include <cstddef>
#include <cstdint>
#include <string>
#include <utility>
#include <vector>

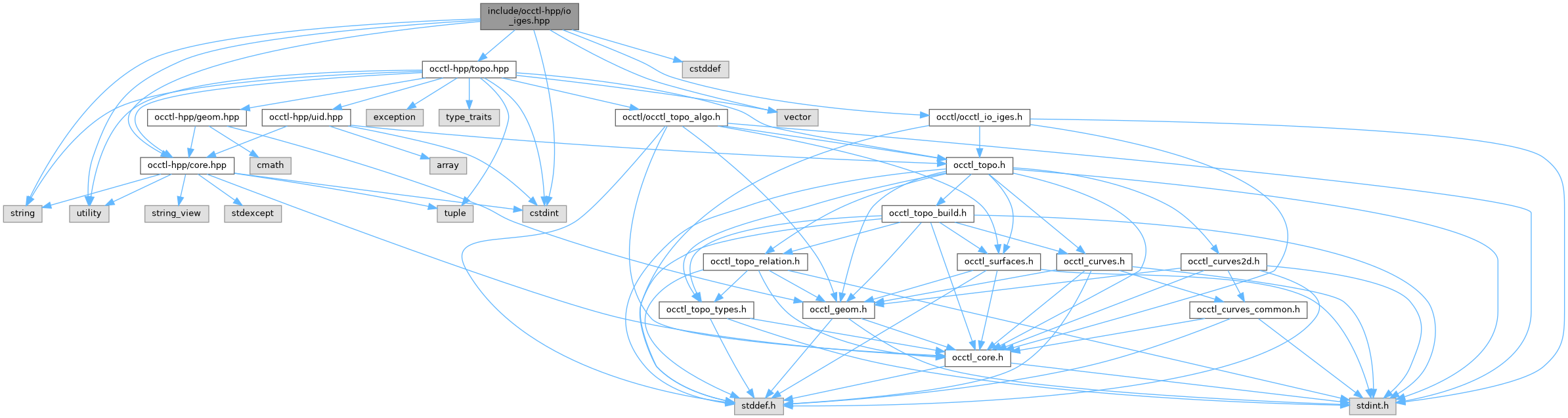

Include dependency graph for io_iges.hpp:

Go to the source code of this file.

Classes
struct	occtl::io_iges::ReadOptions
	Options for read. PascalCase mirror of `occtl_io_iges_read_options_t`. More...

struct	occtl::io_iges::WriteOptions
	Options for write. PascalCase mirror of `occtl_io_iges_write_options_t`. More...

Functions
std::pair< Graph, NodeId >	occtl::io_iges::read (const std::string &thePath, const ReadOptions &theOptions=ReadOptions{})
	Reads an IGES file into a fresh graph and returns (graph, root).

void	occtl::io_iges::write (const Graph &theGraph, const NodeId theRoot, const std::string &thePath, const WriteOptions &theOptions=WriteOptions{})
	Writes the topology rooted at `theRoot` to an IGES file.

Detailed Description

C++ veneer for IGES I/O.

Function Documentation

◆ read()

std::pair< Graph, NodeId > occtl::io_iges::read	(	const std::string &	thePath,
		const ReadOptions &	theOptions = `ReadOptions{}`
	)

inline

Reads an IGES file into a fresh graph and returns (graph, root).

Exceptions

Error on failure.

◆ write()

void occtl::io_iges::write	(	const Graph &	theGraph,
		const NodeId	theRoot,
		const std::string &	thePath,
		const WriteOptions &	theOptions = `WriteOptions{}`
	)
