occtl_io_iges.h File Reference

OCCT-Light: IGES file I/O (US PRO/IP 100 / ANSI). More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

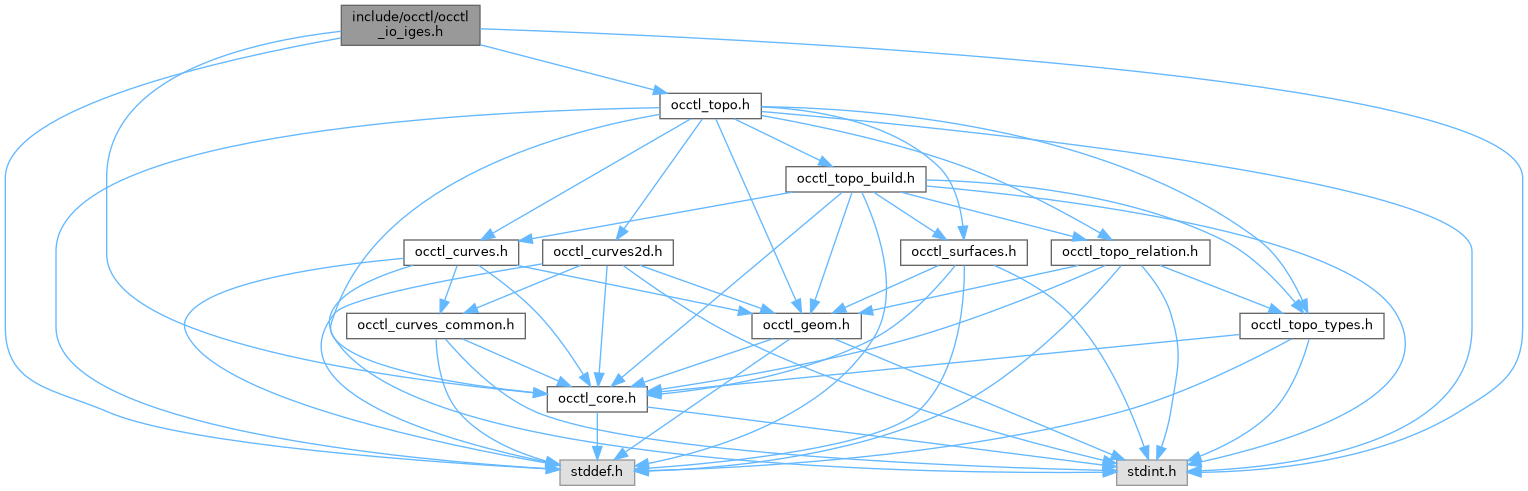

Include dependency graph for occtl_io_iges.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_io_iges_read_options
struct	occtl_io_iges_write_options

Macros
#define	OCCTL_IO_IGES_READ_OPTIONS_VERSION_1   1u
#define	OCCTL_IO_IGES_WRITE_OPTIONS_VERSION_1   1u
#define	OCCTL_IO_IGES_READ_OPTIONS_INIT   {OCCTL_IO_IGES_READ_OPTIONS_VERSION_1, NULL, 1, 1}
#define	OCCTL_IO_IGES_WRITE_OPTIONS_INIT   {OCCTL_IO_IGES_WRITE_OPTIONS_VERSION_1, NULL, 0}

Typedefs
typedef struct occtl_io_iges_read_options	occtl_io_iges_read_options_t
typedef struct occtl_io_iges_write_options	occtl_io_iges_write_options_t

Functions
void	occtl_io_iges_read_options_init (occtl_io_iges_read_options_t *options)
void	occtl_io_iges_write_options_init (occtl_io_iges_write_options_t *options)
occtl_status_t	occtl_io_iges_read (const char *path, occtl_graph_t **out_graph, occtl_node_id_t *out_root, const occtl_io_iges_read_options_t *options)
occtl_status_t	occtl_io_iges_write (const occtl_graph_t *graph, occtl_node_id_t root, const char *path, const occtl_io_iges_write_options_t *options)

Detailed Description

OCCT-Light: IGES file I/O (US PRO/IP 100 / ANSI).

Reads and writes IGES 5.3 files via OCCT's DEIGES_Provider / DEIGES_ConfigurationNode. OCAF is linked privately and never reaches the public surface.

UIDs are not preserved across the round-trip — the IGES file format has no UID slot. Use occtl_uid_to_bytes / occtl_uid_from_bytes for an out-of-band UID handshake if persistent identity is required.

Typedef Documentation

occtl_io_iges_read_options_t

typedef struct occtl_io_iges_read_options occtl_io_iges_read_options_t

Options for occtl_io_iges_read. Pass NULL for defaults.

occtl_io_iges_write_options_t

typedef struct occtl_io_iges_write_options occtl_io_iges_write_options_t

Options for occtl_io_iges_write. Pass NULL for defaults (faces-only output).

Function Documentation

occtl_io_iges_read()

occtl_status_t occtl_io_iges_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_iges_read_options_t *	options
	)

Reads an IGES file and ingests it into a freshly-created graph.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file. Must be non-NULL.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	path, out_graph, or out_root is NULL.
OCCTL_VERSION_MISMATCH	options has an unsupported struct_version.
OCCTL_IO_ERROR	File not found or unreadable.
OCCTL_FORMAT_ERROR	File contents were not a valid IGES stream.

\par Thread Safety Yes.

See also

occtl_io_iges_write, occtl_de_read

occtl_io_iges_read_options_init()

void occtl_io_iges_read_options_init

(

occtl_io_iges_read_options_t *

options

)

Initialises options to default values matching OCCTL_IO_IGES_READ_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out]

options

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_io_iges_read

occtl_io_iges_write()

occtl_status_t occtl_io_iges_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_iges_write_options_t *	options
	)

Writes the topology rooted at root to an IGES file.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or path is NULL.
OCCTL_NOT_FOUND	root is invalid or has been removed.
OCCTL_VERSION_MISMATCH	options has an unsupported struct_version.
OCCTL_IO_ERROR	Filesystem failure or unwritable file.

\par Thread Safety Yes (read-only on graph).

See also

occtl_io_iges_read, occtl_de_write

occtl_io_iges_write_options_init()

void occtl_io_iges_write_options_init

(

occtl_io_iges_write_options_t *

options

)

Initialises options to default values matching OCCTL_IO_IGES_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out]

options

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_io_iges_write
