OCCT-Light: unified data-exchange dispatch. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

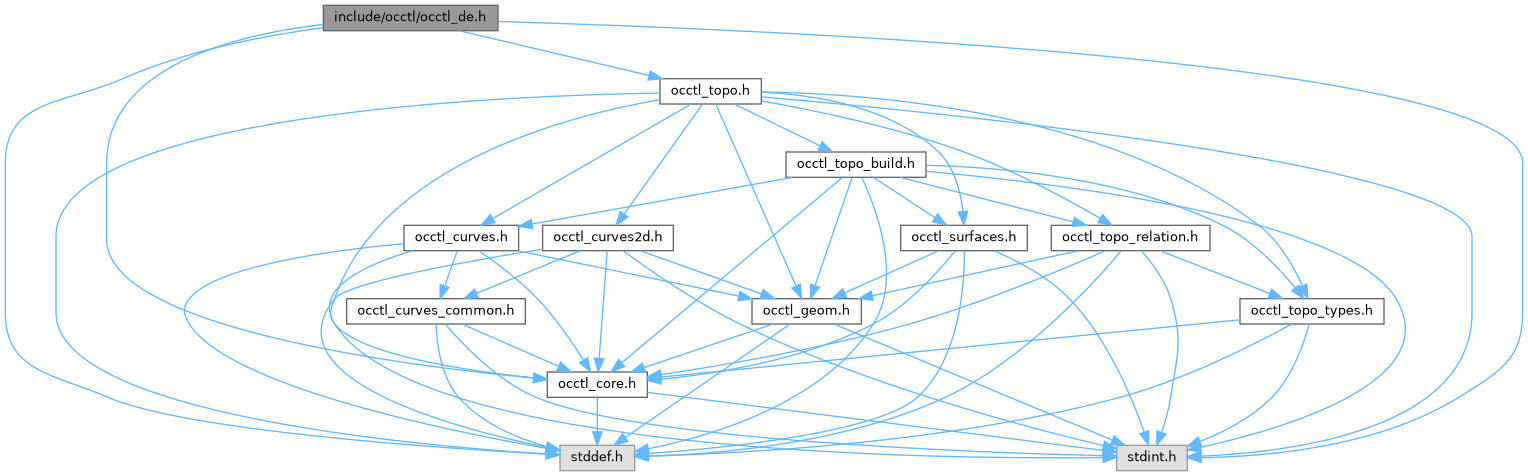

Include dependency graph for occtl_de.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_de_format_info

Macros
#define	OCCTL_DE_FORMAT_INFO_VERSION_1 1u

#define	OCCTL_DE_FORMAT_INFO_INIT {OCCTL_DE_FORMAT_INFO_VERSION_1, NULL, NULL, NULL, 0, 0, 0, 0, 0}

Typedefs
typedef struct occtl_de_format_info	occtl_de_format_info_t

Functions
void	occtl_de_format_info_init (occtl_de_format_info_t *info)

occtl_status_t	occtl_de_read (const char path, occtl_graph_t out_graph, occtl_node_id_t out_root)

occtl_status_t	occtl_de_read_memory (const char format_id, const uint8_t data, size_t size, occtl_graph_t *out_graph, occtl_node_id_t out_root)

occtl_status_t	occtl_de_write (const occtl_graph_t graph, occtl_node_id_t root, const char path)

occtl_status_t	occtl_de_write_memory (const occtl_graph_t graph, occtl_node_id_t root, const char format_id, uint8_t out_data, size_t capacity, size_t out_size)

occtl_status_t	occtl_de_format_ids (const char *out_format_ids, size_t cap, size_t out_count)

occtl_status_t	occtl_de_format_count (size_t *out_count)

occtl_status_t	occtl_de_format_info_at (size_t index, occtl_de_format_info_t *out_info)

occtl_status_t	occtl_de_format_info_by_id (const char format_id, occtl_de_format_info_t out_info)

occtl_status_t	occtl_de_format_extensions (const char format_id, const char out_extensions, size_t cap, size_t out_count)

occtl_status_t	occtl_de_format_id_from_path (const char path, const char *out_format_id)

Detailed Description

OCCT-Light: unified data-exchange dispatch.

Mirrors OCCT's DE_Wrapper. Reads / writes a file by routing based on path extension to whichever io_* module is enabled at link time. When no io_* module is enabled this module compiles but every operation returns OCCTL_UNSUPPORTED.

Format ids are stable lowercase tokens: "brep", "step", "iges", "stl", "obj", and "gltf" when the matching io_* modules are enabled.

Macro Definition Documentation

◆ OCCTL_DE_FORMAT_INFO_INIT

#define OCCTL_DE_FORMAT_INFO_INIT {OCCTL_DE_FORMAT_INFO_VERSION_1, NULL, NULL, NULL, 0, 0, 0, 0, 0}

Static initializer for occtl_de_format_info_t.

Typedef Documentation

◆ occtl_de_format_info_t

typedef struct occtl_de_format_info occtl_de_format_info_t

Borrowed description of one supported data-exchange format.

String fields are library-owned and remain valid for the process lifetime. Producers set struct_version to OCCTL_DE_FORMAT_INFO_VERSION_1 and p_next to NULL.

\par Thread Safety Yes.

See also: occtl_de_format_info_at, occtl_de_format_info_by_id

Function Documentation

◆ occtl_de_format_count()

occtl_status_t occtl_de_format_count ( size_t * out_count )

Returns the number of supported format descriptors.

Parameters

[out] out_count Borrows it. Receives the supported-format count.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	`out_count` is NULL.

\par Thread Safety Yes.

See also: occtl_de_format_info_at

◆ occtl_de_format_extensions()

occtl_status_t occtl_de_format_extensions	(	const char *	format_id,
		const char **	out_extensions,
		size_t	cap,
		size_t *	out_count
	)

Enumerates the lowercase extensions for a supported format id.

Extensions include the leading dot. Two-call buffer: pass out_extensions as NULL with cap=0 to size. Returned strings are library-owned and remain valid for the process lifetime.

Parameters

[in]	format_id	Borrows it. Stable lowercase format id.
[out]	out_extensions	Borrows it. Length `cap`; may be NULL.
[in]	cap	Capacity of `out_extensions`.
[out]	out_count	Borrows it. Receives the extension count.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	`format_id` or `out_count` is NULL.
OCCTL_NOT_FOUND	`format_id` is not supported by this build.
OCCTL_BUFFER_TOO_SMALL	`cap` < `out_count` and `out_extensions` is non-NULL.

\par Thread Safety Yes.

See also: occtl_de_format_info_by_id

◆ occtl_de_format_id_from_path()

occtl_status_t occtl_de_format_id_from_path	(	const char *	path,
		const char **	out_format_id
	)

Returns the format id for path.

The returned string is library-owned (one of the static tokens enumerated by occtl_de_format_ids) and never needs freeing.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path. Must be non-NULL.
[out]	out_format_id	Borrows it (caller-allocated slot). Receives a borrowed format id, or NULL when no extension matches. Must be non-NULL.

Return values

OCCTL_OK	On success. `out_format_id` may receive NULL.
OCCTL_INVALID_ARGUMENT	`path` or `out_format_id` is NULL.

\par Thread Safety Yes.

See also: occtl_de_format_ids

◆ occtl_de_format_ids()

occtl_status_t occtl_de_format_ids	(	const char **	out_format_ids,
		size_t	cap,
		size_t *	out_count
	)

Enumerates the stable lowercase format ids the build supports.

Two-call buffer: pass out_format_ids as NULL with cap=0 to size. The returned strings are library-owned and remain valid for the process lifetime.

Parameters

[out]	out_format_ids	Borrows it. Length `cap`; may be NULL.
[in]	cap	Capacity of `out_format_ids`.
[out]	out_count	Borrows it. Receives the supported-format count.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	`out_count` is NULL.
OCCTL_BUFFER_TOO_SMALL	`cap` < `out_count` and out_format_ids non-NULL.

\par Thread Safety Yes.

See also: occtl_de_format_id_from_path

◆ occtl_de_format_info_at()

occtl_status_t occtl_de_format_info_at	(	size_t	index,
		occtl_de_format_info_t *	out_info
	)

Returns metadata for the index-th supported format.

Parameters

[in]	index	Zero-based format index.
[out]	out_info	Borrows it. Receives borrowed static strings and writes OCCTL_DE_FORMAT_INFO_VERSION_1 to `out_info->struct_version`.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	`out_info` is NULL.
OCCTL_OUT_OF_RANGE	`index` is not a supported format index.

\par Thread Safety Yes.

See also: occtl_de_format_count, occtl_de_format_info_by_id

◆ occtl_de_format_info_by_id()

occtl_status_t occtl_de_format_info_by_id	(	const char *	format_id,
		occtl_de_format_info_t *	out_info
	)

Returns metadata for a supported format id.

Parameters

[in]	format_id	Borrows it. Stable lowercase format id.
[out]	out_info	Borrows it. Receives borrowed static strings and writes OCCTL_DE_FORMAT_INFO_VERSION_1 to `out_info->struct_version`.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	`format_id` or `out_info` is NULL.
OCCTL_NOT_FOUND	`format_id` is not supported by this build.

\par Thread Safety Yes.

See also: occtl_de_format_ids

◆ occtl_de_format_info_init()

void occtl_de_format_info_init ( occtl_de_format_info_t * info )

Runtime initialiser for occtl_de_format_info_t.

Sets all fields to OCCTL_DE_FORMAT_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_de_format_info_at, occtl_de_format_info_by_id

◆ occtl_de_read()

occtl_status_t occtl_de_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Reads a file and ingests it into a freshly-created graph.

Format is dispatched by extension. When the format is recognised but the matching io_* module is not linked, returns OCCTL_UNSUPPORTED.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path.
[out]	out_graph	Owns it. Receives a new graph on success.
[out]	out_root	Borrows it. Receives the NodeId of the root.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL.
OCCTL_UNSUPPORTED	Format unknown or matching module not linked.
OCCTL_IO_ERROR	Filesystem failure.
OCCTL_FORMAT_ERROR	File contents malformed.

\par Thread Safety Yes.

See also: occtl_de_write

◆ occtl_de_read_memory()

occtl_status_t occtl_de_read_memory	(	const char *	format_id,
		const uint8_t *	data,
		size_t	size,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Reads a memory payload and ingests it into a freshly-created graph.

Format is selected by explicit stable format id instead of a path extension. The dispatch still uses OCCT's data-exchange providers internally, so format support matches occtl_de_format_ids.

Parameters

[in]	format_id	Borrows it. Stable lowercase format id.
[in]	data	Borrows it. Readable byte buffer containing provider-native data for `format_id`.
[in]	size	Number of bytes available at `data`. Must be > 0.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`format_id`, `data`, `out_graph`, or `out_root` is NULL, or `size` is zero.
OCCTL_UNSUPPORTED	Format unknown or not readable in this build.
OCCTL_IO_ERROR	Temporary stream or provider failure.
OCCTL_FORMAT_ERROR	Payload contents malformed.
OCCTL_TOPOLOGY_INVALID	Payload decoded but could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also: occtl_de_write_memory, occtl_de_read

◆ occtl_de_write()

occtl_status_t occtl_de_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path
	)

Writes the topology rooted at root to a file, dispatched by extension.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id.
[in]	path	Borrows it. NUL-terminated UTF-8 path; overwritten if exists.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `path` is NULL.
OCCTL_UNSUPPORTED	Format unknown or matching module not linked.
OCCTL_NOT_FOUND	`root` is invalid or removed.
OCCTL_IO_ERROR	Filesystem failure.

\par Thread Safety Yes (read-only on graph).

See also: occtl_de_read

◆ occtl_de_write_memory()

occtl_status_t occtl_de_write_memory	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	format_id,
		uint8_t *	out_data,
		size_t	capacity,
		size_t *	out_size
	)

Writes the topology rooted at root to caller-owned memory.

Format is selected by explicit stable format id. Two-call buffer pattern: call with out_data == NULL and capacity == 0 to learn the required byte count in out_size, allocate a buffer, then call again with capacity at least out_size.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	format_id	Borrows it. Stable lowercase format id.
[out]	out_data	Borrows it. Writable output buffer, or NULL for sizing.
[in]	capacity	Size of `out_data` in bytes.
[out]	out_size	Borrows it. Receives the required byte count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `format_id`, or `out_size` is NULL.
OCCTL_UNSUPPORTED	Format unknown or not writable in this build.
OCCTL_NOT_FOUND	`root` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_data` is non-NULL and `capacity` is smaller than `out_size`.
OCCTL_IO_ERROR	Temporary stream or provider failure.

\par Thread Safety Yes (read-only on graph).

See also: occtl_de_read_memory, occtl_de_write
