occtl_topo_types.h File Reference

OCCT-Light: Core topology identity types. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"

Include dependency graph for occtl_topo_types.h:

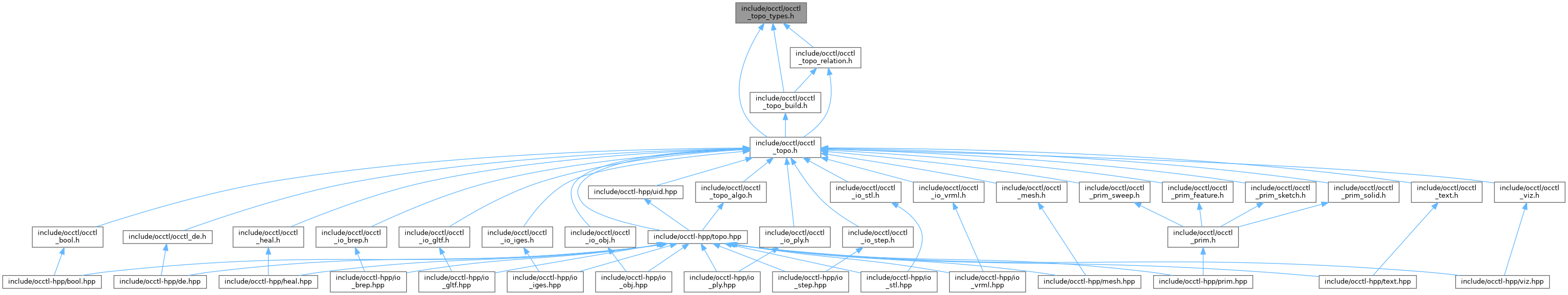

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_node_id
struct	occtl_ref_id
struct	occtl_ref_uid
struct	occtl_rep_uid
struct	occtl_joint_id

Macros
#define	OCCTL_REF_UID_WIRE_SIZE   OCCTL_UID_WIRE_SIZE
#define	OCCTL_REP_UID_WIRE_SIZE   OCCTL_UID_WIRE_SIZE
#define	OCCTL_NODE_ID_INVALID   ((occtl_node_id_t){0})
#define	OCCTL_REF_ID_INVALID   ((occtl_ref_id_t){0})
#define	OCCTL_REF_UID_INVALID   ((occtl_ref_uid_t){0})
#define	OCCTL_REP_UID_INVALID   ((occtl_rep_uid_t){0})
#define	OCCTL_JOINT_ID_INVALID   ((occtl_joint_id_t){0})

Typedefs
typedef struct occtl_node_id	occtl_node_id_t
typedef struct occtl_ref_id	occtl_ref_id_t
typedef struct occtl_ref_uid	occtl_ref_uid_t
typedef struct occtl_rep_uid	occtl_rep_uid_t
typedef struct occtl_joint_id	occtl_joint_id_t
typedef struct occtl_graph	occtl_graph_t

Detailed Description

OCCT-Light: Core topology identity types.

Defines the fundamental topology identity types used throughout the topo module and its sub-headers: occtl_node_id_t, occtl_ref_id_t, occtl_ref_uid_t, occtl_rep_uid_t, occtl_joint_id_t, occtl_graph_t, and their associated sentinel macros and wire-format constants.

Macro Definition Documentation

OCCTL_NODE_ID_INVALID

#define OCCTL_NODE_ID_INVALID   ((occtl_node_id_t){0})

Invalid sentinels for the four ID types.

Defined as C99 compound literals in C and as C++ braced initialisers in C++; this keeps the macros usable on MSVC and pedantic C++ modes without changing their value.

OCCTL_REF_UID_WIRE_SIZE

#define OCCTL_REF_UID_WIRE_SIZE   OCCTL_UID_WIRE_SIZE

Number of bytes in the wire-format encoding of an occtl_ref_uid_t.

The encoding has the same size and reserved-byte policy as OCCTL_UID_WIRE_SIZE: the top 8 bytes carry the current packed RefUID in big-endian order, and the bottom 8 bytes are reserved zero bytes.

OCCTL_REP_UID_WIRE_SIZE

#define OCCTL_REP_UID_WIRE_SIZE   OCCTL_UID_WIRE_SIZE

Number of bytes in the wire-format encoding of an occtl_rep_uid_t.

The encoding has the same size and reserved-byte policy as OCCTL_UID_WIRE_SIZE: the top 8 bytes carry the current packed RepUID in big-endian order, and the bottom 8 bytes are reserved zero bytes.

Typedef Documentation

occtl_graph_t

typedef struct occtl_graph occtl_graph_t

Opaque handle to a topology graph.

Created by occtl_graph_create and released by occtl_graph_free. Not thread-safe for concurrent mutation; concurrent reads on distinct graphs are safe.

occtl_joint_id_t

typedef struct occtl_joint_id occtl_joint_id_t

Session-local identity of an assembly joint record.

Joint IDs are scoped to one graph. The all-zero value (OCCTL_JOINT_ID_INVALID) is the invalid sentinel.

occtl_node_id_t

typedef struct occtl_node_id occtl_node_id_t

Session-local identity of a graph node.

Invalidated by graph compaction (introduced in a later phase). For persistent identity use occtl_uid_t. The all-zero value (OCCTL_NODE_ID_INVALID) is the invalid sentinel — check with id.bits == 0.

To query the kind of a node ID, call occtl_graph_node_kind.

occtl_ref_id_t

typedef struct occtl_ref_id occtl_ref_id_t

Session-local identity of a reference entry in the graph.

Invalidated by graph compaction together with node IDs. The all-zero value (OCCTL_REF_ID_INVALID) is the invalid sentinel.

occtl_ref_uid_t

typedef struct occtl_ref_uid occtl_ref_uid_t

Persistent identity of a reference entry in the graph.

RefUIDs survive graph compaction and can be resolved back to the current occtl_ref_id_t while the reference is active. They identify reference entries such as shell/face/wire/coedge refs and assembly occurrence refs; for topology nodes use occtl_uid_t instead.

The all-zero value (OCCTL_REF_UID_INVALID) is the invalid sentinel.

occtl_rep_uid_t

typedef struct occtl_rep_uid occtl_rep_uid_t

Persistent identity of a representation entry in the graph.

RepUIDs survive graph compaction and can be resolved back to the current occtl_rep_id_t while the representation is active. They identify geometry and mesh representation entries such as surfaces, curves, triangulations, and polygons; for topology nodes use occtl_uid_t instead.

The all-zero value (OCCTL_REP_UID_INVALID) is the invalid sentinel.
