OCCT-Light: analytic primitive solid construction API. More...

#include "occtl_core.h"
#include "occtl_curves2d.h"
#include "occtl_geom.h"
#include "occtl_surfaces.h"
#include "occtl_topo.h"

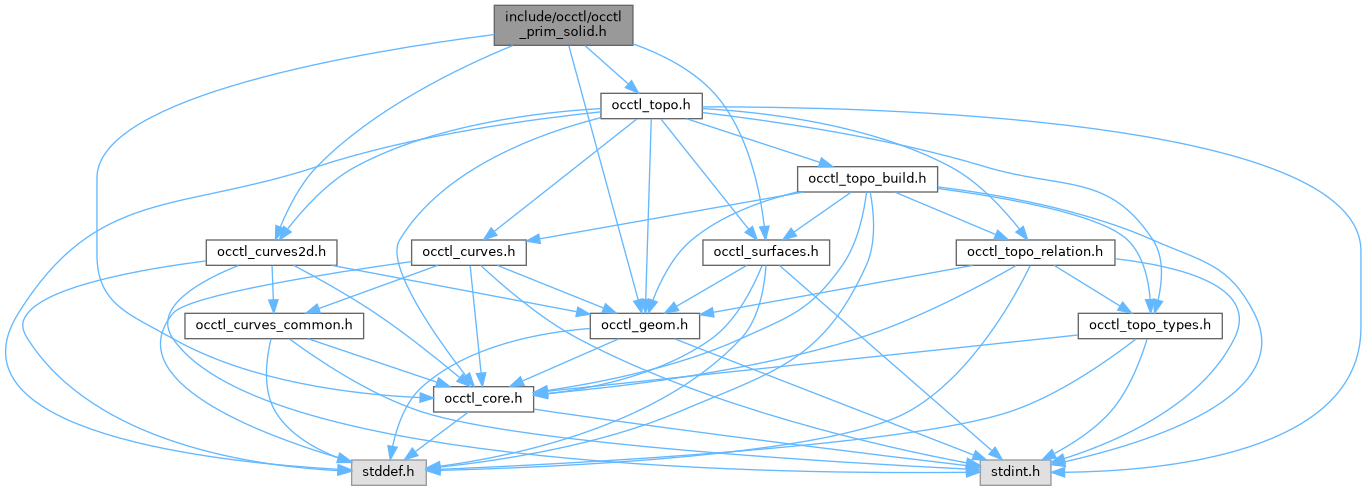

Include dependency graph for occtl_prim_solid.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_prim_box_info

struct	occtl_prim_sphere_info

struct	occtl_prim_cylinder_info

struct	occtl_prim_cone_info

struct	occtl_prim_torus_info

struct	occtl_prim_wedge_info

struct	occtl_prim_halfspace_info

Macros
#define	OCCTL_PRIM_BOX_INFO_VERSION_1 1u

#define	OCCTL_PRIM_BOX_INFO_INIT

#define	OCCTL_PRIM_SPHERE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_SPHERE_INFO_INIT

#define	OCCTL_PRIM_CYLINDER_INFO_VERSION_1 1u

#define	OCCTL_PRIM_CYLINDER_INFO_INIT

#define	OCCTL_PRIM_CONE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_CONE_INFO_INIT

#define	OCCTL_PRIM_TORUS_INFO_VERSION_1 1u

#define	OCCTL_PRIM_TORUS_INFO_INIT

#define	OCCTL_PRIM_WEDGE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_WEDGE_INFO_INIT

#define	OCCTL_PRIM_HALFSPACE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_HALFSPACE_INFO_INIT {OCCTL_PRIM_HALFSPACE_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, {0.0, 0.0, 0.0}}

Typedefs
typedef struct occtl_prim_box_info	occtl_prim_box_info_t

typedef struct occtl_prim_sphere_info	occtl_prim_sphere_info_t

typedef struct occtl_prim_cylinder_info	occtl_prim_cylinder_info_t

typedef struct occtl_prim_cone_info	occtl_prim_cone_info_t

typedef struct occtl_prim_torus_info	occtl_prim_torus_info_t

typedef struct occtl_prim_wedge_info	occtl_prim_wedge_info_t

typedef struct occtl_prim_halfspace_info	occtl_prim_halfspace_info_t

Functions
void	occtl_prim_box_info_init (occtl_prim_box_info_t *info)

occtl_status_t	occtl_prim_make_box (occtl_graph_t graph, const occtl_prim_box_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_sphere_info_init (occtl_prim_sphere_info_t *info)

occtl_status_t	occtl_prim_make_sphere (occtl_graph_t graph, const occtl_prim_sphere_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_cylinder_info_init (occtl_prim_cylinder_info_t *info)

occtl_status_t	occtl_prim_make_cylinder (occtl_graph_t graph, const occtl_prim_cylinder_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_cone_info_init (occtl_prim_cone_info_t *info)

occtl_status_t	occtl_prim_make_cone (occtl_graph_t graph, const occtl_prim_cone_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_torus_info_init (occtl_prim_torus_info_t *info)

occtl_status_t	occtl_prim_make_torus (occtl_graph_t graph, const occtl_prim_torus_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_wedge_info_init (occtl_prim_wedge_info_t *info)

occtl_status_t	occtl_prim_make_wedge (occtl_graph_t graph, const occtl_prim_wedge_info_t info, occtl_node_id_t *out_solid)

void	occtl_prim_halfspace_info_init (occtl_prim_halfspace_info_t *info)

occtl_status_t	occtl_prim_make_halfspace (occtl_graph_t graph, const occtl_prim_halfspace_info_t info, occtl_node_id_t *out_solid)

Detailed Description

OCCT-Light: analytic primitive solid construction API.

Macro Definition Documentation

◆ OCCTL_PRIM_BOX_INFO_INIT

#define OCCTL_PRIM_BOX_INFO_INIT

Value:

  {OCCTL_PRIM_BOX_INFO_VERSION_1,                                                                  \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0}

◆ OCCTL_PRIM_CONE_INFO_INIT

#define OCCTL_PRIM_CONE_INFO_INIT

Value:

  {OCCTL_PRIM_CONE_INFO_VERSION_1,                                                                 \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   OCCTL_TWO_PI}

◆ OCCTL_PRIM_CYLINDER_INFO_INIT

#define OCCTL_PRIM_CYLINDER_INFO_INIT

Value:

  {OCCTL_PRIM_CYLINDER_INFO_VERSION_1,                                                             \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   OCCTL_TWO_PI}

◆ OCCTL_PRIM_SPHERE_INFO_INIT

#define OCCTL_PRIM_SPHERE_INFO_INIT

Value:

  {OCCTL_PRIM_SPHERE_INFO_VERSION_1,                                                               \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   -OCCTL_PI_OVER_TWO,                                                                             \
   OCCTL_PI_OVER_TWO,                                                                              \
   OCCTL_TWO_PI}

◆ OCCTL_PRIM_TORUS_INFO_INIT

#define OCCTL_PRIM_TORUS_INFO_INIT

Value:

  {OCCTL_PRIM_TORUS_INFO_VERSION_1,                                                                \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   OCCTL_TWO_PI,                                                                                   \
   OCCTL_TWO_PI}

◆ OCCTL_PRIM_WEDGE_INFO_INIT

#define OCCTL_PRIM_WEDGE_INFO_INIT

Value:

  {OCCTL_PRIM_WEDGE_INFO_VERSION_1,                                                                \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0}

Typedef Documentation

◆ occtl_prim_box_info_t

typedef struct occtl_prim_box_info occtl_prim_box_info_t

Info for occtl_prim_make_box.

Constructs an axis-aligned parallelepiped of size dx by dy by dz with one corner at placement.location and edges aligned to the frame axes derived from placement. The default placement is the global XOY frame (origin at (0,0,0), Z up, X along +x), so casual callers can construct an axis-aligned box at the origin by editing only the three dimensions.

◆ occtl_prim_cone_info_t

typedef struct occtl_prim_cone_info occtl_prim_cone_info_t

Info for occtl_prim_make_cone.

Builds a truncated cone (frustum) of height height between two parallel circular faces of radius r1 at z = 0 and r2 at z = height, with both circles centred on the Z axis of placement. Setting one of r1 / r2 to 0 produces a sharp cone. angle < 2*pi yields a partial cone.

◆ occtl_prim_cylinder_info_t

typedef struct occtl_prim_cylinder_info occtl_prim_cylinder_info_t

Info for occtl_prim_make_cylinder.

The cylinder axis is the Z axis of placement; the base sits at placement.location and the cap at placement.location + height * Z. angle < 2*pi yields a partial cylinder.

◆ occtl_prim_halfspace_info_t

typedef struct occtl_prim_halfspace_info occtl_prim_halfspace_info_t

Info for occtl_prim_make_halfspace.

A half-space is an infinite solid bounded by one face. Given a face face from the graph and a reference point reference_point not on the face's surface, the half-space is the side of the face containing reference_point. Typical use is as a cutting tool for Booleans.

◆ occtl_prim_sphere_info_t

typedef struct occtl_prim_sphere_info occtl_prim_sphere_info_t

Info for occtl_prim_make_sphere.

A full sphere has angle1 = -pi/2, angle2 = +pi/2, and angle = 2*pi (the defaults set by OCCTL_PRIM_SPHERE_INFO_INIT). Truncating angle1 / angle2 yields a spherical segment; truncating angle yields a longitudinal wedge.

◆ occtl_prim_torus_info_t

typedef struct occtl_prim_torus_info occtl_prim_torus_info_t

Info for occtl_prim_make_torus.

r1 is the major radius (centreline of the ring); r2 is the minor radius (pipe). angle1 / angle2 trim the pipe in its v parameter (defaulting to 0 / 2*pi — a full pipe); angle trims the ring in its u parameter (defaulting to 2*pi — a full torus).

◆ occtl_prim_wedge_info_t

typedef struct occtl_prim_wedge_info occtl_prim_wedge_info_t

Info for occtl_prim_make_wedge.

Builds a STEP right-angular wedge — a box of size dx by dy by dz with the +y face shrunk in X from dx to ltx. ltx must be in [0, dx].

Function Documentation

◆ occtl_prim_box_info_init()

void occtl_prim_box_info_init ( occtl_prim_box_info_t * info )

Runtime initialiser for occtl_prim_box_info_t.

Sets all fields to OCCTL_PRIM_BOX_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_box

◆ occtl_prim_cone_info_init()

void occtl_prim_cone_info_init ( occtl_prim_cone_info_t * info )

Runtime initialiser for occtl_prim_cone_info_t.

Sets all fields to OCCTL_PRIM_CONE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_cone

◆ occtl_prim_cylinder_info_init()

void occtl_prim_cylinder_info_init ( occtl_prim_cylinder_info_t * info )

Runtime initialiser for occtl_prim_cylinder_info_t.

Sets all fields to OCCTL_PRIM_CYLINDER_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_cylinder

◆ occtl_prim_halfspace_info_init()

void occtl_prim_halfspace_info_init ( occtl_prim_halfspace_info_t * info )

Runtime initialiser for occtl_prim_halfspace_info_t.

Sets all fields to OCCTL_PRIM_HALFSPACE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_halfspace

◆ occtl_prim_make_box()

occtl_status_t occtl_prim_make_box	(	occtl_graph_t *	graph,
		const occtl_prim_box_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds an axis-aligned box solid and inserts it into graph.

The result is appended as a bare Solid root (no enclosing Product wrapper).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version` and strictly positive `dx` / `dy` / `dz`.
[out]	out_solid	Borrows it (caller-allocated slot). Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL, `p_next` is non-NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	Any dimension is non-positive or below the library's geometric precision.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No — mutates graph.

See also: occtl_prim_make_sphere, occtl_prim_make_cylinder

◆ occtl_prim_make_cone()

occtl_status_t occtl_prim_make_cone	(	occtl_graph_t *	graph,
		const occtl_prim_cone_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a cone or truncated cone solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	Inputs are degenerate (e.g. `r1` == `r2` == 0, `height` non-positive, half-angle out of range).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_cone_info_init

◆ occtl_prim_make_cylinder()

occtl_status_t occtl_prim_make_cylinder	(	occtl_graph_t *	graph,
		const occtl_prim_cylinder_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a cylinder or partial-cylinder solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL, `p_next` is non-NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	`radius` or `height` is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_cylinder_info_init

◆ occtl_prim_make_halfspace()

occtl_status_t occtl_prim_make_halfspace	(	occtl_graph_t *	graph,
		const occtl_prim_halfspace_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a half-space solid bounded by info->face on the side of info->reference_point.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL, `p_next` is non-NULL, or `reference_point` contains a non-finite component.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	`face` refers to a removed or absent node.
OCCTL_WRONG_KIND	`face` is not of kind OCCTL_KIND_FACE.
OCCTL_GEOMETRY_INVALID	Construction failed (reference point on the face surface, etc.).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_halfspace_info_init

◆ occtl_prim_make_sphere()

occtl_status_t occtl_prim_make_sphere	(	occtl_graph_t *	graph,
		const occtl_prim_sphere_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a sphere or spherical wedge solid and inserts it into graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL, `p_next` is non-NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	`radius` is non-positive or angles are outside the legal range.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_sphere_info_init, occtl_prim_make_box

◆ occtl_prim_make_torus()

occtl_status_t occtl_prim_make_torus	(	occtl_graph_t *	graph,
		const occtl_prim_torus_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a torus or torus segment solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	Radii are degenerate (`r2` >= `r1` or non-positive), or angles are outside the legal range.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_torus_info_init

◆ occtl_prim_make_wedge()

occtl_status_t occtl_prim_make_wedge	(	occtl_graph_t *	graph,
		const occtl_prim_wedge_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a right-angular wedge solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer argument is NULL.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_GEOMETRY_INVALID	Inputs are degenerate (any size non-positive, `ltx` outside [0, dx]).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_wedge_info_init

◆ occtl_prim_sphere_info_init()

void occtl_prim_sphere_info_init ( occtl_prim_sphere_info_t * info )

Runtime initialiser for occtl_prim_sphere_info_t.

Sets all fields to OCCTL_PRIM_SPHERE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_sphere

◆ occtl_prim_torus_info_init()

void occtl_prim_torus_info_init ( occtl_prim_torus_info_t * info )

Runtime initialiser for occtl_prim_torus_info_t.

Sets all fields to OCCTL_PRIM_TORUS_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_torus

◆ occtl_prim_wedge_info_init()

void occtl_prim_wedge_info_init ( occtl_prim_wedge_info_t * info )

Runtime initialiser for occtl_prim_wedge_info_t.

Sets all fields to OCCTL_PRIM_WEDGE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_wedge

Classes

Macros

Typedefs

Functions

Detailed Description

Macro Definition Documentation

◆ OCCTL_PRIM_BOX_INFO_INIT

◆ OCCTL_PRIM_CONE_INFO_INIT

◆ OCCTL_PRIM_CYLINDER_INFO_INIT

◆ OCCTL_PRIM_SPHERE_INFO_INIT

◆ OCCTL_PRIM_TORUS_INFO_INIT

◆ OCCTL_PRIM_WEDGE_INFO_INIT

Typedef Documentation

◆ occtl_prim_box_info_t

◆ occtl_prim_cone_info_t

◆ occtl_prim_cylinder_info_t

◆ occtl_prim_halfspace_info_t

◆ occtl_prim_sphere_info_t

◆ occtl_prim_torus_info_t

◆ occtl_prim_wedge_info_t

Function Documentation

◆ occtl_prim_box_info_init()

◆ occtl_prim_cone_info_init()

◆ occtl_prim_cylinder_info_init()

◆ occtl_prim_halfspace_info_init()

◆ occtl_prim_make_box()

◆ occtl_prim_make_cone()

◆ occtl_prim_make_cylinder()

◆ occtl_prim_make_halfspace()

◆ occtl_prim_make_sphere()

◆ occtl_prim_make_torus()

◆ occtl_prim_make_wedge()

◆ occtl_prim_sphere_info_init()

◆ occtl_prim_torus_info_init()

◆ occtl_prim_wedge_info_init()
