occtl_topo.h File Reference

OCCT-Light: topology module public API. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_curves.h"
#include "occtl_curves2d.h"
#include "occtl_geom.h"
#include "occtl_surfaces.h"
#include "occtl_topo_build.h"
#include "occtl_topo_relation.h"
#include "occtl_topo_types.h"

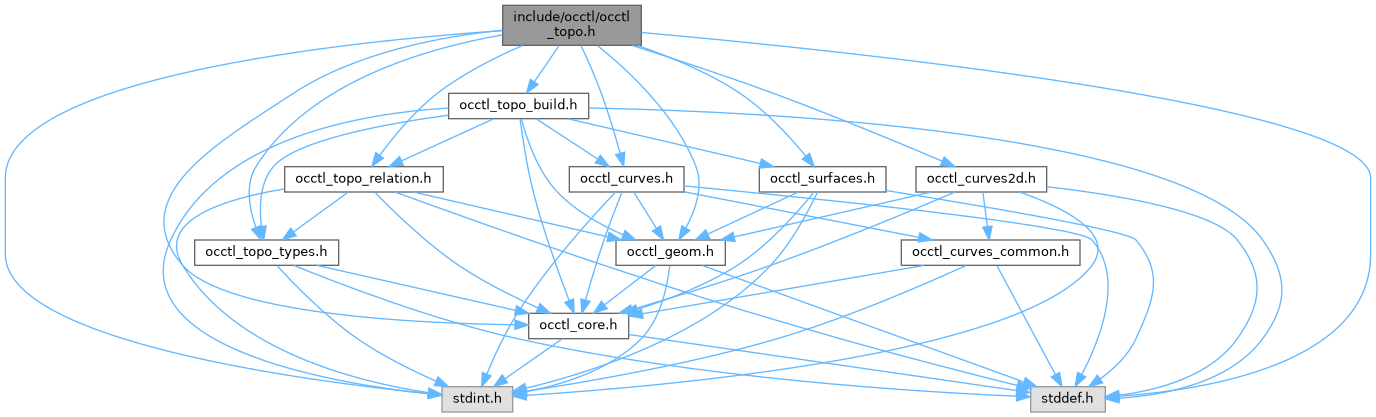

Include dependency graph for occtl_topo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_topo_make_product_info
struct	occtl_edge_view
struct	occtl_coedge_view
struct	occtl_face_view
struct	occtl_vertex_view
struct	occtl_wire_view
struct	occtl_shell_view
struct	occtl_solid_view
struct	occtl_compound_view

Macros
#define	OCCTL_TOPO_MAKE_PRODUCT_INFO_VERSION_1   1u
#define	OCCTL_TOPO_MAKE_PRODUCT_INFO_INIT
#define	OCCTL_EDGE_VIEW_VERSION_1   1u
#define	OCCTL_EDGE_VIEW_INIT
#define	OCCTL_COEDGE_VIEW_VERSION_1   1u
#define	OCCTL_COEDGE_VIEW_INIT
#define	OCCTL_FACE_VIEW_VERSION_1   1u
#define	OCCTL_FACE_VIEW_INIT    {OCCTL_FACE_VIEW_VERSION_1, NULL, 0.0, 0.0, 0.0, 0.0, 0.0, OCCTL_NODE_ID_INVALID, 0u, 0, 0, 0}
#define	OCCTL_VERTEX_VIEW_VERSION_1   1u
#define	OCCTL_VERTEX_VIEW_INIT   {OCCTL_VERTEX_VIEW_VERSION_1, NULL, {0.0, 0.0, 0.0}, 0.0}
#define	OCCTL_WIRE_VIEW_VERSION_1   1u
#define	OCCTL_WIRE_VIEW_INIT   {OCCTL_WIRE_VIEW_VERSION_1, NULL, 0, 0, 0}
#define	OCCTL_SHELL_VIEW_VERSION_1   1u
#define	OCCTL_SHELL_VIEW_INIT   {OCCTL_SHELL_VIEW_VERSION_1, NULL, 0, 0}
#define	OCCTL_SOLID_VIEW_VERSION_1   1u
#define	OCCTL_SOLID_VIEW_INIT   {OCCTL_SOLID_VIEW_VERSION_1, NULL, 0}
#define	OCCTL_COMPOUND_VIEW_VERSION_1   1u
#define	OCCTL_COMPOUND_VIEW_INIT   {OCCTL_COMPOUND_VIEW_VERSION_1, NULL, 0}

Typedefs
typedef struct occtl_node_iter	occtl_node_iter_t
typedef occtl_status_t(*	occtl_node_visitor_t) (occtl_node_id_t node, void *user_data)
	Callback for occtl_graph_for_each.
typedef occtl_status_t(*	occtl_ref_visitor_t) (occtl_ref_id_t ref, void *user_data)
	Callback for occtl_graph_for_each_ref.
typedef occtl_status_t(*	occtl_rep_visitor_t) (occtl_rep_id_t rep, void *user_data)
	Callback for occtl_graph_for_each_rep.
typedef struct occtl_topo_make_product_info	occtl_topo_make_product_info_t
typedef struct occtl_edge_view	occtl_edge_view_t
typedef struct occtl_coedge_view	occtl_coedge_view_t
typedef struct occtl_face_view	occtl_face_view_t
typedef struct occtl_vertex_view	occtl_vertex_view_t
typedef struct occtl_wire_view	occtl_wire_view_t
typedef struct occtl_shell_view	occtl_shell_view_t
typedef struct occtl_solid_view	occtl_solid_view_t
typedef struct occtl_compound_view	occtl_compound_view_t

Functions
occtl_status_t	occtl_graph_create (occtl_graph_t **out_graph)
void	occtl_graph_free (occtl_graph_t *graph)
occtl_status_t	occtl_graph_node_id_from_uid (const occtl_graph_t *graph, occtl_uid_t uid, occtl_node_id_t *out_node_id)
occtl_status_t	occtl_graph_uid_from_node_id (const occtl_graph_t *graph, occtl_node_id_t id, occtl_uid_t *out_uid)
occtl_status_t	occtl_graph_history_modified (const occtl_graph_t *graph, occtl_uid_t input_uid, occtl_uid_t *out_buf, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_history_generated (const occtl_graph_t *graph, occtl_uid_t input_uid, occtl_uid_t *out_buf, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_history_deleted_all (const occtl_graph_t *graph, occtl_uid_t *out_buf, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_ref_id_from_ref_uid (const occtl_graph_t *graph, occtl_ref_uid_t ref_uid, occtl_ref_id_t *out_ref_id)
occtl_status_t	occtl_graph_ref_uid_from_ref_id (const occtl_graph_t *graph, occtl_ref_id_t ref_id, occtl_ref_uid_t *out_ref_uid)
occtl_status_t	occtl_graph_rep_id_from_rep_uid (const occtl_graph_t *graph, occtl_rep_uid_t rep_uid, occtl_rep_id_t *out_rep_id)
occtl_status_t	occtl_graph_rep_uid_from_rep_id (const occtl_graph_t *graph, occtl_rep_id_t rep_id, occtl_rep_uid_t *out_rep_uid)
occtl_status_t	occtl_ref_uid_to_bytes (occtl_ref_uid_t ref_uid, uint8_t *out_bytes)
occtl_status_t	occtl_ref_uid_from_bytes (const uint8_t *in_bytes, occtl_ref_uid_t *out_ref_uid)
occtl_status_t	occtl_rep_uid_to_bytes (occtl_rep_uid_t rep_uid, uint8_t *out_bytes)
occtl_status_t	occtl_rep_uid_from_bytes (const uint8_t *in_bytes, occtl_rep_uid_t *out_rep_uid)
occtl_status_t	occtl_graph_uid_table (const occtl_graph_t *graph, occtl_uid_t *out_uids, occtl_node_id_t *out_nodes, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_ref_uid_table (const occtl_graph_t *graph, occtl_ref_uid_t *out_ref_uids, occtl_ref_id_t *out_refs, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_node_kind (const occtl_graph_t *graph, occtl_node_id_t id, occtl_node_kind_t *out_kind)
occtl_status_t	occtl_graph_uid_kind (const occtl_graph_t *graph, occtl_uid_t uid, occtl_node_kind_t *out_kind)
occtl_status_t	occtl_graph_ref_kind (const occtl_graph_t *graph, occtl_ref_id_t id, occtl_ref_kind_t *out_kind)
occtl_status_t	occtl_graph_ref_uid_kind (const occtl_graph_t *graph, occtl_ref_uid_t ref_uid, occtl_ref_kind_t *out_kind)
occtl_status_t	occtl_graph_rep_kind (const occtl_graph_t *graph, occtl_rep_id_t id, occtl_rep_kind_t *out_kind)
occtl_status_t	occtl_graph_solid_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_shell_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_face_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_wire_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_edge_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_vertex_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_compound_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_compsolid_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_coedge_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_product_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_occurrence_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_graph_node_count (const occtl_graph_t *graph, size_t *out_count)
occtl_status_t	occtl_topo_vertex_point (const occtl_graph_t *graph, occtl_node_id_t vertex, occtl_point3_t *out_point)
occtl_status_t	occtl_topo_vertex_tolerance (const occtl_graph_t *graph, occtl_node_id_t vertex, double *out_tolerance)
occtl_status_t	occtl_topo_vertex_edge_count (const occtl_graph_t *graph, occtl_node_id_t vertex, uint32_t *out_count)
occtl_status_t	occtl_topo_edge_range (const occtl_graph_t *graph, occtl_node_id_t edge, double *out_first, double *out_last)
occtl_status_t	occtl_topo_edge_tolerance (const occtl_graph_t *graph, occtl_node_id_t edge, double *out_tolerance)
occtl_status_t	occtl_topo_edge_is_degenerated (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_is_degenerated)
occtl_status_t	occtl_topo_edge_has_curve (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_has_curve)
occtl_status_t	occtl_topo_edge_curve_kind (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_curve_kind_t *out_kind)
occtl_status_t	occtl_topo_edge_start_vertex (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t *out_vertex)
occtl_status_t	occtl_topo_edge_end_vertex (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t *out_vertex)
occtl_status_t	occtl_topo_coedge_is_seam (const occtl_graph_t *graph, occtl_node_id_t coedge, int32_t *out_is_seam)
occtl_status_t	occtl_topo_coedge_edge_of (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_node_id_t *out_edge)
occtl_status_t	occtl_topo_coedge_face_of (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_node_id_t *out_face)
occtl_status_t	occtl_topo_face_tolerance (const occtl_graph_t *graph, occtl_node_id_t face, double *out_tolerance)
occtl_status_t	occtl_topo_face_wire_count (const occtl_graph_t *graph, occtl_node_id_t face, uint32_t *out_count)
occtl_status_t	occtl_topo_face_outer_wire (const occtl_graph_t *graph, occtl_node_id_t face, occtl_node_id_t *out_wire)
occtl_status_t	occtl_topo_face_uv_bounds (const occtl_graph_t *graph, occtl_node_id_t face, double *out_umin, double *out_umax, double *out_vmin, double *out_vmax)
occtl_status_t	occtl_topo_edge_eval (const occtl_graph_t *graph, occtl_node_id_t edge, double u, occtl_point3_t *out_p)
occtl_status_t	occtl_topo_edge_eval_d1 (const occtl_graph_t *graph, occtl_node_id_t edge, double u, occtl_point3_t *out_p, occtl_vector3_t *out_d1)
occtl_status_t	occtl_topo_edge_eval_d2 (const occtl_graph_t *graph, occtl_node_id_t edge, double u, occtl_point3_t *out_p, occtl_vector3_t *out_d1, occtl_vector3_t *out_d2)
occtl_status_t	occtl_topo_edge_eval_d3 (const occtl_graph_t *graph, occtl_node_id_t edge, double u, occtl_point3_t *out_p, occtl_vector3_t *out_d1, occtl_vector3_t *out_d2, occtl_vector3_t *out_d3)
occtl_status_t	occtl_topo_edge_eval_dn (const occtl_graph_t *graph, occtl_node_id_t edge, double u, uint32_t n, occtl_vector3_t *out_dn)
occtl_status_t	occtl_topo_coedge_pcurve_eval (const occtl_graph_t *graph, occtl_node_id_t coedge, double u, occtl_point2_t *out_uv)
occtl_status_t	occtl_topo_coedge_pcurve_eval_d1 (const occtl_graph_t *graph, occtl_node_id_t coedge, double u, occtl_point2_t *out_uv, occtl_vector2_t *out_d1)
occtl_status_t	occtl_topo_coedge_pcurve_eval_d2 (const occtl_graph_t *graph, occtl_node_id_t coedge, double u, occtl_point2_t *out_uv, occtl_vector2_t *out_d1, occtl_vector2_t *out_d2)
occtl_status_t	occtl_topo_coedge_pcurve_eval_d3 (const occtl_graph_t *graph, occtl_node_id_t coedge, double u, occtl_point2_t *out_uv, occtl_vector2_t *out_d1, occtl_vector2_t *out_d2, occtl_vector2_t *out_d3)
occtl_status_t	occtl_topo_coedge_pcurve_eval_dn (const occtl_graph_t *graph, occtl_node_id_t coedge, double u, uint32_t n, occtl_vector2_t *out_dn)
occtl_status_t	occtl_topo_face_eval (const occtl_graph_t *graph, occtl_node_id_t face, double u, double v, occtl_point3_t *out_p)
occtl_status_t	occtl_topo_face_eval_d1 (const occtl_graph_t *graph, occtl_node_id_t face, double u, double v, occtl_point3_t *out_p, occtl_vector3_t *out_d1u, occtl_vector3_t *out_d1v)
occtl_status_t	occtl_topo_face_eval_d2 (const occtl_graph_t *graph, occtl_node_id_t face, double u, double v, occtl_point3_t *out_p, occtl_vector3_t *out_d1u, occtl_vector3_t *out_d1v, occtl_vector3_t *out_d2u, occtl_vector3_t *out_d2v, occtl_vector3_t *out_d2uv)
occtl_status_t	occtl_topo_face_eval_d3 (const occtl_graph_t *graph, occtl_node_id_t face, double u, double v, occtl_point3_t *out_p, occtl_vector3_t *out_d1u, occtl_vector3_t *out_d1v, occtl_vector3_t *out_d2u, occtl_vector3_t *out_d2v, occtl_vector3_t *out_d2uv, occtl_vector3_t *out_d3u, occtl_vector3_t *out_d3v, occtl_vector3_t *out_d3uuv, occtl_vector3_t *out_d3uvv)
occtl_status_t	occtl_topo_face_eval_dn (const occtl_graph_t *graph, occtl_node_id_t face, double u, double v, uint32_t nu, uint32_t nv, occtl_vector3_t *out_dn)
occtl_status_t	occtl_topo_face_has_surface (const occtl_graph_t *graph, occtl_node_id_t face, int32_t *out_has_surface)
occtl_status_t	occtl_topo_face_surface_kind (const occtl_graph_t *graph, occtl_node_id_t face, occtl_surface_kind_t *out_kind)
occtl_status_t	occtl_topo_wire_is_closed (const occtl_graph_t *graph, occtl_node_id_t wire, int32_t *out_is_closed)
occtl_status_t	occtl_topo_wire_coedge_count (const occtl_graph_t *graph, occtl_node_id_t wire, uint32_t *out_count)
occtl_status_t	occtl_topo_shell_is_closed (const occtl_graph_t *graph, occtl_node_id_t shell, int32_t *out_is_closed)
occtl_status_t	occtl_topo_shell_face_count (const occtl_graph_t *graph, occtl_node_id_t shell, uint32_t *out_count)
occtl_status_t	occtl_topo_vertex_parameter (const occtl_graph_t *graph, occtl_node_id_t vertex, occtl_node_id_t edge, double *out_parameter)
occtl_status_t	occtl_topo_vertex_parameters (const occtl_graph_t *graph, occtl_node_id_t vertex, occtl_node_id_t face, occtl_point2_t *out_uv)
occtl_status_t	occtl_topo_edge_same_parameter (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_has_same_parameter)
occtl_status_t	occtl_topo_edge_same_range (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_has_same_range)
occtl_status_t	occtl_topo_edge_is_manifold (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_is_manifold)
occtl_status_t	occtl_topo_edge_is_boundary (const occtl_graph_t *graph, occtl_node_id_t edge, int32_t *out_is_boundary)
occtl_status_t	occtl_topo_edge_is_seam_on_face (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t face, int32_t *out_is_seam)
occtl_status_t	occtl_topo_edge_face_count (const occtl_graph_t *graph, occtl_node_id_t edge, uint32_t *out_count)
occtl_status_t	occtl_topo_coedge_is_reversed (const occtl_graph_t *graph, occtl_node_id_t coedge, int32_t *out_is_reversed)
occtl_status_t	occtl_topo_coedge_has_pcurve (const occtl_graph_t *graph, occtl_node_id_t coedge, int32_t *out_has_pcurve)
occtl_status_t	occtl_topo_coedge_pcurve_parameter (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_node_id_t vertex, double *out_parameter)
occtl_status_t	occtl_topo_coedge_range (const occtl_graph_t *graph, occtl_node_id_t coedge, double *out_first, double *out_last)
occtl_status_t	occtl_topo_coedge_uv_points (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_point2_t *out_uv_start, occtl_point2_t *out_uv_end)
occtl_status_t	occtl_topo_coedge_seam_pair (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_node_id_t *out_pair)
occtl_status_t	occtl_topo_face_natural_restriction (const occtl_graph_t *graph, occtl_node_id_t face, int32_t *out_has_natural_restriction)
occtl_status_t	occtl_topo_face_has_triangulation (const occtl_graph_t *graph, occtl_node_id_t face, int32_t *out_has_triangulation)
occtl_status_t	occtl_topo_wire_distinct_edge_count (const occtl_graph_t *graph, occtl_node_id_t wire, uint32_t *out_count)
occtl_status_t	occtl_topo_wire_face_of (const occtl_graph_t *graph, occtl_node_id_t wire, occtl_node_id_t *out_face)
occtl_status_t	occtl_topo_wire_is_outer (const occtl_graph_t *graph, occtl_node_id_t wire, int32_t *out_is_outer)
occtl_status_t	occtl_topo_solid_shell_count (const occtl_graph_t *graph, occtl_node_id_t solid, uint32_t *out_count)
occtl_status_t	occtl_topo_wire_edge_count (const occtl_graph_t *graph, occtl_node_id_t wire, uint32_t *out_count)
occtl_status_t	occtl_topo_edge_vertex_count (const occtl_graph_t *graph, occtl_node_id_t edge, uint32_t *out_count)
occtl_status_t	occtl_topo_compound_child_count (const occtl_graph_t *graph, occtl_node_id_t compound, uint32_t *out_count)
occtl_status_t	occtl_topo_compsolid_solid_count (const occtl_graph_t *graph, occtl_node_id_t compsolid, uint32_t *out_count)
occtl_status_t	occtl_topo_product_occurrence_count (const occtl_graph_t *graph, occtl_node_id_t product, uint32_t *out_count)
occtl_status_t	occtl_node_iter_next (occtl_node_iter_t *iter, occtl_node_id_t *out_id)
void	occtl_node_iter_free (occtl_node_iter_t *iter)
occtl_status_t	occtl_graph_solid_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_shell_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_face_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_wire_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_edge_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_vertex_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_compound_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_compsolid_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_coedge_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_product_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_occurrence_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_root_product_iter_create (const occtl_graph_t *graph, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_shells_of_solid_iter_create (const occtl_graph_t *graph, occtl_node_id_t solid, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_faces_of_shell_iter_create (const occtl_graph_t *graph, occtl_node_id_t shell, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_wires_of_face_iter_create (const occtl_graph_t *graph, occtl_node_id_t face, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_coedges_of_wire_iter_create (const occtl_graph_t *graph, occtl_node_id_t wire, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_edges_of_wire_iter_create (const occtl_graph_t *graph, occtl_node_id_t wire, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_wire_explorer_create (const occtl_graph_t *graph, occtl_node_id_t wire, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_occurrences_of_product_iter_create (const occtl_graph_t *graph, occtl_node_id_t product, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_topo_vertices_of_edge_iter_create (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_iter_t **out_iter)
occtl_status_t	occtl_graph_for_each (const occtl_graph_t *graph, uint64_t kind_mask, occtl_node_visitor_t visitor, void *user_data)
occtl_status_t	occtl_graph_for_each_ref (const occtl_graph_t *graph, uint64_t ref_kind_mask, occtl_ref_visitor_t visitor, void *user_data)
occtl_status_t	occtl_graph_for_each_rep (const occtl_graph_t *graph, uint64_t rep_kind_mask, occtl_rep_visitor_t visitor, void *user_data)
occtl_status_t	occtl_topo_for_each_related (const occtl_graph_t *graph, occtl_node_id_t node, occtl_node_visitor_t visitor, void *user_data)
occtl_status_t	occtl_graph_color_set (occtl_graph_t *graph, occtl_node_id_t target, occtl_color_rgba_t color)
occtl_status_t	occtl_graph_color_get (const occtl_graph_t *graph, occtl_node_id_t target, occtl_color_rgba_t *out_color)
occtl_status_t	occtl_graph_color_entries (const occtl_graph_t *graph, occtl_node_id_t *out_nodes, occtl_color_rgba_t *out_colors, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_color_unset (occtl_graph_t *graph, occtl_node_id_t target)
occtl_status_t	occtl_graph_name_set (occtl_graph_t *graph, occtl_node_id_t target, const char *name, size_t nameLen)
occtl_status_t	occtl_graph_name_get (const occtl_graph_t *graph, occtl_node_id_t target, char *buf, size_t bufSize, size_t *out_required)
occtl_status_t	occtl_graph_name_nodes (const occtl_graph_t *graph, occtl_node_id_t *out_nodes, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_material_set (occtl_graph_t *graph, occtl_node_id_t target, const occtl_material_info_t *info)
occtl_status_t	occtl_graph_material_get (const occtl_graph_t *graph, occtl_node_id_t target, occtl_material_info_t *out_info, char *name_buf, size_t name_buf_size, size_t *out_name_required)
occtl_status_t	occtl_graph_material_nodes (const occtl_graph_t *graph, occtl_node_id_t *out_nodes, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_material_unset (occtl_graph_t *graph, occtl_node_id_t target)
occtl_status_t	occtl_graph_units_set (occtl_graph_t *graph, double length_unit_to_meter, const char *name, size_t nameLen)
occtl_status_t	occtl_graph_units_get (const occtl_graph_t *graph, double *out_length_unit_to_meter, char *name_buf, size_t name_buf_size, size_t *out_name_required)
occtl_status_t	occtl_graph_node_metadata_set (occtl_graph_t *graph, occtl_node_id_t target, const char *key, size_t keyLen, const char *value, size_t valueLen)
occtl_status_t	occtl_graph_node_metadata_get (const occtl_graph_t *graph, occtl_node_id_t target, const char *key, size_t keyLen, char *buf, size_t bufSize, size_t *out_required)
occtl_status_t	occtl_graph_node_metadata_keys (const occtl_graph_t *graph, occtl_node_id_t target, occtl_metadata_key_view_t *out_keys, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_node_metadata_nodes (const occtl_graph_t *graph, occtl_node_id_t *out_nodes, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_metadata_set (occtl_graph_t *graph, const char *key, size_t keyLen, const char *value, size_t valueLen)
occtl_status_t	occtl_graph_metadata_get (const occtl_graph_t *graph, const char *key, size_t keyLen, char *buf, size_t bufSize, size_t *out_required)
occtl_status_t	occtl_graph_metadata_keys (const occtl_graph_t *graph, occtl_metadata_key_view_t *out_keys, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_metadata_unset (occtl_graph_t *graph, const char *key, size_t keyLen)
occtl_status_t	occtl_graph_node_metadata_unset (occtl_graph_t *graph, occtl_node_id_t target, const char *key, size_t keyLen)
occtl_status_t	occtl_graph_tag_add (occtl_graph_t *graph, occtl_node_id_t target, const char *tag, size_t tagLen)
occtl_status_t	occtl_graph_tag_remove (occtl_graph_t *graph, occtl_node_id_t target, const char *tag, size_t tagLen)
occtl_status_t	occtl_graph_tag_has (const occtl_graph_t *graph, occtl_node_id_t target, const char *tag, size_t tagLen, int32_t *out_has_tag)
occtl_status_t	occtl_graph_tag_list (const occtl_graph_t *graph, occtl_node_id_t target, occtl_tag_view_t *out_tags, size_t cap, size_t *out_count)
occtl_status_t	occtl_graph_tag_nodes (const occtl_graph_t *graph, const char *tag, size_t tagLen, occtl_node_id_t *out_nodes, size_t cap, size_t *out_count)
void	occtl_joint_info_init (occtl_joint_info_t *info)
occtl_status_t	occtl_joint_create (occtl_graph_t *graph, const occtl_joint_info_t *info, occtl_joint_id_t *out_joint)
occtl_status_t	occtl_joint_get (const occtl_graph_t *graph, occtl_joint_id_t joint, occtl_joint_info_t *out_info)
occtl_status_t	occtl_joint_remove (occtl_graph_t *graph, occtl_joint_id_t joint)
occtl_status_t	occtl_joint_list (const occtl_graph_t *graph, occtl_node_id_t node, occtl_joint_id_t *out_joints, size_t cap, size_t *out_count)
void	occtl_topo_make_product_info_init (occtl_topo_make_product_info_t *info)
occtl_status_t	occtl_topo_make_product (occtl_graph_t *graph, const occtl_topo_make_product_info_t *info, occtl_node_id_t *out_product)
occtl_status_t	occtl_topo_link_product (occtl_graph_t *graph, occtl_node_id_t product, occtl_node_id_t root, occtl_transform_t placement)
occtl_status_t	occtl_topo_link_product_occurrence (occtl_graph_t *graph, occtl_node_id_t product, occtl_node_id_t root, occtl_transform_t placement, occtl_node_id_t *out_occurrence)
occtl_status_t	occtl_topo_link_products (occtl_graph_t *graph, occtl_node_id_t parentProduct, occtl_node_id_t childProduct, occtl_transform_t placement, occtl_node_id_t parentOccurrence)
occtl_status_t	occtl_topo_link_products_occurrence (occtl_graph_t *graph, occtl_node_id_t parentProduct, occtl_node_id_t childProduct, occtl_transform_t placement, occtl_node_id_t parentOccurrence, occtl_node_id_t *out_occurrence)
occtl_status_t	occtl_topo_remove_occurrence (occtl_graph_t *graph, occtl_ref_id_t occurrence_ref)
occtl_status_t	occtl_topo_occurrence_set_transform (occtl_graph_t *graph, occtl_node_id_t occurrence, occtl_transform_t transform)
occtl_status_t	occtl_topo_occurrence_transform (const occtl_graph_t *graph, occtl_node_id_t occurrence, occtl_transform_t *out_transform)
occtl_status_t	occtl_topo_occurrence_world_transform (const occtl_graph_t *graph, occtl_node_id_t root, occtl_node_id_t occurrence, occtl_transform_t *out_transform)
void	occtl_edge_view_init (occtl_edge_view_t *view)
occtl_status_t	occtl_topo_edge_view (const occtl_graph_t *graph, occtl_node_id_t edge, occtl_edge_view_t *view)
void	occtl_coedge_view_init (occtl_coedge_view_t *view)
occtl_status_t	occtl_topo_coedge_view (const occtl_graph_t *graph, occtl_node_id_t coedge, occtl_coedge_view_t *view)
void	occtl_face_view_init (occtl_face_view_t *view)
occtl_status_t	occtl_topo_face_view (const occtl_graph_t *graph, occtl_node_id_t face, occtl_face_view_t *view)
void	occtl_vertex_view_init (occtl_vertex_view_t *view)
occtl_status_t	occtl_topo_vertex_view (const occtl_graph_t *graph, occtl_node_id_t vertex, occtl_vertex_view_t *view)
void	occtl_wire_view_init (occtl_wire_view_t *view)
occtl_status_t	occtl_topo_wire_view (const occtl_graph_t *graph, occtl_node_id_t wire, occtl_wire_view_t *view)
void	occtl_shell_view_init (occtl_shell_view_t *view)
occtl_status_t	occtl_topo_shell_view (const occtl_graph_t *graph, occtl_node_id_t shell, occtl_shell_view_t *view)
void	occtl_solid_view_init (occtl_solid_view_t *view)
occtl_status_t	occtl_topo_solid_view (const occtl_graph_t *graph, occtl_node_id_t solid, occtl_solid_view_t *view)
void	occtl_compound_view_init (occtl_compound_view_t *view)
occtl_status_t	occtl_topo_compound_view (const occtl_graph_t *graph, occtl_node_id_t compound, occtl_compound_view_t *view)

Detailed Description

OCCT-Light: topology module public API.

Defines occtl_graph_t (the topology graph), session-local identity types (occtl_node_id_t / occtl_ref_id_t / occtl_rep_id_t), persistent identity (occtl_uid_t, declared in occtl_core.h, and occtl_ref_uid_t), graph lifecycle, count queries, identity conversion, geometry accessors, opaque node-iteration, and high-level topology builders.

Macro Definition Documentation

OCCTL_COEDGE_VIEW_INIT

#define OCCTL_COEDGE_VIEW_INIT

Value:

  {OCCTL_COEDGE_VIEW_VERSION_1,                                                                    \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_ORIENTATION_FORWARD,                                                                      \
   0.0,                                                                                            \
   0.0,                                                                                            \
   {0.0, 0.0},                                                                                     \
   {0.0, 0.0},                                                                                     \
   0,                                                                                              \
   0,                                                                                              \
   0}

OCCTL_EDGE_VIEW_INIT

#define OCCTL_EDGE_VIEW_INIT

Value:

  {OCCTL_EDGE_VIEW_VERSION_1,                                                                      \
   NULL,                                                                                           \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   0u,                                                                                             \
   0u,                                                                                             \
   0,                                                                                              \
   0,                                                                                              \
   0,                                                                                              \
   0,                                                                                              \
   0,                                                                                              \
   0,                                                                                              \
   0}

OCCTL_TOPO_MAKE_PRODUCT_INFO_INIT

#define OCCTL_TOPO_MAKE_PRODUCT_INFO_INIT

Value:

  {OCCTL_TOPO_MAKE_PRODUCT_INFO_VERSION_1,                                                         \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   {1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0}}

Typedef Documentation

occtl_coedge_view_t

typedef struct occtl_coedge_view occtl_coedge_view_t

Aggregate snapshot of a coedge's scalar state.

uv_start / uv_end are the UV-space endpoints of the coedge's pcurve on the parent face's surface, as reported by BRepGraph_Tool::CoEdge::UVPoints. When has_pcurve is 0 they default to (0,0).

occtl_compound_view_t

typedef struct occtl_compound_view occtl_compound_view_t

Aggregate snapshot of a compound's scalar state.

occtl_edge_view_t

typedef struct occtl_edge_view occtl_edge_view_t

Aggregate snapshot of an edge's scalar state.

Each aggregate view struct opens with struct_version and p_next. Callers must initialise the struct with the matching init function or INIT literal so the library can dispatch on the version they understand. Filler functions write scalars only, so view lifetime ends with the function call.

Fields after p_next are written by the library. All fields are caller-owned (no borrowed pointers): the snapshot is decoupled from the source graph and survives subsequent mutation.

The boolean fields are 0/1; the int32_t storage forbids bool per the ABI rules. Face-context queries (is_seam_on_face, is_boundary_on_face) are not part of the snapshot; use the occtl_topo_edge_is_*_on_face accessors for those.

occtl_face_view_t

typedef struct occtl_face_view occtl_face_view_t

Aggregate snapshot of a face's scalar state.

occtl_node_iter_t

typedef struct occtl_node_iter occtl_node_iter_t

Opaque iterator over a sequence of node IDs.

Holds a snapshot view rooted in a graph; created by one of the enumeration factories below. Yielded IDs are session-local occtl_node_id_t values whose kind is determined by the factory used to create the iterator (e.g. occtl_graph_face_iter_create yields OCCTL_KIND_FACE). Removed nodes are filtered internally and never exposed. Iteration order is documented per factory.

Lifetime: borrows from the source graph. Valid until either occtl_node_iter_free is called on the iterator or the source graph is freed. Adding nodes, calling a future compact, or freeing the graph while an iterator is live is undefined behaviour. Removing a node that has not yet been visited is well-defined (the iterator filters it out); removing the node currently positioned at is undefined. Release iterators before any mutating call to keep the contract simple.

Not thread-safe with respect to its own state. Distinct iterators over the same graph may be advanced from distinct threads if the graph is not concurrently mutated (matching the read-only concurrency contract on graph reads).

occtl_shell_view_t

typedef struct occtl_shell_view occtl_shell_view_t

Aggregate snapshot of a shell's scalar state.

occtl_solid_view_t

typedef struct occtl_solid_view occtl_solid_view_t

Aggregate snapshot of a solid's scalar state.

occtl_topo_make_product_info_t

typedef struct occtl_topo_make_product_info occtl_topo_make_product_info_t

Info for occtl_topo_make_product.

When root == OCCTL_NODE_ID_INVALID, an empty product is created. Otherwise the product wraps root with placement as a shape root.

occtl_vertex_view_t

typedef struct occtl_vertex_view occtl_vertex_view_t

Aggregate snapshot of a vertex's scalar state.

occtl_wire_view_t

typedef struct occtl_wire_view occtl_wire_view_t

Aggregate snapshot of a wire's scalar state.

Function Documentation

occtl_coedge_view_init()

void occtl_coedge_view_init

(

occtl_coedge_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_compound_view_init()

void occtl_compound_view_init

(

occtl_compound_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_edge_view_init()

void occtl_edge_view_init

(

occtl_edge_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_face_view_init()

void occtl_face_view_init

(

occtl_face_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_graph_coedge_count()

occtl_status_t occtl_graph_coedge_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_coedge_iter_create()

occtl_status_t occtl_graph_coedge_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_color_entries()

occtl_status_t occtl_graph_color_entries	(	const occtl_graph_t *	graph,
		occtl_node_id_t *	out_nodes,
		occtl_color_rgba_t *	out_colors,
		size_t	cap,
		size_t *	out_count
	)

Lists nodes that have an explicit colour entry.

Two-call buffer pattern: pass out_nodes and out_colors as NULL with cap 0 to learn the entry count, then call again with both arrays of at least that many elements. Values are snapshots copied from the graph-owned colour metadata.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_nodes	Borrows it. Length cap; may be NULL only on the sizing call.
[out]	out_colors	Borrows it. Length cap; may be NULL only on the sizing call.
[in]	cap	Capacity of out_nodes and out_colors.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL, or only one output array is NULL on a refill call.
OCCTL_BUFFER_TOO_SMALL	Output arrays are non-NULL and cap is smaller than out_count.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_color_get, occtl_graph_name_nodes

occtl_graph_color_get()

occtl_status_t occtl_graph_color_get	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		occtl_color_rgba_t *	out_color
	)

Retrieves the colour of a target node.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[out]	out_color	Borrows it. Must be non-NULL. Receives the stored colour, or opaque white if no colour was previously set.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_color is NULL.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_color_set, occtl_graph_color_unset

occtl_graph_color_set()

occtl_status_t occtl_graph_color_set	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		occtl_color_rgba_t	color
	)

Sets a colour on a target node.

The colour is stored as an RGBA value and associated with target in an internal graph-wide colour metadata.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to colour. Must be valid and active.
[in]	color	RGBA colour value (by value).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or any color channel in color is non-finite.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph).

See also

occtl_graph_color_get, occtl_graph_color_unset

occtl_graph_color_unset()

occtl_status_t occtl_graph_color_unset	(	occtl_graph_t *	graph,
		occtl_node_id_t	target
	)

Removes the colour associated with a target node.

After this call, occtl_graph_color_get returns the default colour (opaque white). Idempotent — calling on a node with no colour set is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to clear. Must be valid and active.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph).

See also

occtl_graph_color_set

occtl_graph_compound_count()

occtl_status_t occtl_graph_compound_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_compound_iter_create()

occtl_status_t occtl_graph_compound_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_compsolid_count()

occtl_status_t occtl_graph_compsolid_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_compsolid_iter_create()

occtl_status_t occtl_graph_compsolid_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_create()

occtl_status_t occtl_graph_create

(

occtl_graph_t **

out_graph

)

Creates an empty topology graph.

The returned graph is heap-allocated; the caller owns it and must release it with occtl_graph_free. The graph starts with zero entities.

Parameters

[out]

out_graph

Owns it. Must be non-NULL. On success receives a valid handle (never NULL); on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	out_graph is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes.

See also

occtl_graph_free

occtl_graph_edge_count()

occtl_status_t occtl_graph_edge_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_edge_iter_create()

occtl_status_t occtl_graph_edge_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_face_count()

occtl_status_t occtl_graph_face_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_face_iter_create()

occtl_status_t occtl_graph_face_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_for_each()

occtl_status_t occtl_graph_for_each	(	const occtl_graph_t *	graph,
		uint64_t	kind_mask,
		occtl_node_visitor_t	visitor,
		void *	user_data
	)

Iterates over all nodes in graph whose kind is in kind_mask using internal per-kind iterators. Calls visitor for each matching node.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	kind_mask	Bitwise OR of occtl_node_kind_t values.
[in]	visitor	Callback invoked for each matching node.
[in,out]	user_data	Passed through to visitor. May be NULL.

Return values

OCCTL_OK	On completion.
OCCTL_INVALID_ARGUMENT	graph or visitor is NULL. \par Thread Safety Yes (read-only).

See also

occtl_node_iter_create

occtl_graph_for_each_ref()

occtl_status_t occtl_graph_for_each_ref	(	const occtl_graph_t *	graph,
		uint64_t	ref_kind_mask,
		occtl_ref_visitor_t	visitor,
		void *	user_data
	)

Iterates over all references in graph whose kind is in ref_kind_mask. Calls visitor for each matching reference.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	ref_kind_mask	Bitwise OR of occtl_ref_kind_t values.
[in]	visitor	Callback invoked for each matching ref.
[in,out]	user_data	Passed through. May be NULL.

Return values

OCCTL_OK	On completion.
OCCTL_INVALID_ARGUMENT	graph or visitor is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_for_each_rep()

occtl_status_t occtl_graph_for_each_rep	(	const occtl_graph_t *	graph,
		uint64_t	rep_kind_mask,
		occtl_rep_visitor_t	visitor,
		void *	user_data
	)

Iterates over all representations in graph whose kind is in rep_kind_mask. Calls visitor for each matching representation.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	rep_kind_mask	Bitwise OR of occtl_rep_kind_t values.
[in]	visitor	Callback invoked for each matching rep.
[in,out]	user_data	Passed through. May be NULL.

Return values

OCCTL_OK	On completion.
OCCTL_INVALID_ARGUMENT	graph or visitor is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_free()

void occtl_graph_free

(

occtl_graph_t *

graph

)

Releases a graph and all associated resources.

NULL-tolerant (free on NULL is a no-op). After this returns, all NodeIds, RefIds, and borrowed pointers obtained from this graph are invalidated.

Parameters

[in]

graph

Graph to free. May be NULL.

\par Thread Safety No — do not free a graph that another thread may be using.

See also

occtl_graph_create

occtl_graph_history_deleted_all()

occtl_status_t occtl_graph_history_deleted_all	(	const occtl_graph_t *	graph,
		occtl_uid_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Dump all deleted input UIDs recorded on graph.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_buf	Borrows it. May be NULL for sizing.
[in]	cap	Capacity of out_buf in entries.
[out]	out_count	Borrows it. Must be non-NULL. Receives required count.

Return values

OCCTL_OK	On sizing or successful fill.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	out_buf is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_history_modified, occtl_graph_history_generated

occtl_graph_history_generated()

occtl_status_t occtl_graph_history_generated	(	const occtl_graph_t *	graph,
		occtl_uid_t	input_uid,
		occtl_uid_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Look up Generated history images of an input UID recorded on graph.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	input_uid	Input entity UID recorded by a shape-modifying operation.
[out]	out_buf	Borrows it. May be NULL for sizing.
[in]	cap	Capacity of out_buf in entries.
[out]	out_count	Borrows it. Must be non-NULL. Receives required count.

Return values

OCCTL_OK	On sizing or successful fill.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL, or input_uid is malformed.
OCCTL_BUFFER_TOO_SMALL	out_buf is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_history_modified, occtl_graph_history_deleted_all

occtl_graph_history_modified()

occtl_status_t occtl_graph_history_modified	(	const occtl_graph_t *	graph,
		occtl_uid_t	input_uid,
		occtl_uid_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Look up Modified history images of an input UID recorded on graph.

History is owned by the graph that received the operation result. The function uses the two-call buffer pattern: pass out_buf NULL to query the required count, then call again with enough capacity.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	input_uid	Input entity UID recorded by a shape-modifying operation.
[out]	out_buf	Borrows it. May be NULL for sizing.
[in]	cap	Capacity of out_buf in entries.
[out]	out_count	Borrows it. Must be non-NULL. Receives required count.

Return values

OCCTL_OK	On sizing or successful fill.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL, or input_uid is malformed.
OCCTL_BUFFER_TOO_SMALL	out_buf is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_history_generated, occtl_graph_history_deleted_all

occtl_graph_material_get()

occtl_status_t occtl_graph_material_get	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		occtl_material_info_t *	out_info,
		char *	name_buf,
		size_t	name_buf_size,
		size_t *	out_name_required
	)

Retrieves material-lite data from a target node (two-call buffer pattern).

Call once with name_buf == NULL to learn the required material-name buffer size in out_name_required, then call again with a buffer of at least that size. out_info is always populated on success; when name_buf is NULL its name pointer is NULL and name_len is the stored name byte length. When name_buf is supplied, out_info->name points at name_buf. The written name is NUL-terminated and out_name_required includes that terminator.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[out]	out_info	Borrows it. Must be non-NULL.
[out]	name_buf	Owns it (caller-allocated). May be NULL to query required size.
[in]	name_buf_size	Size of name_buf in bytes.
[out]	out_name_required	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, out_info, or out_name_required is NULL.
OCCTL_NOT_FOUND	target is invalid / removed, or has no material set.
OCCTL_BUFFER_TOO_SMALL	name_buf is non-NULL and name_buf_size is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_material_set, occtl_graph_material_unset

occtl_graph_material_nodes()

occtl_status_t occtl_graph_material_nodes	(	const occtl_graph_t *	graph,
		occtl_node_id_t *	out_nodes,
		size_t	cap,
		size_t *	out_count
	)

Lists nodes that have explicit material-lite data.

Two-call buffer pattern: pass out_nodes as NULL with cap 0 to learn the count, then call again with an array of at least that many elements. Retrieve each material record with occtl_graph_material_get.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_nodes	Borrows it. Length cap; may be NULL to query count.
[in]	cap	Capacity of out_nodes in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	out_nodes is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_material_get, occtl_graph_node_metadata_nodes

occtl_graph_material_set()

occtl_status_t occtl_graph_material_set	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const occtl_material_info_t *	info
	)

Sets material-lite data on a target node.

The material record is copied into graph-owned metadata. The name field in info is a borrowed byte span and does not need to be NUL-terminated. Density is optional; when present it must be finite and strictly positive. Diffuse colour is optional and uses the same channel convention as occtl_color_rgba_t.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to annotate. Must be valid and active.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version and NULL p_next.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or info is NULL, or an info field is malformed.
OCCTL_VERSION_MISMATCH	info->struct_version is unsupported.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_material_get, occtl_graph_material_unset

occtl_graph_material_unset()

occtl_status_t occtl_graph_material_unset	(	occtl_graph_t *	graph,
		occtl_node_id_t	target
	)

Removes material-lite data from a target node.

Idempotent: removing a missing material is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to modify. Must be valid and active.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_material_set, occtl_graph_material_get

occtl_graph_metadata_get()

occtl_status_t occtl_graph_metadata_get	(	const occtl_graph_t *	graph,
		const char *	key,
		size_t	keyLen,
		char *	buf,
		size_t	bufSize,
		size_t *	out_required
	)

Retrieves UTF-8 metadata from the graph itself (two-call buffer pattern).

Call once with buf == NULL to learn the required buffer size in out_required, then call again with a buffer of at least that size. The written value is NUL-terminated; out_required includes the NUL terminator.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	key	Metadata key bytes. Borrowed; must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.
[out]	buf	Owns it (caller-allocated). May be NULL to query required size.
[in]	bufSize	Size of buf in bytes.
[out]	out_required	Borrows it. Must be non-NULL. Receives required size including NUL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_required is NULL, or key is NULL/empty.
OCCTL_NOT_FOUND	key is not set on graph.
OCCTL_BUFFER_TOO_SMALL	buf is non-NULL and bufSize is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_metadata_set, occtl_graph_metadata_keys

occtl_graph_metadata_keys()

occtl_status_t occtl_graph_metadata_keys	(	const occtl_graph_t *	graph,
		occtl_metadata_key_view_t *	out_keys,
		size_t	cap,
		size_t *	out_count
	)

Lists graph-level metadata keys.

Uses the two-call buffer pattern: pass out_keys as NULL with cap 0 to learn the key count, then call again with an array of at least that many entries. Returned key pointers borrow from the graph's internal metadata storage and are not necessarily NUL-terminated; use key_len.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_keys	Borrows it (caller-allocated). Length cap; may be NULL to query count.
[in]	cap	Capacity of out_keys in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	out_keys is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_metadata_get, occtl_graph_node_metadata_keys

occtl_graph_metadata_set()

occtl_status_t occtl_graph_metadata_set	(	occtl_graph_t *	graph,
		const char *	key,
		size_t	keyLen,
		const char *	value,
		size_t	valueLen
	)

Sets UTF-8 metadata on the graph itself.

Graph metadata is for document/model-level attributes such as author, source format, exchange notes, or mesh-model metadata. It is stored in the graph metadata storage, survives graph clone and native graph snapshots, and is not attached to any particular node. key and value are byte buffers; neither needs to be NUL-terminated. A key must be non-empty.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	key	Metadata key bytes. Borrowed; copied internally. Must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.
[in]	value	Metadata value bytes. Borrowed; copied internally. May be NULL only when valueLen is 0.
[in]	valueLen	Length of value in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL; key is NULL/empty; or value is NULL when valueLen > 0.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_metadata_get, occtl_graph_metadata_unset, occtl_graph_node_metadata_set

occtl_graph_metadata_unset()

occtl_status_t occtl_graph_metadata_unset	(	occtl_graph_t *	graph,
		const char *	key,
		size_t	keyLen
	)

Removes one graph-level metadata key.

Idempotent: removing a missing key is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	key	Metadata key bytes. Borrowed; must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or key is NULL/empty.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_metadata_set, occtl_graph_metadata_get

occtl_graph_name_get()

occtl_status_t occtl_graph_name_get	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		char *	buf,
		size_t	bufSize,
		size_t *	out_required
	)

Retrieves the name of a target node (two-call buffer pattern).

Call once with buf == NULL to learn the required buffer size in out_required, then call again with a buffer of at least that size. The written string is NUL-terminated; out_required includes the NUL terminator.

If a node has no name set, the written string is empty (just the NUL terminator) and *out_required is 1.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[out]	buf	Owns it (caller-allocated). May be NULL to query required size.
[in]	bufSize	Size of buf in bytes.
[out]	out_required	Borrows it. Must be non-NULL. Receives the required buffer size (including NUL).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_required is NULL.
OCCTL_BUFFER_TOO_SMALL	buf is non-NULL and bufSize is too small; out_required receives the needed size.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_name_set

occtl_graph_name_nodes()

occtl_status_t occtl_graph_name_nodes	(	const occtl_graph_t *	graph,
		occtl_node_id_t *	out_nodes,
		size_t	cap,
		size_t *	out_count
	)

Lists nodes that have an explicit name entry.

Two-call buffer pattern: pass out_nodes as NULL with cap 0 to learn the count, then call again with an array of at least that many elements. Retrieve each name with occtl_graph_name_get.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_nodes	Borrows it. Length cap; may be NULL to query count.
[in]	cap	Capacity of out_nodes in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	out_nodes is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_name_get, occtl_graph_color_entries

occtl_graph_name_set()

occtl_status_t occtl_graph_name_set	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	name,
		size_t	nameLen
	)

Sets a human-readable name on a target node.

name is a byte buffer of length nameLen; it need not be NUL-terminated. The internal copy is NUL-terminated.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to name. Must be valid and active.
[in]	name	Byte buffer containing the name. Borrowed; copied internally. May be NULL only when nameLen is 0.
[in]	nameLen	Length of name in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or name is NULL when nameLen > 0.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph).

See also

occtl_graph_name_get

occtl_graph_node_count()

occtl_status_t occtl_graph_node_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the total number of active nodes across all kinds.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_node_id_from_uid()

occtl_status_t occtl_graph_node_id_from_uid	(	const occtl_graph_t *	graph,
		occtl_uid_t	uid,
		occtl_node_id_t *	out_node_id
	)

Resolves a persistent UID to its current NodeId.

UIDs survive node removal and any future compaction operation; call this after any operation that may have reindexed nodes. Returns OCCTL_NOT_FOUND if the entity has been removed.

Parameters

[in]	graph	Must be non-NULL.
[in]	uid	UID to resolve. An all-zero (invalid) UID always returns OCCTL_NOT_FOUND.
[out]	out_node_id	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_node_id is NULL.
OCCTL_NOT_FOUND	The UID refers to a removed entity, or the UID is all-zero (invalid).

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_uid_from_node_id

occtl_graph_node_kind()

occtl_status_t occtl_graph_node_kind	(	const occtl_graph_t *	graph,
		occtl_node_id_t	id,
		occtl_node_kind_t *	out_kind
	)

Returns the kind of a node ID.

No bit manipulation is exposed to the caller; treat occtl_node_id_t as opaque and query its kind through this function.

Parameters

[in]	graph	Must be non-NULL.
[in]	id	Node ID to inspect.
[out]	out_kind	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	The node has been removed, or id is all-zero (invalid).

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_uid_kind, occtl_graph_ref_kind

occtl_graph_node_metadata_get()

occtl_status_t occtl_graph_node_metadata_get	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	key,
		size_t	keyLen,
		char *	buf,
		size_t	bufSize,
		size_t *	out_required
	)

Retrieves UTF-8 metadata from a target node (two-call buffer pattern).

Call once with buf == NULL to learn the required buffer size in out_required, then call again with a buffer of at least that size. The written value is NUL-terminated; out_required includes the NUL terminator.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[in]	key	Metadata key bytes. Borrowed; must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.
[out]	buf	Owns it (caller-allocated). May be NULL to query required size.
[in]	bufSize	Size of buf in bytes.
[out]	out_required	Borrows it. Must be non-NULL. Receives required size including NUL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_required is NULL, or key is NULL/empty.
OCCTL_NOT_FOUND	target is invalid / removed, or key is not set on target.
OCCTL_BUFFER_TOO_SMALL	buf is non-NULL and bufSize is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_node_metadata_set, occtl_graph_node_metadata_unset

occtl_graph_node_metadata_keys()

occtl_status_t occtl_graph_node_metadata_keys	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		occtl_metadata_key_view_t *	out_keys,
		size_t	cap,
		size_t *	out_count
	)

Lists metadata keys stored on a target node.

Uses the two-call buffer pattern: pass out_keys as NULL with cap 0 to learn the key count, then call again with an array of at least that many entries. Returned key pointers borrow from the graph's internal metadata storage and are not necessarily NUL-terminated; use key_len.

A valid target with no metadata keys returns OCCTL_OK and count 0.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[out]	out_keys	Borrows it (caller-allocated). Length cap; may be NULL to query count.
[in]	cap	Capacity of out_keys in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	target is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	out_keys is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_node_metadata_set, occtl_graph_node_metadata_get

occtl_graph_node_metadata_nodes()

occtl_status_t occtl_graph_node_metadata_nodes	(	const occtl_graph_t *	graph,
		occtl_node_id_t *	out_nodes,
		size_t	cap,
		size_t *	out_count
	)

Lists nodes that have at least one metadata key.

Two-call buffer pattern: pass out_nodes as NULL with cap 0 to learn the count, then call again with an array of at least that many elements. Retrieve each node's keys with occtl_graph_node_metadata_keys and each value with occtl_graph_node_metadata_get.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_nodes	Borrows it. Length cap; may be NULL to query count.
[in]	cap	Capacity of out_nodes in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	out_nodes is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph metadata).

See also

occtl_graph_node_metadata_keys, occtl_graph_name_nodes

occtl_graph_node_metadata_set()

occtl_status_t occtl_graph_node_metadata_set	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	key,
		size_t	keyLen,
		const char *	value,
		size_t	valueLen
	)

Sets UTF-8 metadata on a target node.

key and value are byte buffers; neither needs to be NUL-terminated. A key must be non-empty. A zero-length value is allowed and stores an empty string. Metadata is stored as graph-owned metadata and follows graph compact / clone remapping.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to annotate. Must be valid and active.
[in]	key	Metadata key bytes. Borrowed; copied internally. Must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.
[in]	value	Metadata value bytes. Borrowed; copied internally. May be NULL only when valueLen is 0.
[in]	valueLen	Length of value in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL; key is NULL/empty; or value is NULL when valueLen > 0.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_node_metadata_get, occtl_graph_node_metadata_unset

occtl_graph_node_metadata_unset()

occtl_status_t occtl_graph_node_metadata_unset	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	key,
		size_t	keyLen
	)

Removes one metadata key from a target node.

Idempotent: removing a missing key is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to modify. Must be valid and active.
[in]	key	Metadata key bytes. Borrowed; must be non-NULL and non-empty.
[in]	keyLen	Length of key in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or key is NULL/empty.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_node_metadata_set, occtl_graph_node_metadata_get

occtl_graph_occurrence_count()

occtl_status_t occtl_graph_occurrence_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_occurrence_iter_create()

occtl_status_t occtl_graph_occurrence_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_product_count()

occtl_status_t occtl_graph_product_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_product_iter_create()

occtl_status_t occtl_graph_product_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_ref_id_from_ref_uid()

occtl_status_t occtl_graph_ref_id_from_ref_uid	(	const occtl_graph_t *	graph,
		occtl_ref_uid_t	ref_uid,
		occtl_ref_id_t *	out_ref_id
	)

Resolves a persistent RefUID to its current RefId.

RefUIDs survive graph compaction; call this after operations that may have reindexed reference entries. Returns OCCTL_NOT_FOUND if the reference has been removed or if ref_uid is invalid.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	ref_uid	RefUID to resolve.
[out]	out_ref_id	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_ref_id is NULL.
OCCTL_NOT_FOUND	ref_uid is invalid or not active.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_ref_uid_from_ref_id, occtl_graph_ref_uid_table

occtl_graph_ref_kind()

occtl_status_t occtl_graph_ref_kind	(	const occtl_graph_t *	graph,
		occtl_ref_id_t	id,
		occtl_ref_kind_t *	out_kind
	)

Returns the kind of a ref ID.

Parameters

[in]	graph	Must be non-NULL.
[in]	id	Ref ID to inspect.
[out]	out_kind	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	The reference has been removed, or id is all-zero (invalid).

\par Thread Safety Yes (read-only on graph).

occtl_graph_ref_uid_from_ref_id()

occtl_status_t occtl_graph_ref_uid_from_ref_id	(	const occtl_graph_t *	graph,
		occtl_ref_id_t	ref_id,
		occtl_ref_uid_t *	out_ref_uid
	)

Returns the persistent RefUID for a RefId.

The RefUID survives compaction and can be stored for later resolution. If the reference is later removed the RefUID becomes unresolvable.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	ref_id	RefId to inspect.
[out]	out_ref_uid	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_ref_uid is NULL.
OCCTL_NOT_FOUND	ref_id is invalid or removed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_ref_id_from_ref_uid, occtl_graph_ref_uid_table

occtl_graph_ref_uid_kind()

occtl_status_t occtl_graph_ref_uid_kind	(	const occtl_graph_t *	graph,
		occtl_ref_uid_t	ref_uid,
		occtl_ref_kind_t *	out_kind
	)

Returns the kind embedded in a RefUID.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	ref_uid	RefUID to inspect.
[out]	out_kind	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	ref_uid is invalid or not active.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_ref_kind

occtl_graph_ref_uid_table()

occtl_status_t occtl_graph_ref_uid_table	(	const occtl_graph_t *	graph,
		occtl_ref_uid_t *	out_ref_uids,
		occtl_ref_id_t *	out_refs,
		size_t	cap,
		size_t *	out_count
	)

Dumps the (RefUID -> RefId) mapping for every active reference in graph.

Two-call buffer pattern: pass out_ref_uids and out_refs as NULL to query out_count, then call again with both arrays of at least that size. Returned arrays are parallel: entry i is (out_ref_uids[i], out_refs[i]).

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_ref_uids	Owns it (caller-allocated). Length cap; may be NULL only on the sizing call.
[out]	out_refs	Owns it (caller-allocated). Length cap; may be NULL only on the sizing call.
[in]	cap	Capacity of both output arrays.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL, or only one output array is NULL on a refill call.
OCCTL_BUFFER_TOO_SMALL	Output arrays are non-NULL and cap is smaller than out_count.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_ref_uid_from_ref_id, occtl_graph_ref_id_from_ref_uid

occtl_graph_rep_id_from_rep_uid()

occtl_status_t occtl_graph_rep_id_from_rep_uid	(	const occtl_graph_t *	graph,
		occtl_rep_uid_t	rep_uid,
		occtl_rep_id_t *	out_rep_id
	)

Resolves a persistent RepUID to its current RepId.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	rep_uid	RepUID to resolve.
[out]	out_rep_id	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_rep_id is NULL.
OCCTL_NOT_FOUND	rep_uid is invalid or not active.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_rep_uid_from_rep_id

occtl_graph_rep_kind()

occtl_status_t occtl_graph_rep_kind	(	const occtl_graph_t *	graph,
		occtl_rep_id_t	id,
		occtl_rep_kind_t *	out_kind
	)

Returns the kind of a rep ID.

Parameters

[in]	graph	Must be non-NULL.
[in]	id	Rep ID to inspect.
[out]	out_kind	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	The representation has been removed, or id is all-zero (invalid).

\par Thread Safety Yes (read-only on graph).

occtl_graph_rep_uid_from_rep_id()

occtl_status_t occtl_graph_rep_uid_from_rep_id	(	const occtl_graph_t *	graph,
		occtl_rep_id_t	rep_id,
		occtl_rep_uid_t *	out_rep_uid
	)

Returns the persistent RepUID for a RepId.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	rep_id	RepId to inspect.
[out]	out_rep_uid	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_rep_uid is NULL.
OCCTL_NOT_FOUND	rep_id is invalid or removed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_rep_id_from_rep_uid

occtl_graph_root_product_iter_create()

occtl_status_t occtl_graph_root_product_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all root products (products not referenced by any active occurrence).

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_shell_count()

occtl_status_t occtl_graph_shell_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_shell_iter_create()

occtl_status_t occtl_graph_shell_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_solid_count()

occtl_status_t occtl_graph_solid_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_solid_iter_create()

occtl_status_t occtl_graph_solid_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_tag_add()

occtl_status_t occtl_graph_tag_add	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	tag,
		size_t	tagLen
	)

Adds a UTF-8 tag to a target node.

Tags are byte strings; they do not need to be NUL-terminated. A tag must be non-empty. Tags are stored as graph-owned metadata and follow graph compact / clone remapping.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to annotate. Must be valid and active.
[in]	tag	Tag bytes. Borrowed; copied internally. Must be non-NULL and non-empty.
[in]	tagLen	Length of tag in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or tag is NULL/empty.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph tags).

See also

occtl_graph_tag_remove, occtl_graph_tag_has

occtl_graph_tag_has()

occtl_status_t occtl_graph_tag_has	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	tag,
		size_t	tagLen,
		int32_t *	out_has_tag
	)

Tests whether a target node carries a UTF-8 tag.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[in]	tag	Tag bytes. Borrowed; must be non-NULL and non-empty.
[in]	tagLen	Length of tag in bytes.
[out]	out_has_tag	Borrows it. Must be non-NULL. Receives 0 or 1.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_tag is NULL, or tag is NULL/empty.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety Yes (read-only on graph tags).

See also

occtl_graph_tag_add, occtl_graph_tag_list

occtl_graph_tag_list()

occtl_status_t occtl_graph_tag_list	(	const occtl_graph_t *	graph,
		occtl_node_id_t	target,
		occtl_tag_view_t *	out_tags,
		size_t	cap,
		size_t *	out_count
	)

Lists tags stored on a target node.

Uses the two-call buffer pattern: pass out_tags as NULL with cap 0 to learn the tag count, then call again with an array of at least that many entries. Returned tag pointers borrow from the graph's internal tag storage and are not necessarily NUL-terminated; use tag_len.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to query. Must be valid and active.
[out]	out_tags	Borrows it (caller-allocated). Length cap; may be NULL to query count.
[in]	cap	Capacity of out_tags in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	target is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	out_tags is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph tags).

See also

occtl_graph_tag_add, occtl_graph_tag_nodes

occtl_graph_tag_nodes()

occtl_status_t occtl_graph_tag_nodes	(	const occtl_graph_t *	graph,
		const char *	tag,
		size_t	tagLen,
		occtl_node_id_t *	out_nodes,
		size_t	cap,
		size_t *	out_count
	)

Lists nodes carrying tags.

Pass tag == NULL and tagLen == 0 to list nodes that have at least one tag. Pass a non-empty tag to list nodes carrying that exact tag.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	tag	Optional tag bytes. Borrowed; must be non-NULL when tagLen is non-zero.
[in]	tagLen	Length of tag in bytes.
[out]	out_nodes	Borrows it. Length cap; may be NULL to query count.
[in]	cap	Capacity of out_nodes in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL, tag is NULL with non-zero tagLen, or tag is non-NULL with zero tagLen.
OCCTL_BUFFER_TOO_SMALL	out_nodes is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph tags).

See also

occtl_graph_tag_list, occtl_graph_node_metadata_nodes

occtl_graph_tag_remove()

occtl_status_t occtl_graph_tag_remove	(	occtl_graph_t *	graph,
		occtl_node_id_t	target,
		const char *	tag,
		size_t	tagLen
	)

Removes a UTF-8 tag from a target node.

Idempotent: removing a missing tag is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	target	Node ID to modify. Must be valid and active.
[in]	tag	Tag bytes. Borrowed; must be non-NULL and non-empty.
[in]	tagLen	Length of tag in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or tag is NULL/empty.
OCCTL_NOT_FOUND	target is invalid or removed.

\par Thread Safety No (mutates graph tags).

See also

occtl_graph_tag_add, occtl_graph_tag_has

occtl_graph_uid_from_node_id()

occtl_status_t occtl_graph_uid_from_node_id	(	const occtl_graph_t *	graph,
		occtl_node_id_t	id,
		occtl_uid_t *	out_uid
	)

Returns the persistent UID for a NodeId.

The UID survives node removal and any future compaction operation and can be stored for later resolution. If the node is later removed the UID becomes permanently unresolvable.

Parameters

[in]	graph	Must be non-NULL.
[in]	id	Node ID. An all-zero (invalid) NodeId always returns OCCTL_NOT_FOUND.
[out]	out_uid	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_uid is NULL.
OCCTL_NOT_FOUND	The NodeId refers to a removed entity, or the NodeId is all-zero (invalid).

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_node_id_from_uid

occtl_graph_uid_kind()

occtl_status_t occtl_graph_uid_kind	(	const occtl_graph_t *	graph,
		occtl_uid_t	uid,
		occtl_node_kind_t *	out_kind
	)

Returns the kind embedded in a UID.

Parameters

[in]	graph	Must be non-NULL.
[in]	uid	UID to inspect.
[out]	out_kind	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	The UID is all-zero (invalid) or the entity has been removed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_node_kind

occtl_graph_uid_table()

occtl_status_t occtl_graph_uid_table	(	const occtl_graph_t *	graph,
		occtl_uid_t *	out_uids,
		occtl_node_id_t *	out_nodes,
		size_t	cap,
		size_t *	out_count
	)

Dumps the (UID → NodeId) mapping for every active node in graph.

Two-call buffer (§10.1): pass out_uids and out_nodes as NULL, any cap, to size the dump; reissue with both arrays of length at least out_count (the value the sizing call returned). The resulting parallel arrays form the wire-format-stable handshake that survives a Compact / save / load cycle.

Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_uids	Borrows it. Length cap; may be NULL on the sizing call.
[out]	out_nodes	Borrows it. Length cap; may be NULL on the sizing call. Must be the same length as out_uids on the refill call.
[in]	cap	Capacity of both arrays. Ignored when both arrays are NULL (sizing call).
[out]	out_count	Borrows it. Receives the total number of (UID, NodeId) pairs in the graph.

Return values

OCCTL_OK	Success — either sizing or full fill.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_BUFFER_TOO_SMALL	cap < out_count and at least one of the arrays is non-NULL.

\par Thread Safety Yes (read-only on graph).

See also

occtl_uid_to_bytes, occtl_graph_uid_from_node_id

occtl_graph_units_get()

occtl_status_t occtl_graph_units_get	(	const occtl_graph_t *	graph,
		double *	out_length_unit_to_meter,
		char *	name_buf,
		size_t	name_buf_size,
		size_t *	out_name_required
	)

Retrieves graph-level length-unit metadata (two-call buffer pattern).

Call once with name_buf == NULL to learn the required buffer size in out_name_required, then call again with a buffer of at least that size. The written unit name is NUL-terminated; out_name_required includes the NUL terminator.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[out]	out_length_unit_to_meter	Borrows it. Must be non-NULL. Receives the scale factor from one model length unit to meters.
[out]	name_buf	Owns it (caller-allocated). May be NULL to query required size.
[in]	name_buf_size	Size of name_buf in bytes.
[out]	out_name_required	Borrows it. Must be non-NULL. Receives required size including NUL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, out_length_unit_to_meter, or out_name_required is NULL.
OCCTL_BUFFER_TOO_SMALL	name_buf is non-NULL and name_buf_size is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_graph_units_set

occtl_graph_units_set()

occtl_status_t occtl_graph_units_set	(	occtl_graph_t *	graph,
		double	length_unit_to_meter,
		const char *	name,
		size_t	nameLen
	)

Sets graph-level length-unit metadata.

name is a byte buffer of length nameLen; it need not be NUL-terminated. The internal copy is NUL-terminated. A zero-length name is allowed and means "unnamed unit"; an unset graph reports a default unit of 1.0 meter named m.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	length_unit_to_meter	Scale factor from one model length unit to meters; must be finite and strictly positive.
[in]	name	Unit name bytes. Borrowed; copied internally. May be NULL only when nameLen is 0.
[in]	nameLen	Length of name in bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL; length_unit_to_meter is non-finite / non-positive; or name is NULL when nameLen > 0.

\par Thread Safety No (mutates graph metadata).

See also

occtl_graph_units_get

occtl_graph_vertex_count()

occtl_status_t occtl_graph_vertex_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_vertex_iter_create()

occtl_status_t occtl_graph_vertex_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_graph_wire_count()

occtl_status_t occtl_graph_wire_count	(	const occtl_graph_t *	graph,
		size_t *	out_count
	)

Returns the number of active (non-removed) solids in the graph.

Parameters

[in]	graph	Graph pointer. Must be non-NULL.
[out]	out_count	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.

\par Thread Safety Yes (read-only).

occtl_graph_wire_iter_create()

occtl_status_t occtl_graph_wire_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over all active solids.

Iterator borrows from graph; release with occtl_node_iter_free before mutating or freeing the graph. Iteration order is implementation-defined but stable for a given graph state.

Parameters

[in]	graph	Must be non-NULL.
[out]	out_iter	Owns it. Must be non-NULL. On success receives a new iterator; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_joint_create()

occtl_status_t occtl_joint_create	(	occtl_graph_t *	graph,
		const occtl_joint_info_t *	info,
		occtl_joint_id_t *	out_joint
	)

Creates an assembly joint record.

The joint is copied into graph-owned metadata. Endpoint nodes may be products, occurrences, or topology nodes; metadata follows graph clone / compact remapping and removes joints whose endpoint is removed without replacement.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version and NULL p_next.
[out]	out_joint	Borrows it. Must be non-NULL. Receives the new graph-local joint ID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, info, or out_joint is NULL, or an info field is malformed.
OCCTL_VERSION_MISMATCH	info->struct_version is unsupported.
OCCTL_NOT_FOUND	An endpoint node is invalid or removed.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph metadata).

See also

occtl_joint_get, occtl_joint_list, occtl_joint_remove

occtl_joint_get()

occtl_status_t occtl_joint_get	(	const occtl_graph_t *	graph,
		occtl_joint_id_t	joint,
		occtl_joint_info_t *	out_info
	)

Retrieves an assembly joint record.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	joint	Joint ID to query. Must be valid in graph.
[out]	out_info	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_info is NULL, or joint is the invalid sentinel.
OCCTL_NOT_FOUND	joint is not present in graph.

\par Thread Safety Yes (read-only on graph).

See also

occtl_joint_create, occtl_joint_list, occtl_joint_remove

occtl_joint_info_init()

void occtl_joint_info_init

(

occtl_joint_info_t *

info

)

Initialises info to default values via OCCTL_JOINT_INFO_INIT.

NULL-tolerant.

Parameters

[out]

info

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_joint_create

occtl_joint_list()

occtl_status_t occtl_joint_list	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_joint_id_t *	out_joints,
		size_t	cap,
		size_t *	out_count
	)

Lists assembly joints (two-call buffer pattern).

Pass OCCTL_NODE_ID_INVALID as node to list every joint in the graph. Otherwise, only joints whose first or second endpoint is node are listed. Call once with out_joints == NULL to learn the required count, then call again with an array of at least that size.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node	Endpoint filter, or OCCTL_NODE_ID_INVALID for all.
[out]	out_joints	Owns it (caller-allocated). May be NULL to query required count.
[in]	cap	Capacity of out_joints in elements.
[out]	out_count	Borrows it. Must be non-NULL. Receives total count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	node is non-zero and invalid or removed.
OCCTL_BUFFER_TOO_SMALL	out_joints is non-NULL and cap is too small.

\par Thread Safety Yes (read-only on graph).

See also

occtl_joint_create, occtl_joint_get, occtl_joint_remove

occtl_joint_remove()

occtl_status_t occtl_joint_remove	(	occtl_graph_t *	graph,
		occtl_joint_id_t	joint
	)

Removes an assembly joint record.

Idempotent: removing a missing joint is a successful no-op.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	joint	Joint ID to remove. Must not be the invalid sentinel.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or joint is invalid.

\par Thread Safety No (mutates graph metadata).

See also

occtl_joint_create, occtl_joint_get, occtl_joint_list

occtl_node_iter_free()

void occtl_node_iter_free

(

occtl_node_iter_t *

iter

)

Releases an iterator. NULL-tolerant; idempotent.

After this call iter must not be passed to occtl_node_iter_next.

Parameters

[in]

iter

Iterator to release. May be NULL.

\par Thread Safety No.

See also

occtl_node_iter_next

occtl_node_iter_next()

occtl_status_t occtl_node_iter_next	(	occtl_node_iter_t *	iter,
		occtl_node_id_t *	out_id
	)

Advances the iterator and returns the next node ID.

On a successful step writes the next ID to out_id and returns OCCTL_OK. When the iterator is exhausted writes OCCTL_NODE_ID_INVALID to out_id and returns OCCTL_NOT_FOUND; subsequent calls remain OCCTL_NOT_FOUND (idempotent end).

Parameters

[in,out]	iter	Borrows it. Must be non-NULL. Advanced in place.
[out]	out_id	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On a successful step; out_id receives the ID.
OCCTL_NOT_FOUND	Iterator is exhausted; out_id set to invalid.
OCCTL_INVALID_ARGUMENT	iter or out_id is NULL.

\par Thread Safety No (mutates iterator state).

See also

occtl_node_iter_free

occtl_ref_uid_from_bytes()

occtl_status_t occtl_ref_uid_from_bytes	(	const uint8_t *	in_bytes,
		occtl_ref_uid_t *	out_ref_uid
	)

Decodes a fixed-width wire-format RefUID.

Rejects payloads whose reserved bytes are non-zero with OCCTL_FORMAT_ERROR; those bytes are reserved for a future wider identity encoding.

Parameters

[in]	in_bytes	Borrows it. Must point to at least OCCTL_REF_UID_WIRE_SIZE readable bytes.
[out]	out_ref_uid	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	in_bytes or out_ref_uid is NULL.
OCCTL_FORMAT_ERROR	Reserved bytes are non-zero.

\par Thread Safety Yes.

See also

occtl_ref_uid_to_bytes

occtl_ref_uid_to_bytes()

occtl_status_t occtl_ref_uid_to_bytes	(	occtl_ref_uid_t	ref_uid,
		uint8_t *	out_bytes
	)

Encodes a RefUID into its fixed-width wire format.

Parameters

[in]	ref_uid	RefUID to encode (may be OCCTL_REF_UID_INVALID).
[out]	out_bytes	Owns it (caller-allocated). Must point to at least OCCTL_REF_UID_WIRE_SIZE writable bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	out_bytes is NULL.

\par Thread Safety Yes.

See also

occtl_ref_uid_from_bytes

occtl_rep_uid_from_bytes()

occtl_status_t occtl_rep_uid_from_bytes	(	const uint8_t *	in_bytes,
		occtl_rep_uid_t *	out_rep_uid
	)

Decodes a fixed-width wire-format RepUID.

Parameters

[in]	in_bytes	Borrows it. Must point to at least OCCTL_REP_UID_WIRE_SIZE readable bytes.
[out]	out_rep_uid	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	in_bytes or out_rep_uid is NULL.
OCCTL_FORMAT_ERROR	Reserved bytes are non-zero.

\par Thread Safety Yes.

See also

occtl_rep_uid_to_bytes

occtl_rep_uid_to_bytes()

occtl_status_t occtl_rep_uid_to_bytes	(	occtl_rep_uid_t	rep_uid,
		uint8_t *	out_bytes
	)

Encodes a RepUID into its fixed-width wire format.

Parameters

[in]	rep_uid	RepUID to encode (may be OCCTL_REP_UID_INVALID).
[out]	out_bytes	Owns it (caller-allocated). Must point to at least OCCTL_REP_UID_WIRE_SIZE writable bytes.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	out_bytes is NULL.

\par Thread Safety Yes.

See also

occtl_rep_uid_from_bytes

occtl_shell_view_init()

void occtl_shell_view_init

(

occtl_shell_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_solid_view_init()

void occtl_solid_view_init

(

occtl_solid_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_topo_coedge_edge_of()

occtl_status_t occtl_topo_coedge_edge_of	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_node_id_t *	out_edge
	)

Returns the parent edge of a coedge.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_edge	Borrows it. Receives the parent edge NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_edge is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_face_of

occtl_topo_coedge_face_of()

occtl_status_t occtl_topo_coedge_face_of	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_node_id_t *	out_face
	)

Returns the parent face of a coedge.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_face	Borrows it. Receives the parent face NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_face is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_edge_of

occtl_topo_coedge_has_pcurve()

occtl_status_t occtl_topo_coedge_has_pcurve	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		int32_t *	out_has_pcurve
	)

Returns whether a coedge has a pcurve.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_has_pcurve	Borrows it. Set to 1 if pcurve present, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_pcurve is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_is_reversed()

occtl_status_t occtl_topo_coedge_is_reversed	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		int32_t *	out_is_reversed
	)

Returns whether a coedge is reversed (senses its parent edge in the opposite direction).

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_is_reversed	Borrows it. Set to 1 if reversed, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_reversed is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_is_seam()

occtl_status_t occtl_topo_coedge_is_seam	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		int32_t *	out_is_seam
	)

Returns whether a coedge is a seam (closed-surface) edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_is_seam	Borrows it. Set to 1 if seam, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_seam is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_pcurve_eval()

occtl_status_t occtl_topo_coedge_pcurve_eval	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	u,
		occtl_point2_t *	out_uv
	)

Evaluates the PCurve UV point on a coedge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	u	PCurve parameter.
[out]	out_uv	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_uv is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.
OCCTL_WRONG_KIND	coedge is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_pcurve_eval_dn

occtl_topo_coedge_pcurve_eval_d1()

occtl_status_t occtl_topo_coedge_pcurve_eval_d1	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	u,
		occtl_point2_t *	out_uv,
		occtl_vector2_t *	out_d1
	)

Evaluates the PCurve UV point and first derivative on a coedge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	u	PCurve parameter.
[out]	out_uv	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or an out-param is NULL.
OCCTL_NOT_FOUND	coedge is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_pcurve_eval_d2, occtl_topo_coedge_pcurve_eval_dn

occtl_topo_coedge_pcurve_eval_d2()

occtl_status_t occtl_topo_coedge_pcurve_eval_d2	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	u,
		occtl_point2_t *	out_uv,
		occtl_vector2_t *	out_d1,
		occtl_vector2_t *	out_d2
	)

Evaluates the PCurve UV point and first two derivatives on a coedge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	u	PCurve parameter.
[out]	out_uv	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.
[out]	out_d2	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or an out-param is NULL.
OCCTL_NOT_FOUND	coedge is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_pcurve_eval_d1, occtl_topo_coedge_pcurve_eval_d3

occtl_topo_coedge_pcurve_eval_d3()

occtl_status_t occtl_topo_coedge_pcurve_eval_d3	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	u,
		occtl_point2_t *	out_uv,
		occtl_vector2_t *	out_d1,
		occtl_vector2_t *	out_d2,
		occtl_vector2_t *	out_d3
	)

Evaluates the PCurve UV point and first three derivatives on a coedge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	u	PCurve parameter.
[out]	out_uv	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.
[out]	out_d2	Borrows it. Must be non-NULL.
[out]	out_d3	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or an out-param is NULL.
OCCTL_NOT_FOUND	coedge is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_pcurve_eval_d2, occtl_topo_coedge_pcurve_eval_dn

occtl_topo_coedge_pcurve_eval_dn()

occtl_status_t occtl_topo_coedge_pcurve_eval_dn	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	u,
		uint32_t	n,
		occtl_vector2_t *	out_dn
	)

Evaluates the Nth derivative vector on a coedge pcurve at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	u	PCurve parameter.
[in]	n	Derivative order (0 = point position as vector).
[out]	out_dn	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_dn is NULL.
OCCTL_NOT_FOUND	coedge is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedge_pcurve_eval_d3

occtl_topo_coedge_pcurve_parameter()

occtl_status_t occtl_topo_coedge_pcurve_parameter	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_node_id_t	vertex,
		double *	out_parameter
	)

Parameter of vertex on the pcurve carried by coedge.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	vertex	Vertex node ID.
[out]	out_parameter	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_parameter is NULL.
OCCTL_NOT_FOUND	coedge or vertex is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge or vertex is not a vertex.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_range()

occtl_status_t occtl_topo_coedge_range	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double *	out_first,
		double *	out_last
	)

Returns the parametric range of a coedge.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_first	Borrows it. Must be non-NULL.
[out]	out_last	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or any out-param is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_seam_pair()

occtl_status_t occtl_topo_coedge_seam_pair	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_node_id_t *	out_pair
	)

Returns the paired coedge for a seam edge.

For non-seam coedges sets out_pair to OCCTL_NODE_ID_INVALID and returns OCCTL_OK.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_pair	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success (including non-seam case).
OCCTL_INVALID_ARGUMENT	graph or out_pair is NULL.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_uv_points()

occtl_status_t occtl_topo_coedge_uv_points	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_point2_t *	out_uv_start,
		occtl_point2_t *	out_uv_end
	)

Returns the UV points at the start and end of a coedge on its parent face surface.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_uv_start	Borrows it. May be NULL.
[out]	out_uv_end	Borrows it. May be NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or any color channel in color is non-finite.
OCCTL_NOT_FOUND	coedge is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_coedge_view()

occtl_status_t occtl_topo_coedge_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_coedge_view_t *	view
	)

Fills view with the current scalar state of coedge.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	Coedge node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_coedge_view_init or OCCTL_COEDGE_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	coedge is invalid or removed.
OCCTL_WRONG_KIND	coedge is not a coedge.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_view, occtl_topo_face_view

occtl_topo_coedges_of_wire_iter_create()

occtl_status_t occtl_topo_coedges_of_wire_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the coedges of a wire.

Yielded IDs are OCCTL_KIND_COEDGE. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	wire is invalid or removed.
OCCTL_WRONG_KIND	wire is not a wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_compound_child_count()

occtl_status_t occtl_topo_compound_child_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	compound,
		uint32_t *	out_count
	)

Returns the number of children (direct references) in a compound.

Parameters

[in]	graph	Must be non-NULL.
[in]	compound	Compound node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	compound is invalid or removed.
OCCTL_WRONG_KIND	compound is not a compound.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_make_compound

occtl_topo_compound_view()

occtl_status_t occtl_topo_compound_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	compound,
		occtl_compound_view_t *	view
	)

Fills view with the current scalar state of compound.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	compound	Compound node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_compound_view_init or OCCTL_COMPOUND_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	compound is invalid or removed.
OCCTL_WRONG_KIND	compound is not a compound.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_solid_view

occtl_topo_compsolid_solid_count()

occtl_status_t occtl_topo_compsolid_solid_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	compsolid,
		uint32_t *	out_count
	)

Returns the number of solids in a compsolid.

Parameters

[in]	graph	Must be non-NULL.
[in]	compsolid	CompSolid node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	compsolid is invalid or removed.
OCCTL_WRONG_KIND	compsolid is not a compsolid.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_curve_kind()

occtl_status_t occtl_topo_edge_curve_kind	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_curve_kind_t *	out_kind
	)

Returns the OCCT curve kind carried by an edge's 3D curve.

Edges without a 3D curve return OCCTL_CURVE_KIND_UNDEFINED.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_kind	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_has_curve, occtl_select_iter_create

occtl_topo_edge_end_vertex()

occtl_status_t occtl_topo_edge_end_vertex	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t *	out_vertex
	)

Returns the end vertex of an edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_vertex	Borrows it. Receives the end vertex NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_vertex is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_start_vertex

occtl_topo_edge_eval()

occtl_status_t occtl_topo_edge_eval	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	u,
		occtl_point3_t *	out_p
	)

Evaluates the 3D point on an edge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	u	Curve parameter.
[out]	out_p	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_p is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_eval_dn, occtl_topo_edge_eval_d2

occtl_topo_edge_eval_d1()

occtl_status_t occtl_topo_edge_eval_d1	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	u,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1
	)

Evaluates the 3D point and first derivative on an edge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	u	Curve parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, out_p, or out_d1 is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_eval_dn, occtl_topo_edge_eval_d2

occtl_topo_edge_eval_d2()

occtl_status_t occtl_topo_edge_eval_d2	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	u,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1,
		occtl_vector3_t *	out_d2
	)

Evaluates the 3D point, first derivative, and second derivative on an edge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	u	Curve parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.
[out]	out_d2	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL or an out-param is NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_eval_d3, occtl_topo_edge_eval_dn

occtl_topo_edge_eval_d3()

occtl_status_t occtl_topo_edge_eval_d3	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	u,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1,
		occtl_vector3_t *	out_d2,
		occtl_vector3_t *	out_d3
	)

Evaluates the 3D point, first derivative, second derivative, and third derivative on an edge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	u	Curve parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1	Borrows it. Must be non-NULL.
[out]	out_d2	Borrows it. Must be non-NULL.
[out]	out_d3	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL or an out-param is NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_eval_d2, occtl_topo_edge_eval_dn

occtl_topo_edge_eval_dn()

occtl_status_t occtl_topo_edge_eval_dn	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	u,
		uint32_t	n,
		occtl_vector3_t *	out_dn
	)

Evaluates the Nth derivative vector on an edge at parameter u.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	u	Curve parameter.
[in]	n	Derivative order (0 = point position as vector).
[out]	out_dn	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_dn is NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_eval_d2, occtl_topo_edge_eval_d3

occtl_topo_edge_face_count()

occtl_status_t occtl_topo_edge_face_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		uint32_t *	out_count
	)

Returns the number of faces referencing an edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_has_curve()

occtl_status_t occtl_topo_edge_has_curve	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_has_curve
	)

Returns whether an edge has a 3D curve.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_has_curve	Borrows it. Set to 1 if the edge has a curve, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_curve is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_is_boundary()

occtl_status_t occtl_topo_edge_is_boundary	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_is_boundary
	)

Returns whether an edge is a boundary edge (belongs to exactly 1 face).

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_is_boundary	Borrows it. Set to 1 if boundary, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_boundary is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_is_manifold, occtl_topo_edge_is_seam_on_face

occtl_topo_edge_is_degenerated()

occtl_status_t occtl_topo_edge_is_degenerated	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_is_degenerated
	)

Returns whether an edge is degenerated.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_is_degenerated	Borrows it. Set to 1 if degenerated, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_degenerated is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_is_manifold()

occtl_status_t occtl_topo_edge_is_manifold	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_is_manifold
	)

Returns whether an edge is manifold (shared by at most 2 faces).

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_is_manifold	Borrows it. Set to 1 if manifold, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_manifold is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_is_boundary, occtl_topo_edge_is_seam_on_face

occtl_topo_edge_is_seam_on_face()

occtl_status_t occtl_topo_edge_is_seam_on_face	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	face,
		int32_t *	out_is_seam
	)

Returns whether an edge is a seam edge on a given face.

A seam edge bounds the periodic seam of the face — e.g. the join on a cylindrical or spherical face.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	face	Face node ID.
[out]	out_is_seam	Borrows it. Set to 1 if the edge is a seam on the face, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_seam is NULL.
OCCTL_NOT_FOUND	edge or face is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge or face is not a face.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_range()

occtl_status_t occtl_topo_edge_range	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double *	out_first,
		double *	out_last
	)

Returns the parametric range of an edge's 3D curve.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_first	Borrows it. Must be non-NULL.
[out]	out_last	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, out_first, or out_last is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_tolerance

occtl_topo_edge_same_parameter()

occtl_status_t occtl_topo_edge_same_parameter	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_has_same_parameter
	)

Returns whether an edge has the same parameterisation on every face it bounds.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_has_same_parameter	Borrows it. Set to 1 if same-parameter, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_same_parameter is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_same_range()

occtl_status_t occtl_topo_edge_same_range	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t *	out_has_same_range
	)

Returns whether an edge has the same range in 3D and on its pcurves.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_has_same_range	Borrows it. Set to 1 if same-range, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_same_range is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_start_vertex()

occtl_status_t occtl_topo_edge_start_vertex	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t *	out_vertex
	)

Returns the start vertex of an edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_vertex	Borrows it. Receives the start vertex NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_vertex is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_end_vertex

occtl_topo_edge_tolerance()

occtl_status_t occtl_topo_edge_tolerance	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double *	out_tolerance
	)

Returns the tolerance of an edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_tolerance	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_tolerance is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_vertex_count()

occtl_status_t occtl_topo_edge_vertex_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		uint32_t *	out_count
	)

Returns the number of vertices on an edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	edge is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

occtl_topo_edge_view()

occtl_status_t occtl_topo_edge_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_edge_view_t *	view
	)

Fills view with the current scalar state of edge.

view's struct_version must match a known version constant; only fields up to that version are written. The fill is atomic with respect to the C-call boundary but races with concurrent graph mutation.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_edge_view_init or OCCTL_EDGE_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_view, occtl_topo_coedge_view

occtl_topo_edges_of_wire_iter_create()

occtl_status_t occtl_topo_edges_of_wire_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the distinct edges referenced by a wire.

Yielded IDs are OCCTL_KIND_EDGE. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	wire is invalid or removed.
OCCTL_WRONG_KIND	wire is not a wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_face_eval()

occtl_status_t occtl_topo_face_eval	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	u,
		double	v,
		occtl_point3_t *	out_p
	)

Evaluates the 3D point on a face at UV parameters (u, v).

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	u	U parameter.
[in]	v	V parameter.
[out]	out_p	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_p is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_eval_dn, occtl_topo_face_eval_d1

occtl_topo_face_eval_d1()

occtl_status_t occtl_topo_face_eval_d1	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	u,
		double	v,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1u,
		occtl_vector3_t *	out_d1v
	)

Evaluates the 3D point and first partial derivatives (D1U, D1V) on a face at UV parameters (u, v).

The surface normal can be computed from the derivatives as cross(out_d1u, out_d1v).normalized().

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	u	U parameter.
[in]	v	V parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1u	Borrows it. Must be non-NULL.
[out]	out_d1v	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or an out-param is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_eval, occtl_topo_face_eval_dn

occtl_topo_face_eval_d2()

occtl_status_t occtl_topo_face_eval_d2	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	u,
		double	v,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1u,
		occtl_vector3_t *	out_d1v,
		occtl_vector3_t *	out_d2u,
		occtl_vector3_t *	out_d2v,
		occtl_vector3_t *	out_d2uv
	)

Evaluates the 3D point and first and second partial derivatives on a face at UV parameters (u, v).

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	u	U parameter.
[in]	v	V parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1u	Borrows it. Must be non-NULL.
[out]	out_d1v	Borrows it. Must be non-NULL.
[out]	out_d2u	Borrows it. Must be non-NULL.
[out]	out_d2v	Borrows it. Must be non-NULL.
[out]	out_d2uv	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL or an out-param is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_eval_d1, occtl_topo_face_eval_d3

occtl_topo_face_eval_d3()

occtl_status_t occtl_topo_face_eval_d3	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	u,
		double	v,
		occtl_point3_t *	out_p,
		occtl_vector3_t *	out_d1u,
		occtl_vector3_t *	out_d1v,
		occtl_vector3_t *	out_d2u,
		occtl_vector3_t *	out_d2v,
		occtl_vector3_t *	out_d2uv,
		occtl_vector3_t *	out_d3u,
		occtl_vector3_t *	out_d3v,
		occtl_vector3_t *	out_d3uuv,
		occtl_vector3_t *	out_d3uvv
	)

Evaluates the 3D point and first, second, and third partial derivatives on a face at UV parameters (u, v).

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	u	U parameter.
[in]	v	V parameter.
[out]	out_p	Borrows it. Must be non-NULL.
[out]	out_d1u	Borrows it. Must be non-NULL.
[out]	out_d1v	Borrows it. Must be non-NULL.
[out]	out_d2u	Borrows it. Must be non-NULL.
[out]	out_d2v	Borrows it. Must be non-NULL.
[out]	out_d2uv	Borrows it. Must be non-NULL.
[out]	out_d3u	Borrows it. Must be non-NULL.
[out]	out_d3v	Borrows it. Must be non-NULL.
[out]	out_d3uuv	Borrows it. Must be non-NULL.
[out]	out_d3uvv	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL or an out-param is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_eval_d2, occtl_topo_face_eval_dn

occtl_topo_face_eval_dn()

occtl_status_t occtl_topo_face_eval_dn	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	u,
		double	v,
		uint32_t	nu,
		uint32_t	nv,
		occtl_vector3_t *	out_dn
	)

Evaluates the (Nu,Nv)th cross derivative vector on a face at UV parameters (u, v).

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	u	U parameter.
[in]	v	V parameter.
[in]	nu	U derivative order.
[in]	nv	V derivative order.
[out]	out_dn	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_dn is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_eval, occtl_topo_face_eval_d1

occtl_topo_face_has_surface()

occtl_status_t occtl_topo_face_has_surface	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		int32_t *	out_has_surface
	)

Returns whether a face has a surface.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_has_surface	Borrows it. Set to 1 if the face has a surface, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_surface is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

occtl_topo_face_has_triangulation()

occtl_status_t occtl_topo_face_has_triangulation	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		int32_t *	out_has_triangulation
	)

Returns whether a face has a triangulation.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_has_triangulation	Borrows it. Set to 1 if triangulation present, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_triangulation is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_natural_restriction

occtl_topo_face_natural_restriction()

occtl_status_t occtl_topo_face_natural_restriction	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		int32_t *	out_has_natural_restriction
	)

Returns whether a face has natural restriction (inherent bounds from its surface).

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_has_natural_restriction	Borrows it. Set to 1 if natural restriction, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_has_natural_restriction is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_has_triangulation

occtl_topo_face_outer_wire()

occtl_status_t occtl_topo_face_outer_wire	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_node_id_t *	out_wire
	)

Returns the outer wire of a face.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_wire	Borrows it. Receives the outer wire NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_wire is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face, or the face has no outer wire.

\par Thread Safety Yes (read-only on graph).

occtl_topo_face_surface_kind()

occtl_status_t occtl_topo_face_surface_kind	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_surface_kind_t *	out_kind
	)

Returns the OCCT surface kind carried by a face.

Faces without a surface return OCCTL_SURFACE_KIND_UNDEFINED.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID.
[out]	out_kind	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_kind is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_has_surface, occtl_select_iter_create

occtl_topo_face_tolerance()

occtl_status_t occtl_topo_face_tolerance	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double *	out_tolerance
	)

Returns the tolerance of a face.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_tolerance	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_tolerance is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

occtl_topo_face_uv_bounds()

occtl_status_t occtl_topo_face_uv_bounds	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double *	out_umin,
		double *	out_umax,
		double *	out_vmin,
		double *	out_vmax
	)

Returns the UV parameter bounds of a face.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_umin	Borrows it. Must be non-NULL.
[out]	out_umax	Borrows it. Must be non-NULL.
[out]	out_vmin	Borrows it. Must be non-NULL.
[out]	out_vmax	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or any out-param is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

occtl_topo_face_view()

occtl_status_t occtl_topo_face_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_face_view_t *	view
	)

Fills view with the current scalar state of face.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_face_view_init or OCCTL_FACE_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_view, occtl_topo_wire_view

occtl_topo_face_wire_count()

occtl_status_t occtl_topo_face_wire_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		uint32_t *	out_count
	)

Returns the number of wires on a face.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	face is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

occtl_topo_faces_of_shell_iter_create()

occtl_status_t occtl_topo_faces_of_shell_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the faces of a shell.

Yielded IDs are OCCTL_KIND_FACE. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	shell	Shell node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	shell is invalid or removed.
OCCTL_WRONG_KIND	shell is not a shell.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_for_each_related()

occtl_status_t occtl_topo_for_each_related	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_visitor_t	visitor,
		void *	user_data
	)

Iterates over nodes related to node and calls visitor for each.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node	Root node.
[in]	visitor	Callback invoked for each related node.
[in,out]	user_data	Passed through. May be NULL.

Return values

OCCTL_OK	On completion.
OCCTL_INVALID_ARGUMENT	graph or visitor is NULL.
OCCTL_NOT_FOUND	node is invalid or removed. \par Thread Safety Yes (read-only, allocates internal iterator).

See also

occtl_topo_related_iter_create

occtl_topo_link_product()

occtl_status_t occtl_topo_link_product	(	occtl_graph_t *	graph,
		occtl_node_id_t	product,
		occtl_node_id_t	root,
		occtl_transform_t	placement
	)

Links an existing product to a topology root with a placement.

Creates a new occurrence whose child is the topology root and adds it as the product's shape root. The product must have been created by occtl_topo_make_product.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	product	Product node ID. Must be valid and active.
[in]	root	Topology root node ID. Must be valid and active.
[in]	placement	Placement transform for the occurrence.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or placement contains non-finite values.
OCCTL_NOT_FOUND	product or root is invalid or removed.
OCCTL_WRONG_KIND	product is not a product.

\par Thread Safety No (mutates graph).

See also

occtl_topo_make_product, occtl_topo_link_products

occtl_topo_link_product_occurrence()

occtl_status_t occtl_topo_link_product_occurrence	(	occtl_graph_t *	graph,
		occtl_node_id_t	product,
		occtl_node_id_t	root,
		occtl_transform_t	placement,
		occtl_node_id_t *	out_occurrence
	)

Links an existing product to a topology root and returns the new occurrence.

This is the binding-friendly variant of occtl_topo_link_product. It performs the same mutation but also reports the created occurrence node so callers do not need to scan the product's occurrence list to find it.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	product	Product node ID. Must be valid and active.
[in]	root	Topology root node ID. Must be valid and active.
[in]	placement	Placement transform for the occurrence.
[out]	out_occurrence	Borrows it. Must be non-NULL. Receives the created occurrence node.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_occurrence is NULL, or placement contains non-finite values.
OCCTL_NOT_FOUND	product or root is invalid or removed.
OCCTL_WRONG_KIND	product is not a product.
OCCTL_ERROR	OCCT failed to create the occurrence.

\par Thread Safety No (mutates graph).

See also

occtl_topo_link_product, occtl_topo_occurrence_transform

occtl_topo_link_products()

occtl_status_t occtl_topo_link_products	(	occtl_graph_t *	graph,
		occtl_node_id_t	parentProduct,
		occtl_node_id_t	childProduct,
		occtl_transform_t	placement,
		occtl_node_id_t	parentOccurrence
	)

Links two products via a parent-child occurrence.

The child product is instantiated as an occurrence within the parent product. The optional parentOccurrence parameter allows nesting the new child under an existing occurrence chain.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	parentProduct	Parent product node ID. Must be valid and active.
[in]	childProduct	Child product node ID. Must be valid and active.
[in]	placement	Placement transform for the child occurrence.
[in]	parentOccurrence	Existing parent occurrence, or all-zero for root-level placement.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL.
OCCTL_NOT_FOUND	A product NodeId is invalid or removed.
OCCTL_WRONG_KIND	A NodeId is not a product.

\par Thread Safety No (mutates graph).

See also

occtl_topo_make_product, occtl_topo_remove_occurrence

occtl_topo_link_products_occurrence()

occtl_status_t occtl_topo_link_products_occurrence	(	occtl_graph_t *	graph,
		occtl_node_id_t	parentProduct,
		occtl_node_id_t	childProduct,
		occtl_transform_t	placement,
		occtl_node_id_t	parentOccurrence,
		occtl_node_id_t *	out_occurrence
	)

Links two products and returns the new occurrence node.

This is the binding-friendly variant of occtl_topo_link_products. It performs the same assembly mutation but also reports the created occurrence node for immediate naming, tagging, transforms, or joint creation.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	parentProduct	Parent product node ID. Must be valid and active.
[in]	childProduct	Child product node ID. Must be valid and active.
[in]	placement	Placement transform for the child occurrence.
[in]	parentOccurrence	Existing parent occurrence, or all-zero for root-level placement.
[out]	out_occurrence	Borrows it. Must be non-NULL. Receives the created occurrence node.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_occurrence is NULL, or placement contains non-finite values.
OCCTL_NOT_FOUND	A product NodeId is invalid or removed.
OCCTL_WRONG_KIND	A NodeId is not a product.
OCCTL_ERROR	OCCT failed to create the occurrence.

\par Thread Safety No (mutates graph).

See also

occtl_topo_link_products, occtl_topo_occurrence_transform

occtl_topo_make_product()

occtl_status_t occtl_topo_make_product	(	occtl_graph_t *	graph,
		const occtl_topo_make_product_info_t *	info,
		occtl_node_id_t *	out_product
	)

Creates a product in the graph.

The product is an assembly root. When info->root is a valid (non-zero) NodeId the product wraps that topology root via a placement; otherwise an empty product with no shape root is created.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL.
[out]	out_product	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph, info, or out_product is NULL; info->p_next is non-NULL; or info->placement contains non-finite values.
OCCTL_VERSION_MISMATCH	info->struct_version is unsupported.
OCCTL_NOT_FOUND	info->root is non-zero and invalid or removed.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also

occtl_topo_link_product, occtl_topo_link_products

occtl_topo_make_product_info_init()

void occtl_topo_make_product_info_init

(

occtl_topo_make_product_info_t *

info

)

Initialises info to default values via OCCTL_TOPO_MAKE_PRODUCT_INFO_INIT.

NULL-tolerant.

Parameters

[out]

info

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_make_product

occtl_topo_occurrence_set_transform()

occtl_status_t occtl_topo_occurrence_set_transform	(	occtl_graph_t *	graph,
		occtl_node_id_t	occurrence,
		occtl_transform_t	transform
	)

Sets the local placement carried by an occurrence node.

The placement is graph-stored on the unique active occurrence reference that owns occurrence; the occurrence definition and child product/root are not copied. If the occurrence definition has more than one active reference, use the generic reference-location editor instead.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	occurrence	Occurrence node ID to modify.
[in]	transform	New local placement.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL, or transform contains non-finite values, or occurrence has more than one active reference.
OCCTL_NOT_FOUND	occurrence is invalid, removed, or has no active occurrence reference.
OCCTL_WRONG_KIND	occurrence is not an occurrence node.

\par Thread Safety No (mutates graph).

See also

occtl_topo_occurrence_transform, occtl_topo_set_ref_location

occtl_topo_occurrence_transform()

occtl_status_t occtl_topo_occurrence_transform	(	const occtl_graph_t *	graph,
		occtl_node_id_t	occurrence,
		occtl_transform_t *	out_transform
	)

Retrieves the local placement carried by an occurrence node.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	occurrence	Occurrence node ID to query.
[out]	out_transform	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_transform is NULL.
OCCTL_NOT_FOUND	occurrence is invalid, removed, or has no active occurrence reference.
OCCTL_WRONG_KIND	occurrence is not an occurrence node.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_occurrence_set_transform, occtl_topo_occurrence_world_transform

occtl_topo_occurrence_world_transform()

occtl_status_t occtl_topo_occurrence_world_transform	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		occtl_node_id_t	occurrence,
		occtl_transform_t *	out_transform
	)

Retrieves an occurrence's accumulated transform from a traversal root.

The helper walks downward from root using BRepGraph's child explorer and returns the accumulated placement for the first path that reaches occurrence. Pass a root Product for assembly-world placement.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Traversal root. Must be valid and active.
[in]	occurrence	Occurrence node ID to locate below root.
[out]	out_transform	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_transform is NULL.
OCCTL_NOT_FOUND	root / occurrence is invalid or occurrence is not reachable from root.
OCCTL_WRONG_KIND	occurrence is not an occurrence node.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_child_explorer_create, occtl_topo_occurrence_transform

occtl_topo_occurrences_of_product_iter_create()

occtl_status_t occtl_topo_occurrences_of_product_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	product,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the occurrences of a product.

Yielded IDs are OCCTL_KIND_OCCURRENCE. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	product	Product node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	product is invalid or removed.
OCCTL_WRONG_KIND	product is not a product.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_product_occurrence_count()

occtl_status_t occtl_topo_product_occurrence_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	product,
		uint32_t *	out_count
	)

Returns the number of occurrences of a product.

Parameters

[in]	graph	Must be non-NULL.
[in]	product	Product node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	product is invalid, removed, or not a product.

\par Thread Safety Yes (read-only on graph).

occtl_topo_remove_occurrence()

occtl_status_t occtl_topo_remove_occurrence	(	occtl_graph_t *	graph,
		occtl_ref_id_t	occurrence_ref
	)

Removes an occurrence reference from the graph.

Detaches a child usage from its parent product. The referenced child definition (product or topology root) is not removed unless it has no other active usages.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	occurrence_ref	Occurrence reference to remove.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph is NULL.
OCCTL_NOT_FOUND	occurrence_ref is invalid or removed.

\par Thread Safety No (mutates graph).

See also

occtl_topo_link_products

occtl_topo_shell_face_count()

occtl_status_t occtl_topo_shell_face_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		uint32_t *	out_count
	)

Returns the number of faces in a shell.

Parameters

[in]	graph	Must be non-NULL.
[in]	shell	Shell node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	shell is invalid, removed, or not a shell.

\par Thread Safety Yes (read-only on graph).

occtl_topo_shell_is_closed()

occtl_status_t occtl_topo_shell_is_closed	(	const occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		int32_t *	out_is_closed
	)

Returns whether a shell is topologically closed (watertight).

Parameters

[in]	graph	Must be non-NULL.
[in]	shell	Shell node ID.
[out]	out_is_closed	Borrows it. Set to 1 if closed, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_closed is NULL.
OCCTL_NOT_FOUND	shell is invalid, removed, or not a shell.

\par Thread Safety Yes (read-only on graph).

occtl_topo_shell_view()

occtl_status_t occtl_topo_shell_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		occtl_shell_view_t *	view
	)

Fills view with the current scalar state of shell.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	shell	Shell node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_shell_view_init or OCCTL_SHELL_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	shell is invalid or removed.
OCCTL_WRONG_KIND	shell is not a shell.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_view, occtl_topo_solid_view

occtl_topo_shells_of_solid_iter_create()

occtl_status_t occtl_topo_shells_of_solid_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the shells of a solid.

Yielded IDs are OCCTL_KIND_SHELL. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	solid	Solid node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	solid is invalid or removed.
OCCTL_WRONG_KIND	solid is not a solid.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_solid_shell_count()

occtl_status_t occtl_topo_solid_shell_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		uint32_t *	out_count
	)

Returns the number of shells in a solid.

Parameters

[in]	graph	Must be non-NULL.
[in]	solid	Solid node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	solid is invalid, removed, or not a solid.

\par Thread Safety Yes (read-only on graph).

occtl_topo_solid_view()

occtl_status_t occtl_topo_solid_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_solid_view_t *	view
	)

Fills view with the current scalar state of solid.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	solid	Solid node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_solid_view_init or OCCTL_SOLID_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	solid is invalid or removed.
OCCTL_WRONG_KIND	solid is not a solid.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_shell_view, occtl_topo_compound_view

occtl_topo_vertex_edge_count()

occtl_status_t occtl_topo_vertex_edge_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		uint32_t *	out_count
	)

Returns the number of edges that reference a vertex.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	vertex is invalid, removed, or not a vertex.

\par Thread Safety Yes (read-only on graph).

occtl_topo_vertex_parameter()

occtl_status_t occtl_topo_vertex_parameter	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		occtl_node_id_t	edge,
		double *	out_parameter
	)

Parameter of a vertex on a given edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	edge	Edge node ID.
[out]	out_parameter	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_parameter is NULL.
OCCTL_NOT_FOUND	vertex or edge is invalid or removed.
OCCTL_WRONG_KIND	vertex is not a vertex or edge is not an edge.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_vertex_parameters

occtl_topo_vertex_parameters()

occtl_status_t occtl_topo_vertex_parameters	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		occtl_node_id_t	face,
		occtl_point2_t *	out_uv
	)

UV parameters of a vertex on a given face.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	face	Face node ID.
[out]	out_uv	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_uv is NULL.
OCCTL_NOT_FOUND	vertex or face is invalid or removed.
OCCTL_WRONG_KIND	vertex is not a vertex or face is not a face.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_vertex_parameter

occtl_topo_vertex_point()

occtl_status_t occtl_topo_vertex_point	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		occtl_point3_t *	out_point
	)

Returns the 3D point of a vertex.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID. Must be a valid, active vertex.
[out]	out_point	Borrows it (caller-allocated slot). Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_point is NULL.
OCCTL_NOT_FOUND	vertex is invalid, removed, or not a vertex.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_vertex_tolerance

occtl_topo_vertex_tolerance()

occtl_status_t occtl_topo_vertex_tolerance	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		double *	out_tolerance
	)

Returns the tolerance of a vertex.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[out]	out_tolerance	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_tolerance is NULL.
OCCTL_NOT_FOUND	vertex is invalid, removed, or not a vertex.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_vertex_point

occtl_topo_vertex_view()

occtl_status_t occtl_topo_vertex_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		occtl_vertex_view_t *	view
	)

Fills view with the current scalar state of vertex.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_vertex_view_init or OCCTL_VERTEX_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	vertex is invalid or removed.
OCCTL_WRONG_KIND	vertex is not a vertex.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_edge_view

occtl_topo_vertices_of_edge_iter_create()

occtl_status_t occtl_topo_vertices_of_edge_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the vertices of an edge.

Yielded order is: start vertex, end vertex, then internal vertex IDs in their stored order. This pinned order lets callers distinguish roles by position in the yield sequence.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	edge is invalid or removed.
OCCTL_WRONG_KIND	edge is not an edge.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_topo_wire_coedge_count()

occtl_status_t occtl_topo_wire_coedge_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		uint32_t *	out_count
	)

Returns the number of coedges in a wire.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire.

\par Thread Safety Yes (read-only on graph).

occtl_topo_wire_distinct_edge_count()

occtl_status_t occtl_topo_wire_distinct_edge_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		uint32_t *	out_count
	)

Returns the number of distinct edges in a wire.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire.

\par Thread Safety Yes (read-only on graph).

occtl_topo_wire_edge_count()

occtl_status_t occtl_topo_wire_edge_count	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		uint32_t *	out_count
	)

Returns the number of edges in a wire.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_count is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire.

\par Thread Safety Yes (read-only on graph).

occtl_topo_wire_explorer_create()

occtl_status_t occtl_topo_wire_explorer_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the coedges of a wire in geometric traversal order.

The wire explorer follows coedges in endpoint-chaining order, unlike occtl_topo_coedges_of_wire_iter_create which visits coedge definitions in stored order. The traversal auto-chains open endpoints and wraps around a closed wire.

Yielded IDs are OCCTL_KIND_COEDGE.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	wire is invalid or removed.
OCCTL_WRONG_KIND	wire is not a wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_coedges_of_wire_iter_create

occtl_topo_wire_face_of()

occtl_status_t occtl_topo_wire_face_of	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_node_id_t *	out_face
	)

Returns the face a wire belongs to.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_face	Borrows it. Receives the parent face NodeId. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_face is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire, or the wire is free (not owned by any face).

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_wire_is_outer

occtl_topo_wire_is_closed()

occtl_status_t occtl_topo_wire_is_closed	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		int32_t *	out_is_closed
	)

Returns whether a wire is topologically closed.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_is_closed	Borrows it. Set to 1 if closed, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_closed is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire.

\par Thread Safety Yes (read-only on graph).

occtl_topo_wire_is_outer()

occtl_status_t occtl_topo_wire_is_outer	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		int32_t *	out_is_outer
	)

Returns whether a wire is the outer wire of its parent face.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_is_outer	Borrows it. Set to 1 if outer, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_is_outer is NULL.
OCCTL_NOT_FOUND	wire is invalid, removed, or not a wire.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_wire_face_of

occtl_topo_wire_view()

occtl_status_t occtl_topo_wire_view	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_wire_view_t *	view
	)

Fills view with the current scalar state of wire.

view's struct_version must match a known version constant; only fields up to that version are written.

Parameters

[in]	graph	Must be non-NULL.
[in]	wire	Wire node id.
[out]	view	Borrows it (caller-allocated). Must be non-NULL and initialised via occtl_wire_view_init or OCCTL_WIRE_VIEW_INIT.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or view is NULL, or view->p_next is non-NULL.
OCCTL_NOT_FOUND	wire is invalid or removed.
OCCTL_WRONG_KIND	wire is not a wire.
OCCTL_VERSION_MISMATCH	view's struct_version is not a supported value.

\par Thread Safety Yes (read-only on graph).

See also

occtl_topo_face_view, occtl_topo_edge_view

occtl_topo_wires_of_face_iter_create()

occtl_status_t occtl_topo_wires_of_face_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_node_iter_t **	out_iter
	)

Creates an iterator over the wires of a face.

Yielded IDs are OCCTL_KIND_WIRE. Iteration order is implementation-defined.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or out_iter is NULL.
OCCTL_NOT_FOUND	face is invalid or removed.
OCCTL_WRONG_KIND	face is not a face.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

occtl_vertex_view_init()

void occtl_vertex_view_init

(

occtl_vertex_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view

occtl_wire_view_init()

void occtl_wire_view_init

(

occtl_wire_view_t *

view

)

Initialises view to default values matching OCCTL_EDGE_VIEW_INIT.

NULL-tolerant.

Parameters

[out]

view

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_topo_edge_view
