occtl::text::TextFacesOptions Struct Reference

Optional layout/font knobs for make_faces and make_wires. More...

#include <text.hpp>

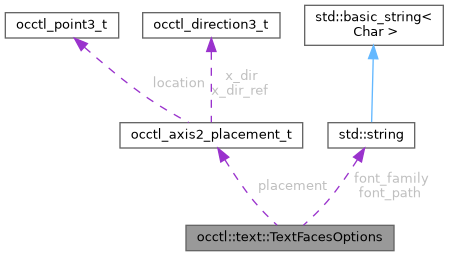

Collaboration diagram for occtl::text::TextFacesOptions:

Public Attributes
::occtl_axis2_placement_t	placement = detail::default_ax2()
	Baseline frame; defaults to XOY.
std::string	font_family
	Family name; ignored when font_path is set.
std::string	font_path
	Absolute path to a .ttf/.otf file.
::occtl_text_font_aspect_t	font_aspect = OCCTL_TEXT_FONT_ASPECT_REGULAR
double	height = 0.0
	Glyph cap height in model units; strictly positive.
::occtl_text_halign_t	horizontal_align = OCCTL_TEXT_HALIGN_LEFT
::occtl_text_valign_t	vertical_align = OCCTL_TEXT_VALIGN_BASELINE
double	wrapping_width = 0.0
	Maximum line width; 0 disables wrapping.
bool	word_wrapping = true
	Avoid breaking words when wrapping.

Detailed Description

Optional layout/font knobs for make_faces and make_wires.

---

The documentation for this struct was generated from the following file:

• include/occtl-hpp/text.hpp
