C++ veneer for the text-to-shape module. More...

#include <occtl/occtl_text.h>
#include <occtl-hpp/core.hpp>
#include <occtl-hpp/topo.hpp>
#include <string>

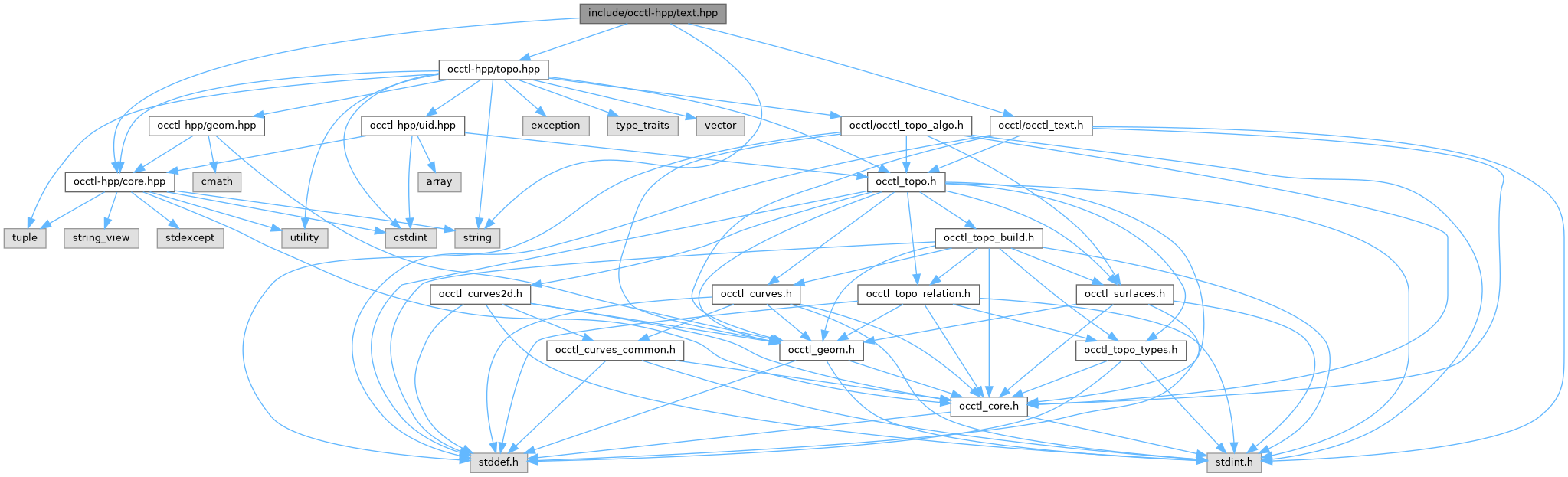

Include dependency graph for text.hpp:

Classes
struct	occtl::text::TextFacesOptions
	Optional layout/font knobs for make_faces and make_wires. More...

Typedefs
using	occtl::text::TextMetrics = ::occtl_text_metrics_t
	Formatted text metrics returned by measure.

Functions
inline ::occtl_axis2_placement_t	occtl::text::detail::default_ax2 () noexcept
	Default axis2 placement: origin + Z (main) + X.

inline ::occtl_text_info_t	occtl::text::detail::to_c_info (const std::string &theText, const TextFacesOptions &theOpts, ::occtl_text_layout_options_t &theLayout)

TextMetrics	occtl::text::measure (const std::string &theText, const TextFacesOptions &theOpts)
	Measures formatted text without creating graph topology. Throws occtl::Error on failure.

NodeId	occtl::text::make_faces (Graph &theGraph, const std::string &theText, const TextFacesOptions &theOpts)
	Builds a Compound of planar text faces and returns its NodeId. Throws occtl::Error on failure.

NodeId	occtl::text::make_wires (Graph &theGraph, const std::string &theText, const TextFacesOptions &theOpts)
	Builds a Compound of glyph outline wires and returns its NodeId. Throws occtl::Error on failure.

Detailed Description

C++ veneer for the text-to-shape module.

Mirrors the C info struct as a PascalCase POD with defaults and returns the produced compound NodeId. Failures translate to occtl::Error.

Function Documentation

inline

Builds a Compound of planar text faces and returns its NodeId. Throws occtl::Error on failure.

Parameters

[in,out]	theGraph	graph receiving the text shape
[in]	theText	UTF-8 string; must be non-empty
[in]	theOpts	layout and font options; `height` must be > 0 and exactly one font selector must be set

inline

Builds a Compound of glyph outline wires and returns its NodeId. Throws occtl::Error on failure.

Parameters

[in,out]	theGraph	graph receiving the text shape
[in]	theText	UTF-8 string; must be non-empty
[in]	theOpts	layout and font options; `height` must be > 0 and exactly one font selector must be set

TextMetrics occtl::text::measure	(	const std::string &	theText,
		const TextFacesOptions &	theOpts
	)

inline

Measures formatted text without creating graph topology. Throws occtl::Error on failure.

Parameters

[in]	theText	UTF-8 string; must be non-empty
[in]	theOpts	layout and font options; `height` must be > 0 and exactly one font selector must be set
