occtl_curve2d_line_tangent_with_angle_info Struct Reference

#include <occtl_curves2d.h>

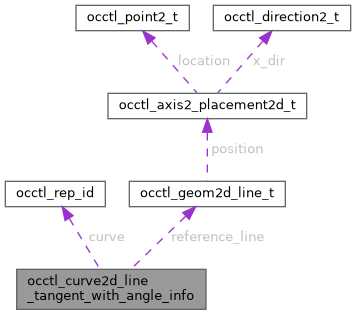

Collaboration diagram for occtl_curve2d_line_tangent_with_angle_info:

Public Attributes
uint32_t	struct_version
const void *	p_next
occtl_rep_id_t	curve
occtl_curve2d_tangency_qualifier_t	qualifier
occtl_geom2d_line_t	reference_line
double	angle_radians
int32_t	use_initial_parameter
double	initial_parameter
double	tolerance

Detailed Description

Versioned create-info for 2D lines tangent to a curve at a fixed angle to a line.

Member Data Documentation

angle_radians

double occtl_curve2d_line_tangent_with_angle_info::angle_radians

Signed angle to reference_line, in radians.

curve

occtl_rep_id_t occtl_curve2d_line_tangent_with_angle_info::curve

[in] Tangent curve id.

initial_parameter

double occtl_curve2d_line_tangent_with_angle_info::initial_parameter

Initial curve parameter when use_initial_parameter is non-zero.

p_next

const void* occtl_curve2d_line_tangent_with_angle_info::p_next

Reserved; must be NULL.

qualifier

occtl_curve2d_tangency_qualifier_t occtl_curve2d_line_tangent_with_angle_info::qualifier

Tangency side qualifier for curve.

reference_line

occtl_geom2d_line_t occtl_curve2d_line_tangent_with_angle_info::reference_line

Reference 2D line used for the fixed angle.

struct_version

uint32_t occtl_curve2d_line_tangent_with_angle_info::struct_version

Must be OCCTL_CURVE2D_LINE_TANGENT_WITH_ANGLE_INFO_VERSION_1.

tolerance

double occtl_curve2d_line_tangent_with_angle_info::tolerance

OCCT angular tolerance for tangency; must be >= 0.

use_initial_parameter

int32_t occtl_curve2d_line_tangent_with_angle_info::use_initial_parameter

0/1; use initial_parameter for iterative OCCT solvers.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_curves2d.h
