#include <occtl_prim_sweep.h>

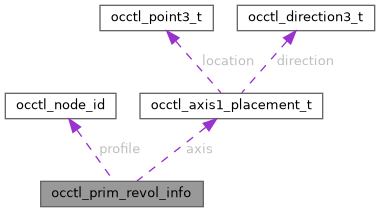

Collaboration diagram for occtl_prim_revol_info:

[legend]

Public Attributes
uint32_t	struct_version

const void *	p_next

occtl_node_id_t	profile

occtl_axis1_placement_t	axis

double	angle

int32_t	copy

Detailed Description

Info for occtl_prim_make_revol.

Revolves profile around axis by angle radians. Like prism, the result kind is one step higher in dimension. The default angle is 2*pi (full revolution).

Member Data Documentation

◆ angle

double occtl_prim_revol_info::angle

Sweep angle in radians; default 2*pi.

◆ axis

occtl_axis1_placement_t occtl_prim_revol_info::axis

Rotation axis.

◆ copy

int32_t occtl_prim_revol_info::copy

0/1. When 1, the profile is duplicated rather than shared.

◆ p_next

const void* occtl_prim_revol_info::p_next

Reserved for extensions; must be NULL.

◆ profile

occtl_node_id_t occtl_prim_revol_info::profile

Borrows it. Vertex/Edge/Wire/Face/Shell to revolve.

◆ struct_version

uint32_t occtl_prim_revol_info::struct_version

Must be OCCTL_PRIM_REVOL_INFO_VERSION_1.

The documentation for this struct was generated from the following file:

include/occtl/occtl_prim_sweep.h
