occtl_prim_twist_extrusion_info Struct Reference

#include <occtl_prim_sweep.h>

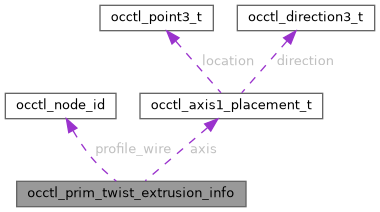

Collaboration diagram for occtl_prim_twist_extrusion_info:

Public Attributes
uint32_t	struct_version
const void *	p_next
occtl_node_id_t	profile_wire
occtl_axis1_placement_t	axis
double	height
double	angle
int32_t	section_count
int32_t	make_solid
int32_t	ruled
double	pres3d

Detailed Description

Info for occtl_prim_make_twist_extrusion.

Builds a twisted extrusion from one closed Wire section along axis.direction, rotating each generated section around axis. Face profiles with inner wires should be decomposed before calling.

Member Data Documentation

angle

double occtl_prim_twist_extrusion_info::angle

Total twist angle in radians.

axis

occtl_axis1_placement_t occtl_prim_twist_extrusion_info::axis

Twist axis and extrusion direction.

height

double occtl_prim_twist_extrusion_info::height

Signed extrusion distance along axis.direction.

make_solid

int32_t occtl_prim_twist_extrusion_info::make_solid

0/1. When 1, cap into a Solid; otherwise build a Shell.

p_next

const void* occtl_prim_twist_extrusion_info::p_next

Reserved; must be NULL.

pres3d

double occtl_prim_twist_extrusion_info::pres3d

Through-sections precision; default 1.0e-6.

profile_wire

occtl_node_id_t occtl_prim_twist_extrusion_info::profile_wire

Borrows it. Closed Wire section to sweep.

ruled

int32_t occtl_prim_twist_extrusion_info::ruled

0/1. When 1, use ruled faces between sections.

section_count

int32_t occtl_prim_twist_extrusion_info::section_count

Number of sampled sections; must be at least 2.

struct_version

uint32_t occtl_prim_twist_extrusion_info::struct_version

Must be OCCTL_PRIM_TWIST_EXTRUSION_INFO_VERSION_1.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_prim_sweep.h
