occtl_topo_draft_faces_options Struct Reference

#include <occtl_topo_algo.h>

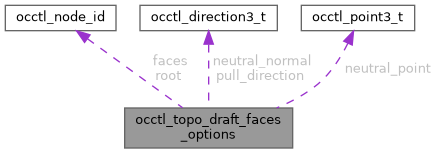

Collaboration diagram for occtl_topo_draft_faces_options:

Public Attributes
uint32_t	struct_version
const void *	p_next
occtl_node_id_t	root
const occtl_node_id_t *	faces
size_t	face_count
occtl_direction3_t	pull_direction
occtl_point3_t	neutral_point
occtl_direction3_t	neutral_normal
double	angle
int32_t	keep_inside

Detailed Description

Configuration for occtl_topo_draft_faces.

Member Data Documentation

angle

double occtl_topo_draft_faces_options::angle

Draft angle in radians. Default OCCTL_ANGLE_5_DEG_RAD (5 degrees).

face_count

size_t occtl_topo_draft_faces_options::face_count

Number of entries in faces.

faces

const occtl_node_id_t* occtl_topo_draft_faces_options::faces

Borrows it. Selected Face NodeIds.

keep_inside

int32_t occtl_topo_draft_faces_options::keep_inside

OCCT draft flag. Default 1.

neutral_normal

occtl_direction3_t occtl_topo_draft_faces_options::neutral_normal

Neutral plane normal. Default +Z.

neutral_point

occtl_point3_t occtl_topo_draft_faces_options::neutral_point

Point on the neutral plane. Default origin.

p_next

const void* occtl_topo_draft_faces_options::p_next

Reserved; set to NULL.

pull_direction

occtl_direction3_t occtl_topo_draft_faces_options::pull_direction

Direction that defines material side. Default +Z.

root

occtl_node_id_t occtl_topo_draft_faces_options::root

Borrows it. Shape root to draft.

struct_version

uint32_t occtl_topo_draft_faces_options::struct_version

Must be OCCTL_TOPO_DRAFT_FACES_OPTIONS_VERSION_1.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_topo_algo.h
