occtl_topo_section_by_planes_options Struct Reference

#include <occtl_topo_algo.h>

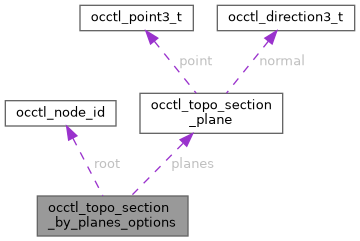

Collaboration diagram for occtl_topo_section_by_planes_options:

Public Attributes
uint32_t	struct_version
const void *	p_next
occtl_node_id_t	root
const occtl_topo_section_plane_t *	planes
size_t	plane_count
int32_t	approximate
int32_t	compute_pcurves_on_root
int32_t	compute_pcurves_on_plane

Detailed Description

Configuration for occtl_topo_make_sections_by_planes.

Member Data Documentation

approximate

int32_t occtl_topo_section_by_planes_options::approximate

0/1. Approximate generated section curves. Default 1.

compute_pcurves_on_plane

int32_t occtl_topo_section_by_planes_options::compute_pcurves_on_plane

0/1. Attach pcurves on the plane tool when possible.

compute_pcurves_on_root

int32_t occtl_topo_section_by_planes_options::compute_pcurves_on_root

0/1. Attach pcurves on the source shape when possible.

p_next

const void* occtl_topo_section_by_planes_options::p_next

Reserved; set to NULL.

plane_count

size_t occtl_topo_section_by_planes_options::plane_count

Number of entries in planes.

planes

const occtl_topo_section_plane_t* occtl_topo_section_by_planes_options::planes

Borrows it. Section plane array.

root

occtl_node_id_t occtl_topo_section_by_planes_options::root

Shape root to section.

struct_version

uint32_t occtl_topo_section_by_planes_options::struct_version

Must be OCCTL_TOPO_SECTION_BY_PLANES_OPTIONS_VERSION_1.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_topo_algo.h
