occtl_bool.h File Reference

OCCT-Light: boolean operations module public API. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

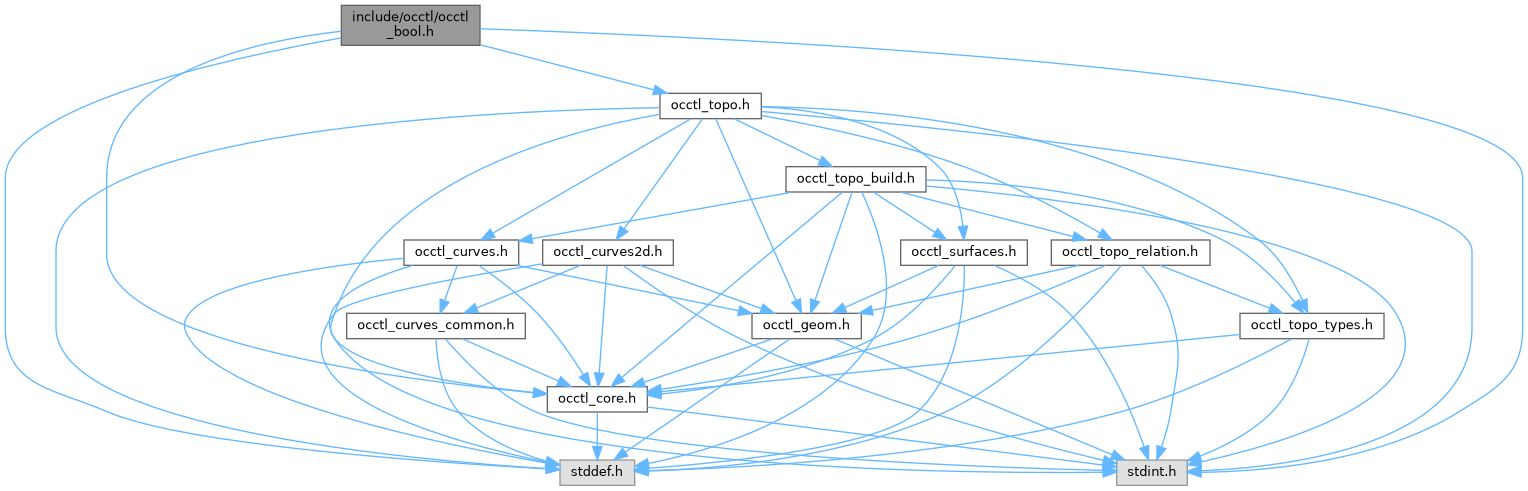

Include dependency graph for occtl_bool.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_bool_options

Macros
#define	OCCTL_BOOL_OPTIONS_VERSION_1   1u
#define	OCCTL_BOOL_OPTIONS_INIT   {OCCTL_BOOL_OPTIONS_VERSION_1, NULL, 0.0, 0, 0, 1.0e-2, 1}

Typedefs
typedef struct occtl_bool_options	occtl_bool_options_t

Functions
void	occtl_bool_options_init (occtl_bool_options_t *options)
occtl_status_t	occtl_bool_fuse (occtl_graph_t *graph, const occtl_node_id_t *objects, size_t n_objects, const occtl_node_id_t *tools, size_t n_tools, const occtl_bool_options_t *opts, occtl_node_id_t *out_root)
occtl_status_t	occtl_bool_cut (occtl_graph_t *graph, const occtl_node_id_t *objects, size_t n_objects, const occtl_node_id_t *tools, size_t n_tools, const occtl_bool_options_t *opts, occtl_node_id_t *out_root)
occtl_status_t	occtl_bool_common (occtl_graph_t *graph, const occtl_node_id_t *objects, size_t n_objects, const occtl_node_id_t *tools, size_t n_tools, const occtl_bool_options_t *opts, occtl_node_id_t *out_root)
occtl_status_t	occtl_bool_section (occtl_graph_t *graph, const occtl_node_id_t *objects, size_t n_objects, const occtl_node_id_t *tools, size_t n_tools, const occtl_bool_options_t *opts, occtl_node_id_t *out_root)
occtl_status_t	occtl_bool_split (occtl_graph_t *graph, const occtl_node_id_t *objects, size_t n_objects, const occtl_node_id_t *tools, size_t n_tools, const occtl_bool_options_t *opts, occtl_node_id_t *out_root)

Detailed Description

OCCT-Light: boolean operations module public API.

Five operations:

• Fuse (union of two argument groups)
• Cut (subtraction of tools from objects)
• Common (intersection of two argument groups)
• Section (intersection edges/vertices of all arguments)
• Split (splits objects using tools as cutters)

Every entry point takes a single occtl_graph_t* in which the inputs already live, runs the operation, and merges the result back into that same graph as a new topology root. The result root's NodeId is returned in out_root. Input NodeIds remain valid and continue to refer to the originating subgraph; the operation does not mutate them.

When opts->build_history is non-zero, per-input Modified / Generated / Deleted mappings are recorded on graph and queried with occtl_graph_history_modified, occtl_graph_history_generated, and occtl_graph_history_deleted_all.

Macro Definition Documentation

OCCTL_BOOL_OPTIONS_INIT

#define OCCTL_BOOL_OPTIONS_INIT   {OCCTL_BOOL_OPTIONS_VERSION_1, NULL, 0.0, 0, 0, 1.0e-2, 1}

Static initialiser for occtl_bool_options_t. Suitable for

occtl_bool_options_t opts = OCCTL_BOOL_OPTIONS_INIT;

OCCTL_BOOL_OPTIONS_VERSION_1

#define OCCTL_BOOL_OPTIONS_VERSION_1   1u

Current options struct version. Bumped only on a binary-incompatible change. New fields are appended via p_next-chained extension structs.

Typedef Documentation

occtl_bool_options_t

typedef struct occtl_bool_options occtl_bool_options_t

Tunable parameters shared by all five boolean operations.

Defaults (see OCCTL_BOOL_OPTIONS_INIT and occtl_bool_options_init) are the conservative ones: no fuzzy tolerance override, single-threaded execution, no post-op simplification, history collection enabled.

Function Documentation

occtl_bool_common()

occtl_status_t occtl_bool_common	(	occtl_graph_t *	graph,
		const occtl_node_id_t *	objects,
		size_t	n_objects,
		const occtl_node_id_t *	tools,
		size_t	n_tools,
		const occtl_bool_options_t *	opts,
		occtl_node_id_t *	out_root
	)

Boolean Common (intersection) of two argument groups.

Arguments may have any dimension; the result has the minimum dimension among the inputs.

Parameters and return codes mirror occtl_bool_fuse.

Parameters

[in,out]	graph	See occtl_bool_fuse.
[in]	objects	See occtl_bool_fuse.
[in]	n_objects	See occtl_bool_fuse.
[in]	tools	See occtl_bool_fuse.
[in]	n_tools	See occtl_bool_fuse.
[in]	opts	See occtl_bool_fuse.
[out]	out_root	See occtl_bool_fuse.

\par Thread Safety No.

See also

occtl_bool_fuse

occtl_bool_cut()

occtl_status_t occtl_bool_cut	(	occtl_graph_t *	graph,
		const occtl_node_id_t *	objects,
		size_t	n_objects,
		const occtl_node_id_t *	tools,
		size_t	n_tools,
		const occtl_bool_options_t *	opts,
		occtl_node_id_t *	out_root
	)

Boolean Cut (objects minus tools).

The result has the dimension of the objects: tools must have dimension not less than the maximum dimension of the objects.

Parameters and return codes mirror occtl_bool_fuse.

Parameters

[in,out]	graph	See occtl_bool_fuse.
[in]	objects	See occtl_bool_fuse.
[in]	n_objects	See occtl_bool_fuse.
[in]	tools	See occtl_bool_fuse.
[in]	n_tools	See occtl_bool_fuse.
[in]	opts	See occtl_bool_fuse.
[out]	out_root	See occtl_bool_fuse.

\par Thread Safety No.

See also

occtl_bool_fuse

occtl_bool_fuse()

occtl_status_t occtl_bool_fuse	(	occtl_graph_t *	graph,
		const occtl_node_id_t *	objects,
		size_t	n_objects,
		const occtl_node_id_t *	tools,
		size_t	n_tools,
		const occtl_bool_options_t *	opts,
		occtl_node_id_t *	out_root
	)

Boolean Fuse (union) of two argument groups.

Both groups must hold entities of equal dimension. The result is added to graph as a single new topology root.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL. Mutated: receives the new topology merged in.
[in]	objects	Borrows it. Array of n_objects input NodeIds that already live in graph. Must be non-NULL when n_objects > 0.
[in]	n_objects	Number of object inputs. Must be >= 1.
[in]	tools	Borrows it. Array of n_tools input NodeIds.
[in]	n_tools	Number of tool inputs. Must be >= 1.
[in]	opts	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_root	Borrows it. Must be non-NULL. On success receives the result topology root NodeId.

Return values

OCCTL_OK	Success.
OCCTL_INVALID_ARGUMENT	Required pointer is NULL; n_objects or n_tools is 0; options flags are not 0/1; opts->p_next is non-NULL; or numeric options are out of range / non-finite.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	An input NodeId is invalid or removed.
OCCTL_GEOMETRY_INVALID	The boolean algorithm failed to produce a valid result (e.g. the input dimensions were incompatible).
OCCTL_TOPOLOGY_INVALID	The result topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No — mutates graph.

See also

occtl_bool_cut, occtl_bool_common, occtl_graph_history_modified

occtl_bool_options_init()

void occtl_bool_options_init

(

occtl_bool_options_t *

options

)

Runtime initialiser for occtl_bool_options_t.

Sets all fields to OCCTL_BOOL_OPTIONS_INIT.

Parameters

[out]

options

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_bool_fuse

occtl_bool_section()

occtl_status_t occtl_bool_section	(	occtl_graph_t *	graph,
		const occtl_node_id_t *	objects,
		size_t	n_objects,
		const occtl_node_id_t *	tools,
		size_t	n_tools,
		const occtl_bool_options_t *	opts,
		occtl_node_id_t *	out_root
	)

Boolean Section: the intersection edges and vertices of all arguments.

Arguments may be of any type. The result is typically a Compound of edges (and possibly vertices) added to graph as a single root.

Parameters and return codes mirror occtl_bool_fuse.

Parameters

[in,out]	graph	See occtl_bool_fuse.
[in]	objects	See occtl_bool_fuse.
[in]	n_objects	See occtl_bool_fuse.
[in]	tools	See occtl_bool_fuse.
[in]	n_tools	See occtl_bool_fuse.
[in]	opts	See occtl_bool_fuse.
[out]	out_root	See occtl_bool_fuse.

\par Thread Safety No.

See also

occtl_bool_fuse

occtl_bool_split()

occtl_status_t occtl_bool_split	(	occtl_graph_t *	graph,
		const occtl_node_id_t *	objects,
		size_t	n_objects,
		const occtl_node_id_t *	tools,
		size_t	n_tools,
		const occtl_bool_options_t *	opts,
		occtl_node_id_t *	out_root
	)

Boolean Split: split each object using the tools as cutters.

Tools contribute nothing to the result body; they merely partition the objects. The result is a Compound of the partitions, added as a single new topology root.

Parameters and return codes mirror occtl_bool_fuse.

Parameters

[in,out]	graph	See occtl_bool_fuse.
[in]	objects	See occtl_bool_fuse.
[in]	n_objects	See occtl_bool_fuse.
[in]	tools	See occtl_bool_fuse.
[in]	n_tools	See occtl_bool_fuse.
[in]	opts	See occtl_bool_fuse.
[out]	out_root	See occtl_bool_fuse.

\par Thread Safety No.

See also

occtl_bool_fuse
