occtl_io_gltf.h File Reference

OCCT-Light: glTF 2.0 / GLB file I/O. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

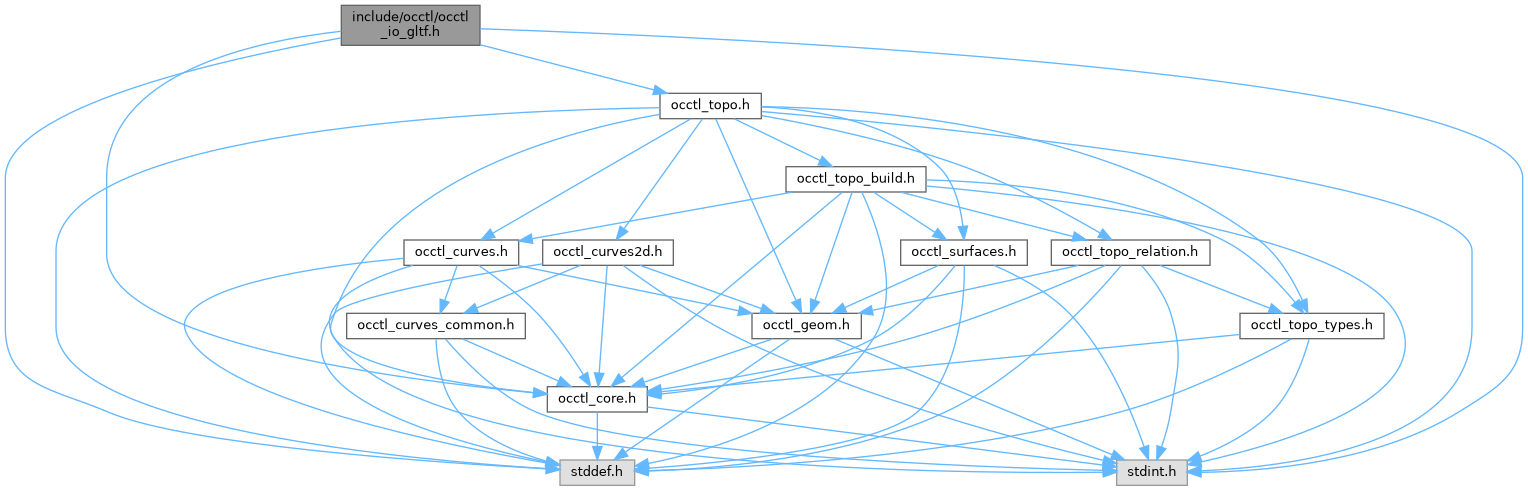

Include dependency graph for occtl_io_gltf.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_io_gltf_read_options
struct	occtl_io_gltf_write_options

Macros
#define	OCCTL_IO_GLTF_READ_OPTIONS_VERSION_1   1u
#define	OCCTL_IO_GLTF_WRITE_OPTIONS_VERSION_1   1u
#define	OCCTL_IO_GLTF_READ_OPTIONS_INIT    {OCCTL_IO_GLTF_READ_OPTIONS_VERSION_1, NULL, 0, 1, 1, 1, 0, 1, 1, -1}
#define	OCCTL_IO_GLTF_WRITE_OPTIONS_INIT    {OCCTL_IO_GLTF_WRITE_OPTIONS_VERSION_1, NULL, OCCTL_IO_GLTF_TRANSFORM_COMPACT, 0, 1, 0, 0, 0}

Typedefs
typedef enum occtl_io_gltf_transform_format	occtl_io_gltf_transform_format_t
typedef struct occtl_io_gltf_read_options	occtl_io_gltf_read_options_t
typedef struct occtl_io_gltf_write_options	occtl_io_gltf_write_options_t

Enumerations
enum	occtl_io_gltf_transform_format { OCCTL_IO_GLTF_TRANSFORM_COMPACT = 0 , OCCTL_IO_GLTF_TRANSFORM_MAT4 = 1 , OCCTL_IO_GLTF_TRANSFORM_TRS = 2 , OCCTL_IO_GLTF_TRANSFORM_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_io_gltf_read_options_init (occtl_io_gltf_read_options_t *options)
void	occtl_io_gltf_write_options_init (occtl_io_gltf_write_options_t *options)
occtl_status_t	occtl_io_gltf_read (const char *path, occtl_graph_t **out_graph, occtl_node_id_t *out_root, const occtl_io_gltf_read_options_t *options)
occtl_status_t	occtl_io_gltf_write (const occtl_graph_t *graph, occtl_node_id_t root, const char *path, const occtl_io_gltf_write_options_t *options)

Detailed Description

OCCT-Light: glTF 2.0 / GLB file I/O.

Reads and writes glTF 2.0 JSON streams (.gltf) and binary GLB streams (.glb) via OCCT's DEGLTF_Provider / DEGLTF_ConfigurationNode.

glTF is primarily a mesh exchange format. Precise geometry may be tessellated during export; callers that need deterministic triangulation should run occtl_mesh_generate before writing.

UIDs are not preserved across the round-trip in v1. Use occtl_uid_to_bytes / occtl_uid_from_bytes for an out-of-band UID handshake if persistent identity is required.

Typedef Documentation

occtl_io_gltf_read_options_t

typedef struct occtl_io_gltf_read_options occtl_io_gltf_read_options_t

Options for occtl_io_gltf_read. Pass NULL for defaults.

occtl_io_gltf_transform_format_t

typedef enum occtl_io_gltf_transform_format occtl_io_gltf_transform_format_t

Transformation encoding used when writing glTF node transforms.

occtl_io_gltf_write_options_t

typedef struct occtl_io_gltf_write_options occtl_io_gltf_write_options_t

Options for occtl_io_gltf_write. Pass NULL for defaults.

Enumeration Type Documentation

occtl_io_gltf_transform_format

enum occtl_io_gltf_transform_format

Transformation encoding used when writing glTF node transforms.

Enumerator
OCCTL_IO_GLTF_TRANSFORM_COMPACT	Let OCCT choose the most compact representation.
OCCTL_IO_GLTF_TRANSFORM_MAT4	Always write a 4x4 matrix.
OCCTL_IO_GLTF_TRANSFORM_TRS	Write translation, rotation quaternion, and scale.

Function Documentation

occtl_io_gltf_read()

occtl_status_t occtl_io_gltf_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_gltf_read_options_t *	options
	)

Reads a glTF or GLB file and ingests it into a freshly-created graph.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file. Must be non-NULL.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	path, out_graph, or out_root is NULL; or options has invalid fields (non-NULL p_next, non-0/1 flags, invalid memory_limit_mib).
OCCTL_VERSION_MISMATCH	options has an unsupported struct_version.
OCCTL_IO_ERROR	File not found, unreadable, or blocked by OCCT reader limits.
OCCTL_FORMAT_ERROR	File contents were not a valid glTF / GLB stream.
OCCTL_TOPOLOGY_INVALID	Imported shape could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also

occtl_io_gltf_write, occtl_de_read

occtl_io_gltf_read_options_init()

void occtl_io_gltf_read_options_init

(

occtl_io_gltf_read_options_t *

options

)

Initialises options to default values matching OCCTL_IO_GLTF_READ_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out]

options

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_io_gltf_read

occtl_io_gltf_write()

occtl_status_t occtl_io_gltf_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_gltf_write_options_t *	options
	)

Writes the topology rooted at root to a glTF or GLB file.

The output container is inferred from path extension: .gltf writes a JSON glTF stream and .glb writes a binary GLB stream.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or path is NULL; or options has invalid fields (non-NULL p_next, non-0/1 flags, non-zero reserved parallel).
OCCTL_NOT_FOUND	root is invalid or has been removed.
OCCTL_VERSION_MISMATCH	options has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	options has an unsupported transform_format.
OCCTL_IO_ERROR	Filesystem failure, unwritable file, or OCCT writer failure.

\par Thread Safety Yes (read-only on graph).

See also

occtl_io_gltf_read, occtl_de_write

occtl_io_gltf_write_options_init()

void occtl_io_gltf_write_options_init

(

occtl_io_gltf_write_options_t *

options

)

Initialises options to default values matching OCCTL_IO_GLTF_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out]

options

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_io_gltf_write
