OCCT-Light: PLY file export. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

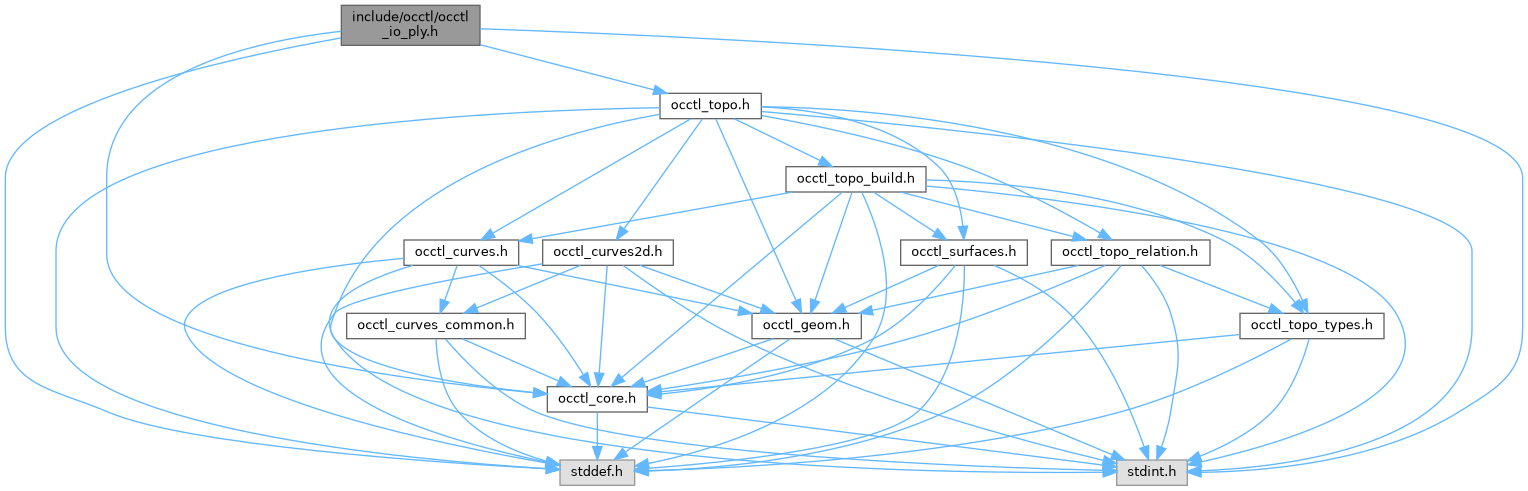

Include dependency graph for occtl_io_ply.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_io_ply_write_options

Macros
#define	OCCTL_IO_PLY_WRITE_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_PLY_WRITE_OPTIONS_INIT

Typedefs
typedef enum occtl_io_ply_coordinate_system	occtl_io_ply_coordinate_system_t

typedef struct occtl_io_ply_write_options	occtl_io_ply_write_options_t

Enumerations
enum	occtl_io_ply_coordinate_system { OCCTL_IO_PLY_COORDINATE_SYSTEM_Y_UP = 0 , OCCTL_IO_PLY_COORDINATE_SYSTEM_Z_UP = 1 , OCCTL_IO_PLY_COORDINATE_SYSTEM_GLTF = 2 , OCCTL_IO_PLY_COORDINATE_SYSTEM_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_io_ply_write_options_init (occtl_io_ply_write_options_t *options)

occtl_status_t	occtl_io_ply_write (const occtl_graph_t graph, occtl_node_id_t root, const char path, const occtl_io_ply_write_options_t *options)

Detailed Description

OCCT-Light: PLY file export.

Writes Stanford PLY polygon mesh files via OCCT's DEPLY_Provider / DEPLY_ConfigurationNode.

OCCT 8.0.0 does not support PLY import through DEPLY_Provider, so this module is intentionally write-only. Callers that need deterministic mesh output should run occtl_mesh_generate before writing.

Macro Definition Documentation

◆ OCCTL_IO_PLY_WRITE_OPTIONS_INIT

#define OCCTL_IO_PLY_WRITE_OPTIONS_INIT

Value:

  {OCCTL_IO_PLY_WRITE_OPTIONS_VERSION_1,                                                           \
   NULL,                                                                                           \
   OCCTL_IO_PLY_COORDINATE_SYSTEM_Z_UP,                                                            \
   OCCTL_IO_PLY_COORDINATE_SYSTEM_Y_UP,                                                            \
   1,                                                                                              \
   1,                                                                                              \
   0,                                                                                              \
   1,                                                                                              \
   0,                                                                                              \
   NULL,                                                                                           \
   NULL}

Typedef Documentation

◆ occtl_io_ply_coordinate_system_t

typedef enum occtl_io_ply_coordinate_system occtl_io_ply_coordinate_system_t

Coordinate system used by PLY export conversion.

◆ occtl_io_ply_write_options_t

typedef struct occtl_io_ply_write_options occtl_io_ply_write_options_t

Options for occtl_io_ply_write. Pass NULL for defaults.

Enumeration Type Documentation

◆ occtl_io_ply_coordinate_system

enum occtl_io_ply_coordinate_system

Coordinate system used by PLY export conversion.

Enumerator
OCCTL_IO_PLY_COORDINATE_SYSTEM_Y_UP	Y-up coordinates.
OCCTL_IO_PLY_COORDINATE_SYSTEM_Z_UP	Z-up coordinates.
OCCTL_IO_PLY_COORDINATE_SYSTEM_GLTF	glTF-compatible coordinates.

Function Documentation

◆ occtl_io_ply_write()

occtl_status_t occtl_io_ply_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_ply_write_options_t *	options
	)

Writes the topology rooted at root to a PLY file.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `path` is NULL; `options` has invalid fields (non-NULL `p_next`, non-0/1 flags); or mutually exclusive options are enabled.
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	`options` has an unsupported coordinate-system value.
OCCTL_IO_ERROR	Filesystem failure, unwritable file, or OCCT writer failure.

\par Thread Safety Yes (read-only on graph).

See also: occtl_de_write

◆ occtl_io_ply_write_options_init()

void occtl_io_ply_write_options_init ( occtl_io_ply_write_options_t * options )

Initialises options to default values matching OCCTL_IO_PLY_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_ply_write
