OCCT-Light: STL file I/O (stereolithography mesh format). More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

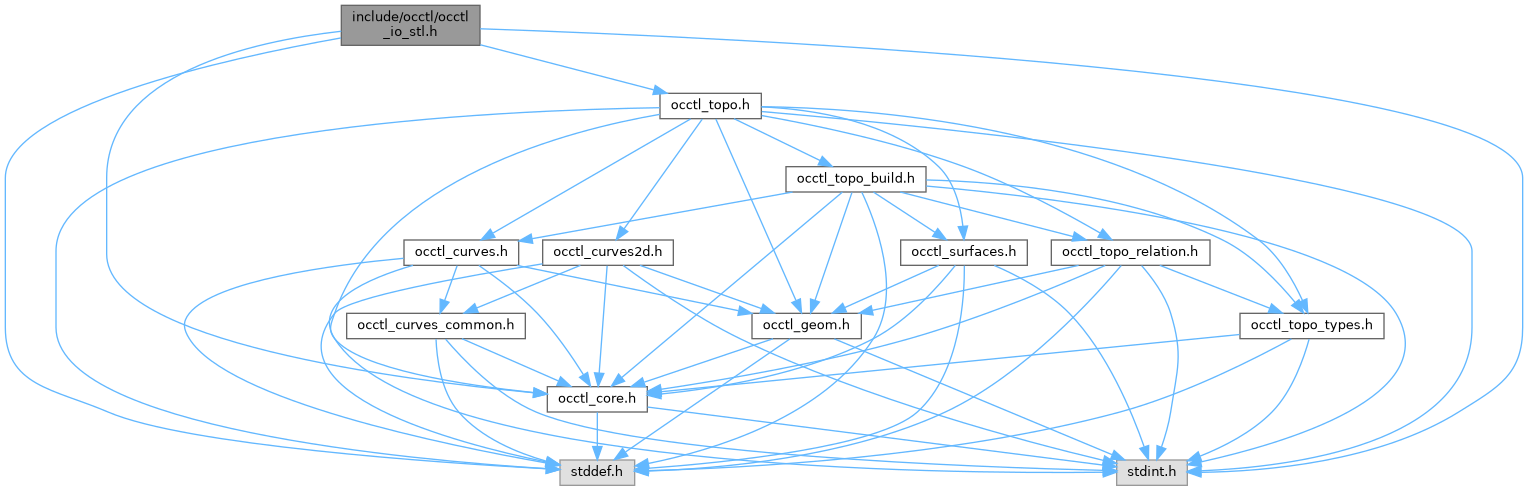

Include dependency graph for occtl_io_stl.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_io_stl_write_options

Macros
#define	OCCTL_IO_STL_WRITE_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_STL_WRITE_OPTIONS_INIT {OCCTL_IO_STL_WRITE_OPTIONS_VERSION_1, NULL, 0}

Typedefs
typedef struct occtl_io_stl_write_options	occtl_io_stl_write_options_t

Functions
void	occtl_io_stl_write_options_init (occtl_io_stl_write_options_t *options)

occtl_status_t	occtl_io_stl_read (const char path, occtl_graph_t out_graph, occtl_node_id_t out_root)

occtl_status_t	occtl_io_stl_read_memory (const uint8_t data, size_t size, occtl_graph_t out_graph, occtl_node_id_t out_root)

occtl_status_t	occtl_io_stl_write (const occtl_graph_t graph, occtl_node_id_t root, const char path, const occtl_io_stl_write_options_t *options)

occtl_status_t	occtl_io_stl_write_memory (const occtl_graph_t graph, occtl_node_id_t root, const occtl_io_stl_write_options_t options, uint8_t out_data, size_t capacity, size_t out_size)

Detailed Description

OCCT-Light: STL file I/O (stereolithography mesh format).

Reads and writes STL files (binary and ASCII) via OCCT's DESTL_Provider / DESTL_ConfigurationNode.

STL is mesh-only (no B-spline preservation) — the caller should tessellate with #occtl_mesh_build beforehand if the source is a precise geometry.

UIDs are not preserved across the round-trip — the STL file format has no identity slot. Use occtl_uid_to_bytes / occtl_uid_from_bytes for an out-of-band UID handshake if persistent identity is required.

Typedef Documentation

◆ occtl_io_stl_write_options_t

typedef struct occtl_io_stl_write_options occtl_io_stl_write_options_t

Options for occtl_io_stl_write and occtl_io_stl_write_memory. Pass NULL for defaults (binary output).

Function Documentation

◆ occtl_io_stl_read()

occtl_status_t occtl_io_stl_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Reads an STL file and ingests it into a freshly-created graph.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file. Must be non-NULL.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`path`, `out_graph`, or `out_root` is NULL.
OCCTL_IO_ERROR	File not found or unreadable.
OCCTL_FORMAT_ERROR	File contents were not a valid STL stream.

\par Thread Safety Yes.

See also: occtl_io_stl_write, occtl_de_read

◆ occtl_io_stl_read_memory()

occtl_status_t occtl_io_stl_read_memory	(	const uint8_t *	data,
		size_t	size,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Reads an STL payload from caller-owned memory into a freshly-created graph.

Parameters

[in]	data	Borrows it. Readable byte buffer containing STL data. Must be non-NULL when `size` is non-zero.
[in]	size	Number of bytes available at `data`. Must be > 0.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`data`, `out_graph`, or `out_root` is NULL, or `size` is zero.
OCCTL_FORMAT_ERROR	Payload contents were not a valid STL stream.
OCCTL_TOPOLOGY_INVALID	Payload decoded but could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also: occtl_io_stl_write_memory, occtl_io_stl_read

◆ occtl_io_stl_write()

occtl_status_t occtl_io_stl_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_stl_write_options_t *	options
	)

Writes the topology rooted at root to an STL file.

Format (binary/ASCII) is taken from options; pass NULL for default binary output.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `path` is NULL; or `options` has invalid fields (non-NULL `p_next`, `ascii_mode` not in {0,1}).
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_IO_ERROR	Filesystem failure or unwritable file.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_stl_read, occtl_de_write

◆ occtl_io_stl_write_memory()

occtl_status_t occtl_io_stl_write_memory	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const occtl_io_stl_write_options_t *	options,
		uint8_t *	out_data,
		size_t	capacity,
		size_t *	out_size
	)

Writes the topology rooted at root to caller-owned memory.

Use the standard two-call buffer pattern: call once with out_data NULL and capacity zero to receive the required byte count in out_size, then call again with a buffer of at least that size.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	options	Borrows it. May be NULL.
[out]	out_data	Borrows it. Writable output buffer, or NULL for sizing.
[in]	capacity	Size of `out_data` in bytes.
[out]	out_size	Borrows it. Receives the required byte count.

Return values

OCCTL_OK	On success. Sizing calls also return OK.
OCCTL_INVALID_ARGUMENT	`graph` or `out_size` is NULL; or `options` has invalid fields (non-NULL `p_next`, `ascii_mode` not in {0,1}).
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_BUFFER_TOO_SMALL	`out_data` is non-NULL and `capacity` is smaller than `out_size`.
OCCTL_IO_ERROR	OCCT failed to serialise the shape.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_stl_read_memory, occtl_io_stl_write

◆ occtl_io_stl_write_options_init()

void occtl_io_stl_write_options_init ( occtl_io_stl_write_options_t * options )

Initialises options to default values matching OCCTL_IO_STL_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_stl_write, occtl_io_stl_write_memory
