OCCT-Light: VRML file I/O. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

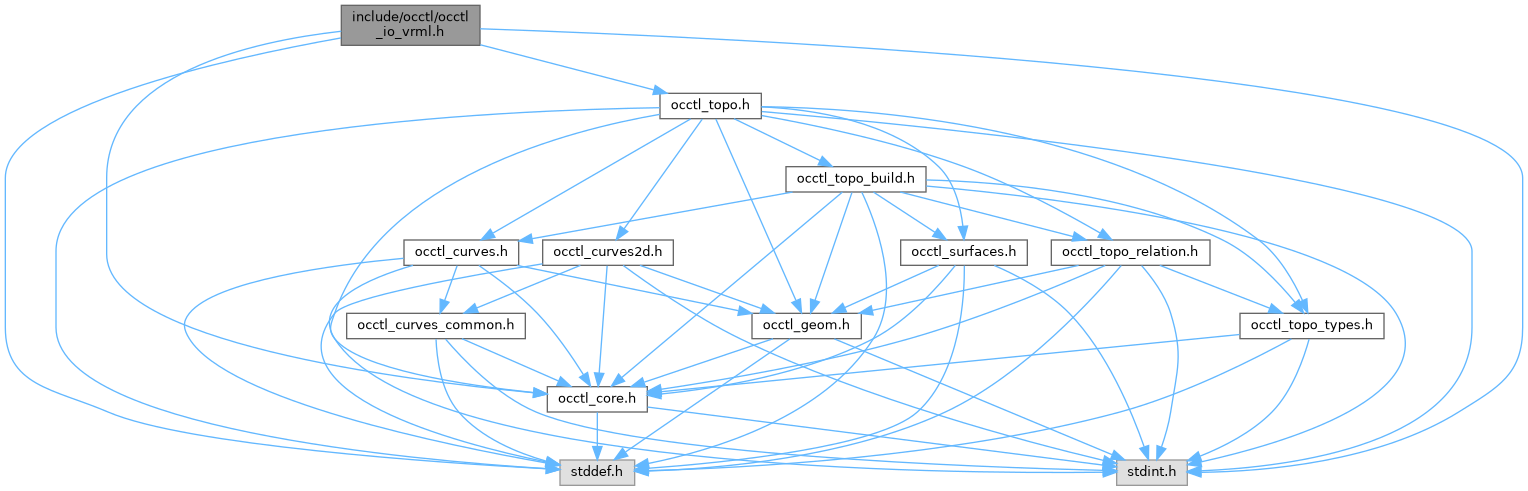

Include dependency graph for occtl_io_vrml.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_io_vrml_read_options

struct	occtl_io_vrml_write_options

Macros
#define	OCCTL_IO_VRML_READ_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_VRML_WRITE_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_VRML_READ_OPTIONS_INIT

#define	OCCTL_IO_VRML_WRITE_OPTIONS_INIT

Typedefs
typedef enum occtl_io_vrml_coordinate_system	occtl_io_vrml_coordinate_system_t

typedef enum occtl_io_vrml_writer_version	occtl_io_vrml_writer_version_t

typedef enum occtl_io_vrml_representation	occtl_io_vrml_representation_t

typedef struct occtl_io_vrml_read_options	occtl_io_vrml_read_options_t

typedef struct occtl_io_vrml_write_options	occtl_io_vrml_write_options_t

Enumerations
enum	occtl_io_vrml_coordinate_system { OCCTL_IO_VRML_COORDINATE_SYSTEM_Y_UP = 0 , OCCTL_IO_VRML_COORDINATE_SYSTEM_Z_UP = 1 , OCCTL_IO_VRML_COORDINATE_SYSTEM_GLTF = 2 , OCCTL_IO_VRML_COORDINATE_SYSTEM_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_io_vrml_writer_version { OCCTL_IO_VRML_WRITER_VERSION_1 = 1 , OCCTL_IO_VRML_WRITER_VERSION_2 = 2 , OCCTL_IO_VRML_WRITER_VERSION_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_io_vrml_representation { OCCTL_IO_VRML_REPRESENTATION_SHADED = 0 , OCCTL_IO_VRML_REPRESENTATION_WIREFRAME = 1 , OCCTL_IO_VRML_REPRESENTATION_BOTH = 2 , OCCTL_IO_VRML_REPRESENTATION_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_io_vrml_read_options_init (occtl_io_vrml_read_options_t *options)

void	occtl_io_vrml_write_options_init (occtl_io_vrml_write_options_t *options)

occtl_status_t	occtl_io_vrml_read (const char path, occtl_graph_t out_graph, occtl_node_id_t out_root, const occtl_io_vrml_read_options_t *options)

occtl_status_t	occtl_io_vrml_write (const occtl_graph_t graph, occtl_node_id_t root, const char path, const occtl_io_vrml_write_options_t *options)

occtl_status_t	occtl_io_vrml_read_memory (const uint8_t data, size_t size, occtl_graph_t out_graph, occtl_node_id_t out_root, const occtl_io_vrml_read_options_t *options)

occtl_status_t	occtl_io_vrml_write_memory (const occtl_graph_t graph, occtl_node_id_t root, const occtl_io_vrml_write_options_t options, uint8_t out_data, size_t capacity, size_t out_size)

Detailed Description

OCCT-Light: VRML file I/O.

Reads and writes VRML 1.0 / 2.0 files via OCCT's DEVRML_Provider / DEVRML_ConfigurationNode.

VRML is an older scene and mesh exchange format. Precise geometry may be tessellated during export; callers that need deterministic triangulation should run occtl_mesh_generate before writing.

Macro Definition Documentation

◆ OCCTL_IO_VRML_READ_OPTIONS_INIT

#define OCCTL_IO_VRML_READ_OPTIONS_INIT

Value:

  {OCCTL_IO_VRML_READ_OPTIONS_VERSION_1,                                                           \
   NULL,                                                                                           \
   1.0,                                                                                            \
   OCCTL_IO_VRML_COORDINATE_SYSTEM_Z_UP,                                                           \
   OCCTL_IO_VRML_COORDINATE_SYSTEM_Y_UP,                                                           \
   1}

◆ OCCTL_IO_VRML_WRITE_OPTIONS_INIT

#define OCCTL_IO_VRML_WRITE_OPTIONS_INIT

Value:

  {OCCTL_IO_VRML_WRITE_OPTIONS_VERSION_1,                                                          \
   NULL,                                                                                           \
   OCCTL_IO_VRML_WRITER_VERSION_2,                                                                 \
   OCCTL_IO_VRML_REPRESENTATION_WIREFRAME}

Typedef Documentation

◆ occtl_io_vrml_coordinate_system_t

typedef enum occtl_io_vrml_coordinate_system occtl_io_vrml_coordinate_system_t

Coordinate system used by VRML import/export conversion.

◆ occtl_io_vrml_read_options_t

typedef struct occtl_io_vrml_read_options occtl_io_vrml_read_options_t

Options for occtl_io_vrml_read. Pass NULL for defaults.

◆ occtl_io_vrml_representation_t

typedef enum occtl_io_vrml_representation occtl_io_vrml_representation_t

VRML output representation.

◆ occtl_io_vrml_write_options_t

typedef struct occtl_io_vrml_write_options occtl_io_vrml_write_options_t

Options for occtl_io_vrml_write. Pass NULL for defaults.

◆ occtl_io_vrml_writer_version_t

typedef enum occtl_io_vrml_writer_version occtl_io_vrml_writer_version_t

VRML writer version.

Enumeration Type Documentation

◆ occtl_io_vrml_coordinate_system

enum occtl_io_vrml_coordinate_system

Coordinate system used by VRML import/export conversion.

Enumerator
OCCTL_IO_VRML_COORDINATE_SYSTEM_Y_UP	Y-up coordinates.
OCCTL_IO_VRML_COORDINATE_SYSTEM_Z_UP	Z-up coordinates.
OCCTL_IO_VRML_COORDINATE_SYSTEM_GLTF	glTF-compatible coordinates.

◆ occtl_io_vrml_representation

enum occtl_io_vrml_representation

VRML output representation.

Enumerator
OCCTL_IO_VRML_REPRESENTATION_SHADED	Shaded representation.
OCCTL_IO_VRML_REPRESENTATION_WIREFRAME	Wireframe representation.
OCCTL_IO_VRML_REPRESENTATION_BOTH	Shaded and wireframe representation.

◆ occtl_io_vrml_writer_version

enum occtl_io_vrml_writer_version

VRML writer version.

Enumerator
OCCTL_IO_VRML_WRITER_VERSION_1	VRML 1.0 output.
OCCTL_IO_VRML_WRITER_VERSION_2	VRML 2.0 output.

Function Documentation

◆ occtl_io_vrml_read()

occtl_status_t occtl_io_vrml_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_vrml_read_options_t *	options
	)

Reads a VRML file and ingests it into a freshly-created graph.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file. Must be non-NULL.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`path`, `out_graph`, or `out_root` is NULL; or `options` has invalid fields (non-NULL `p_next`, non-finite/non-positive `file_length_unit_m`, non-0/1 `fill_incomplete`).
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	`options` has an unsupported coordinate-system value.
OCCTL_IO_ERROR	File not found, unreadable, or blocked by OCCT reader limits.
OCCTL_FORMAT_ERROR	File contents were not a valid VRML stream.
OCCTL_TOPOLOGY_INVALID	Imported shape could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also: occtl_io_vrml_write, occtl_de_read

◆ occtl_io_vrml_read_memory()

occtl_status_t occtl_io_vrml_read_memory	(	const uint8_t *	data,
		size_t	size,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_vrml_read_options_t *	options
	)

Reads a VRML file from a caller-owned memory buffer.

Delegates to the OCCT VRML provider stream reader; OCCT-Light does not create a filesystem path for this call.

Parameters

[in]	data	Borrows it. Byte buffer containing VRML data. Must be non-NULL.
[in]	size	Number of bytes available at `data`. Must be > 0.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`data`, `out_graph`, or `out_root` is NULL, or `size` == 0; or `options` has invalid fields (non-NULL `p_next`, non-finite/non-positive `file_length_unit_m`, non-0/1 `fill_incomplete`).
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_IO_ERROR	OCCT reader failed.
OCCTL_FORMAT_ERROR	Buffer contents were not a valid VRML stream.
OCCTL_TOPOLOGY_INVALID	Imported shape could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also: occtl_io_vrml_read, occtl_de_read_memory

◆ occtl_io_vrml_read_options_init()

void occtl_io_vrml_read_options_init ( occtl_io_vrml_read_options_t * options )

Initialises options to default values matching OCCTL_IO_VRML_READ_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_vrml_read

◆ occtl_io_vrml_write()

occtl_status_t occtl_io_vrml_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_vrml_write_options_t *	options
	)

Writes the topology rooted at root to a VRML file.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `path` is NULL; or `options->p_next` is non-NULL.
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	`options` has an unsupported writer_version or representation.
OCCTL_IO_ERROR	Filesystem failure, unwritable file, or OCCT writer failure.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_vrml_read, occtl_de_write

◆ occtl_io_vrml_write_memory()

occtl_status_t occtl_io_vrml_write_memory	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const occtl_io_vrml_write_options_t *	options,
		uint8_t *	out_data,
		size_t	capacity,
		size_t *	out_size
	)

Writes the topology rooted at root to a caller-owned memory buffer in VRML format.

Two-call buffer pattern: pass out_data == NULL with capacity == 0 to learn the required byte count in out_size, then call again with a buffer of at least that size.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	options	Borrows it. May be NULL for defaults.
[out]	out_data	Borrows it. Writable output buffer, or NULL for sizing.
[in]	capacity	Size of `out_data` in bytes.
[out]	out_size	Borrows it. Receives the required byte count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_size` is NULL; or `options->p_next` is non-NULL.
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_BUFFER_TOO_SMALL	`out_data` is non-NULL and `capacity` is too small.
OCCTL_IO_ERROR	OCCT writer failure.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_vrml_read_memory, occtl_de_write_memory

◆ occtl_io_vrml_write_options_init()

void occtl_io_vrml_write_options_init ( occtl_io_vrml_write_options_t * options )

Initialises options to default values matching OCCTL_IO_VRML_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_vrml_write
