OCCT-Light: graph-native visualization module public API. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_geom.h"
#include "occtl_topo.h"

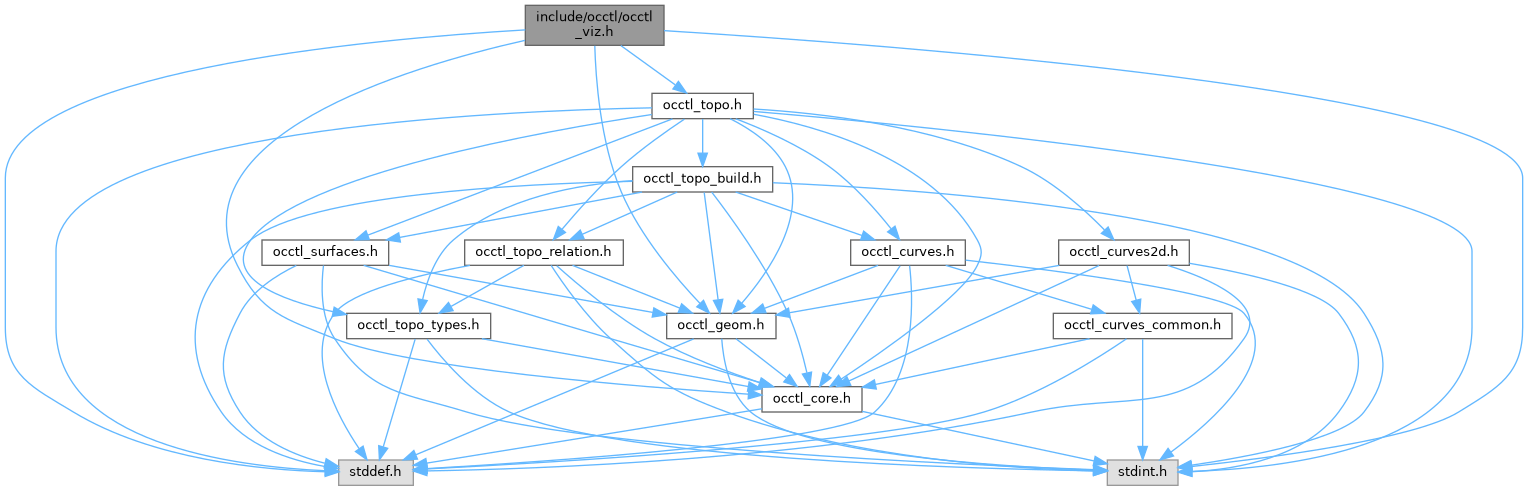

Include dependency graph for occtl_viz.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_viz_driver_options

struct	occtl_viz_view_options

struct	occtl_viz_camera

struct	occtl_viz_pick_result

Macros
#define	OCCTL_VIZ_DRIVER_OPTIONS_VERSION_1 1u

#define	OCCTL_VIZ_VIEW_OPTIONS_VERSION_1 1u

#define	OCCTL_VIZ_DRIVER_OPTIONS_INIT {OCCTL_VIZ_DRIVER_OPTIONS_VERSION_1, NULL, 1, 1}

#define	OCCTL_VIZ_VIEW_OPTIONS_INIT {OCCTL_VIZ_VIEW_OPTIONS_VERSION_1, NULL, 640, 480, NULL, 1}

#define	OCCTL_VIZ_PICK_RESULT_VERSION_1 1u

#define	OCCTL_VIZ_PICK_RESULT_INIT

Typedefs
typedef struct occtl_viz_driver	occtl_viz_driver_t

typedef struct occtl_viz_viewer	occtl_viz_viewer_t

typedef struct occtl_viz_view	occtl_viz_view_t

typedef struct occtl_viz_presentable	occtl_viz_presentable_t

typedef enum occtl_viz_display_mode	occtl_viz_display_mode_t

typedef enum occtl_viz_selection_mode	occtl_viz_selection_mode_t

typedef enum occtl_viz_standard_view	occtl_viz_standard_view_t

typedef struct occtl_viz_driver_options	occtl_viz_driver_options_t

typedef struct occtl_viz_view_options	occtl_viz_view_options_t

typedef struct occtl_viz_camera	occtl_viz_camera_t

typedef struct occtl_viz_pick_result	occtl_viz_pick_result_t

Enumerations
enum	occtl_viz_display_mode { OCCTL_VIZ_DISPLAY_WIREFRAME = 0 , OCCTL_VIZ_DISPLAY_SHADED = 1 , OCCTL_VIZ_DISPLAY_SHADED_WITH_EDGES = 10 , OCCTL_VIZ_DISPLAY_MESH_DEBUG = 11 , OCCTL_VIZ_DISPLAY_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_viz_selection_mode { OCCTL_VIZ_SELECT_WHOLE = 0 , OCCTL_VIZ_SELECT_FACE = 1 , OCCTL_VIZ_SELECT_EDGE = 2 , OCCTL_VIZ_SELECT_VERTEX = 3 , OCCTL_VIZ_SELECT_WIRE = 4 , OCCTL_VIZ_SELECT_SHELL = 5 , OCCTL_VIZ_SELECT_SOLID = 6 , OCCTL_VIZ_SELECT_COEDGE = 7 , OCCTL_VIZ_SELECT_PRODUCT = 8 , OCCTL_VIZ_SELECT_COMPOUND = 9 , OCCTL_VIZ_SELECT_COMPSOLID = 10 , OCCTL_VIZ_SELECT_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_viz_standard_view { OCCTL_VIZ_VIEW_FRONT = 0 , OCCTL_VIZ_VIEW_BACK = 1 , OCCTL_VIZ_VIEW_LEFT = 2 , OCCTL_VIZ_VIEW_RIGHT = 3 , OCCTL_VIZ_VIEW_TOP = 4 , OCCTL_VIZ_VIEW_BOTTOM = 5 , OCCTL_VIZ_VIEW_ISO = 6 , OCCTL_VIZ_VIEW_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_viz_driver_options_init (occtl_viz_driver_options_t *options)

void	occtl_viz_view_options_init (occtl_viz_view_options_t *options)

void	occtl_viz_pick_result_init (occtl_viz_pick_result_t *pick)

occtl_status_t	occtl_viz_driver_create (const occtl_viz_driver_options_t options, occtl_viz_driver_t *out_driver)

void	occtl_viz_driver_free (occtl_viz_driver_t *driver)

occtl_status_t	occtl_viz_viewer_create (occtl_viz_driver_t driver, occtl_viz_viewer_t *out_viewer)

void	occtl_viz_viewer_free (occtl_viz_viewer_t *viewer)

occtl_status_t	occtl_viz_view_create (occtl_viz_viewer_t viewer, const occtl_viz_view_options_t options, occtl_viz_view_t **out_view)

void	occtl_viz_view_free (occtl_viz_view_t *view)

occtl_status_t	occtl_viz_presentable_create (occtl_viz_viewer_t viewer, occtl_graph_t graph, occtl_node_id_t root, occtl_viz_presentable_t **out_presentable)

void	occtl_viz_presentable_free (occtl_viz_presentable_t *presentable)

occtl_status_t	occtl_viz_presentable_set_display_mode (occtl_viz_presentable_t *presentable, occtl_viz_display_mode_t mode)

occtl_status_t	occtl_viz_presentable_synchronize (occtl_viz_presentable_t presentable, int32_t out_has_changed)

occtl_status_t	occtl_viz_presentable_invalidate (occtl_viz_presentable_t *presentable)

occtl_status_t	occtl_viz_presentable_set_visible_nodes (occtl_viz_presentable_t presentable, const occtl_node_id_t nodes, size_t n_nodes)

occtl_status_t	occtl_viz_presentable_clear_visible_nodes (occtl_viz_presentable_t *presentable)

occtl_status_t	occtl_viz_view_display (occtl_viz_view_t view, occtl_viz_presentable_t presentable)

occtl_status_t	occtl_viz_view_erase (occtl_viz_view_t view, occtl_viz_presentable_t presentable)

occtl_status_t	occtl_viz_view_resize (occtl_viz_view_t *view, int32_t width, int32_t height)

occtl_status_t	occtl_viz_view_redraw (occtl_viz_view_t *view)

occtl_status_t	occtl_viz_view_fit_all (occtl_viz_view_t *view)

occtl_status_t	occtl_viz_view_set_background (occtl_viz_view_t *view, occtl_color_rgba_t color)

occtl_status_t	occtl_viz_view_set_camera (occtl_viz_view_t view, const occtl_viz_camera_t camera)

occtl_status_t	occtl_viz_view_get_camera (const occtl_viz_view_t view, occtl_viz_camera_t out_camera)

occtl_status_t	occtl_viz_view_set_standard_view (occtl_viz_view_t *view, occtl_viz_standard_view_t standard_view)

occtl_status_t	occtl_viz_view_pan (occtl_viz_view_t *view, int32_t dx, int32_t dy)

occtl_status_t	occtl_viz_view_zoom (occtl_viz_view_t *view, int32_t x1, int32_t y1, int32_t x2, int32_t y2)

occtl_status_t	occtl_viz_view_orbit_start (occtl_viz_view_t *view, int32_t x, int32_t y)

occtl_status_t	occtl_viz_view_orbit_update (occtl_viz_view_t *view, int32_t x, int32_t y)

occtl_status_t	occtl_viz_view_activate_selection (occtl_viz_view_t view, occtl_viz_presentable_t presentable, occtl_viz_selection_mode_t mode)

occtl_status_t	occtl_viz_view_pick (occtl_viz_view_t view, int32_t x, int32_t y, int32_t select, occtl_viz_pick_result_t out_pick)

occtl_status_t	occtl_viz_view_read_pixels_rgba (occtl_viz_view_t view, uint8_t out_rgba, size_t cap, size_t *out_count)

occtl_status_t	occtl_viz_view_dump_image (occtl_viz_view_t view, const char path)

Detailed Description

OCCT-Light: graph-native visualization module public API.

The visualization module is an opt-in heavy integration over OCCT's native viewer stack. It displays BRepGraph roots through AIS_BRepGraph and exposes only OCCT-Light handles, IDs, POD options, and status codes.

Threading.: Rendering calls must run on the thread that owns the native window and OpenGL context. The module does not create native windows; native handles are borrowed from the host UI toolkit.

Macro Definition Documentation

◆ OCCTL_VIZ_DRIVER_OPTIONS_INIT

#define OCCTL_VIZ_DRIVER_OPTIONS_INIT {OCCTL_VIZ_DRIVER_OPTIONS_VERSION_1, NULL, 1, 1}

Static initializer for occtl_viz_driver_options_t.

◆ OCCTL_VIZ_PICK_RESULT_INIT

#define OCCTL_VIZ_PICK_RESULT_INIT

Value:

  {                                                                                                \
    OCCTL_VIZ_PICK_RESULT_VERSION_1, NULL, OCCTL_UID_INVALID, OCCTL_NODE_ID_INVALID,               \
      OCCTL_REF_ID_INVALID, OCCTL_VIZ_SELECT_WHOLE,                                                \
    {{1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0}}                                 \
  }

◆ OCCTL_VIZ_VIEW_OPTIONS_INIT

#define OCCTL_VIZ_VIEW_OPTIONS_INIT {OCCTL_VIZ_VIEW_OPTIONS_VERSION_1, NULL, 640, 480, NULL, 1}

Static initializer for occtl_viz_view_options_t.

Typedef Documentation

◆ occtl_viz_camera_t

typedef struct occtl_viz_camera occtl_viz_camera_t

Camera placement for a viz view.

\par Thread Safety Yes.

See also: occtl_viz_view_set_camera

◆ occtl_viz_display_mode_t

typedef enum occtl_viz_display_mode occtl_viz_display_mode_t

Display mode used for graph presentables.

\par Thread Safety Yes.

See also: occtl_viz_presentable_set_display_mode

◆ occtl_viz_driver_options_t

typedef struct occtl_viz_driver_options occtl_viz_driver_options_t

Versioned options for occtl_viz_driver_create().

Initialize with OCCTL_VIZ_DRIVER_OPTIONS_INIT or occtl_viz_driver_options_init() before use.

\par Thread Safety Yes.

See also: occtl_viz_driver_options_init

◆ occtl_viz_driver_t

typedef struct occtl_viz_driver occtl_viz_driver_t

Opaque process-local visualization driver handle.

Created with occtl_viz_driver_create and released with occtl_viz_driver_free. A driver must outlive viewers created from it.

\par Thread Safety No. Use on the rendering/native-window owner thread.

See also: occtl_viz_driver_create

◆ occtl_viz_pick_result_t

typedef struct occtl_viz_pick_result occtl_viz_pick_result_t

Graph identity returned by occtl_viz_view_pick().

\par Thread Safety Yes.

See also: occtl_viz_view_pick

◆ occtl_viz_presentable_t

typedef struct occtl_viz_presentable occtl_viz_presentable_t

Opaque display object for a BRepGraph root.

Created with occtl_viz_presentable_create and released with occtl_viz_presentable_free. A presentable borrows its source graph; keep the graph alive until the presentable is freed.

\par Thread Safety No. Use on the rendering/native-window owner thread.

See also: occtl_viz_presentable_create

◆ occtl_viz_selection_mode_t

typedef enum occtl_viz_selection_mode occtl_viz_selection_mode_t

Graph-native selection mode.

\par Thread Safety Yes.

See also: occtl_viz_view_activate_selection

◆ occtl_viz_standard_view_t

typedef enum occtl_viz_standard_view occtl_viz_standard_view_t

Standard camera orientation.

\par Thread Safety Yes.

See also: occtl_viz_view_set_standard_view

◆ occtl_viz_view_options_t

typedef struct occtl_viz_view_options occtl_viz_view_options_t

Versioned options for occtl_viz_view_create().

Initialize with OCCTL_VIZ_VIEW_OPTIONS_INIT or occtl_viz_view_options_init() before use.

\par Thread Safety Yes.

See also: occtl_viz_view_options_init

◆ occtl_viz_view_t

typedef struct occtl_viz_view occtl_viz_view_t

Opaque native or offscreen view handle.

Created with occtl_viz_view_create and released with occtl_viz_view_free. When a native window handle is supplied in occtl_viz_view_options_t, the view borrows that handle; the host UI toolkit remains responsible for it.

\par Thread Safety No. Use on the rendering/native-window owner thread.

See also: occtl_viz_view_create

◆ occtl_viz_viewer_t

typedef struct occtl_viz_viewer occtl_viz_viewer_t

Opaque viewer handle.

Created with occtl_viz_viewer_create and released with occtl_viz_viewer_free. A viewer must outlive views and presentables created from it.

\par Thread Safety No. Use on the rendering/native-window owner thread.

See also: occtl_viz_viewer_create

Enumeration Type Documentation

◆ occtl_viz_display_mode

enum occtl_viz_display_mode

Display mode used for graph presentables.

\par Thread Safety Yes.

See also: occtl_viz_presentable_set_display_mode

Enumerator
OCCTL_VIZ_DISPLAY_WIREFRAME	Wireframe display.
OCCTL_VIZ_DISPLAY_SHADED	Shaded display without B-Rep edges.
OCCTL_VIZ_DISPLAY_SHADED_WITH_EDGES	Shaded display with B-Rep edges.
OCCTL_VIZ_DISPLAY_MESH_DEBUG	Mesh-debug display mode.

◆ occtl_viz_selection_mode

enum occtl_viz_selection_mode

Graph-native selection mode.

\par Thread Safety Yes.

See also: occtl_viz_view_activate_selection

Enumerator
OCCTL_VIZ_SELECT_WHOLE	Select the whole presentable.
OCCTL_VIZ_SELECT_FACE	Select faces.
OCCTL_VIZ_SELECT_EDGE	Select edges.
OCCTL_VIZ_SELECT_VERTEX	Select vertices.
OCCTL_VIZ_SELECT_WIRE	Select wires.
OCCTL_VIZ_SELECT_SHELL	Select shells.
OCCTL_VIZ_SELECT_SOLID	Select solids.
OCCTL_VIZ_SELECT_COEDGE	Select coedges.
OCCTL_VIZ_SELECT_PRODUCT	Select product nodes.
OCCTL_VIZ_SELECT_COMPOUND	Select compounds.
OCCTL_VIZ_SELECT_COMPSOLID	Select compsolids.

◆ occtl_viz_standard_view

enum occtl_viz_standard_view

Standard camera orientation.

\par Thread Safety Yes.

See also: occtl_viz_view_set_standard_view

Enumerator
OCCTL_VIZ_VIEW_FRONT	Front view.
OCCTL_VIZ_VIEW_BACK	Back view.
OCCTL_VIZ_VIEW_LEFT	Left view.
OCCTL_VIZ_VIEW_RIGHT	Right view.
OCCTL_VIZ_VIEW_TOP	Top view.
OCCTL_VIZ_VIEW_BOTTOM	Bottom view.
OCCTL_VIZ_VIEW_ISO	Isometric view.

Function Documentation

◆ occtl_viz_driver_create()

occtl_status_t occtl_viz_driver_create	(	const occtl_viz_driver_options_t *	options,
		occtl_viz_driver_t **	out_driver
	)

Creates the process-local visualization driver.

The returned handle owns the visualization driver state and must be released with occtl_viz_driver_free. Pass NULL for options to use OCCTL_VIZ_DRIVER_OPTIONS_INIT defaults.

Parameters

[in]	options	Borrows it. Optional; NULL uses defaults.
[out]	out_driver	Owns it. Must be non-NULL. On success receives a new driver handle; on failure receives NULL.

Return values

OCCTL_OK	Driver created.
OCCTL_INVALID_ARGUMENT	`out_driver` is NULL.
OCCTL_VERSION_MISMATCH	`options` has an unsupported version.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_driver_free

◆ occtl_viz_driver_free()

void occtl_viz_driver_free ( occtl_viz_driver_t * driver )

Frees a visualization driver.

Child viewers, views, and presentables created from driver must already be freed. Passing NULL is a no-op.

Parameters

[in] driver Owns it. NULL is accepted.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_driver_create

◆ occtl_viz_driver_options_init()

void occtl_viz_driver_options_init ( occtl_viz_driver_options_t * options )

Runtime initialiser for occtl_viz_driver_options_t.

Sets all fields to OCCTL_VIZ_DRIVER_OPTIONS_INIT.

Parameters

[out] options Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_viz_driver_create

◆ occtl_viz_pick_result_init()

void occtl_viz_pick_result_init ( occtl_viz_pick_result_t * pick )

Runtime initialiser for occtl_viz_pick_result_t.

Sets all fields to OCCTL_VIZ_PICK_RESULT_INIT.

Parameters

[out] pick Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_viz_view_pick

◆ occtl_viz_presentable_clear_visible_nodes()

occtl_status_t occtl_viz_presentable_clear_visible_nodes ( occtl_viz_presentable_t * presentable )

Clears a visible node mask.

Parameters

[in] presentable Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Mask cleared.
OCCTL_INVALID_ARGUMENT	`presentable` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_set_visible_nodes

◆ occtl_viz_presentable_create()

occtl_status_t occtl_viz_presentable_create	(	occtl_viz_viewer_t *	viewer,
		occtl_graph_t *	graph,
		occtl_node_id_t	root,
		occtl_viz_presentable_t **	out_presentable
	)

Creates a display object for a graph root.

The returned presentable borrows both viewer and graph. Keep both alive until the presentable is released with occtl_viz_presentable_free.

Parameters

[in]	viewer	Borrows it. Must be non-NULL.
[in]	graph	Borrows it. Must be non-NULL and must outlive the presentable.
[in]	root	Root node to display.
[out]	out_presentable	Owns it. Must be non-NULL. On success receives a new presentable handle; on failure receives NULL.

Return values

OCCTL_OK	Presentable created.
OCCTL_INVALID_ARGUMENT	`viewer`, `graph`, or `out_presentable` is NULL.
OCCTL_NOT_FOUND	`root` is not a valid display root.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_free

◆ occtl_viz_presentable_free()

void occtl_viz_presentable_free ( occtl_viz_presentable_t * presentable )

Frees a presentable.

Passing NULL is a no-op.

Parameters

[in] presentable Owns it. NULL is accepted.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_create

◆ occtl_viz_presentable_invalidate()

occtl_status_t occtl_viz_presentable_invalidate ( occtl_viz_presentable_t * presentable )

Invalidates cached presentation state.

Parameters

[in] presentable Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Cache invalidated.
OCCTL_INVALID_ARGUMENT	`presentable` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_synchronize

◆ occtl_viz_presentable_set_display_mode()

occtl_status_t occtl_viz_presentable_set_display_mode	(	occtl_viz_presentable_t *	presentable,
		occtl_viz_display_mode_t	mode
	)

Sets the display mode for a presentable.

Parameters

[in]	presentable	Borrows it. Must be non-NULL.
[in]	mode	Display mode.

Return values

OCCTL_OK	Mode set.
OCCTL_INVALID_ARGUMENT	`presentable` is NULL.
OCCTL_OUT_OF_RANGE	`mode` is not valid.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_display

◆ occtl_viz_presentable_set_visible_nodes()

occtl_status_t occtl_viz_presentable_set_visible_nodes	(	occtl_viz_presentable_t *	presentable,
		const occtl_node_id_t *	nodes,
		size_t	n_nodes
	)

Restricts display to a visible node mask.

Parameters

[in]	presentable	Borrows it. Must be non-NULL.
[in]	nodes	Borrows it. Optional array of node IDs.
[in]	n_nodes	Number of entries in `nodes`.

Return values

OCCTL_OK	Mask applied.
OCCTL_INVALID_ARGUMENT	`presentable` is NULL or `nodes` is NULL with non-zero count.
OCCTL_NOT_FOUND	An entry in `nodes` is not a valid node ID.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_clear_visible_nodes

◆ occtl_viz_presentable_synchronize()

occtl_status_t occtl_viz_presentable_synchronize	(	occtl_viz_presentable_t *	presentable,
		int32_t *	out_has_changed
	)

Synchronizes a presentable after graph or metadata changes.

Parameters

[in]	presentable	Borrows it. Must be non-NULL.
[out]	out_has_changed	Borrows it. Must be non-NULL; receives a 0/1 changed flag.

Return values

OCCTL_OK	Synchronization completed.
OCCTL_INVALID_ARGUMENT	`presentable` or `out_has_changed` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_presentable_invalidate

◆ occtl_viz_view_activate_selection()

occtl_status_t occtl_viz_view_activate_selection	(	occtl_viz_view_t *	view,
		occtl_viz_presentable_t *	presentable,
		occtl_viz_selection_mode_t	mode
	)

Activates graph-native selection for a presentable.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	presentable	Borrows it. Must be non-NULL.
[in]	mode	Selection mode.

Return values

OCCTL_OK	Selection activated.
OCCTL_INVALID_ARGUMENT	A required handle is NULL.
OCCTL_OUT_OF_RANGE	`mode` is not valid.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_pick

◆ occtl_viz_view_create()

occtl_status_t occtl_viz_view_create	(	occtl_viz_viewer_t *	viewer,
		const occtl_viz_view_options_t *	options,
		occtl_viz_view_t **	out_view
	)

Creates a native or offscreen view.

The returned view borrows viewer and must be freed before the viewer. Pass NULL for options to use OCCTL_VIZ_VIEW_OPTIONS_INIT defaults.

Parameters

[in]	viewer	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Optional; NULL uses defaults.
[out]	out_view	Owns it. Must be non-NULL. On success receives a new view handle; on failure receives NULL.

Return values

OCCTL_OK	View created.
OCCTL_INVALID_ARGUMENT	`viewer` or `out_view` is NULL.
OCCTL_VERSION_MISMATCH	`options` has an unsupported version.
OCCTL_OUT_OF_RANGE	`options` has a non-positive width or height.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_free

◆ occtl_viz_view_display()

occtl_status_t occtl_viz_view_display	(	occtl_viz_view_t *	view,
		occtl_viz_presentable_t *	presentable
	)

Displays a presentable in a view.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	presentable	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Displayed.
OCCTL_INVALID_ARGUMENT	A required handle is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_erase

◆ occtl_viz_view_dump_image()

occtl_status_t occtl_viz_view_dump_image	(	occtl_viz_view_t *	view,
		const char *	path
	)

Dumps a view image to a PNG path when OCCT image codecs are available.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	path	Borrows it. UTF-8 destination path.

Return values

OCCTL_OK	Image written.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL.
OCCTL_IO_ERROR	The image could not be written.
OCCTL_UNSUPPORTED	Image dumping is unavailable.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_read_pixels_rgba

◆ occtl_viz_view_erase()

occtl_status_t occtl_viz_view_erase	(	occtl_viz_view_t *	view,
		occtl_viz_presentable_t *	presentable
	)

Erases a presentable from a view.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	presentable	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Erased.
OCCTL_INVALID_ARGUMENT	A required handle is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_display

◆ occtl_viz_view_fit_all()

occtl_status_t occtl_viz_view_fit_all ( occtl_viz_view_t * view )

Fits all displayed content.

Parameters

[in] view Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Camera fitted.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_set_standard_view

◆ occtl_viz_view_free()

void occtl_viz_view_free ( occtl_viz_view_t * view )

Frees a view.

Passing NULL is a no-op.

Parameters

[in] view Owns it. NULL is accepted.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_create

◆ occtl_viz_view_get_camera()

occtl_status_t occtl_viz_view_get_camera	(	const occtl_viz_view_t *	view,
		occtl_viz_camera_t *	out_camera
	)

Gets the camera.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[out]	out_camera	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Camera returned.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_set_camera

◆ occtl_viz_view_options_init()

void occtl_viz_view_options_init ( occtl_viz_view_options_t * options )

Runtime initialiser for occtl_viz_view_options_t.

Sets all fields to OCCTL_VIZ_VIEW_OPTIONS_INIT.

Parameters

[out] options Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_viz_view_create

◆ occtl_viz_view_orbit_start()

occtl_status_t occtl_viz_view_orbit_start	(	occtl_viz_view_t *	view,
		int32_t	x,
		int32_t	y
	)

Starts an orbit interaction.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	x	Start x coordinate.
[in]	y	Start y coordinate.

Return values

OCCTL_OK	Orbit started.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_orbit_update

◆ occtl_viz_view_orbit_update()

occtl_status_t occtl_viz_view_orbit_update	(	occtl_viz_view_t *	view,
		int32_t	x,
		int32_t	y
	)

Updates an orbit interaction.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	x	Current x coordinate.
[in]	y	Current y coordinate.

Return values

OCCTL_OK	Orbit updated.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_orbit_start

◆ occtl_viz_view_pan()

occtl_status_t occtl_viz_view_pan	(	occtl_viz_view_t *	view,
		int32_t	dx,
		int32_t	dy
	)

Pans the camera by screen-space pixels.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	dx	Horizontal delta in pixels.
[in]	dy	Vertical delta in pixels.

Return values

OCCTL_OK	Camera panned.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_zoom

◆ occtl_viz_view_pick()

occtl_status_t occtl_viz_view_pick	(	occtl_viz_view_t *	view,
		int32_t	x,
		int32_t	y,
		int32_t	select,
		occtl_viz_pick_result_t *	out_pick
	)

Moves/selects at a screen point and returns graph identity.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	x	Screen x coordinate.
[in]	y	Screen y coordinate.
[in]	select	0/1; non-zero performs selection, zero only detects.
[out]	out_pick	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Pick result returned.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL.
OCCTL_NOT_FOUND	Nothing graph-native was detected.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_activate_selection

◆ occtl_viz_view_read_pixels_rgba()

occtl_status_t occtl_viz_view_read_pixels_rgba	(	occtl_viz_view_t *	view,
		uint8_t *	out_rgba,
		size_t	cap,
		size_t *	out_count
	)

Reads view pixels as tightly packed RGBA bytes.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[out]	out_rgba	Borrows it. Optional buffer; NULL performs sizing only.
[in]	cap	Capacity of `out_rgba` in bytes.
[out]	out_count	Borrows it. Receives required or written byte count.

Return values

OCCTL_OK	Pixels written.
OCCTL_INVALID_ARGUMENT	`view` or `out_count` is NULL.
OCCTL_BUFFER_TOO_SMALL	`cap` is too small for the current view size.
OCCTL_OUT_OF_MEMORY	Temporary pixel storage could not be allocated.
OCCTL_UNSUPPORTED	Offscreen pixel extraction is unavailable.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_dump_image

◆ occtl_viz_view_redraw()

occtl_status_t occtl_viz_view_redraw ( occtl_viz_view_t * view )

Redraws a view.

Parameters

[in] view Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Redrawn.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_read_pixels_rgba

◆ occtl_viz_view_resize()

occtl_status_t occtl_viz_view_resize	(	occtl_viz_view_t *	view,
		int32_t	width,
		int32_t	height
	)

Resizes a view.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	width	New width in pixels.
[in]	height	New height in pixels.

Return values

OCCTL_OK	View resized.
OCCTL_INVALID_ARGUMENT	`view` is NULL.
OCCTL_OUT_OF_RANGE	`width` or `height` is non-positive.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_redraw

◆ occtl_viz_view_set_background()

occtl_status_t occtl_viz_view_set_background	(	occtl_viz_view_t *	view,
		occtl_color_rgba_t	color
	)

Sets the view background color.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	color	Background color.

Return values

OCCTL_OK	Color set.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_redraw

◆ occtl_viz_view_set_camera()

occtl_status_t occtl_viz_view_set_camera	(	occtl_viz_view_t *	view,
		const occtl_viz_camera_t *	camera
	)

Sets the camera.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	camera	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Camera set.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_get_camera

◆ occtl_viz_view_set_standard_view()

occtl_status_t occtl_viz_view_set_standard_view	(	occtl_viz_view_t *	view,
		occtl_viz_standard_view_t	standard_view
	)

Sets a standard camera orientation.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	standard_view	Standard view orientation.

Return values

OCCTL_OK	Orientation set.
OCCTL_INVALID_ARGUMENT	`view` is NULL.
OCCTL_OUT_OF_RANGE	`standard_view` is not valid.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_fit_all

◆ occtl_viz_view_zoom()

occtl_status_t occtl_viz_view_zoom	(	occtl_viz_view_t *	view,
		int32_t	x1,
		int32_t	y1,
		int32_t	x2,
		int32_t	y2
	)

Zooms using two screen-space points.

Parameters

[in]	view	Borrows it. Must be non-NULL.
[in]	x1	First x coordinate.
[in]	y1	First y coordinate.
[in]	x2	Second x coordinate.
[in]	y2	Second y coordinate.

Return values

OCCTL_OK	Camera zoomed.
OCCTL_INVALID_ARGUMENT	`view` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_view_pan

◆ occtl_viz_viewer_create()

occtl_status_t occtl_viz_viewer_create	(	occtl_viz_driver_t *	driver,
		occtl_viz_viewer_t **	out_viewer
	)

Creates a viewer from a visualization driver.

The returned viewer borrows driver and must be freed before the driver.

Parameters

[in]	driver	Borrows it. Must be non-NULL.
[out]	out_viewer	Owns it. Must be non-NULL. On success receives a new viewer handle; on failure receives NULL.

Return values

OCCTL_OK	Viewer created.
OCCTL_INVALID_ARGUMENT	`driver` or `out_viewer` is NULL.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_viewer_free

◆ occtl_viz_viewer_free()

void occtl_viz_viewer_free ( occtl_viz_viewer_t * viewer )

Frees a viewer.

Views and presentables created from viewer must already be freed. Passing NULL is a no-op.

Parameters

[in] viewer Owns it. NULL is accepted.

\par Thread Safety No. Call on the rendering/native-window owner thread.

See also: occtl_viz_viewer_create

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ OCCTL_VIZ_DRIVER_OPTIONS_INIT

◆ OCCTL_VIZ_PICK_RESULT_INIT

◆ OCCTL_VIZ_VIEW_OPTIONS_INIT

Typedef Documentation

◆ occtl_viz_camera_t

◆ occtl_viz_display_mode_t

◆ occtl_viz_driver_options_t

◆ occtl_viz_driver_t

◆ occtl_viz_pick_result_t

◆ occtl_viz_presentable_t

◆ occtl_viz_selection_mode_t

◆ occtl_viz_standard_view_t

◆ occtl_viz_view_options_t

◆ occtl_viz_view_t

◆ occtl_viz_viewer_t

Enumeration Type Documentation

◆ occtl_viz_display_mode

◆ occtl_viz_selection_mode

◆ occtl_viz_standard_view

Function Documentation

◆ occtl_viz_driver_create()

◆ occtl_viz_driver_free()

◆ occtl_viz_driver_options_init()

◆ occtl_viz_pick_result_init()

◆ occtl_viz_presentable_clear_visible_nodes()

◆ occtl_viz_presentable_create()

◆ occtl_viz_presentable_free()

◆ occtl_viz_presentable_invalidate()

◆ occtl_viz_presentable_set_display_mode()

◆ occtl_viz_presentable_set_visible_nodes()

◆ occtl_viz_presentable_synchronize()

◆ occtl_viz_view_activate_selection()

◆ occtl_viz_view_create()

◆ occtl_viz_view_display()

◆ occtl_viz_view_dump_image()

◆ occtl_viz_view_erase()

◆ occtl_viz_view_fit_all()

◆ occtl_viz_view_free()

◆ occtl_viz_view_get_camera()

◆ occtl_viz_view_options_init()

◆ occtl_viz_view_orbit_start()

◆ occtl_viz_view_orbit_update()

◆ occtl_viz_view_pan()

◆ occtl_viz_view_pick()

◆ occtl_viz_view_read_pixels_rgba()

◆ occtl_viz_view_redraw()

◆ occtl_viz_view_resize()

◆ occtl_viz_view_set_background()

◆ occtl_viz_view_set_camera()

◆ occtl_viz_view_set_standard_view()

◆ occtl_viz_view_zoom()

◆ occtl_viz_viewer_create()

◆ occtl_viz_viewer_free()
