OCCT-Light: Topology builders, mutations, and property setters. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_curves.h"
#include "occtl_geom.h"
#include "occtl_surfaces.h"
#include "occtl_topo_relation.h"
#include "occtl_topo_types.h"

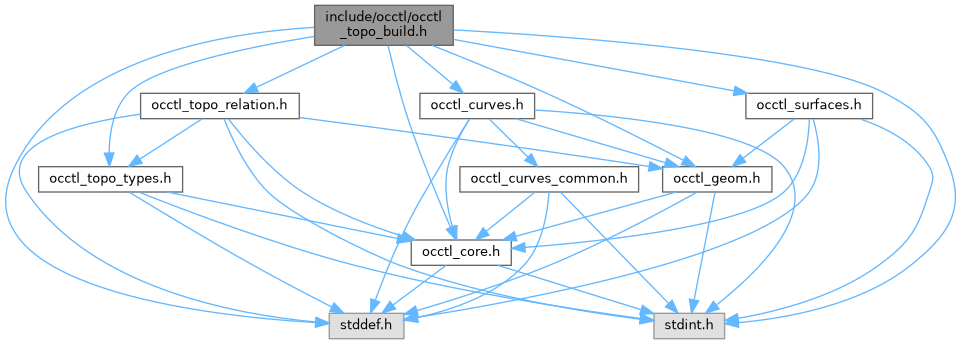

Include dependency graph for occtl_topo_build.h:

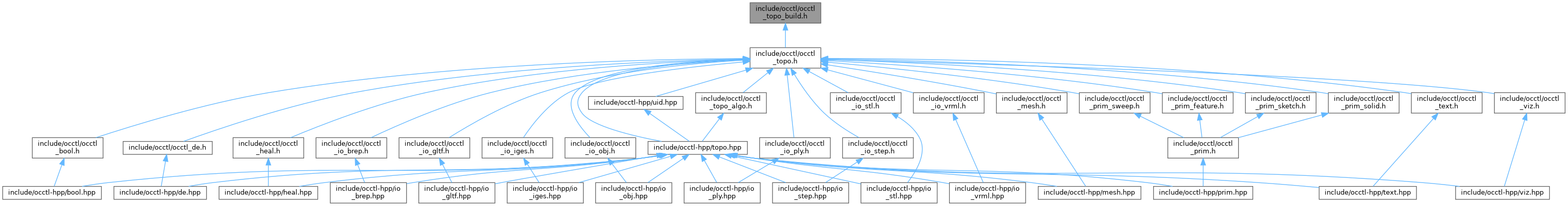

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_topo_make_vertex_info

struct	occtl_topo_make_edge_info

struct	occtl_topo_make_wire_info

struct	occtl_topo_edges_to_wires_options

struct	occtl_topo_wire_offset_2d_options

struct	occtl_topo_wire_fix_degenerate_edges_options

struct	occtl_topo_face_chamfer_2d_options

struct	occtl_topo_wire_chamfer_2d_options

struct	occtl_topo_make_face_info

struct	occtl_topo_make_face_from_wires_auto_options

struct	occtl_topo_make_shell_info

struct	occtl_topo_make_solid_info

struct	occtl_topo_make_compound_info

struct	occtl_topo_make_compsolid_info

struct	occtl_color_rgba

struct	occtl_material_info

struct	occtl_joint_info

struct	occtl_metadata_key_view

struct	occtl_tag_view

struct	occtl_select_bbox

struct	occtl_graph_obb

struct	occtl_graph_uv_bounds

struct	occtl_graph_mass_properties

struct	occtl_select_options

struct	occtl_select_metadata_filter

struct	occtl_select_distance_to_node_sort

struct	occtl_select_group_options

struct	occtl_select_group_view

Macros
#define	OCCTL_TOPO_MAKE_VERTEX_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_VERTEX_INFO_INIT {OCCTL_TOPO_MAKE_VERTEX_INFO_VERSION_1, NULL, {0.0, 0.0, 0.0}, 0.0}

#define	OCCTL_TOPO_MAKE_EDGE_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_EDGE_INFO_INIT

#define	OCCTL_TOPO_MAKE_WIRE_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_WIRE_INFO_INIT {OCCTL_TOPO_MAKE_WIRE_INFO_VERSION_1, NULL, NULL, 0}

#define	OCCTL_TOPO_EDGES_TO_WIRES_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_EDGES_TO_WIRES_OPTIONS_INIT {OCCTL_TOPO_EDGES_TO_WIRES_OPTIONS_VERSION_1, NULL, NULL, 0, 0.0, 1}

#define	OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_INIT

#define	OCCTL_TOPO_WIRE_FIX_DEGENERATE_EDGES_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_WIRE_FIX_DEGENERATE_EDGES_OPTIONS_INIT {OCCTL_TOPO_WIRE_FIX_DEGENERATE_EDGES_OPTIONS_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, 1.0e-9}

#define	OCCTL_TOPO_FACE_CHAMFER_2D_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_FACE_CHAMFER_2D_OPTIONS_INIT {OCCTL_TOPO_FACE_CHAMFER_2D_OPTIONS_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, NULL, 0, 1.0, 1.0}

#define	OCCTL_TOPO_WIRE_CHAMFER_2D_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_WIRE_CHAMFER_2D_OPTIONS_INIT {OCCTL_TOPO_WIRE_CHAMFER_2D_OPTIONS_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, NULL, 0, 1.0, 1.0}

#define	OCCTL_TOPO_MAKE_FACE_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_FACE_INFO_INIT

#define	OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_INIT

#define	OCCTL_TOPO_MAKE_SHELL_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_SHELL_INFO_INIT {OCCTL_TOPO_MAKE_SHELL_INFO_VERSION_1, NULL, NULL, 0, 0}

#define	OCCTL_TOPO_MAKE_SOLID_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_SOLID_INFO_INIT {OCCTL_TOPO_MAKE_SOLID_INFO_VERSION_1, NULL, NULL, 0}

#define	OCCTL_TOPO_MAKE_COMPOUND_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_COMPOUND_INFO_INIT {OCCTL_TOPO_MAKE_COMPOUND_INFO_VERSION_1, NULL, NULL, 0}

#define	OCCTL_TOPO_MAKE_COMPSOLID_INFO_VERSION_1 1u

#define	OCCTL_TOPO_MAKE_COMPSOLID_INFO_INIT {OCCTL_TOPO_MAKE_COMPSOLID_INFO_VERSION_1, NULL, NULL, 0}

#define	OCCTL_MATERIAL_INFO_VERSION_1 1u

#define	OCCTL_MATERIAL_INFO_INIT

#define	OCCTL_JOINT_INFO_VERSION_1 1u

#define	OCCTL_JOINT_INFO_INIT

#define	OCCTL_SELECT_OPTIONS_VERSION_1 1u

#define	OCCTL_SELECT_METADATA_FILTER_VERSION_1 1u

#define	OCCTL_SELECT_DISTANCE_TO_NODE_SORT_VERSION_1 1u

#define	OCCTL_SELECT_GROUP_OPTIONS_VERSION_1 1u

#define	OCCTL_SELECT_GROUP_VIEW_VERSION_1 1u

#define	OCCTL_SELECT_OPTIONS_INIT

#define	OCCTL_SELECT_METADATA_FILTER_INIT {OCCTL_SELECT_METADATA_FILTER_VERSION_1, NULL, NULL, 0u, NULL, 0u, 0}

#define	OCCTL_SELECT_DISTANCE_TO_NODE_SORT_INIT {OCCTL_SELECT_DISTANCE_TO_NODE_SORT_VERSION_1, NULL, OCCTL_NODE_ID_INVALID}

#define	OCCTL_SELECT_GROUP_OPTIONS_INIT

#define	OCCTL_SELECT_GROUP_VIEW_INIT

Typedefs
typedef struct occtl_topo_make_vertex_info	occtl_topo_make_vertex_info_t

typedef struct occtl_topo_make_edge_info	occtl_topo_make_edge_info_t

typedef struct occtl_topo_make_wire_info	occtl_topo_make_wire_info_t

typedef struct occtl_topo_edges_to_wires_options	occtl_topo_edges_to_wires_options_t

typedef enum occtl_topo_wire_offset_2d_join	occtl_topo_wire_offset_2d_join_t

typedef enum occtl_offset_join_type	occtl_offset_join_type_t

typedef struct occtl_topo_wire_offset_2d_options	occtl_topo_wire_offset_2d_options_t

typedef struct occtl_topo_wire_fix_degenerate_edges_options	occtl_topo_wire_fix_degenerate_edges_options_t

typedef struct occtl_topo_face_chamfer_2d_options	occtl_topo_face_chamfer_2d_options_t

typedef struct occtl_topo_wire_chamfer_2d_options	occtl_topo_wire_chamfer_2d_options_t

typedef struct occtl_topo_make_face_info	occtl_topo_make_face_info_t

typedef struct occtl_topo_make_face_from_wires_auto_options	occtl_topo_make_face_from_wires_auto_options_t

typedef struct occtl_topo_make_shell_info	occtl_topo_make_shell_info_t

typedef struct occtl_topo_make_solid_info	occtl_topo_make_solid_info_t

typedef struct occtl_topo_make_compound_info	occtl_topo_make_compound_info_t

typedef struct occtl_topo_make_compsolid_info	occtl_topo_make_compsolid_info_t

typedef struct occtl_batch	occtl_batch_t

typedef struct occtl_color_rgba	occtl_color_rgba_t

typedef struct occtl_material_info	occtl_material_info_t

typedef enum occtl_joint_kind	occtl_joint_kind_t

typedef struct occtl_joint_info	occtl_joint_info_t

typedef struct occtl_metadata_key_view	occtl_metadata_key_view_t

typedef struct occtl_tag_view	occtl_tag_view_t

typedef struct occtl_select_iter	occtl_select_iter_t

typedef struct occtl_select_group_iter	occtl_select_group_iter_t

typedef struct occtl_select_bbox	occtl_select_bbox_t

typedef struct occtl_graph_obb	occtl_graph_obb_t

typedef struct occtl_graph_uv_bounds	occtl_graph_uv_bounds_t

typedef struct occtl_graph_mass_properties	occtl_graph_mass_properties_t

typedef enum occtl_select_bbox_mode	occtl_select_bbox_mode_t

typedef enum occtl_select_axis	occtl_select_axis_t

typedef enum occtl_select_axis_position	occtl_select_axis_position_t

typedef enum occtl_select_normal_mode	occtl_select_normal_mode_t

typedef enum occtl_select_measure_kind	occtl_select_measure_kind_t

typedef enum occtl_select_sort_key	occtl_select_sort_key_t

typedef enum occtl_select_sort_direction	occtl_select_sort_direction_t

typedef enum occtl_select_group_key	occtl_select_group_key_t

typedef struct occtl_select_options	occtl_select_options_t

typedef struct occtl_select_metadata_filter	occtl_select_metadata_filter_t

typedef struct occtl_select_distance_to_node_sort	occtl_select_distance_to_node_sort_t

typedef struct occtl_select_group_options	occtl_select_group_options_t

typedef struct occtl_select_group_view	occtl_select_group_view_t

Enumerations
enum	occtl_topo_wire_offset_2d_join { OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_ARC = 0 , OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_TANGENT = 1 , OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_INTERSECTION , OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_offset_join_type { OCCTL_OFFSET_JOIN_ARC = 0 , OCCTL_OFFSET_JOIN_TANGENT = 1 , OCCTL_OFFSET_JOIN_INTERSECTION = 2 , OCCTL_OFFSET_JOIN_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_joint_kind { OCCTL_JOINT_RIGID = 0 , OCCTL_JOINT_REVOLUTE = 1 , OCCTL_JOINT_LINEAR = 2 , OCCTL_JOINT_CYLINDRICAL = 3 , OCCTL_JOINT_BALL = 4 , OCCTL_JOINT_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_bbox_mode { OCCTL_SELECT_BBOX_INTERSECTS = 0 , OCCTL_SELECT_BBOX_INSIDE = 1 , OCCTL_SELECT_BBOX_CONTAINS_CENTER = 2 , OCCTL_SELECT_BBOX_MODE_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_axis { OCCTL_SELECT_AXIS_X = 0 , OCCTL_SELECT_AXIS_Y = 1 , OCCTL_SELECT_AXIS_Z = 2 , OCCTL_SELECT_AXIS_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_axis_position { OCCTL_SELECT_AXIS_POSITION_MIN = 0 , OCCTL_SELECT_AXIS_POSITION_MAX = 1 , OCCTL_SELECT_AXIS_POSITION_CENTER = 2 , OCCTL_SELECT_AXIS_POSITION_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_normal_mode { OCCTL_SELECT_NORMAL_PARALLEL = 0 , OCCTL_SELECT_NORMAL_ANTIPARALLEL = 1 , OCCTL_SELECT_NORMAL_EITHER = 2 , OCCTL_SELECT_NORMAL_MODE_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_measure_kind { OCCTL_SELECT_MEASURE_EDGE_LENGTH = 0 , OCCTL_SELECT_MEASURE_WIRE_LENGTH = 1 , OCCTL_SELECT_MEASURE_FACE_AREA = 2 , OCCTL_SELECT_MEASURE_SURFACE_AREA = 3 , OCCTL_SELECT_MEASURE_VOLUME = 4 , OCCTL_SELECT_MEASURE_KIND_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_sort_key { OCCTL_SELECT_SORT_NONE = 0 , OCCTL_SELECT_SORT_AXIS_COORDINATE = 1 , OCCTL_SELECT_SORT_MEASURE = 2 , OCCTL_SELECT_SORT_DISTANCE_TO_POINT , OCCTL_SELECT_SORT_NAME = 4 , OCCTL_SELECT_SORT_UID = 5 , OCCTL_SELECT_SORT_DISTANCE_TO_NODE = 6 , OCCTL_SELECT_SORT_KEY_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_sort_direction { OCCTL_SELECT_SORT_ASCENDING = 0 , OCCTL_SELECT_SORT_DESCENDING = 1 , OCCTL_SELECT_SORT_DIRECTION_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_select_group_key { OCCTL_SELECT_GROUP_KIND = 0 , OCCTL_SELECT_GROUP_AXIS_COORDINATE = 1 , OCCTL_SELECT_GROUP_CURVE_KIND = 2 , OCCTL_SELECT_GROUP_SURFACE_KIND = 3 , OCCTL_SELECT_GROUP_NAME = 4 , OCCTL_SELECT_GROUP_COLOR = 5 , OCCTL_SELECT_GROUP_KEY_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_topo_make_vertex_info_init (occtl_topo_make_vertex_info_t *info)

void	occtl_topo_make_edge_info_init (occtl_topo_make_edge_info_t *info)

void	occtl_topo_make_wire_info_init (occtl_topo_make_wire_info_t *info)

void	occtl_topo_edges_to_wires_options_init (occtl_topo_edges_to_wires_options_t *options)

void	occtl_topo_wire_offset_2d_options_init (occtl_topo_wire_offset_2d_options_t *options)

void	occtl_topo_wire_fix_degenerate_options_init (occtl_topo_wire_fix_degenerate_edges_options_t *options)

void	occtl_topo_face_chamfer_2d_options_init (occtl_topo_face_chamfer_2d_options_t *options)

void	occtl_topo_wire_chamfer_2d_options_init (occtl_topo_wire_chamfer_2d_options_t *options)

void	occtl_topo_make_face_info_init (occtl_topo_make_face_info_t *info)

void	occtl_topo_make_face_from_wires_auto_options_init (occtl_topo_make_face_from_wires_auto_options_t *options)

void	occtl_topo_make_shell_info_init (occtl_topo_make_shell_info_t *info)

void	occtl_topo_make_solid_info_init (occtl_topo_make_solid_info_t *info)

void	occtl_topo_make_compound_info_init (occtl_topo_make_compound_info_t *info)

occtl_status_t	occtl_topo_make_vertex (occtl_graph_t graph, const occtl_topo_make_vertex_info_t info, occtl_node_id_t *out_vertex)

occtl_status_t	occtl_topo_make_edge (occtl_graph_t graph, const occtl_topo_make_edge_info_t info, occtl_node_id_t *out_edge)

occtl_status_t	occtl_topo_make_wire (occtl_graph_t graph, const occtl_topo_make_wire_info_t info, occtl_node_id_t *out_wire)

occtl_status_t	occtl_topo_edges_to_wires (occtl_graph_t graph, const occtl_topo_edges_to_wires_options_t options, occtl_node_id_t out_wires, size_t cap, size_t out_count)

occtl_status_t	occtl_topo_wire_offset_2d (occtl_graph_t graph, const occtl_topo_wire_offset_2d_options_t options, occtl_node_id_t *out_wire)

occtl_status_t	occtl_topo_curves_to_wire (occtl_graph_t graph, const occtl_rep_id_t curve_ids, size_t count, occtl_node_id_t *out_wire)

occtl_status_t	occtl_topo_wire_fix_degenerate (occtl_graph_t graph, const occtl_topo_wire_fix_degenerate_edges_options_t options, size_t *out_removed)

occtl_status_t	occtl_topo_face_chamfer_2d (occtl_graph_t graph, const occtl_topo_face_chamfer_2d_options_t options, occtl_node_id_t *out_face)

occtl_status_t	occtl_topo_wire_chamfer_2d (occtl_graph_t graph, const occtl_topo_wire_chamfer_2d_options_t options, occtl_node_id_t *out_wire)

occtl_status_t	occtl_topo_make_face (occtl_graph_t graph, const occtl_topo_make_face_info_t info, occtl_node_id_t *out_face)

occtl_status_t	occtl_topo_make_face_from_wires_auto (occtl_graph_t graph, const occtl_topo_make_face_from_wires_auto_options_t options, occtl_node_id_t *out_face)

occtl_status_t	occtl_topo_make_shell (occtl_graph_t graph, const occtl_topo_make_shell_info_t info, occtl_node_id_t *out_shell)

occtl_status_t	occtl_topo_make_solid (occtl_graph_t graph, const occtl_topo_make_solid_info_t info, occtl_node_id_t *out_solid)

occtl_status_t	occtl_topo_make_compound (occtl_graph_t graph, const occtl_topo_make_compound_info_t info, occtl_node_id_t *out_compound)

void	occtl_topo_make_compsolid_info_init (occtl_topo_make_compsolid_info_t *info)

occtl_status_t	occtl_topo_make_compsolid (occtl_graph_t graph, const occtl_topo_make_compsolid_info_t info, occtl_node_id_t *out_compsolid)

occtl_status_t	occtl_topo_remove (occtl_graph_t *graph, occtl_node_id_t id)

occtl_status_t	occtl_topo_remove_subgraph (occtl_graph_t *graph, occtl_node_id_t id)

occtl_status_t	occtl_graph_begin_batch (occtl_graph_t graph, occtl_batch_t *out_batch)

occtl_status_t	occtl_batch_commit (occtl_batch_t *batch)

occtl_status_t	occtl_batch_abort (occtl_batch_t *batch)

occtl_status_t	occtl_topo_replace_edge_curve (occtl_graph_t *graph, occtl_node_id_t edge, occtl_rep_id_t curve_id)

occtl_status_t	occtl_topo_replace_face_surface (occtl_graph_t *graph, occtl_node_id_t face, occtl_rep_id_t surface_id)

occtl_status_t	occtl_topo_replace_coedge_pcurve (occtl_graph_t *graph, occtl_node_id_t coedge, occtl_rep_id_t pcurve_id)

occtl_status_t	occtl_topo_add_pcurve (occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t face, occtl_rep_id_t pcurve_id, double first, double last, occtl_orientation_t orientation)

occtl_status_t	occtl_topo_shell_add_face (occtl_graph_t *graph, occtl_node_id_t shell, occtl_node_id_t face, occtl_orientation_t orientation)

occtl_status_t	occtl_topo_shell_remove_face (occtl_graph_t *graph, occtl_node_id_t shell, occtl_node_id_t face)

occtl_status_t	occtl_topo_face_add_holes (occtl_graph_t graph, occtl_node_id_t face, const occtl_node_id_t holes, size_t hole_count)

occtl_status_t	occtl_topo_face_remove_holes (occtl_graph_t graph, occtl_node_id_t face, const occtl_node_id_t holes, size_t hole_count)

occtl_status_t	occtl_topo_solid_add_shell (occtl_graph_t *graph, occtl_node_id_t solid, occtl_node_id_t shell, occtl_orientation_t orientation)

occtl_status_t	occtl_topo_solid_remove_shell (occtl_graph_t *graph, occtl_node_id_t solid, occtl_node_id_t shell)

occtl_status_t	occtl_topo_compound_add_child (occtl_graph_t *graph, occtl_node_id_t compound, occtl_node_id_t child, occtl_orientation_t orientation)

occtl_status_t	occtl_topo_compound_remove_child (occtl_graph_t *graph, occtl_node_id_t compound, occtl_node_id_t child)

occtl_status_t	occtl_topo_edge_split (occtl_graph_t graph, occtl_node_id_t edge, double parameter, occtl_node_id_t out_edge1, occtl_node_id_t *out_edge2)

occtl_status_t	occtl_topo_edge_add_internal_vertex (occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t vertex)

occtl_status_t	occtl_topo_edge_remove_vertex (occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t vertex)

occtl_status_t	occtl_topo_edge_continuity (const occtl_graph_t const graph, occtl_node_id_t edge, occtl_node_id_t faceA, occtl_node_id_t faceB, occtl_shape_continuity_t const out_continuity)

occtl_status_t	occtl_topo_edge_has_continuity (const occtl_graph_t const graph, occtl_node_id_t edge, occtl_node_id_t faceA, occtl_node_id_t faceB, int32_t const out_has_continuity)

occtl_status_t	occtl_topo_edge_max_continuity (const occtl_graph_t const graph, occtl_node_id_t edge, occtl_shape_continuity_t const out_continuity)

occtl_status_t	occtl_topo_coedge_orientation (const occtl_graph_t const graph, occtl_node_id_t coedge, occtl_orientation_t const out_orientation)

occtl_status_t	occtl_topo_edge_find_coedge_on_face (const occtl_graph_t const graph, occtl_node_id_t edge, occtl_node_id_t face, occtl_node_id_t const out_coedge)

occtl_status_t	occtl_topo_edge_find_coedge_on_face_oriented (const occtl_graph_t const graph, occtl_node_id_t edge, occtl_node_id_t face, occtl_orientation_t orientation, occtl_node_id_t const out_coedge)

occtl_status_t	occtl_topo_vertex_point_in_usage (const occtl_graph_t const graph, occtl_node_id_t vertex, occtl_node_id_t parent, occtl_point3_t const out_point)

occtl_status_t	occtl_topo_vertex_pcurve_parameter (const occtl_graph_t const graph, occtl_node_id_t vertex, occtl_node_id_t coedge, double const out_u)

occtl_status_t	occtl_topo_edge_has_polygon3d (const occtl_graph_t const graph, occtl_node_id_t edge, int32_t const out_has_polygon3d)

occtl_status_t	occtl_topo_coedge_has_polygon_on_surface (const occtl_graph_t const graph, occtl_node_id_t coedge, int32_t const out_has_polygon_on_surface)

occtl_status_t	occtl_topo_face_uv_bounds_restricted (const occtl_graph_t const graph, occtl_node_id_t face, double umin, double umax, double vmin, double vmax, double u, double v, occtl_point3_t const out_point, occtl_vector3_t const out_d1u, occtl_vector3_t const out_d1v)

occtl_status_t	occtl_topo_set_vertex_point (occtl_graph_t *graph, occtl_node_id_t vertex, occtl_point3_t point)

occtl_status_t	occtl_topo_set_vertex_tolerance (occtl_graph_t *graph, occtl_node_id_t vertex, double tol)

occtl_status_t	occtl_topo_set_edge_tolerance (occtl_graph_t *graph, occtl_node_id_t edge, double tol)

occtl_status_t	occtl_topo_set_face_tolerance (occtl_graph_t *graph, occtl_node_id_t face, double tol)

occtl_status_t	occtl_topo_set_edge_param_range (occtl_graph_t *graph, occtl_node_id_t edge, double first, double last)

occtl_status_t	occtl_topo_set_edge_same_parameter (occtl_graph_t *graph, occtl_node_id_t edge, int32_t flag)

occtl_status_t	occtl_topo_set_edge_same_range (occtl_graph_t *graph, occtl_node_id_t edge, int32_t flag)

occtl_status_t	occtl_topo_set_edge_is_degenerate (occtl_graph_t *graph, occtl_node_id_t edge, int32_t flag)

occtl_status_t	occtl_topo_set_edge_is_closed (occtl_graph_t *graph, occtl_node_id_t edge, int32_t flag)

occtl_status_t	occtl_topo_set_wire_is_closed (occtl_graph_t *graph, occtl_node_id_t wire, int32_t flag)

occtl_status_t	occtl_topo_set_shell_is_closed (occtl_graph_t *graph, occtl_node_id_t shell, int32_t flag)

occtl_status_t	occtl_topo_set_face_natural_restriction (occtl_graph_t *graph, occtl_node_id_t face, int32_t flag)

occtl_status_t	occtl_topo_set_coedge_param_range (occtl_graph_t *graph, occtl_node_id_t coedge, double first, double last)

occtl_status_t	occtl_topo_set_coedge_uv_box (occtl_graph_t *graph, occtl_node_id_t coedge, occtl_point2_t uv_lo, occtl_point2_t uv_hi)

occtl_status_t	occtl_graph_clear_cached (occtl_graph_t *graph, occtl_node_id_t node, occtl_ref_id_t ref)

void	occtl_select_options_init (occtl_select_options_t *options)

void	occtl_select_group_options_init (occtl_select_group_options_t *options)

void	occtl_select_group_view_init (occtl_select_group_view_t *view)

occtl_status_t	occtl_graph_bbox_get (occtl_graph_t graph, occtl_node_id_t node, occtl_select_bbox_t out_bbox)

occtl_status_t	occtl_graph_obb_get (occtl_graph_t graph, occtl_node_id_t node, occtl_graph_obb_t out_obb)

occtl_status_t	occtl_graph_face_uv_bounds_get (occtl_graph_t graph, occtl_node_id_t face, occtl_graph_uv_bounds_t out_uv_bounds)

occtl_status_t	occtl_graph_measure_get (occtl_graph_t graph, occtl_node_id_t node, occtl_select_measure_kind_t kind, double out_value)

occtl_status_t	occtl_graph_mass_properties_get (occtl_graph_t graph, occtl_node_id_t node, occtl_graph_mass_properties_t out_properties)

occtl_status_t	occtl_graph_edge_curve_kind_get (occtl_graph_t graph, occtl_node_id_t edge, occtl_curve_kind_t out_kind)

occtl_status_t	occtl_graph_face_surface_kind_get (occtl_graph_t graph, occtl_node_id_t face, occtl_surface_kind_t out_kind)

occtl_status_t	occtl_graph_descendant_vertices_get (occtl_graph_t graph, occtl_node_id_t node, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_descendant_edges_get (occtl_graph_t graph, occtl_node_id_t node, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_descendant_faces_get (occtl_graph_t graph, occtl_node_id_t node, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_descendants_get (occtl_graph_t graph, occtl_node_id_t node, occtl_node_kind_t descendant_kind, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_adjacent_faces_get (occtl_graph_t graph, occtl_node_id_t face, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_adjacent_edges_get (occtl_graph_t graph, occtl_node_id_t edge, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_graph_pair_distance_get (occtl_graph_t graph, occtl_node_id_t first, occtl_node_id_t second, double out_distance)

occtl_status_t	occtl_select_iter_create (occtl_graph_t graph, const occtl_select_options_t options, occtl_select_iter_t **out_iter)

occtl_status_t	occtl_select_tagged_iter_create (occtl_graph_t graph, const occtl_select_options_t options, const char tag, size_t tagLen, occtl_select_iter_t *out_iter)

occtl_status_t	occtl_select_iter_next (occtl_select_iter_t iter, occtl_node_id_t out_node)

void	occtl_select_iter_free (occtl_select_iter_t *iter)

occtl_status_t	occtl_select_group_iter_create (occtl_graph_t graph, const occtl_select_options_t select_options, const occtl_select_group_options_t group_options, occtl_select_group_iter_t *out_iter)

occtl_status_t	occtl_select_group_iter_next (occtl_select_group_iter_t iter, occtl_select_group_view_t out_view)

void	occtl_select_group_iter_free (occtl_select_group_iter_t *iter)

occtl_status_t	occtl_graph_clone (const occtl_graph_t source, occtl_graph_t *out_graph)

occtl_status_t	occtl_graph_compact (occtl_graph_t *graph)

occtl_status_t	occtl_topo_remove_with_replacement (occtl_graph_t *graph, occtl_node_id_t node, occtl_node_id_t replacement)

occtl_status_t	occtl_topo_remove_ref (occtl_graph_t *graph, occtl_ref_id_t ref_id)

occtl_status_t	occtl_topo_remove_rep (occtl_graph_t *graph, occtl_rep_id_t rep_id)

occtl_status_t	occtl_topo_cleanup_removed_refs (occtl_graph_t *graph)

occtl_status_t	occtl_topo_set_edge_start_vertex (occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t vertex)

occtl_status_t	occtl_topo_set_edge_end_vertex (occtl_graph_t *graph, occtl_node_id_t edge, occtl_node_id_t vertex)

occtl_status_t	occtl_topo_set_ref_orientation (occtl_graph_t *graph, occtl_ref_id_t ref_id, occtl_orientation_t orientation)

occtl_status_t	occtl_topo_set_ref_location (occtl_graph_t *graph, occtl_ref_id_t ref_id, occtl_transform_t transform)

occtl_status_t	occtl_topo_set_wire_ref_is_outer (occtl_graph_t *graph, occtl_ref_id_t ref_id, int32_t flag)

Detailed Description

OCCT-Light: Topology builders, mutations, and property setters.

Covers low-level element construction (make_vertex, make_edge, make_wire, make_face, make_shell, make_solid, make_compound, make_compsolid), wire/edge operations (edges_to_wires, wire_offset_2d, curves_to_wire, wire_fix_degenerate, face_chamfer_2d, wire_chamfer_2d), in-place mutations (remove, replace, add/remove from parent, edge_split), and property setters.

Macro Definition Documentation

◆ OCCTL_JOINT_INFO_INIT

#define OCCTL_JOINT_INFO_INIT

Value:

  {OCCTL_JOINT_INFO_VERSION_1,                                                                     \
   NULL,                                                                                           \
   OCCTL_JOINT_ID_INVALID,                                                                         \
   OCCTL_JOINT_RIGID,                                                                              \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   {{1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0}},                                 \
   {{1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0}},                                 \
   0,                                                                                              \
   0.0,                                                                                            \
   0,                                                                                              \
   0.0,                                                                                            \
   OCCTL_UID_INVALID}

◆ OCCTL_MATERIAL_INFO_INIT

#define OCCTL_MATERIAL_INFO_INIT

Value:

  {OCCTL_MATERIAL_INFO_VERSION_1,                                                                  \
   NULL,                                                                                           \
   NULL,                                                                                           \
   0,                                                                                              \
   0,                                                                                              \
   0.0,                                                                                            \
   0,                                                                                              \
   {1.0f, 1.0f, 1.0f, 1.0f},                                                                       \
   OCCTL_UID_INVALID}

◆ OCCTL_SELECT_GROUP_OPTIONS_INIT

#define OCCTL_SELECT_GROUP_OPTIONS_INIT

Value:

  {OCCTL_SELECT_GROUP_OPTIONS_VERSION_1,                                                           \
   NULL,                                                                                           \
   OCCTL_SELECT_GROUP_KIND,                                                                        \
   OCCTL_SELECT_AXIS_Z,                                                                            \
   1.0e-7,                                                                                         \
   0.0f,                                                                                           \
   0}

◆ OCCTL_SELECT_GROUP_VIEW_INIT

#define OCCTL_SELECT_GROUP_VIEW_INIT

Value:

  {OCCTL_SELECT_GROUP_VIEW_VERSION_1,                                                              \
   NULL,                                                                                           \
   OCCTL_SELECT_GROUP_KIND,                                                                        \
   OCCTL_KIND_INVALID,                                                                             \
   OCCTL_CURVE_KIND_UNDEFINED,                                                                     \
   OCCTL_SURFACE_KIND_UNDEFINED,                                                                   \
   0.0,                                                                                            \
   NULL,                                                                                           \
   0,                                                                                              \
   0,                                                                                              \
   {0.0f, 0.0f, 0.0f, 0.0f},                                                                       \
   NULL,                                                                                           \
   0}

◆ OCCTL_TOPO_MAKE_EDGE_INFO_INIT

#define OCCTL_TOPO_MAKE_EDGE_INFO_INIT

Value:

  {OCCTL_TOPO_MAKE_EDGE_INFO_VERSION_1,                                                            \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_REP_ID_INVALID,                                                                           \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0}

◆ OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_INIT

#define OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_INIT

Value:

  {OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_VERSION_1,                                         \
   NULL,                                                                                           \
   OCCTL_REP_ID_INVALID,                                                                           \
   NULL,                                                                                           \
   0,                                                                                              \
   0.0,                                                                                            \
   1.0e-9}

◆ OCCTL_TOPO_MAKE_FACE_INFO_INIT

#define OCCTL_TOPO_MAKE_FACE_INFO_INIT

Value:

  {OCCTL_TOPO_MAKE_FACE_INFO_VERSION_1,                                                            \
   NULL,                                                                                           \
   OCCTL_REP_ID_INVALID,                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   NULL,                                                                                           \
   0,                                                                                              \
   0.0}

◆ OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_INIT

#define OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_INIT

Value:

  {OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_VERSION_1,                                                    \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   1.0,                                                                                            \
   OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_ARC,                                                             \
   0,                                                                                              \
   0}

Typedef Documentation

◆ occtl_batch_t

typedef struct occtl_batch occtl_batch_t

Opaque handle for a batched graph mutation scope.

Created by occtl_graph_begin_batch. Mutations performed on graph while a batch is open are deferred; occtl_batch_commit applies them all at once. occtl_batch_abort discards uncommitted changes.

Outside a batch, every mutation is its own implicit scope.

See also: occtl_graph_begin_batch, occtl_batch_commit, occtl_batch_abort

◆ occtl_color_rgba_t

typedef struct occtl_color_rgba occtl_color_rgba_t

RGBA colour value for use with graph annotation functions.

Each channel is in the range [0.0f, 1.0f]. The alpha channel follows the OpenGL convention: 1.0f is opaque, 0.0f is fully transparent.

This is a plain-data struct; no struct_version is needed.

◆ occtl_graph_mass_properties_t

typedef struct occtl_graph_mass_properties occtl_graph_mass_properties_t

Combined OCCT mass-property value computed for a graph node.

linear_length is the total curve length of edges in the shape, surface_area is the total face area, and volume is the signed solid volume. mass uses unit density and follows the highest non-zero dimensional property: volume, then area, then length. The inertia matrix is row-major, about centre_of_mass, in the global XYZ frame.

◆ occtl_graph_obb_t

typedef struct occtl_graph_obb occtl_graph_obb_t

Oriented box value computed for a graph node.

The three direction vectors form the local box axes. Half sizes are non-negative distances from center along the matching axis.

◆ occtl_graph_uv_bounds_t

typedef struct occtl_graph_uv_bounds occtl_graph_uv_bounds_t

Face UV bounds value computed for a graph node.

◆ occtl_joint_info_t

typedef struct occtl_joint_info occtl_joint_info_t

Assembly joint record stored in graph-owned metadata.

The endpoint nodes may be products, occurrences, or topology nodes. Frames are local joint frames on the respective endpoints. Limits are optional and are interpreted in radians for rotational joints and graph length units for translational joints.

◆ occtl_joint_kind_t

typedef enum occtl_joint_kind occtl_joint_kind_t

Assembly joint kind.

These values describe the intended relative motion between two graph nodes. The library stores the declaration as graph metadata; constraint solving is layered separately.

◆ occtl_material_info_t

typedef struct occtl_material_info occtl_material_info_t

Material-lite record for graph material layers.

name is a borrowed UTF-8 byte span when setting material data. For occtl_graph_material_get, name points at the caller-provided output buffer when a buffer was supplied, otherwise it is NULL and name_len is the stored byte length. A zero name_len is allowed.

◆ occtl_metadata_key_view_t

typedef struct occtl_metadata_key_view occtl_metadata_key_view_t

Borrowed view of a metadata key stored on a graph node.

Pointer lifetime is tied to the owning graph metadata. The view is invalidated by metadata mutation on the graph, graph mutation that remaps/removes the target node, graph clone/free, or graph compaction.

◆ occtl_offset_join_type_t

typedef enum occtl_offset_join_type occtl_offset_join_type_t

Edge-join style for 3D offset, thicken, and hollow operations.

Shared by occtl_prim_make_offset_shape, occtl_prim_make_thick_solid, and #occtl_topo_offset_features.

◆ occtl_select_axis_position_t

typedef enum occtl_select_axis_position occtl_select_axis_position_t

Axis-position predicate for occtl_select_options_t.

Position is measured from each candidate bounding-box centre along occtl_select_options_t::axis. MIN / MAX select candidates on the lowest / highest centre plane. CENTER selects candidates on the mid-plane between the lowest and highest candidate centres.

◆ occtl_select_axis_t

typedef enum occtl_select_axis occtl_select_axis_t

Principal axis used by selector position filters.

◆ occtl_select_bbox_mode_t

typedef enum occtl_select_bbox_mode occtl_select_bbox_mode_t

Bounding-box predicate for occtl_select_options_t.

◆ occtl_select_bbox_t

typedef struct occtl_select_bbox occtl_select_bbox_t

Axis-aligned box used by selector filters.

◆ occtl_select_distance_to_node_sort_t

typedef struct occtl_select_distance_to_node_sort occtl_select_distance_to_node_sort_t

Distance-to-node sort extension for occtl_select_options_t.

Chain one instance through occtl_select_options_t::p_next when occtl_select_options_t::sort_key is OCCTL_SELECT_SORT_DISTANCE_TO_NODE. The selector computes OCCT minimum distances from each candidate node to target.

To combine this with a metadata filter, set this struct as the first occtl_select_options_t::p_next entry and chain occtl_select_metadata_filter_t from this struct's p_next.

◆ occtl_select_group_iter_t

typedef struct occtl_select_group_iter occtl_select_group_iter_t

Opaque iterator over grouped selector results.

Created by occtl_select_group_iter_create and released with occtl_select_group_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators are safe when the owning graph is not mutated.

◆ occtl_select_group_key_t

typedef enum occtl_select_group_key occtl_select_group_key_t

Grouping key for selector results.

◆ occtl_select_group_options_t

typedef struct occtl_select_group_options occtl_select_group_options_t

Grouping options for occtl_select_group_iter_create.

◆ occtl_select_group_view_t

typedef struct occtl_select_group_view occtl_select_group_view_t

Immutable view of one selected-node group.

Pointer fields borrow from the owning occtl_select_group_iter_t and remain valid until the iterator is advanced or freed.

◆ occtl_select_iter_t

typedef struct occtl_select_iter occtl_select_iter_t

Opaque iterator over selected graph nodes.

Created by occtl_select_iter_create and released with occtl_select_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators are safe when the owning graph is not mutated.

◆ occtl_select_measure_kind_t

typedef enum occtl_select_measure_kind occtl_select_measure_kind_t

OCCT mass-property predicate for occtl_select_options_t.

◆ occtl_select_metadata_filter_t

typedef struct occtl_select_metadata_filter occtl_select_metadata_filter_t

Metadata predicate extension for occtl_select_options_t.

Chain one instance through occtl_select_options_t::p_next. Set key_len to a non-zero value to match key presence. Also set match_value to 1 to require an exact value match.

◆ occtl_select_normal_mode_t

typedef enum occtl_select_normal_mode occtl_select_normal_mode_t

Face-normal predicate for occtl_select_options_t.

◆ occtl_select_options_t

typedef struct occtl_select_options occtl_select_options_t

Selection options for occtl_select_iter_create.

kind_mask uses (1ull << OCCTL_KIND_*) bits. A zero mask means all node kinds. When root is invalid, selection scans the whole graph; otherwise it walks descendants from root. Set include_root to 1 to test root itself before its descendants.

Metadata filters are supplied through occtl_select_metadata_filter_t chained from p_next.

◆ occtl_select_sort_direction_t

typedef enum occtl_select_sort_direction occtl_select_sort_direction_t

Sort direction for selected-node output.

◆ occtl_select_sort_key_t

typedef enum occtl_select_sort_key occtl_select_sort_key_t

Sort key for selected-node output.

◆ occtl_tag_view_t

typedef struct occtl_tag_view occtl_tag_view_t

Borrowed view of a tag stored on a graph node.

Pointer lifetime is tied to the owning graph metadata. The view is invalidated by tag mutation on the graph, graph mutation that remaps/removes the target node, graph clone/free, or graph compaction.

◆ occtl_topo_edges_to_wires_options_t

typedef struct occtl_topo_edges_to_wires_options occtl_topo_edges_to_wires_options_t

Options for occtl_topo_edges_to_wires.

edges is a borrowed span of Edge node IDs. The graph copies only the resulting Wire topology; the input span need not remain valid after the call returns.

◆ occtl_topo_face_chamfer_2d_options_t

typedef struct occtl_topo_face_chamfer_2d_options occtl_topo_face_chamfer_2d_options_t

Options for occtl_topo_face_chamfer_2d.

vertices is a borrowed optional span of Vertex node IDs. When vertices is NULL and vertex_count is 0, OCCT attempts to chamfer every vertex of face. The result is inserted into the same graph as a new Face node; the source face is not modified.

◆ occtl_topo_make_compound_info_t

typedef struct occtl_topo_make_compound_info occtl_topo_make_compound_info_t

Info for occtl_topo_make_compound.

◆ occtl_topo_make_compsolid_info_t

typedef struct occtl_topo_make_compsolid_info occtl_topo_make_compsolid_info_t

Info for occtl_topo_make_compsolid.

◆ occtl_topo_make_edge_info_t

typedef struct occtl_topo_make_edge_info occtl_topo_make_edge_info_t

Info for occtl_topo_make_edge.

curve is a rep ID referencing a 3D curve node in the graph. Use OCCTL_REP_ID_INVALID for a degenerate edge (no 3D curve).

◆ occtl_topo_make_face_from_wires_auto_options_t

typedef struct occtl_topo_make_face_from_wires_auto_options occtl_topo_make_face_from_wires_auto_options_t

Options for occtl_topo_make_face_from_wires_auto.

surface is a rep ID referencing a surface node in the graph. Must be valid (not OCCTL_REP_ID_INVALID). wires is a borrowed span of Wire node IDs.

◆ occtl_topo_make_face_info_t

typedef struct occtl_topo_make_face_info occtl_topo_make_face_info_t

Info for occtl_topo_make_face.

surface is a rep ID referencing a surface node in the graph. Must be valid (not OCCTL_REP_ID_INVALID). inner_wires is a borrowed span of wire NodeIds; NULL when inner_wire_count is 0.

◆ occtl_topo_make_shell_info_t

typedef struct occtl_topo_make_shell_info occtl_topo_make_shell_info_t

Info for occtl_topo_make_shell.

◆ occtl_topo_make_solid_info_t

typedef struct occtl_topo_make_solid_info occtl_topo_make_solid_info_t

Info for occtl_topo_make_solid.

◆ occtl_topo_make_vertex_info_t

typedef struct occtl_topo_make_vertex_info occtl_topo_make_vertex_info_t

Info for occtl_topo_make_vertex.

◆ occtl_topo_make_wire_info_t

typedef struct occtl_topo_make_wire_info occtl_topo_make_wire_info_t

Info for occtl_topo_make_wire.

edges is a borrowed span of (edge, orientation) pairs; the graph copies during construction. NULL is valid only when edge_count is 0.

◆ occtl_topo_wire_chamfer_2d_options_t

typedef struct occtl_topo_wire_chamfer_2d_options occtl_topo_wire_chamfer_2d_options_t

Options for occtl_topo_wire_chamfer_2d.

The source Wire must be planar. The resulting outer Wire is inserted into the same graph as a new Wire node; the source wire is not modified.

◆ occtl_topo_wire_fix_degenerate_edges_options_t

typedef struct occtl_topo_wire_fix_degenerate_edges_options occtl_topo_wire_fix_degenerate_edges_options_t

Options for occtl_topo_wire_fix_degenerate.

The operation detaches coedge usages whose underlying Edge has OCCT length less than or equal to min_length. The Edge and Vertex definitions remain in the graph for other users.

◆ occtl_topo_wire_offset_2d_join_t

typedef enum occtl_topo_wire_offset_2d_join occtl_topo_wire_offset_2d_join_t

Join style for planar wire offsets.

◆ occtl_topo_wire_offset_2d_options_t

typedef struct occtl_topo_wire_offset_2d_options occtl_topo_wire_offset_2d_options_t

Options for occtl_topo_wire_offset_2d.

distance is signed; its side follows OCCT's planar-wire offset convention for the wire orientation. The result is inserted into the same graph as a new topology root.

Enumeration Type Documentation

◆ occtl_joint_kind

enum occtl_joint_kind

Assembly joint kind.

These values describe the intended relative motion between two graph nodes. The library stores the declaration as graph metadata; constraint solving is layered separately.

Enumerator
OCCTL_JOINT_RIGID	Fixed relative transform.
OCCTL_JOINT_REVOLUTE	One rotational degree of freedom.
OCCTL_JOINT_LINEAR	One translational degree of freedom.
OCCTL_JOINT_CYLINDRICAL	Coaxial rotation plus translation.
OCCTL_JOINT_BALL	Spherical orientation freedom.

◆ occtl_offset_join_type

enum occtl_offset_join_type

Edge-join style for 3D offset, thicken, and hollow operations.

Shared by occtl_prim_make_offset_shape, occtl_prim_make_thick_solid, and #occtl_topo_offset_features.

Enumerator
OCCTL_OFFSET_JOIN_ARC	Insert rolling arcs across sharp edges.
OCCTL_OFFSET_JOIN_TANGENT	Insert tangent-continuous patches.
OCCTL_OFFSET_JOIN_INTERSECTION	Extend adjacent faces until they intersect.

◆ occtl_select_axis

enum occtl_select_axis

Principal axis used by selector position filters.

Enumerator
OCCTL_SELECT_AXIS_X	X coordinate.
OCCTL_SELECT_AXIS_Y	Y coordinate.
OCCTL_SELECT_AXIS_Z	Z coordinate.

◆ occtl_select_axis_position

enum occtl_select_axis_position

Axis-position predicate for occtl_select_options_t.

Position is measured from each candidate bounding-box centre along occtl_select_options_t::axis. MIN / MAX select candidates on the lowest / highest centre plane. CENTER selects candidates on the mid-plane between the lowest and highest candidate centres.

Enumerator
OCCTL_SELECT_AXIS_POSITION_MIN	Lowest candidate centre coordinate.
OCCTL_SELECT_AXIS_POSITION_MAX	Highest candidate centre coordinate.
OCCTL_SELECT_AXIS_POSITION_CENTER	Mid-plane between lowest and highest centres.

◆ occtl_select_bbox_mode

enum occtl_select_bbox_mode

Bounding-box predicate for occtl_select_options_t.

Enumerator
OCCTL_SELECT_BBOX_INTERSECTS	Candidate box intersects `bbox`.
OCCTL_SELECT_BBOX_INSIDE	Candidate box is fully inside `bbox`.
OCCTL_SELECT_BBOX_CONTAINS_CENTER	Candidate box centre is inside `bbox`.

◆ occtl_select_group_key

enum occtl_select_group_key

Grouping key for selector results.

Enumerator
OCCTL_SELECT_GROUP_KIND	Group by occtl_node_kind_t.
OCCTL_SELECT_GROUP_AXIS_COORDINATE	Group by approximate bbox-centre coordinate.
OCCTL_SELECT_GROUP_CURVE_KIND	Group Edge nodes by occtl_curve_kind_t.
OCCTL_SELECT_GROUP_SURFACE_KIND	Group Face nodes by occtl_surface_kind_t.
OCCTL_SELECT_GROUP_NAME	Group by metadata-backed name.
OCCTL_SELECT_GROUP_COLOR	Group by metadata-backed colour.

◆ occtl_select_measure_kind

enum occtl_select_measure_kind

OCCT mass-property predicate for occtl_select_options_t.

Enumerator
OCCTL_SELECT_MEASURE_EDGE_LENGTH	Linear mass of Edge nodes.
OCCTL_SELECT_MEASURE_WIRE_LENGTH	Linear mass of Wire nodes.
OCCTL_SELECT_MEASURE_FACE_AREA	Surface mass of Face nodes.
OCCTL_SELECT_MEASURE_SURFACE_AREA	Surface mass of any candidate node shape.
OCCTL_SELECT_MEASURE_VOLUME	Volume mass of any candidate node shape.

◆ occtl_select_normal_mode

enum occtl_select_normal_mode

Face-normal predicate for occtl_select_options_t.

Enumerator
OCCTL_SELECT_NORMAL_PARALLEL	Normal points with `normal`.
OCCTL_SELECT_NORMAL_ANTIPARALLEL	Normal points opposite `normal`.
OCCTL_SELECT_NORMAL_EITHER	Normal is parallel or antiparallel.

◆ occtl_select_sort_direction

enum occtl_select_sort_direction

Sort direction for selected-node output.

Enumerator
OCCTL_SELECT_SORT_ASCENDING	Smallest key first.
OCCTL_SELECT_SORT_DESCENDING	Largest key first.

◆ occtl_select_sort_key

enum occtl_select_sort_key

Sort key for selected-node output.

Enumerator
OCCTL_SELECT_SORT_NONE	Preserve traversal order.
OCCTL_SELECT_SORT_AXIS_COORDINATE	Sort by computed bbox-centre coordinate.
OCCTL_SELECT_SORT_MEASURE	Sort by OCCT mass property.
OCCTL_SELECT_SORT_DISTANCE_TO_POINT	Sort by computed bbox-centre distance to `sort_point`.
OCCTL_SELECT_SORT_NAME	Sort by metadata-backed name.
OCCTL_SELECT_SORT_UID	Sort by persistent UID bits.
OCCTL_SELECT_SORT_DISTANCE_TO_NODE	Sort by computed OCCT distance to a target node.

◆ occtl_topo_wire_offset_2d_join

enum occtl_topo_wire_offset_2d_join

Join style for planar wire offsets.

Enumerator
OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_ARC	Insert circular arcs at sharp corners.
OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_TANGENT	Use tangent-continuous joins.
OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_INTERSECTION	Extend adjacent edges until they intersect.

Function Documentation

◆ occtl_batch_abort()

occtl_status_t occtl_batch_abort ( occtl_batch_t * batch )

Aborts the batch, discarding all deferred mutations.

After this call batch is freed and must not be reused. NULL-tolerant (no-op).

Parameters

[in] batch Owning pointer. May be NULL.

Return values

OCCTL_OK On success.

\par Thread Safety No (mutates graph).

See also: occtl_graph_begin_batch, occtl_batch_commit

◆ occtl_batch_commit()

occtl_status_t occtl_batch_commit ( occtl_batch_t * batch )

Commits all deferred mutations in the batch to the graph.

After this call batch is freed and must not be reused. NULL-tolerant (no-op).

Parameters

[in] batch Owning pointer. May be NULL.

Return values

OCCTL_OK On success.

\par Thread Safety No (mutates graph).

See also: occtl_graph_begin_batch, occtl_batch_abort

◆ occtl_graph_adjacent_edges_get()

occtl_status_t occtl_graph_adjacent_edges_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed adjacent Edge nodes for one Edge node.

The list is computed through BRepGraph shared-Vertex incidence from current graph state. Duplicate Edge definitions are collapsed and edge itself is not returned. This is a reusable graph-owned adjacency primitive for connected-edge walks, wire grouping, selector-style relation predicates, and future sketch cleanup helpers.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID to query. Must be valid and active.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an Edge node.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_connected_edges

◆ occtl_graph_adjacent_faces_get()

occtl_status_t occtl_graph_adjacent_faces_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed adjacent Face nodes for one Face node.

The list is computed through BRepGraph face-adjacency relations from current graph state. Duplicate Face definitions are collapsed. This is a reusable graph-owned adjacency primitive for connected-face walks, selector-style relation predicates, and future reverse-engineering patch traversal.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID to query. Must be valid and active.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`face` is invalid or removed.
OCCTL_WRONG_KIND	`face` is not a Face node.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_connected_faces

◆ occtl_graph_bbox_get()

occtl_status_t occtl_graph_bbox_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_select_bbox_t *	out_bbox
	)

Returns a computed axis-aligned bounding box for a node.

The value is computed from current graph state. OCCT may use internal transient caches, but OCCT-Light exposes only the computed POD result.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Node ID to query. Must be valid and active.
[out]	out_bbox	Borrows it. Must be non-NULL. Receives the box.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_bbox` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute a finite box.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_obb_get, occtl_graph_measure_get

◆ occtl_graph_begin_batch()

occtl_status_t occtl_graph_begin_batch	(	occtl_graph_t *	graph,
		occtl_batch_t **	out_batch
	)

Opens a batched mutation scope on graph.

Subsequent mutations on graph are deferred until occtl_batch_commit is called on the returned handle. Release with occtl_batch_commit (apply) or occtl_batch_abort (discard).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[out]	out_batch	Owns it. Must be non-NULL. The caller is responsible for calling commit or abort.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_batch` is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph batch state).

See also: occtl_batch_commit, occtl_batch_abort

◆ occtl_graph_clear_cached()

occtl_status_t occtl_graph_clear_cached	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_ref_id_t	ref
	)

Clears graph-owned computed data related to one node or one reference.

Exactly one of node or ref must be valid. The implementation removes graph-owned computed data attached to the selected target; callers must treat cached calculation results as an optimization only.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Node ID to clear, or OCCTL_NODE_ID_INVALID.
[in]	ref	Ref ID to clear, or OCCTL_REF_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or both/neither IDs are valid.
OCCTL_NOT_FOUND	The selected node or reference is invalid or removed.

\par Thread Safety No (mutates internal computed-data state).

See also: occtl_graph_bbox_get, occtl_graph_pair_distance_get

◆ occtl_graph_clone()

occtl_status_t occtl_graph_clone	(	const occtl_graph_t *	source,
		occtl_graph_t **	out_graph
	)

Deep-clones a topology graph.

Copies all active nodes, references, representations, and registered layers. Geometry handles are deep-copied so the new graph is fully independent. The caller owns the returned graph and must release it with occtl_graph_free.

Parameters

[in]	source	Borrows it. Must be non-NULL.
[out]	out_graph	Owns it. Must be non-NULL. On success receives a valid handle; on failure set to NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`source` or `out_graph` is NULL.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (reads source, but source must not be concurrently mutated).

See also: occtl_graph_create, occtl_graph_free

◆ occtl_graph_compact()

occtl_status_t occtl_graph_compact ( occtl_graph_t * graph )

Compacts the graph by reclaiming slots from removed nodes.

After compaction all occtl_node_id_t and occtl_ref_id_t values are invalidated (they are session-local indices that may be renumbered). Persistent occtl_uid_t values survive compaction and can be resolved back to new NodeIds via occtl_graph_node_id_from_uid.

Parameters

[in,out] graph Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.

Note: After this call, all previously obtained NodeId and RefId values are invalid. Resolve UIDs to obtain fresh NodeId values.

\par Thread Safety No (mutates graph).

See also: occtl_graph_node_id_from_uid

◆ occtl_graph_descendant_edges_get()

occtl_status_t occtl_graph_descendant_edges_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed descendant Edge nodes for a graph root.

The list is computed through BRepGraph child traversal from current graph state. Duplicate Edge definitions are collapsed. If node is itself an Edge, the returned list contains that Edge.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Root node ID to query. Must be valid and active.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_connected_edges

◆ occtl_graph_descendant_faces_get()

occtl_status_t occtl_graph_descendant_faces_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed descendant Face nodes for a graph root.

The list is computed through BRepGraph child traversal from current graph state. Duplicate Face definitions are collapsed. If node is itself a Face, the returned list contains that Face.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Root node ID to query. Must be valid and active.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_connected_faces

◆ occtl_graph_descendant_vertices_get()

occtl_status_t occtl_graph_descendant_vertices_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed descendant Vertex nodes for a graph root.

The list is computed through BRepGraph child traversal from current graph state. Duplicate Vertex definitions are collapsed. If node is itself a Vertex, the returned list contains that Vertex.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Root node ID to query. Must be valid and active.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_common_vertices

◆ occtl_graph_descendants_get()

occtl_status_t occtl_graph_descendants_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_kind_t	descendant_kind,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Returns computed descendant nodes of one requested kind for a graph root.

The list is computed through BRepGraph child traversal from current graph state and keyed by descendant_kind. Duplicate definitions are collapsed. If node itself has descendant_kind, the returned list includes node.

This is the broad descendant query surface for root-scoped scans. Use the narrower Vertex / Edge / Face functions only when a binding wants a more explicitly named convenience wrapper.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Root node ID to query. Must be valid and active.
[in]	descendant_kind	Requested node kind. Must not be OCCTL_KIND_INVALID.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL, or `descendant_kind` is invalid.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_descendant_vertices_get

◆ occtl_graph_edge_curve_kind_get()

occtl_status_t occtl_graph_edge_curve_kind_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_curve_kind_t *	out_kind
	)

Returns a computed curve-kind classification for an Edge node.

The classification delegates to OCCT edge adaptors. Callers receive a POD enum copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID to classify. Must be valid and active.
[out]	out_kind	Borrows it. Must be non-NULL. Receives the curve kind.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_kind` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an Edge node.
OCCTL_GEOMETRY_INVALID	OCCT could not classify the edge geometry.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_edge_curve_kind

◆ occtl_graph_face_surface_kind_get()

occtl_status_t occtl_graph_face_surface_kind_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_surface_kind_t *	out_kind
	)

Returns a computed surface-kind classification for a Face node.

The classification delegates to OCCT surface adaptors. Callers receive a POD enum copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID to classify. Must be valid and active.
[out]	out_kind	Borrows it. Must be non-NULL. Receives the surface kind.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_kind` is NULL.
OCCTL_NOT_FOUND	`face` is invalid or removed.
OCCTL_WRONG_KIND	`face` is not a Face node.
OCCTL_GEOMETRY_INVALID	OCCT could not classify the face geometry.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_face_surface_kind

◆ occtl_graph_face_uv_bounds_get()

occtl_status_t occtl_graph_face_uv_bounds_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_graph_uv_bounds_t *	out_uv_bounds
	)

Returns computed UV parameter bounds for a Face node.

The value is computed through BRepGraph UV-bounds algorithms from current graph state. OCCT may use internal transient caches; callers receive a POD copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID to query. Must be valid and active.
[out]	out_uv_bounds	Borrows it. Must be non-NULL. Receives bounds.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_uv_bounds` is NULL.
OCCTL_NOT_FOUND	`face` is invalid or removed.
OCCTL_WRONG_KIND	`face` is not a Face node.
OCCTL_GEOMETRY_INVALID	OCCT could not compute valid UV bounds.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_face_uv_bounds

◆ occtl_graph_mass_properties_get()

occtl_status_t occtl_graph_mass_properties_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_graph_mass_properties_t *	out_properties
	)

Returns computed combined OCCT mass properties for a node.

The value is computed through OCCT mass-property algorithms from current graph state. Callers receive a POD copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Node ID to query. Must be valid and active.
[out]	out_properties	Borrows it. Must be non-NULL. Receives the mass-property summary.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_properties` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute finite properties.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_measure_get

◆ occtl_graph_measure_get()

occtl_status_t occtl_graph_measure_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_select_measure_kind_t	kind,
		double *	out_value
	)

Returns a computed OCCT mass-property scalar for a node.

The value is computed through OCCT mass-property algorithms from current graph state.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Node ID to query. Must be valid and active.
[in]	kind	Measure scalar to compute.
[out]	out_value	Borrows it. Must be non-NULL. Receives the value.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_value` is NULL, or `kind` is unsupported.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_WRONG_KIND	`kind` is not applicable to `node`.
OCCTL_GEOMETRY_INVALID	OCCT could not compute the requested value.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_bbox_get

◆ occtl_graph_obb_get()

occtl_status_t occtl_graph_obb_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_graph_obb_t *	out_obb
	)

Returns a computed oriented bounding box for a node.

The value is computed through OCCT from current graph state. Callers receive a POD copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	Node ID to query. Must be valid and active.
[out]	out_obb	Borrows it. Must be non-NULL. Receives the box.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_obb` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute an oriented box.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_bbox_get

◆ occtl_graph_pair_distance_get()

occtl_status_t occtl_graph_pair_distance_get	(	occtl_graph_t *	graph,
		occtl_node_id_t	first,
		occtl_node_id_t	second,
		double *	out_distance
	)

Returns a computed OCCT minimum distance between two graph nodes.

The value is computed through OCCT from current graph state. Callers receive a POD scalar copy.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	first	First node ID. Must be valid and active.
[in]	second	Second node ID. Must be valid and active.
[out]	out_distance	Borrows it. Must be non-NULL. Receives the minimum distance.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_distance` is NULL.
OCCTL_NOT_FOUND	`first` or `second` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute a finite distance.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_topo_distance_pair

◆ occtl_select_group_iter_create()

occtl_status_t occtl_select_group_iter_create	(	occtl_graph_t *	graph,
		const occtl_select_options_t *	select_options,
		const occtl_select_group_options_t *	group_options,
		occtl_select_group_iter_t **	out_iter
	)

Creates an iterator over grouped selector results.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	select_options	Borrows it. May be NULL for defaults.
[in]	group_options	Borrows it. May be NULL for defaults.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or an option value is invalid.
OCCTL_NOT_FOUND	`select_options->root` is invalid or removed.
OCCTL_VERSION_MISMATCH	An options struct version is unsupported.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_select_group_iter_next, occtl_select_group_iter_free

◆ occtl_select_group_iter_free()

void occtl_select_group_iter_free ( occtl_select_group_iter_t * iter )

Releases a grouped-selection iterator.

Parameters

[in] iter Owns it. May be NULL.

\par Thread Safety Yes.

See also: occtl_select_group_iter_create

◆ occtl_select_group_iter_next()

occtl_status_t occtl_select_group_iter_next	(	occtl_select_group_iter_t *	iter,
		occtl_select_group_view_t *	out_view
	)

Advances a grouped-selection iterator.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_view	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next group view written.
OCCTL_NOT_FOUND	Iterator exhausted.
OCCTL_INVALID_ARGUMENT	`iter` or `out_view` is NULL.

\par Thread Safety No (mutates iterator).

See also: occtl_select_group_iter_create, occtl_select_group_iter_free

◆ occtl_select_group_options_init()

void occtl_select_group_options_init ( occtl_select_group_options_t * options )

Initialises options to OCCTL_SELECT_GROUP_OPTIONS_INIT.

Parameters

[out] options Borrows it. May be NULL.

\par Thread Safety Yes.

See also: occtl_select_group_iter_create

◆ occtl_select_group_view_init()

void occtl_select_group_view_init ( occtl_select_group_view_t * view )

Initialises view to OCCTL_SELECT_GROUP_VIEW_INIT.

Parameters

[out] view Borrows it. May be NULL.

\par Thread Safety Yes.

See also: occtl_select_group_iter_next

◆ occtl_select_iter_create()

occtl_status_t occtl_select_iter_create	(	occtl_graph_t *	graph,
		const occtl_select_options_t *	options,
		occtl_select_iter_t **	out_iter
	)

Creates an iterator over nodes matching options.

The selector computes derived data such as node bounding boxes; pass a mutable graph handle because OCCT algorithms may update internal graph state.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. May be NULL for defaults.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or an optional pointer field is inconsistent.
OCCTL_NOT_FOUND	`options->root` is invalid or removed.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_select_iter_next, occtl_select_iter_free

◆ occtl_select_iter_free()

void occtl_select_iter_free ( occtl_select_iter_t * iter )

Releases a selection iterator.

Parameters

[in] iter Owns it. May be NULL.

\par Thread Safety Yes.

See also: occtl_select_iter_next

◆ occtl_select_iter_next()

occtl_status_t occtl_select_iter_next	(	occtl_select_iter_t *	iter,
		occtl_node_id_t *	out_node
	)

Advances a selection iterator.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_node	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next selected node written.
OCCTL_NOT_FOUND	Iterator exhausted; `out_node` is invalid.
OCCTL_INVALID_ARGUMENT	`iter` or `out_node` is NULL.

\par Thread Safety No (mutates iterator).

See also: occtl_select_iter_create, occtl_select_iter_free

◆ occtl_select_options_init()

void occtl_select_options_init ( occtl_select_options_t * options )

Initialises options to OCCTL_SELECT_OPTIONS_INIT.

Parameters

[out] options Borrows it. May be NULL.

\par Thread Safety Yes.

See also: occtl_select_iter_create

◆ occtl_select_tagged_iter_create()

occtl_status_t occtl_select_tagged_iter_create	(	occtl_graph_t *	graph,
		const occtl_select_options_t *	options,
		const char *	tag,
		size_t	tagLen,
		occtl_select_iter_t **	out_iter
	)

Creates an iterator over tagged nodes matching options.

This is equivalent to occtl_select_iter_create followed by an exact graph tag predicate, but filtering is performed during selector traversal. The selector may populate BRepGraph transient caches for expensive derived data such as node bounding boxes; pass a mutable graph handle.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. May be NULL for defaults.
[in]	tag	Tag bytes. Borrowed; must be non-NULL and non-empty.
[in]	tagLen	Length of `tag` in bytes.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, `tag` is NULL/empty, or an optional pointer field is inconsistent.
OCCTL_NOT_FOUND	`options->root` is invalid or removed.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_tag_add, occtl_select_iter_next, occtl_select_iter_free

◆ occtl_topo_add_pcurve()

occtl_status_t occtl_topo_add_pcurve	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	face,
		occtl_rep_id_t	pcurve_id,
		double	first,
		double	last,
		occtl_orientation_t	orientation
	)

Adds a PCurve binding between an edge and a face.

Creates a new CoEdge entity with a Curve2DRep for the given edge-face pair. This is the canonical repair operation when an edge lacks a pcurve on a face it bounds.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	face	Face node ID. Must be a valid, active face.
[in]	pcurve_id	Rep ID of the 2D parametric curve node. Must be valid (not OCCTL_REP_ID_INVALID).
[in]	first	First parameter on the PCurve.
[in]	last	Last parameter on the PCurve.
[in]	orientation	Edge orientation on the face.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL or `pcurve_id` is invalid.
OCCTL_NOT_FOUND	`edge` or `face` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge or `face` is not a face.

\par Thread Safety No (mutates graph).

See also: occtl_topo_replace_coedge_pcurve

◆ occtl_topo_cleanup_removed_refs()

occtl_status_t occtl_topo_cleanup_removed_refs ( occtl_graph_t * graph )

Cleans up stale references after removal operations.

Forces the graph to finalise deferred invalidation and validate internal consistency. Idempotent — calling multiple times is safe and has no additional side effects.

Parameters

[in,out] graph Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.

\par Thread Safety No (mutates graph).

◆ occtl_topo_coedge_has_polygon_on_surface()

occtl_status_t occtl_topo_coedge_has_polygon_on_surface	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	coedge,
		int32_t *const	out_has_polygon_on_surface
	)

Returns whether a coedge has a polygon-on-surface discretization.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_has_polygon_on_surface	Borrows it. Set to 1 if polygon present, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_has_polygon_on_surface` is NULL.
OCCTL_NOT_FOUND	`coedge` is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_has_polygon3d

◆ occtl_topo_coedge_orientation()

occtl_status_t occtl_topo_coedge_orientation	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	coedge,
		occtl_orientation_t *const	out_orientation
	)

Returns the full orientation (FORWARD/REVERSED/INTERNAL/EXTERNAL) of a coedge.

Unlike occtl_topo_coedge_is_reversed, which only tests the REVERSED flag, this returns the complete TopAbs_Orientation.

Parameters

[in]	graph	Must be non-NULL.
[in]	coedge	CoEdge node ID.
[out]	out_orientation	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_orientation` is NULL.
OCCTL_NOT_FOUND	`coedge` is invalid, removed, or not a coedge.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_coedge_is_reversed

◆ occtl_topo_compound_add_child()

occtl_status_t occtl_topo_compound_add_child	(	occtl_graph_t *	graph,
		occtl_node_id_t	compound,
		occtl_node_id_t	child,
		occtl_orientation_t	orientation
	)

Adds a child entity to an existing compound.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	compound	Compound node ID. Must be a valid, active compound.
[in]	child	Child node ID of any topology kind.
[in]	orientation	Orientation of the child in the compound.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`compound` or `child` is invalid or removed.
OCCTL_WRONG_KIND	`compound` is not a compound.
OCCTL_ERROR	the operation was rejected.

\par Thread Safety No (mutates graph).

See also: occtl_topo_compound_remove_child, occtl_topo_make_compound

◆ occtl_topo_compound_remove_child()

occtl_status_t occtl_topo_compound_remove_child	(	occtl_graph_t *	graph,
		occtl_node_id_t	compound,
		occtl_node_id_t	child
	)

Removes a child from a compound without deleting the child definition.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	compound	Compound node ID. Must be a valid, active compound.
[in]	child	Child node ID. Must be the definition ID of a child referenced by the compound.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`compound` or `child` is invalid, removed, has wrong kind, or the child is not in the compound.
OCCTL_WRONG_KIND	`compound` is not a compound.

\par Thread Safety No (mutates graph).

See also: occtl_topo_compound_add_child

◆ occtl_topo_curves_to_wire()

occtl_status_t occtl_topo_curves_to_wire	(	occtl_graph_t *	graph,
		const occtl_rep_id_t *	curve_ids,
		size_t	count,
		occtl_node_id_t *	out_wire
	)

Creates a wire from an ordered array of curve rep IDs.

For each curve the function evaluates the start and end point, creates vertices (sharing vertices between consecutive curves whose endpoints match within tolerance), creates a single-edge wire per curve, then joins all edges into one wire.

A single closed curve (e.g. a circle) produces one vertex used as both start and end of a single edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	curve_ids	Borrows it. Array of `count` curve rep IDs. Must be non-NULL when `count` > 0.
[in]	count	Number of curves. Must be >= 1.
[out]	out_wire	Owns it. Receives the wire node ID. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any required pointer is NULL, `count` == 0, or a curve rep ID in the array is invalid.
OCCTL_NOT_FOUND	A curve evaluation failed.
OCCTL_GEOMETRY_INVALID	Could not create geometry.

\par Thread Safety No (mutates graph).

See also: occtl_topo_edges_to_wires, occtl_topo_make_edge, occtl_curve_eval_d0

◆ occtl_topo_edge_add_internal_vertex()

occtl_status_t occtl_topo_edge_add_internal_vertex	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	vertex
	)

Adds an internal vertex to an edge.

The vertex is recorded on the edge with INTERNAL orientation. This does not split the edge; for splitting see occtl_topo_edge_split.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	vertex	Vertex node ID. Must be a valid, active vertex.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` or `vertex` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge or `vertex` is not a vertex.
OCCTL_ERROR	the operation was rejected.

\par Thread Safety No (mutates graph).

See also: occtl_topo_edge_remove_vertex, occtl_topo_edge_split

◆ occtl_topo_edge_continuity()

occtl_status_t occtl_topo_edge_continuity	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	faceA,
		occtl_node_id_t	faceB,
		occtl_shape_continuity_t *const	out_continuity
	)

Returns the geometric continuity between two faces at their shared edge.

The continuity describes how smoothly the surfaces of faceA and faceB meet along edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID shared by both faces.
[in]	faceA	First face node ID.
[in]	faceB	Second face node ID.
[out]	out_continuity	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_continuity` is NULL.
OCCTL_NOT_FOUND	`edge`, `faceA`, or `faceB` is invalid or removed.
OCCTL_WRONG_KIND	A NodeId has the wrong kind.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_has_continuity, occtl_topo_edge_max_continuity

◆ occtl_topo_edge_find_coedge_on_face()

occtl_status_t occtl_topo_edge_find_coedge_on_face	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	face,
		occtl_node_id_t *const	out_coedge
	)

Finds the coedge belonging to the given (edge, face) pair.

O(1) lookup through the edge's coedge reverse-index. Returns OCCTL_NOT_FOUND when edge is not incident to face.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	face	Face node ID.
[out]	out_coedge	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_coedge` is NULL.
OCCTL_NOT_FOUND	`edge` or `face` is invalid/removed, or no coedge binds this edge-face pair.
OCCTL_WRONG_KIND	`edge` is not an edge or `face` is not a face.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_find_coedge_on_face_oriented

◆ occtl_topo_edge_find_coedge_on_face_oriented()

occtl_status_t occtl_topo_edge_find_coedge_on_face_oriented	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	face,
		occtl_orientation_t	orientation,
		occtl_node_id_t *const	out_coedge
	)

Finds the coedge for an (edge, face, orientation) triple.

On seam edges two coedges share the same face with opposite orientations; this overload disambiguates by the requested orientation.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[in]	face	Face node ID.
[in]	orientation	Orientation filter (by value).
[out]	out_coedge	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_coedge` is NULL.
OCCTL_NOT_FOUND	`edge` or `face` is invalid/removed, or no coedge matches the triple.
OCCTL_WRONG_KIND	`edge` is not an edge or `face` is not a face.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_find_coedge_on_face

◆ occtl_topo_edge_has_continuity()

occtl_status_t occtl_topo_edge_has_continuity	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	faceA,
		occtl_node_id_t	faceB,
		int32_t *const	out_has_continuity
	)

Returns whether continuity information is recorded between two faces at a shared edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID shared by both faces.
[in]	faceA	First face node ID.
[in]	faceB	Second face node ID.
[out]	out_has_continuity	Borrows it. Set to 1 if continuity is recorded, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_has_continuity` is NULL.
OCCTL_NOT_FOUND	`edge`, `faceA`, or `faceB` is invalid or removed.
OCCTL_WRONG_KIND	A NodeId has the wrong kind.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_continuity, occtl_topo_edge_max_continuity

◆ occtl_topo_edge_has_polygon3d()

occtl_status_t occtl_topo_edge_has_polygon3d	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		int32_t *const	out_has_polygon3d
	)

Returns whether an edge has a 3D polygon discretization.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_has_polygon3d	Borrows it. Set to 1 if polygon present, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_has_polygon3d` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_coedge_has_polygon_on_surface

◆ occtl_topo_edge_max_continuity()

occtl_status_t occtl_topo_edge_max_continuity	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	edge,
		occtl_shape_continuity_t *const	out_continuity
	)

Returns the maximum continuity across all incident faces at an edge.

This is the highest continuity value across every face pair that shares edge.

Parameters

[in]	graph	Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_continuity	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_continuity` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_edge_continuity, occtl_topo_edge_has_continuity

◆ occtl_topo_edge_remove_vertex()

occtl_status_t occtl_topo_edge_remove_vertex	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	vertex
	)

Removes a vertex from an edge.

Supports both boundary vertices (start/end) and internal vertices. The vertex definition is not deleted.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	vertex	Vertex node ID. Must be the definition ID of a vertex referenced by the edge.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` or `vertex` is invalid, removed, has wrong kind, or the vertex is not on the edge.
OCCTL_WRONG_KIND	`edge` is not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_edge_add_internal_vertex

◆ occtl_topo_edge_split()

occtl_status_t occtl_topo_edge_split	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	parameter,
		occtl_node_id_t *	out_edge1,
		occtl_node_id_t *	out_edge2
	)

Splits an edge at the given parameter on its 3D curve.

Creates a new vertex at the split point and produces two sub-edges. The original edge is soft-removed; all wires containing it are updated to reference the two new edges.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge with a 3D curve.
[in]	parameter	Parameter on the edge's 3D curve at which to split.
[out]	out_edge1	Borrows it. Receives the first sub-edge NodeId (start → split).
[out]	out_edge2	Borrows it. Receives the second sub-edge NodeId (split → end).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or an out-param is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, not an edge, or the edge has no 3D curve.
OCCTL_WRONG_KIND	`edge` is not an edge.
OCCTL_ERROR	the operation was rejected.

\par Thread Safety No (mutates graph).

See also: occtl_topo_edge_add_internal_vertex, occtl_topo_make_edge

◆ occtl_topo_edges_to_wires()

occtl_status_t occtl_topo_edges_to_wires	(	occtl_graph_t *	graph,
		const occtl_topo_edges_to_wires_options_t *	options,
		occtl_node_id_t *	out_wires,
		size_t	cap,
		size_t *	out_count
	)

Connects unordered Edge nodes into one or more Wire nodes.

On a sizing call, pass out_wires as NULL with cap = 0; the function writes the number of wires that would be created into out_count without mutating graph. Reissue with a buffer of at least that many occtl_node_id_t entries to create the wires and receive their IDs.

Endpoint matching prefers shared BRepGraph vertex IDs and falls back to endpoint point distance when options->tolerance > 0. Created wires reference the original Edge nodes; no Edge or Vertex nodes are duplicated.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_wires	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_wires` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, or `out_count` is NULL; an options field is malformed; or open wires are produced while `options->allow_open` is 0.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	An Edge node ID is invalid or removed.
OCCTL_WRONG_KIND	An input node is not an Edge.
OCCTL_BUFFER_TOO_SMALL	`out_wires` is non-NULL and `cap` is too small.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph when out_wires is non-NULL and large enough).

See also: occtl_topo_make_wire, occtl_topo_wire_order_edges

◆ occtl_topo_edges_to_wires_options_init()

void occtl_topo_edges_to_wires_options_init ( occtl_topo_edges_to_wires_options_t * options )

Initialises options to default values via OCCTL_TOPO_EDGES_TO_WIRES_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_edges_to_wires

◆ occtl_topo_face_add_holes()

occtl_status_t occtl_topo_face_add_holes	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		const occtl_node_id_t *	holes,
		size_t	hole_count
	)

Adds inner wire references to a face without duplicating wire definitions.

Each entry in holes must name an active Wire definition. The function attaches each wire as a non-outer wire reference owned by face. Wires already referenced by face are rejected to avoid duplicate hole usages.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID. Must be a valid, active face.
[in]	holes	Borrowed span of Wire node IDs to add as holes. Must be non-NULL.
[in]	hole_count	Number of entries in `holes`. Must be greater than zero.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `holes` is NULL; `hole_count` is zero; a hole ID appears more than once; or a wire is already referenced by `face`.
OCCTL_NOT_FOUND	`face` or a requested hole is invalid or removed.
OCCTL_WRONG_KIND	`face` is not a face, or a requested hole node is not a wire.
OCCTL_ERROR	The graph editor rejected the wire usage.

\par Thread Safety No (mutates graph).

See also: occtl_topo_face_remove_holes, occtl_topo_make_face_from_wires_auto

◆ occtl_topo_face_chamfer_2d()

occtl_status_t occtl_topo_face_chamfer_2d	(	occtl_graph_t *	graph,
		const occtl_topo_face_chamfer_2d_options_t *	options,
		occtl_node_id_t *	out_face
	)

Chamfers corners of a planar Face and inserts the result into the graph.

The source face must be planar. The chamfered Face is inserted into graph as a new Face node. The source face is not modified.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_face	Borrows it. Must be non-NULL. Receives the new Face node ID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, or `out_face` is NULL; an options field is malformed; or a distance is non-positive / non-finite.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	`options->face` is invalid or removed; or a selected vertex is invalid / removed.
OCCTL_WRONG_KIND	`options->face` is not a Face node, or a selected node is not a Vertex.
OCCTL_GEOMETRY_INVALID	OCCT could not create a valid chamfered face.
OCCTL_TOPOLOGY_INVALID	The chamfer result could not be ingested as a graph Face.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_face_chamfer_2d_options_init, occtl_topo_wire_offset_2d

◆ occtl_topo_face_chamfer_2d_options_init()

void occtl_topo_face_chamfer_2d_options_init ( occtl_topo_face_chamfer_2d_options_t * options )

Initialises options to default values via OCCTL_TOPO_FACE_CHAMFER_2D_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_face_chamfer_2d

◆ occtl_topo_face_remove_holes()

occtl_status_t occtl_topo_face_remove_holes	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		const occtl_node_id_t *	holes,
		size_t	hole_count
	)

Removes inner wire references from a face without deleting wire definitions.

When holes is NULL and hole_count is 0, all non-outer wire references are removed from face. Otherwise, holes must name inner Wire definition IDs referenced by face; each matching wire reference is detached. The outer wire is never removed by this function.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID. Must be a valid, active face.
[in]	holes	Borrowed span of inner Wire node IDs, or NULL to remove all inner wires.
[in]	hole_count	Number of entries in `holes`.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL; `holes` is NULL while `hole_count` > 0; or `holes` is non-NULL while `hole_count` == 0.
OCCTL_NOT_FOUND	`face` or a requested hole is invalid, removed, not referenced by `face`, or is the outer wire.
OCCTL_WRONG_KIND	`face` is not a face, or a requested hole node is not a wire.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_face_from_wires_auto, occtl_topo_make_face

◆ occtl_topo_face_uv_bounds_restricted()

occtl_status_t occtl_topo_face_uv_bounds_restricted	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	face,
		double	umin,
		double	umax,
		double	vmin,
		double	vmax,
		double	u,
		double	v,
		occtl_point3_t *const	out_point,
		occtl_vector3_t *const	out_d1u,
		occtl_vector3_t *const	out_d1v
	)

Evaluates a face surface and its first partial derivatives inside a restricted UV box.

The surface is evaluated at (u, v). The adaptor is clamped to [umin, umax] x [vmin, vmax], which binds the evaluation range separately from the surface's natural bounds.

Parameters

[in]	graph	Must be non-NULL.
[in]	face	Face node ID.
[in]	umin	Lower U bound.
[in]	umax	Upper U bound.
[in]	vmin	Lower V bound.
[in]	vmax	Upper V bound.
[in]	u	U evaluation parameter.
[in]	v	V evaluation parameter.
[out]	out_point	Borrows it. Must be non-NULL.
[out]	out_d1u	Borrows it. Must be non-NULL.
[out]	out_d1v	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or an out-param is NULL.
OCCTL_NOT_FOUND	`face` is invalid, removed, or not a face.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_face_eval_d1, occtl_topo_face_uv_bounds

◆ occtl_topo_make_compound()

occtl_status_t occtl_topo_make_compound	(	occtl_graph_t *	graph,
		const occtl_topo_make_compound_info_t *	info,
		occtl_node_id_t *	out_compound
	)

Creates a compound in the graph from a span of mixed-kind (child, orientation) pairs.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. The children span is borrowed; it need not remain valid after the call returns.
[out]	out_compound	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_compound` is NULL; or `children` is NULL when `child_count` > 0; or `children` is non-NULL when `child_count` == 0.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A child NodeId is invalid or removed.
OCCTL_WRONG_KIND	A child NodeId does not have the expected kind.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_compound_info_init

◆ occtl_topo_make_compound_info_init()

void occtl_topo_make_compound_info_init ( occtl_topo_make_compound_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_COMPOUND_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_compound

◆ occtl_topo_make_compsolid()

occtl_status_t occtl_topo_make_compsolid	(	occtl_graph_t *	graph,
		const occtl_topo_make_compsolid_info_t *	info,
		occtl_node_id_t *	out_compsolid
	)

Creates a compsolid in the graph from a span of (solid, orientation) pairs.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. The solids span is borrowed; it need not remain valid after the call returns.
[out]	out_compsolid	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_compsolid` is NULL; or `solids` is NULL when `solid_count` > 0; or `solids` is non-NULL when `solid_count` == 0.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A child NodeId is invalid or removed.
OCCTL_WRONG_KIND	A child NodeId does not have the expected kind.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_compsolid_info_init

◆ occtl_topo_make_compsolid_info_init()

void occtl_topo_make_compsolid_info_init ( occtl_topo_make_compsolid_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_COMPSOLID_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_compsolid

◆ occtl_topo_make_edge()

occtl_status_t occtl_topo_make_edge	(	occtl_graph_t *	graph,
		const occtl_topo_make_edge_info_t *	info,
		occtl_node_id_t *	out_edge
	)

Creates an edge in the graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. `start_vertex` and `end_vertex` must be valid, active vertex NodeIds. `curve` may be NULL for a degenerate edge.
[out]	out_edge	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_edge` is NULL.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A vertex NodeId is invalid or removed.
OCCTL_WRONG_KIND	A vertex NodeId is not a vertex.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

◆ occtl_topo_make_edge_info_init()

void occtl_topo_make_edge_info_init ( occtl_topo_make_edge_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_EDGE_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_edge

◆ occtl_topo_make_face()

occtl_status_t occtl_topo_make_face	(	occtl_graph_t *	graph,
		const occtl_topo_make_face_info_t *	info,
		occtl_node_id_t *	out_face
	)

Creates a face in the graph from a surface, outer wire, and optional inner wires.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. `surface` must be non-NULL. The inner-wires span is borrowed; it need not remain valid after the call returns.
[out]	out_face	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, `out_face`, or `info->surface` is NULL.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A wire NodeId is invalid or removed.
OCCTL_WRONG_KIND	A wire NodeId is not a wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

◆ occtl_topo_make_face_from_wires_auto()

occtl_status_t occtl_topo_make_face_from_wires_auto	(	occtl_graph_t *	graph,
		const occtl_topo_make_face_from_wires_auto_options_t *	options,
		occtl_node_id_t *	out_face
	)

Creates a face by classifying candidate wires into outer and inner loops.

The function classifies the candidate Wires by planar enclosed area and uses the largest unambiguous loop as the outer wire. All other input wires become inner wires in their input order. The stored graph Face references the original Wire nodes; no boundary topology is duplicated.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_face	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, `out_face`, `options->surface`, or `options->wires` is NULL; `wire_count` is 0; an option value is malformed; or the outer wire is ambiguous.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	A Wire node ID is invalid or removed.
OCCTL_WRONG_KIND	An input node is not a Wire.
OCCTL_ERROR	The candidate wires could not be classified.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_face, occtl_topo_edges_to_wires

◆ occtl_topo_make_face_from_wires_auto_options_init()

void occtl_topo_make_face_from_wires_auto_options_init ( occtl_topo_make_face_from_wires_auto_options_t * options )

Initialises options to default values via OCCTL_TOPO_MAKE_FACE_FROM_WIRES_AUTO_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_face_from_wires_auto

◆ occtl_topo_make_face_info_init()

void occtl_topo_make_face_info_init ( occtl_topo_make_face_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_FACE_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_face

◆ occtl_topo_make_shell()

occtl_status_t occtl_topo_make_shell	(	occtl_graph_t *	graph,
		const occtl_topo_make_shell_info_t *	info,
		occtl_node_id_t *	out_shell
	)

Creates a shell in the graph from a span of (face, orientation) pairs.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. The faces span is borrowed; it need not remain valid after the call returns.
[out]	out_shell	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_shell` is NULL; or `faces` is NULL when `face_count` > 0; or `faces` is non-NULL when `face_count` == 0.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A child NodeId is invalid or removed.
OCCTL_WRONG_KIND	A child NodeId does not have the expected kind.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_shell_info_init

◆ occtl_topo_make_shell_info_init()

void occtl_topo_make_shell_info_init ( occtl_topo_make_shell_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_SHELL_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_shell

◆ occtl_topo_make_solid()

occtl_status_t occtl_topo_make_solid	(	occtl_graph_t *	graph,
		const occtl_topo_make_solid_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Creates a solid in the graph from a span of (shell, orientation) pairs.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. The shells span is borrowed; it need not remain valid after the call returns.
[out]	out_solid	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_solid` is NULL; or `shells` is NULL when `shell_count` > 0; or `shells` is non-NULL when `shell_count` == 0.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A child NodeId is invalid or removed.
OCCTL_WRONG_KIND	A child NodeId does not have the expected kind.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_solid_info_init

◆ occtl_topo_make_solid_info_init()

void occtl_topo_make_solid_info_init ( occtl_topo_make_solid_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_SOLID_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_solid

◆ occtl_topo_make_vertex()

occtl_status_t occtl_topo_make_vertex	(	occtl_graph_t *	graph,
		const occtl_topo_make_vertex_info_t *	info,
		occtl_node_id_t *	out_vertex
	)

Creates a vertex in the graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL.
[out]	out_vertex	Borrows it. Must be non-NULL. Receives the new vertex NodeId on success.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_vertex` is NULL.
OCCTL_VERSION_MISMATCH	`info->struct_version` is unsupported.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

◆ occtl_topo_make_vertex_info_init()

void occtl_topo_make_vertex_info_init ( occtl_topo_make_vertex_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_VERTEX_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_vertex

◆ occtl_topo_make_wire()

occtl_status_t occtl_topo_make_wire	(	occtl_graph_t *	graph,
		const occtl_topo_make_wire_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Creates a wire in the graph from an ordered span of (edge, orientation) pairs.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL. The edges span is borrowed; it need not remain valid after the call returns.
[out]	out_wire	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `info`, or `out_wire` is NULL; or `edges` is NULL when `edge_count` > 0; or `edges` is non-NULL when `edge_count` == 0.
OCCTL_VERSION_MISMATCH	`info->struct_version` unsupported.
OCCTL_NOT_FOUND	A child NodeId is invalid or removed.
OCCTL_WRONG_KIND	A child NodeId does not have the expected kind.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

◆ occtl_topo_make_wire_info_init()

void occtl_topo_make_wire_info_init ( occtl_topo_make_wire_info_t * info )

Initialises info to default values via OCCTL_TOPO_MAKE_WIRE_INFO_INIT.

NULL-tolerant.

Parameters

[out] info Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_make_wire

◆ occtl_topo_remove()

occtl_status_t occtl_topo_remove	(	occtl_graph_t *	graph,
		occtl_node_id_t	id
	)

Removes a node from the graph.

The node's children (direct references) are also removed. Removing a node that is referenced by other active nodes is valid: those references become dangling and will resolve to invalid on subsequent refinement.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	id	NodeId of the entity to remove. All-zero value returns OCCTL_NOT_FOUND.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `first/last are` non-finite, or `last` is less than `first`.
OCCTL_NOT_FOUND	`id` is invalid or already removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_remove_subgraph

◆ occtl_topo_remove_ref()

occtl_status_t occtl_topo_remove_ref	(	occtl_graph_t *	graph,
		occtl_ref_id_t	ref_id
	)

Removes a reference entry by its RefId.

This is the builder-level API for detaching a child usage from its parent without removing the referenced definition itself.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	ref_id	Reference entry to remove.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`ref_id` is invalid or already removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_remove_rep

◆ occtl_topo_remove_rep()

occtl_status_t occtl_topo_remove_rep	(	occtl_graph_t *	graph,
		occtl_rep_id_t	rep_id
	)

Removes a representation entry by its RepId.

Owning topology entities are marked modified so generation-based caches observe the representation as absent.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	rep_id	Representation entry to remove.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`rep_id` is invalid or already removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_remove_ref

◆ occtl_topo_remove_subgraph()

occtl_status_t occtl_topo_remove_subgraph	(	occtl_graph_t *	graph,
		occtl_node_id_t	id
	)

Recursively removes a node and its entire subgraph.

All descendants reachable through reference edges are removed.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	id	NodeId of the root to remove.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`id` is invalid or already removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_remove

◆ occtl_topo_remove_with_replacement()

occtl_status_t occtl_topo_remove_with_replacement	(	occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_node_id_t	replacement
	)

Removes a node and reparents its children to a replacement node.

For edge nodes: all CoEdges referencing the removed edge are reparented to the replacement edge. Metadata observers are notified with both old and replacement NodeIds for data migration.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node	NodeId of the entity to remove.
[in]	replacement	NodeId of the replacement entity.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`node` or `replacement` is invalid or removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_remove

◆ occtl_topo_replace_coedge_pcurve()

occtl_status_t occtl_topo_replace_coedge_pcurve	(	occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_rep_id_t	pcurve_id
	)

Replaces the PCurve of a coedge.

Pass pcurve_id == OCCTL_REP_ID_INVALID to clear the PCurve binding.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	coedge	CoEdge node ID. Must be a valid, active coedge.
[in]	pcurve_id	Rep ID of the 2D curve node to bind, or OCCTL_REP_ID_INVALID to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`coedge` is invalid, removed, or not a coedge.
OCCTL_WRONG_KIND	`coedge` is not a coedge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_replace_edge_curve, occtl_topo_add_pcurve

◆ occtl_topo_replace_edge_curve()

occtl_status_t occtl_topo_replace_edge_curve	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_rep_id_t	curve_id
	)

Replaces the 3D curve of an edge.

Replaces the underlying Curve3DRep geometry without rebuilding the edge topology. Callers can later query the new extent through occtl_topo_edge_range or evaluate via occtl_topo_edge_eval.

Passing curve_id == OCCTL_REP_ID_INVALID clears the curve binding, making the edge degenerate.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	curve_id	Rep ID of the 3D curve node to bind, or OCCTL_REP_ID_INVALID to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.
OCCTL_WRONG_KIND	`edge` is not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_replace_face_surface, occtl_topo_replace_coedge_pcurve, occtl_topo_make_edge

◆ occtl_topo_replace_face_surface()

occtl_status_t occtl_topo_replace_face_surface	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_rep_id_t	surface_id
	)

Replaces the surface of a face.

Replaces the underlying SurfaceRep geometry without rebuilding the face topology. Passing surface_id == OCCTL_REP_ID_INVALID clears the surface binding.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID. Must be a valid, active face.
[in]	surface_id	Rep ID of the surface node to bind, or OCCTL_REP_ID_INVALID to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`face` is invalid, removed, or not a face.
OCCTL_WRONG_KIND	`face` is not a face.

\par Thread Safety No (mutates graph).

See also: occtl_topo_replace_edge_curve, occtl_topo_replace_coedge_pcurve, occtl_topo_make_face

◆ occtl_topo_set_coedge_param_range()

occtl_status_t occtl_topo_set_coedge_param_range	(	occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		double	first,
		double	last
	)

Sets the parametric range of a coedge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	first	First parameter (lower bound).
[in]	last	Last parameter (upper bound).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `first/last are` non-finite, or `last` is less than `first`.
OCCTL_NOT_FOUND	`coedge` is invalid, removed, or not a coedge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_param_range, occtl_topo_set_coedge_uv_box

◆ occtl_topo_set_coedge_uv_box()

occtl_status_t occtl_topo_set_coedge_uv_box	(	occtl_graph_t *	graph,
		occtl_node_id_t	coedge,
		occtl_point2_t	uv_lo,
		occtl_point2_t	uv_hi
	)

Sets the UV box (start UV, end UV) of a coedge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	coedge	CoEdge node ID.
[in]	uv_lo	UV point at parameter first (by value).
[in]	uv_hi	UV point at parameter last (by value).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`coedge` is invalid, removed, or not a coedge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_coedge_param_range

◆ occtl_topo_set_edge_end_vertex()

occtl_status_t occtl_topo_set_edge_end_vertex	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	vertex
	)

Rebinds an edge's end vertex to a different vertex definition.

Rebinds an edge's start vertex to a different vertex definition.

Rewires the existing start-vertex reference to point to vertex. The previous vertex definition is no longer referenced by this edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	vertex	Vertex node ID. Must be a valid, active vertex.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` or `vertex` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge or `vertex` is not a vertex.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_end_vertex; occtl_topo_set_edge_start_vertex

◆ occtl_topo_set_edge_is_closed()

occtl_status_t occtl_topo_set_edge_is_closed	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t	flag
	)

Sets the is-closed flag on an edge (start vertex == end vertex).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	flag	1 to mark closed, 0 otherwise.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_is_degenerate, occtl_topo_set_wire_is_closed

◆ occtl_topo_set_edge_is_degenerate()

occtl_status_t occtl_topo_set_edge_is_degenerate	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t	flag
	)

Sets the is-degenerate flag on an edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	flag	1 to mark degenerate, 0 otherwise.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_is_closed, occtl_topo_edge_is_degenerated

◆ occtl_topo_set_edge_param_range()

occtl_status_t occtl_topo_set_edge_param_range	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	first,
		double	last
	)

Sets the parametric range of an edge's 3D curve.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	first	First parameter (lower bound).
[in]	last	Last parameter (upper bound).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `first/last are` non-finite, or `last` is less than `first`.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_same_parameter, occtl_topo_set_coedge_param_range

◆ occtl_topo_set_edge_same_parameter()

occtl_status_t occtl_topo_set_edge_same_parameter	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t	flag
	)

Sets the same-parameter flag on an edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	flag	1 to set, 0 to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `first/last are` non-finite, or `last` is less than `first`.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_same_range

◆ occtl_topo_set_edge_same_range()

occtl_status_t occtl_topo_set_edge_same_range	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		int32_t	flag
	)

Sets the same-range flag on an edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	flag	1 to set, 0 to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_same_parameter

◆ occtl_topo_set_edge_start_vertex()

occtl_status_t occtl_topo_set_edge_start_vertex	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t	vertex
	)

Rebinds an edge's start vertex to a different vertex definition.

Rewires the existing start-vertex reference to point to vertex. The previous vertex definition is no longer referenced by this edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID. Must be a valid, active edge.
[in]	vertex	Vertex node ID. Must be a valid, active vertex.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`edge` or `vertex` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge or `vertex` is not a vertex.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_end_vertex

◆ occtl_topo_set_edge_tolerance()

occtl_status_t occtl_topo_set_edge_tolerance	(	occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		double	tol
	)

Sets the tolerance of an edge.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[in]	tol	New tolerance value.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `tol` is negative or non-finite.
OCCTL_NOT_FOUND	`edge` is invalid, removed, or not an edge.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_face_tolerance

◆ occtl_topo_set_face_natural_restriction()

occtl_status_t occtl_topo_set_face_natural_restriction	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		int32_t	flag
	)

Sets the natural-restriction flag on a face.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID.
[in]	flag	1 to set natural restriction, 0 to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`face` is invalid, removed, or not a face.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_coedge_param_range

◆ occtl_topo_set_face_tolerance()

occtl_status_t occtl_topo_set_face_tolerance	(	occtl_graph_t *	graph,
		occtl_node_id_t	face,
		double	tol
	)

Sets the tolerance of a face.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID.
[in]	tol	New tolerance value.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `tol` is negative or non-finite.
OCCTL_NOT_FOUND	`face` is invalid, removed, or not a face.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_edge_tolerance

◆ occtl_topo_set_ref_location()

occtl_status_t occtl_topo_set_ref_location	(	occtl_graph_t *	graph,
		occtl_ref_id_t	ref_id,
		occtl_transform_t	transform
	)

Sets the local location of a reference entry.

Dispatches internally by RefId kind. Supported ref kinds: Shell, Face, Wire, CoEdge, Vertex, Solid, Child, Occurrence.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	ref_id	Reference entry to modify.
[in]	transform	New local location as an affine transform.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`ref_id` is invalid or removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_ref_orientation

◆ occtl_topo_set_ref_orientation()

occtl_status_t occtl_topo_set_ref_orientation	(	occtl_graph_t *	graph,
		occtl_ref_id_t	ref_id,
		occtl_orientation_t	orientation
	)

Sets the orientation of a reference entry.

Dispatches internally by RefId kind. Supported ref kinds: Shell, Face, Wire, CoEdge, Vertex, Solid, Child.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	ref_id	Reference entry to modify.
[in]	orientation	New orientation value.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`ref_id` is invalid or removed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_ref_location

◆ occtl_topo_set_shell_is_closed()

occtl_status_t occtl_topo_set_shell_is_closed	(	occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		int32_t	flag
	)

Sets the is-closed flag on a shell (watertightness).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	shell	Shell node ID.
[in]	flag	1 to mark closed, 0 otherwise.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`shell` is invalid, removed, or not a shell.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_wire_is_closed

◆ occtl_topo_set_vertex_point()

occtl_status_t occtl_topo_set_vertex_point	(	occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		occtl_point3_t	point
	)

Sets the 3D point of a vertex.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	point	New point coordinates (by value).

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `tol` is negative or non-finite.
OCCTL_NOT_FOUND	`vertex` is invalid, removed, or not a vertex.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_vertex_tolerance

◆ occtl_topo_set_vertex_tolerance()

occtl_status_t occtl_topo_set_vertex_tolerance	(	occtl_graph_t *	graph,
		occtl_node_id_t	vertex,
		double	tol
	)

Sets the tolerance of a vertex.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	tol	New tolerance value.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL, or `tol` is negative or non-finite.
OCCTL_NOT_FOUND	`vertex` is invalid, removed, or not a vertex.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_vertex_point

◆ occtl_topo_set_wire_is_closed()

occtl_status_t occtl_topo_set_wire_is_closed	(	occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		int32_t	flag
	)

Sets the is-closed flag on a wire.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	wire	Wire node ID.
[in]	flag	1 to mark closed, 0 otherwise.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`wire` is invalid, removed, or not a wire.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_shell_is_closed

◆ occtl_topo_set_wire_ref_is_outer()

occtl_status_t occtl_topo_set_wire_ref_is_outer	(	occtl_graph_t *	graph,
		occtl_ref_id_t	ref_id,
		int32_t	flag
	)

Sets the IsOuter flag on a wire reference (marks it as the outer wire on a face).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	ref_id	Wire reference entry to modify.
[in]	flag	1 to mark as outer wire, 0 to clear.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`ref_id` is invalid, removed, or not a wire ref.

\par Thread Safety No (mutates graph).

See also: occtl_topo_set_ref_orientation

◆ occtl_topo_shell_add_face()

occtl_status_t occtl_topo_shell_add_face	(	occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		occtl_node_id_t	face,
		occtl_orientation_t	orientation
	)

Adds a face to an existing shell.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	shell	Shell node ID. Must be a valid, active shell.
[in]	face	Face node ID. Must be a valid, active face.
[in]	orientation	Orientation of the face inside the shell.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`shell` or `face` is invalid or removed.
OCCTL_WRONG_KIND	`shell` is not a shell or `face` is not a face.
OCCTL_ERROR	the operation was rejected.

\par Thread Safety No (mutates graph).

See also: occtl_topo_shell_remove_face, occtl_topo_make_shell

◆ occtl_topo_shell_remove_face()

occtl_status_t occtl_topo_shell_remove_face	(	occtl_graph_t *	graph,
		occtl_node_id_t	shell,
		occtl_node_id_t	face
	)

Removes a face from a shell without deleting the face definition.

The face remains in the graph for use by other shells or compounds.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	shell	Shell node ID. Must be a valid, active shell.
[in]	face	Face node ID. Must be the definition ID of a face referenced by the shell.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`shell` or `face` is invalid, removed, has wrong kind, or the face is not in the shell.
OCCTL_WRONG_KIND	`shell` is not a shell.

\par Thread Safety No (mutates graph).

See also: occtl_topo_shell_add_face

◆ occtl_topo_solid_add_shell()

occtl_status_t occtl_topo_solid_add_shell	(	occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_node_id_t	shell,
		occtl_orientation_t	orientation
	)

Adds a shell to an existing solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	solid	Solid node ID. Must be a valid, active solid.
[in]	shell	Shell node ID. Must be a valid, active shell.
[in]	orientation	Orientation of the shell inside the solid.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`solid` or `shell` is invalid or removed.
OCCTL_WRONG_KIND	`solid` is not a solid or `shell` is not a shell.
OCCTL_ERROR	the operation was rejected.

\par Thread Safety No (mutates graph).

See also: occtl_topo_solid_remove_shell, occtl_topo_make_solid

◆ occtl_topo_solid_remove_shell()

occtl_status_t occtl_topo_solid_remove_shell	(	occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_node_id_t	shell
	)

Removes a shell from a solid without deleting the shell definition.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	solid	Solid node ID. Must be a valid, active solid.
[in]	shell	Shell node ID. Must be the definition ID of a shell referenced by the solid.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` is NULL.
OCCTL_NOT_FOUND	`solid` or `shell` is invalid, removed, has wrong kind, or the shell is not in the solid.
OCCTL_WRONG_KIND	`solid` is not a solid.

\par Thread Safety No (mutates graph).

See also: occtl_topo_solid_add_shell

◆ occtl_topo_vertex_pcurve_parameter()

occtl_status_t occtl_topo_vertex_pcurve_parameter	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	vertex,
		occtl_node_id_t	coedge,
		double *const	out_u
	)

Returns the 2D parameter of a vertex on a coedge's pcurve.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	coedge	CoEdge node ID.
[out]	out_u	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_u` is NULL.
OCCTL_NOT_FOUND	`vertex` or `coedge` is invalid or removed.
OCCTL_WRONG_KIND	`vertex` is not a vertex or `coedge` is not a coedge.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_vertex_parameter, occtl_topo_coedge_pcurve_parameter

◆ occtl_topo_vertex_point_in_usage()

occtl_status_t occtl_topo_vertex_point_in_usage	(	const occtl_graph_t *const	graph,
		occtl_node_id_t	vertex,
		occtl_node_id_t	parent,
		occtl_point3_t *const	out_point
	)

Returns the 3D point of a vertex with the parent's Location applied.

The parent can be any node that references the vertex (edge, face, compound, occurrence, etc.). The returned point incorporates the Location from the parent's reference chain.

Parameters

[in]	graph	Must be non-NULL.
[in]	vertex	Vertex node ID.
[in]	parent	Parent node ID whose Location is applied.
[out]	out_point	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_point` is NULL.
OCCTL_NOT_FOUND	`vertex` or `parent` is invalid or removed, or `parent` does not reference `vertex`.
OCCTL_WRONG_KIND	`vertex` is not a vertex.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_vertex_point

◆ occtl_topo_wire_chamfer_2d()

occtl_status_t occtl_topo_wire_chamfer_2d	(	occtl_graph_t *	graph,
		const occtl_topo_wire_chamfer_2d_options_t *	options,
		occtl_node_id_t *	out_wire
	)

Chamfers corners of a planar Wire and inserts the result into the graph.

The source wire must be planar. The resulting outer Wire is inserted into graph as a new Wire node. The source wire is not modified.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_wire	Borrows it. Must be non-NULL. Receives the new Wire node ID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, or `out_wire` is NULL; an options field is malformed; or a distance is non-positive / non-finite.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	`options->wire` is invalid or removed; or a selected vertex is invalid / removed.
OCCTL_WRONG_KIND	`options->wire` is not a Wire node, or a selected node is not a Vertex.
OCCTL_GEOMETRY_INVALID	OCCT could not create a valid chamfered wire.
OCCTL_TOPOLOGY_INVALID	The chamfer result could not be ingested as a graph Wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_wire_chamfer_2d_options_init, occtl_topo_face_chamfer_2d

◆ occtl_topo_wire_chamfer_2d_options_init()

void occtl_topo_wire_chamfer_2d_options_init ( occtl_topo_wire_chamfer_2d_options_t * options )

Initialises options to default values via OCCTL_TOPO_WIRE_CHAMFER_2D_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_wire_chamfer_2d

◆ occtl_topo_wire_fix_degenerate()

occtl_status_t occtl_topo_wire_fix_degenerate	(	occtl_graph_t *	graph,
		const occtl_topo_wire_fix_degenerate_edges_options_t *	options,
		size_t *	out_removed
	)

Removes degenerate edge usages from a Wire in place.

The function scans the Wire's coedge usages, measures each underlying Edge with OCCT linear properties when possible, and detaches every usage whose length is less than or equal to options->min_length. The underlying Edge definitions are not deleted; only their usage in options->wire is removed. This makes the operation safe for shared graph topology.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_removed	Borrows it. Must be non-NULL. Receives the number of detached coedge usages.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, or `out_removed` is NULL; `p_next` is non-NULL; or `min_length` is negative / non-finite.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	`options->wire` is invalid or removed.
OCCTL_WRONG_KIND	`options->wire` is not a Wire node.

\par Thread Safety No (mutates graph).

See also: occtl_topo_wire_fix_degenerate_options_init, occtl_topo_wire_order_edges

◆ occtl_topo_wire_fix_degenerate_options_init()

void occtl_topo_wire_fix_degenerate_options_init ( occtl_topo_wire_fix_degenerate_edges_options_t * options )

Initialises options to default values via OCCTL_TOPO_WIRE_FIX_DEGENERATE_EDGES_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_wire_fix_degenerate

◆ occtl_topo_wire_offset_2d()

occtl_status_t occtl_topo_wire_offset_2d	(	occtl_graph_t *	graph,
		const occtl_topo_wire_offset_2d_options_t *	options,
		occtl_node_id_t *	out_wire
	)

Creates a planar 2D offset of a Wire node and inserts it into the graph.

The source wire must be planar. The resulting offset Wire is inserted into graph as a new Wire node. The source wire is not modified.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL.
[out]	out_wire	Borrows it. Must be non-NULL. Receives the new Wire node ID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `options`, or `out_wire` is NULL; an options field is malformed; or `distance` is zero / non-finite.
OCCTL_VERSION_MISMATCH	`options->struct_version` unsupported.
OCCTL_NOT_FOUND	`options->wire` is invalid or removed.
OCCTL_WRONG_KIND	`options->wire` is not a Wire node.
OCCTL_GEOMETRY_INVALID	OCCT could not create a valid offset wire.
OCCTL_TOPOLOGY_INVALID	The offset result could not be ingested as a graph Wire.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_topo_edges_to_wires, occtl_topo_make_face_from_wires_auto

◆ occtl_topo_wire_offset_2d_options_init()

void occtl_topo_wire_offset_2d_options_init ( occtl_topo_wire_offset_2d_options_t * options )

Initialises options to default values via OCCTL_TOPO_WIRE_OFFSET_2D_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_wire_offset_2d

Classes

Macros

Typedefs
