occtl_prim_convex_hull_2d_info Struct Reference

#include <occtl_prim_sketch.h>

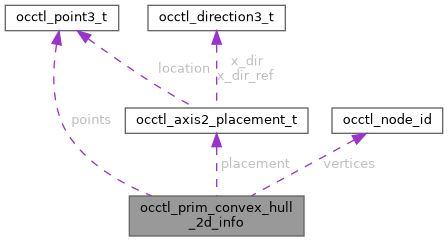

Collaboration diagram for occtl_prim_convex_hull_2d_info:

Public Attributes
uint32_t	struct_version
const void *	p_next
occtl_axis2_placement_t	placement
const occtl_point3_t *	points
size_t	point_count
const occtl_node_id_t *	vertices
size_t	vertex_count
double	tolerance
int32_t	make_face

Detailed Description

Info for occtl_prim_make_convex_hull_2d.

Builds a closed convex hull from explicit points and/or existing graph Vertex nodes projected into placement. The result is either a Wire or a planar Face depending on make_face. OCCT constructs the resulting topology; the hull ordering is a deterministic 2D projected ordering in the requested sketch plane.

Member Data Documentation

make_face

int32_t occtl_prim_convex_hull_2d_info::make_face

0/1; when 1 returns a planar Face, otherwise a Wire.

p_next

const void* occtl_prim_convex_hull_2d_info::p_next

Reserved; must be NULL.

placement

occtl_axis2_placement_t occtl_prim_convex_hull_2d_info::placement

Sketch plane frame; defaults to global XOY.

point_count

size_t occtl_prim_convex_hull_2d_info::point_count

Length of points.

points

const occtl_point3_t* occtl_prim_convex_hull_2d_info::points

Borrows it. Optional point array.

struct_version

uint32_t occtl_prim_convex_hull_2d_info::struct_version

Must be OCCTL_PRIM_CONVEX_HULL_2D_INFO_VERSION_1.

tolerance

double occtl_prim_convex_hull_2d_info::tolerance

Positive duplicate/collinearity tolerance.

vertex_count

size_t occtl_prim_convex_hull_2d_info::vertex_count

Length of vertices.

vertices

const occtl_node_id_t* occtl_prim_convex_hull_2d_info::vertices

Borrows it. Optional Vertex node array.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_prim_sketch.h
