occtl_prim_sketch.h File Reference

OCCT-Light: sketch, curve, wire, and planar construction API. More...

#include "occtl_core.h"
#include "occtl_curves2d.h"
#include "occtl_geom.h"
#include "occtl_surfaces.h"
#include "occtl_topo.h"

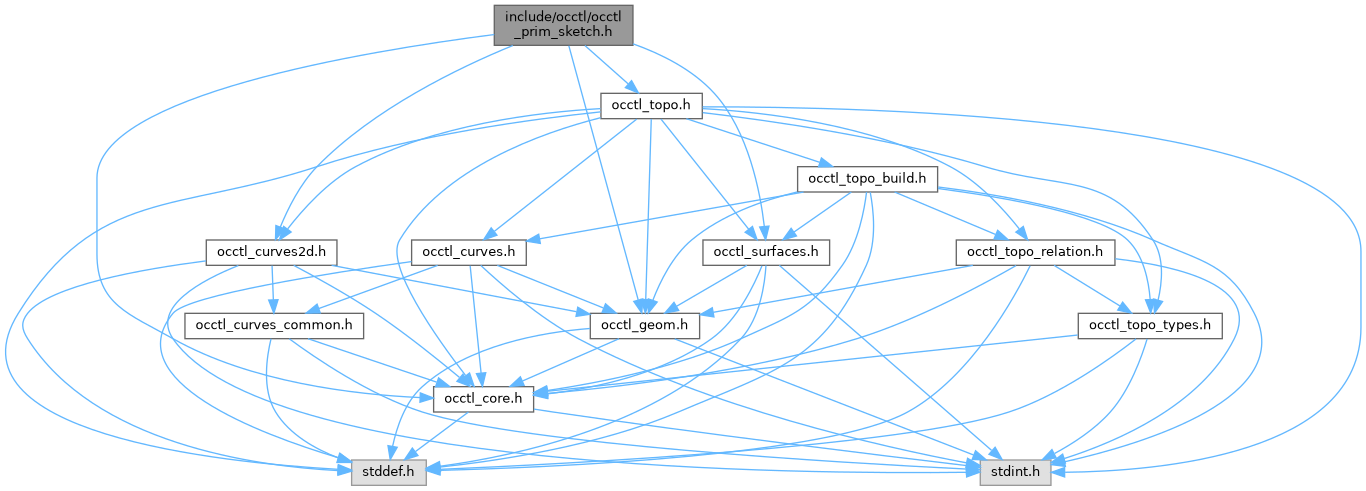

Include dependency graph for occtl_prim_sketch.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_prim_polyline_info
struct	occtl_prim_regular_polygon_info
struct	occtl_prim_rectangle_info
struct	occtl_prim_circle_info
struct	occtl_prim_ellipse_info
struct	occtl_prim_planar_face_info
struct	occtl_prim_convex_hull_2d_info
struct	occtl_prim_trace_info
struct	occtl_prim_constrained_edge_info
struct	occtl_prim_arc_3pt_info
struct	occtl_prim_arc_center_info
struct	occtl_prim_spline_info
struct	occtl_prim_plane_info
struct	occtl_prim_disk_info
struct	occtl_prim_slot_info
struct	occtl_prim_tube_info
struct	occtl_prim_helix_info
struct	occtl_prim_fillet_2d_info
struct	occtl_prim_full_round_2d_info

Macros
#define	OCCTL_PRIM_POLYLINE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_POLYLINE_INFO_INIT   {OCCTL_PRIM_POLYLINE_INFO_VERSION_1, NULL, NULL, 0, 0}
#define	OCCTL_PRIM_REGULAR_POLYGON_INFO_VERSION_1   1u
#define	OCCTL_PRIM_REGULAR_POLYGON_INFO_INIT
#define	OCCTL_PRIM_RECTANGLE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_RECTANGLE_INFO_INIT
#define	OCCTL_PRIM_CIRCLE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_CIRCLE_INFO_INIT    {OCCTL_PRIM_CIRCLE_INFO_VERSION_1, NULL, {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}}, 0.0}
#define	OCCTL_PRIM_ELLIPSE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_ELLIPSE_INFO_INIT
#define	OCCTL_PRIM_PLANAR_FACE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_PLANAR_FACE_INFO_INIT    {OCCTL_PRIM_PLANAR_FACE_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, NULL, 0}
#define	OCCTL_PRIM_CONVEX_HULL_2D_INFO_VERSION_1   1u
#define	OCCTL_PRIM_CONVEX_HULL_2D_INFO_INIT
#define	OCCTL_PRIM_TRACE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_TRACE_INFO_INIT
#define	OCCTL_PRIM_CONSTRAINED_EDGE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_CONSTRAINED_EDGE_INFO_INIT
#define	OCCTL_PRIM_ARC_3PT_INFO_VERSION_1   1u
#define	OCCTL_PRIM_ARC_3PT_INFO_INIT    {OCCTL_PRIM_ARC_3PT_INFO_VERSION_1, NULL, {0.0, 0.0, 0.0}, {0.0, 0.0, 0.0}, {0.0, 0.0, 0.0}}
#define	OCCTL_PRIM_ARC_CENTER_INFO_VERSION_1   1u
#define	OCCTL_PRIM_ARC_CENTER_INFO_INIT
#define	OCCTL_PRIM_SPLINE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_SPLINE_INFO_INIT   {OCCTL_PRIM_SPLINE_INFO_VERSION_1, NULL, NULL, 0, 3, 8, 1.0e-3}
#define	OCCTL_PRIM_PLANE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_PLANE_INFO_INIT
#define	OCCTL_PRIM_DISK_INFO_VERSION_1   1u
#define	OCCTL_PRIM_DISK_INFO_INIT    {OCCTL_PRIM_DISK_INFO_VERSION_1, NULL, {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}}, 0.0}
#define	OCCTL_PRIM_SLOT_INFO_VERSION_1   1u
#define	OCCTL_PRIM_SLOT_INFO_INIT
#define	OCCTL_PRIM_TUBE_INFO_VERSION_1   1u
#define	OCCTL_PRIM_TUBE_INFO_INIT
#define	OCCTL_PRIM_HELIX_INFO_VERSION_1   1u
#define	OCCTL_PRIM_HELIX_INFO_INIT
#define	OCCTL_PRIM_FILLET_2D_INFO_VERSION_1   1u
#define	OCCTL_PRIM_FILLET_2D_INFO_INIT    {OCCTL_PRIM_FILLET_2D_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, NULL, 0, 0.0}
#define	OCCTL_PRIM_FULL_ROUND_2D_INFO_VERSION_1   1u
#define	OCCTL_PRIM_FULL_ROUND_2D_INFO_INIT

Typedefs
typedef struct occtl_prim_polyline_info	occtl_prim_polyline_info_t
typedef struct occtl_prim_regular_polygon_info	occtl_prim_regular_polygon_info_t
typedef struct occtl_prim_rectangle_info	occtl_prim_rectangle_info_t
typedef struct occtl_prim_circle_info	occtl_prim_circle_info_t
typedef struct occtl_prim_ellipse_info	occtl_prim_ellipse_info_t
typedef struct occtl_prim_planar_face_info	occtl_prim_planar_face_info_t
typedef struct occtl_prim_convex_hull_2d_info	occtl_prim_convex_hull_2d_info_t
typedef struct occtl_prim_trace_info	occtl_prim_trace_info_t
typedef struct occtl_prim_constrained_edge_info	occtl_prim_constrained_edge_info_t
typedef struct occtl_prim_arc_3pt_info	occtl_prim_arc_3pt_info_t
typedef struct occtl_prim_arc_center_info	occtl_prim_arc_center_info_t
typedef struct occtl_prim_spline_info	occtl_prim_spline_info_t
typedef struct occtl_prim_plane_info	occtl_prim_plane_info_t
typedef struct occtl_prim_disk_info	occtl_prim_disk_info_t
typedef struct occtl_prim_slot_info	occtl_prim_slot_info_t
typedef struct occtl_prim_tube_info	occtl_prim_tube_info_t
typedef struct occtl_prim_helix_info	occtl_prim_helix_info_t
typedef struct occtl_prim_fillet_2d_info	occtl_prim_fillet_2d_info_t
typedef struct occtl_prim_full_round_2d_info	occtl_prim_full_round_2d_info_t

Functions
void	occtl_prim_polyline_info_init (occtl_prim_polyline_info_t *info)
occtl_status_t	occtl_prim_make_polyline (occtl_graph_t *graph, const occtl_prim_polyline_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_regular_polygon_info_init (occtl_prim_regular_polygon_info_t *info)
occtl_status_t	occtl_prim_make_regular_polygon (occtl_graph_t *graph, const occtl_prim_regular_polygon_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_rectangle_info_init (occtl_prim_rectangle_info_t *info)
occtl_status_t	occtl_prim_make_rectangle (occtl_graph_t *graph, const occtl_prim_rectangle_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_circle_info_init (occtl_prim_circle_info_t *info)
occtl_status_t	occtl_prim_make_circle (occtl_graph_t *graph, const occtl_prim_circle_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_ellipse_info_init (occtl_prim_ellipse_info_t *info)
occtl_status_t	occtl_prim_make_ellipse (occtl_graph_t *graph, const occtl_prim_ellipse_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_planar_face_info_init (occtl_prim_planar_face_info_t *info)
occtl_status_t	occtl_prim_make_planar_face (occtl_graph_t *graph, const occtl_prim_planar_face_info_t *info, occtl_node_id_t *out_face)
void	occtl_prim_convex_hull_2d_info_init (occtl_prim_convex_hull_2d_info_t *info)
occtl_status_t	occtl_prim_make_convex_hull_2d (occtl_graph_t *graph, const occtl_prim_convex_hull_2d_info_t *info, occtl_node_id_t *out_node)
void	occtl_prim_trace_info_init (occtl_prim_trace_info_t *info)
occtl_status_t	occtl_prim_make_trace (occtl_graph_t *graph, const occtl_prim_trace_info_t *info, occtl_node_id_t *out_face)
void	occtl_prim_constrained_edge_info_init (occtl_prim_constrained_edge_info_t *info)
occtl_status_t	occtl_prim_make_constrained_edge (occtl_graph_t *graph, const occtl_prim_constrained_edge_info_t *info, occtl_node_id_t *out_edge)
void	occtl_prim_arc_3pt_info_init (occtl_prim_arc_3pt_info_t *info)
occtl_status_t	occtl_prim_make_arc_3pt (occtl_graph_t *graph, const occtl_prim_arc_3pt_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_arc_center_info_init (occtl_prim_arc_center_info_t *info)
occtl_status_t	occtl_prim_make_arc_center (occtl_graph_t *graph, const occtl_prim_arc_center_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_spline_info_init (occtl_prim_spline_info_t *info)
occtl_status_t	occtl_prim_make_spline (occtl_graph_t *graph, const occtl_prim_spline_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_plane_info_init (occtl_prim_plane_info_t *info)
occtl_status_t	occtl_prim_make_plane (occtl_graph_t *graph, const occtl_prim_plane_info_t *info, occtl_node_id_t *out_face)
void	occtl_prim_disk_info_init (occtl_prim_disk_info_t *info)
occtl_status_t	occtl_prim_make_disk (occtl_graph_t *graph, const occtl_prim_disk_info_t *info, occtl_node_id_t *out_face)
void	occtl_prim_slot_info_init (occtl_prim_slot_info_t *info)
occtl_status_t	occtl_prim_make_slot (occtl_graph_t *graph, const occtl_prim_slot_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_tube_info_init (occtl_prim_tube_info_t *info)
occtl_status_t	occtl_prim_make_tube (occtl_graph_t *graph, const occtl_prim_tube_info_t *info, occtl_node_id_t *out_solid)
void	occtl_prim_helix_info_init (occtl_prim_helix_info_t *info)
occtl_status_t	occtl_prim_make_helix (occtl_graph_t *graph, const occtl_prim_helix_info_t *info, occtl_node_id_t *out_wire)
void	occtl_prim_fillet_2d_info_init (occtl_prim_fillet_2d_info_t *info)
occtl_status_t	occtl_prim_make_fillet_2d (occtl_graph_t *graph, const occtl_prim_fillet_2d_info_t *info, occtl_node_id_t *out_face)
void	occtl_prim_full_round_2d_info_init (occtl_prim_full_round_2d_info_t *info)
occtl_status_t	occtl_prim_make_full_round_2d (occtl_graph_t *graph, const occtl_prim_full_round_2d_info_t *info, occtl_node_id_t *out_face)

Detailed Description

OCCT-Light: sketch, curve, wire, and planar construction API.

Macro Definition Documentation

OCCTL_PRIM_ARC_3PT_INFO_VERSION_1

#define OCCTL_PRIM_ARC_3PT_INFO_VERSION_1   1u

Trihedron mode for occtl_prim_make_pipe_shell.

Selects the rotation rule applied to the profile as it is swept along the spine.

OCCTL_PRIM_ARC_CENTER_INFO_INIT

#define OCCTL_PRIM_ARC_CENTER_INFO_INIT

Value:

  {OCCTL_PRIM_ARC_CENTER_INFO_VERSION_1,                                                           \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_CONSTRAINED_EDGE_INFO_INIT

#define OCCTL_PRIM_CONSTRAINED_EDGE_INFO_INIT

Value:

  {OCCTL_PRIM_CONSTRAINED_EDGE_INFO_VERSION_1,                                                     \
   NULL,                                                                                           \
   OCCTL_REP_ID_INVALID,                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0,                                                                                              \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_CONVEX_HULL_2D_INFO_INIT

#define OCCTL_PRIM_CONVEX_HULL_2D_INFO_INIT

Value:

  {OCCTL_PRIM_CONVEX_HULL_2D_INFO_VERSION_1,                                                       \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   NULL,                                                                                           \
   0u,                                                                                             \
   NULL,                                                                                           \
   0u,                                                                                             \
   1.0e-7,                                                                                         \
   0}

OCCTL_PRIM_ELLIPSE_INFO_INIT

#define OCCTL_PRIM_ELLIPSE_INFO_INIT

Value:

  {OCCTL_PRIM_ELLIPSE_INFO_VERSION_1,                                                              \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_FULL_ROUND_2D_INFO_INIT

#define OCCTL_PRIM_FULL_ROUND_2D_INFO_INIT

Value:

  {OCCTL_PRIM_FULL_ROUND_2D_INFO_VERSION_1,                                                        \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   0.0,                                                                                            \
   32u}

OCCTL_PRIM_HELIX_INFO_INIT

#define OCCTL_PRIM_HELIX_INFO_INIT

Value:

  {OCCTL_PRIM_HELIX_INFO_VERSION_1,                                                                \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0}

OCCTL_PRIM_PLANE_INFO_INIT

#define OCCTL_PRIM_PLANE_INFO_INIT

Value:

  {OCCTL_PRIM_PLANE_INFO_VERSION_1,                                                                \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_RECTANGLE_INFO_INIT

#define OCCTL_PRIM_RECTANGLE_INFO_INIT

Value:

  {OCCTL_PRIM_RECTANGLE_INFO_VERSION_1,                                                            \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_REGULAR_POLYGON_INFO_INIT

#define OCCTL_PRIM_REGULAR_POLYGON_INFO_INIT

Value:

  {OCCTL_PRIM_REGULAR_POLYGON_INFO_VERSION_1,                                                      \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   3,                                                                                              \
   0.0}

OCCTL_PRIM_SLOT_INFO_INIT

#define OCCTL_PRIM_SLOT_INFO_INIT

Value:

  {OCCTL_PRIM_SLOT_INFO_VERSION_1,                                                                 \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0}

OCCTL_PRIM_TRACE_INFO_INIT

#define OCCTL_PRIM_TRACE_INFO_INIT

Value:

  {OCCTL_PRIM_TRACE_INFO_VERSION_1,                                                                \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   1.0,                                                                                            \
   {0.0, 0.0, 1.0},                                                                                \
   OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_ARC,                                                             \
   0}

OCCTL_PRIM_TUBE_INFO_INIT

#define OCCTL_PRIM_TUBE_INFO_INIT

Value:

  {OCCTL_PRIM_TUBE_INFO_VERSION_1,                                                                 \
   NULL,                                                                                           \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}, {1.0, 0.0, 0.0}},                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0}

Typedef Documentation

occtl_prim_arc_3pt_info_t

typedef struct occtl_prim_arc_3pt_info occtl_prim_arc_3pt_info_t

Info for occtl_prim_make_arc_3pt.

Builds a single-edge wire on the arc of the unique circle passing through start, via, and end. via must lie strictly between the other two on the arc.

occtl_prim_arc_center_info_t

typedef struct occtl_prim_arc_center_info occtl_prim_arc_center_info_t

Info for occtl_prim_make_arc_center.

Builds a single-edge wire on a circular arc defined by its supporting circle (placement + radius) and the start_angle / end_angle sweep (radians). end_angle > start_angle; the sweep direction follows the placement's Z axis (right-hand rule).

occtl_prim_circle_info_t

typedef struct occtl_prim_circle_info occtl_prim_circle_info_t

Info for occtl_prim_make_circle.

Builds a one-edge closed wire for a full circle of radius radius lying in the XY plane of placement.

occtl_prim_constrained_edge_info_t

typedef struct occtl_prim_constrained_edge_info occtl_prim_constrained_edge_info_t

Info for occtl_prim_make_constrained_edge.

Projects a 2D curve handle (for example a tangent/blend solution from occtl_curves2d.h) onto a 3D sketch plane and builds one Edge from it. OCCT performs the 2D-to-3D conversion; OCCT-Light only validates the ABI inputs and inserts the resulting Edge into the graph. Unbounded curves such as 2D lines need an explicit finite parameter range.

occtl_prim_convex_hull_2d_info_t

typedef struct occtl_prim_convex_hull_2d_info occtl_prim_convex_hull_2d_info_t

Info for occtl_prim_make_convex_hull_2d.

Builds a closed convex hull from explicit points and/or existing graph Vertex nodes projected into placement. The result is either a Wire or a planar Face depending on make_face. OCCT constructs the resulting topology; the hull ordering is a deterministic 2D projected ordering in the requested sketch plane.

occtl_prim_disk_info_t

typedef struct occtl_prim_disk_info occtl_prim_disk_info_t

Info for occtl_prim_make_disk.

Builds a circular planar Face on the XY plane of placement, with the boundary being a single-edge circular wire of radius.

occtl_prim_ellipse_info_t

typedef struct occtl_prim_ellipse_info occtl_prim_ellipse_info_t

Info for occtl_prim_make_ellipse.

Builds a one-edge closed wire for a full ellipse of semi-axes major (along placement X) and minor (along placement Y), with the centre at placement.location.

occtl_prim_fillet_2d_info_t

typedef struct occtl_prim_fillet_2d_info occtl_prim_fillet_2d_info_t

Info for occtl_prim_make_fillet_2d.

Rounds corners of face to radius. If vertices is NULL or vertex_count is 0, every Vertex of face is filleted; otherwise only the listed Vertex nodes.

occtl_prim_full_round_2d_info_t

typedef struct occtl_prim_full_round_2d_info occtl_prim_full_round_2d_info_t

Info for occtl_prim_make_full_round_2d.

Replaces an end Edge of a planar Face with the largest same-radius pair of OCCT 2D fillets that can be applied at the Edge's two vertices. When radius is positive, that exact radius is used. When radius is 0, OCCT-Light searches for the largest radius up to half of the selected Edge length by repeatedly asking OCCT's 2D fillet builder to construct the result.

occtl_prim_helix_info_t

typedef struct occtl_prim_helix_info occtl_prim_helix_info_t

Info for occtl_prim_make_helix.

Builds a Wire on a helical edge of radius, pitch (height gained per full turn), and total height. The helix winds around the Z axis of placement, centred at placement.location. Right-handedness is the default (counter-clockwise rotation as the helix advances along +Z).

occtl_prim_planar_face_info_t

typedef struct occtl_prim_planar_face_info occtl_prim_planar_face_info_t

Info for occtl_prim_make_planar_face.

Builds a planar face from one closed outer_wire and zero or more inner_wires (holes). The face's supporting plane is inferred from outer_wire (OCCT auto-detects); inner wires must lie in the same plane.

occtl_prim_plane_info_t

typedef struct occtl_prim_plane_info occtl_prim_plane_info_t

Info for occtl_prim_make_plane.

Builds a planar Face on the XY plane of placement, bounded by a rectangle of width by height centred on placement.location. Equivalent to building a rectangle wire and feeding it to occtl_prim_make_planar_face, but built directly for slightly less topology churn.

occtl_prim_polyline_info_t

typedef struct occtl_prim_polyline_info occtl_prim_polyline_info_t

Info for occtl_prim_make_polyline.

Builds an open or closed wire from a sequence of straight-line edges threaded between points (a polygon wire).

occtl_prim_rectangle_info_t

typedef struct occtl_prim_rectangle_info occtl_prim_rectangle_info_t

Info for occtl_prim_make_rectangle.

Builds a closed four-edge wire centred on placement.location, with width along the placement's X axis and height along its Y axis.

occtl_prim_regular_polygon_info_t

typedef struct occtl_prim_regular_polygon_info occtl_prim_regular_polygon_info_t

Info for occtl_prim_make_regular_polygon.

Builds a closed sides-sided wire inscribed in a circle of radius circumradius lying in the XY plane of placement. rotation offsets the first vertex from the placement's X axis (radians).

occtl_prim_slot_info_t

typedef struct occtl_prim_slot_info occtl_prim_slot_info_t

Info for occtl_prim_make_slot.

Builds a closed "stadium" (slot) wire: two straight edges along the X axis of placement connected by two semicircular arcs at the ends. The slot is centred on placement.location with overall length length along X and width width along Y. The two end caps each have radius width / 2; therefore length must be strictly greater than width (else there is no straight section).

occtl_prim_spline_info_t

typedef struct occtl_prim_spline_info occtl_prim_spline_info_t

Info for occtl_prim_make_spline.

Builds a one-edge Wire on a B-spline curve approximating the supplied points.

occtl_prim_trace_info_t

typedef struct occtl_prim_trace_info occtl_prim_trace_info_t

Info for occtl_prim_make_trace.

Builds a constant-width planar face around an Edge or open Wire path. OCCT constructs the offset contour; OCCT-Light only wraps the resulting closed contour as a planar Face and inserts it into the graph. For a single linear Edge, normal defines the sketch plane normal used to centre the rectangular trace around the edge.

occtl_prim_tube_info_t

typedef struct occtl_prim_tube_info occtl_prim_tube_info_t

Info for occtl_prim_make_tube.

Builds a Solid hollow cylinder with outer radius outer_radius and inner radius inner_radius, centred on placement.location and extruded along placement's Z axis by height. Internally a rectangular cross-section is revolved a full turn around the placement Z axis. Both annular caps are present in the resulting Solid.

Function Documentation

occtl_prim_arc_3pt_info_init()

void occtl_prim_arc_3pt_info_init

(

occtl_prim_arc_3pt_info_t *

info

)

Runtime initialiser for occtl_prim_arc_3pt_info_t.

Sets all fields to OCCTL_PRIM_ARC_3PT_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_arc_3pt

occtl_prim_arc_center_info_init()

void occtl_prim_arc_center_info_init

(

occtl_prim_arc_center_info_t *

info

)

Runtime initialiser for occtl_prim_arc_center_info_t.

Sets all fields to OCCTL_PRIM_ARC_CENTER_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_arc_center

occtl_prim_circle_info_init()

void occtl_prim_circle_info_init

(

occtl_prim_circle_info_t *

info

)

Runtime initialiser for occtl_prim_circle_info_t.

Sets all fields to OCCTL_PRIM_CIRCLE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_circle

occtl_prim_constrained_edge_info_init()

void occtl_prim_constrained_edge_info_init

(

occtl_prim_constrained_edge_info_t *

info

)

Runtime initialiser for occtl_prim_constrained_edge_info_t.

Sets all fields to OCCTL_PRIM_CONSTRAINED_EDGE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_constrained_edge

occtl_prim_convex_hull_2d_info_init()

void occtl_prim_convex_hull_2d_info_init

(

occtl_prim_convex_hull_2d_info_t *

info

)

Runtime initialiser for occtl_prim_convex_hull_2d_info_t.

Sets all fields to OCCTL_PRIM_CONVEX_HULL_2D_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_convex_hull_2d

occtl_prim_disk_info_init()

void occtl_prim_disk_info_init

(

occtl_prim_disk_info_t *

info

)

Runtime initialiser for occtl_prim_disk_info_t.

Sets all fields to OCCTL_PRIM_DISK_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_disk

occtl_prim_ellipse_info_init()

void occtl_prim_ellipse_info_init

(

occtl_prim_ellipse_info_t *

info

)

Runtime initialiser for occtl_prim_ellipse_info_t.

Sets all fields to OCCTL_PRIM_ELLIPSE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_ellipse

occtl_prim_fillet_2d_info_init()

void occtl_prim_fillet_2d_info_init

(

occtl_prim_fillet_2d_info_t *

info

)

Runtime initialiser for occtl_prim_fillet_2d_info_t.

Sets all fields to OCCTL_PRIM_FILLET_2D_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_fillet_2d

occtl_prim_full_round_2d_info_init()

void occtl_prim_full_round_2d_info_init

(

occtl_prim_full_round_2d_info_t *

info

)

Runtime initialiser for occtl_prim_full_round_2d_info_t.

Sets all fields to OCCTL_PRIM_FULL_ROUND_2D_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_full_round_2d

occtl_prim_helix_info_init()

void occtl_prim_helix_info_init

(

occtl_prim_helix_info_t *

info

)

Runtime initialiser for occtl_prim_helix_info_t.

Sets all fields to OCCTL_PRIM_HELIX_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_helix

occtl_prim_make_arc_3pt()

occtl_status_t occtl_prim_make_arc_3pt	(	occtl_graph_t *	graph,
		const occtl_prim_arc_3pt_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a single-edge wire for the circular arc through three points.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	The three points are collinear / coincident.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_arc_3pt_info_init

occtl_prim_make_arc_center()

occtl_status_t occtl_prim_make_arc_center	(	occtl_graph_t *	graph,
		const occtl_prim_arc_center_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a single-edge wire for a circular arc swept around a placement's Z axis.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	radius is non-positive or end_angle <= start_angle.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_arc_center_info_init

occtl_prim_make_circle()

occtl_status_t occtl_prim_make_circle	(	occtl_graph_t *	graph,
		const occtl_prim_circle_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a one-edge closed Wire on a full circle.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	radius is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_circle_info_init

occtl_prim_make_constrained_edge()

occtl_status_t occtl_prim_make_constrained_edge	(	occtl_graph_t *	graph,
		const occtl_prim_constrained_edge_info_t *	info,
		occtl_node_id_t *	out_edge
	)

Builds one Edge from a 2D curve placed on a 3D sketch plane.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_edge	Borrows it. Must be non-NULL. On success receives the new Edge NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, p_next is non-NULL, the placement is degenerate, use_parameter_range is not 0/1, or the explicit range is non-finite / reversed.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	OCCT could not build an Edge from the placed curve.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_constrained_edge_info_init, occtl_curve2d_create_blend_arc

occtl_prim_make_convex_hull_2d()

occtl_status_t occtl_prim_make_convex_hull_2d	(	occtl_graph_t *	graph,
		const occtl_prim_convex_hull_2d_info_t *	info,
		occtl_node_id_t *	out_node
	)

Builds a convex-hull Wire or planar Face from points and/or Vertex nodes.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_node	Borrows it. Must be non-NULL. On success receives the new Wire or Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, p_next is non-NULL, both input arrays are empty, an array pointer is NULL while its count is non-zero, tolerance is non-positive/non-finite, or make_face is not 0/1.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	A Vertex node is removed / absent.
OCCTL_WRONG_KIND	A node in vertices is not a Vertex.
OCCTL_GEOMETRY_INVALID	Fewer than three non-collinear projected points remain, or OCCT cannot build the requested topology.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_convex_hull_2d_info_init, occtl_prim_make_polyline

occtl_prim_make_disk()

occtl_status_t occtl_prim_make_disk	(	occtl_graph_t *	graph,
		const occtl_prim_disk_info_t *	info,
		occtl_node_id_t *	out_face
	)

Builds a circular planar Face (disk).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	radius is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_disk_info_init

occtl_prim_make_ellipse()

occtl_status_t occtl_prim_make_ellipse	(	occtl_graph_t *	graph,
		const occtl_prim_ellipse_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a one-edge closed Wire on a full ellipse.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	major < minor or either non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_ellipse_info_init

occtl_prim_make_fillet_2d()

occtl_status_t occtl_prim_make_fillet_2d	(	occtl_graph_t *	graph,
		const occtl_prim_fillet_2d_info_t *	info,
		occtl_node_id_t *	out_face
	)

Fillets the corners of a planar Face with a single uniform radius.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, or vertices is NULL while vertex_count is greater than 0.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	face refers to a removed / absent node, or a vertex does.
OCCTL_WRONG_KIND	face is not of kind OCCTL_KIND_FACE, or a listed node is not a Vertex.
OCCTL_GEOMETRY_INVALID	radius is non-positive, or construction failed (e.g. radius too large for corner).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_fillet_2d_info_init

occtl_prim_make_full_round_2d()

occtl_status_t occtl_prim_make_full_round_2d	(	occtl_graph_t *	graph,
		const occtl_prim_full_round_2d_info_t *	info,
		occtl_node_id_t *	out_face
	)

Builds a planar Face with a selected Edge replaced by a full-round arc.

The topology construction delegates to OCCT BRepFilletAPI_MakeFillet2d. The result is inserted into graph as a new bare Face root; the input Face is left unchanged.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, p_next is non-NULL, radius is negative/non-finite, or search_steps is too large.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	face or edge refers to a removed / absent node.
OCCTL_WRONG_KIND	face is not a Face, or edge is not an Edge.
OCCTL_GEOMETRY_INVALID	OCCT cannot construct the full round.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_full_round_2d_info_init, occtl_prim_make_fillet_2d

occtl_prim_make_helix()

occtl_status_t occtl_prim_make_helix	(	occtl_graph_t *	graph,
		const occtl_prim_helix_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a helical Wire (one edge).

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	Any of radius / pitch / height is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_helix_info_init

occtl_prim_make_planar_face()

occtl_status_t occtl_prim_make_planar_face	(	occtl_graph_t *	graph,
		const occtl_prim_planar_face_info_t *	info,
		occtl_node_id_t *	out_face
	)

Builds a planar Face from a closed planar wire and optional hole wires.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, or inner_wires is NULL while inner_wire_count > 0.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	A wire NodeId refers to a removed / absent node.
OCCTL_WRONG_KIND	A wire NodeId is not of kind OCCTL_KIND_WIRE.
OCCTL_GEOMETRY_INVALID	The wire is not planar / not closed / inconsistent with the inferred plane.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_planar_face_info_init

occtl_prim_make_plane()

occtl_status_t occtl_prim_make_plane	(	occtl_graph_t *	graph,
		const occtl_prim_plane_info_t *	info,
		occtl_node_id_t *	out_face
	)

Builds a rectangular planar Face.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	width or height is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_plane_info_init

occtl_prim_make_polyline()

occtl_status_t occtl_prim_make_polyline	(	occtl_graph_t *	graph,
		const occtl_prim_polyline_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a Wire from a sequence of straight-line edges.

Convenience entry point for sketch construction; avoids the verbose make_vertex / make_edge / make_wire trio when the segments are purely linear.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL or point_count < 2.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	Two consecutive points coincide.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_polyline_info_init

occtl_prim_make_rectangle()

occtl_status_t occtl_prim_make_rectangle	(	occtl_graph_t *	graph,
		const occtl_prim_rectangle_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a closed Wire for an axis-aligned rectangle.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	width or height is non-positive.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_rectangle_info_init

occtl_prim_make_regular_polygon()

occtl_status_t occtl_prim_make_regular_polygon	(	occtl_graph_t *	graph,
		const occtl_prim_regular_polygon_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a closed Wire for a regular n-gon.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL or sides < 3 or circumradius <= 0.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_regular_polygon_info_init

occtl_prim_make_slot()

occtl_status_t occtl_prim_make_slot	(	occtl_graph_t *	graph,
		const occtl_prim_slot_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a closed slot (stadium) Wire.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	width is non-positive or length <= width.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_slot_info_init

occtl_prim_make_spline()

occtl_status_t occtl_prim_make_spline	(	occtl_graph_t *	graph,
		const occtl_prim_spline_info_t *	info,
		occtl_node_id_t *	out_wire
	)

Builds a B-spline Wire approximating a sequence of points.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_wire	Borrows it. Must be non-NULL. On success receives the new Wire NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, point_count < 2, or the degree range is invalid (degree_min < 1 or degree_max < degree_min).
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	Construction failed (coincident / collinear points beyond tolerance, etc.).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_spline_info_init

occtl_prim_make_trace()

occtl_status_t occtl_prim_make_trace	(	occtl_graph_t *	graph,
		const occtl_prim_trace_info_t *	info,
		occtl_node_id_t *	out_face
	)

Builds a constant-width planar Face around an Edge or open Wire path.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_face	Borrows it. Must be non-NULL. On success receives the new Face NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, p_next is non-NULL, width is non-positive / non-finite, or normal / join / approximate is invalid.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_NOT_FOUND	path refers to a removed / absent node.
OCCTL_WRONG_KIND	path is neither Edge nor Wire.
OCCTL_GEOMETRY_INVALID	OCCT could not construct a closed planar offset contour or planar face.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_trace_info_init, occtl_topo_wire_offset_2d

occtl_prim_make_tube()

occtl_status_t occtl_prim_make_tube	(	occtl_graph_t *	graph,
		const occtl_prim_tube_info_t *	info,
		occtl_node_id_t *	out_solid
	)

Builds a hollow-cylinder (tube) Solid.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised struct_version.
[out]	out_solid	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL.
OCCTL_VERSION_MISMATCH	struct_version is unrecognised.
OCCTL_GEOMETRY_INVALID	inner_radius / outer_radius / height are degenerate (non-positive, or outer_radius <= inner_radius).
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also

occtl_prim_make_cylinder, occtl_prim_make_thick_solid

occtl_prim_planar_face_info_init()

void occtl_prim_planar_face_info_init

(

occtl_prim_planar_face_info_t *

info

)

Runtime initialiser for occtl_prim_planar_face_info_t.

Sets all fields to OCCTL_PRIM_PLANAR_FACE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_planar_face

occtl_prim_plane_info_init()

void occtl_prim_plane_info_init

(

occtl_prim_plane_info_t *

info

)

Runtime initialiser for occtl_prim_plane_info_t.

Sets all fields to OCCTL_PRIM_PLANE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_plane

occtl_prim_polyline_info_init()

void occtl_prim_polyline_info_init

(

occtl_prim_polyline_info_t *

info

)

Runtime initialiser for occtl_prim_polyline_info_t.

Sets all fields to OCCTL_PRIM_POLYLINE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_polyline

occtl_prim_rectangle_info_init()

void occtl_prim_rectangle_info_init

(

occtl_prim_rectangle_info_t *

info

)

Runtime initialiser for occtl_prim_rectangle_info_t.

Sets all fields to OCCTL_PRIM_RECTANGLE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_rectangle

occtl_prim_regular_polygon_info_init()

void occtl_prim_regular_polygon_info_init

(

occtl_prim_regular_polygon_info_t *

info

)

Runtime initialiser for occtl_prim_regular_polygon_info_t.

Sets all fields to OCCTL_PRIM_REGULAR_POLYGON_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_regular_polygon

occtl_prim_slot_info_init()

void occtl_prim_slot_info_init

(

occtl_prim_slot_info_t *

info

)

Runtime initialiser for occtl_prim_slot_info_t.

Sets all fields to OCCTL_PRIM_SLOT_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_slot

occtl_prim_spline_info_init()

void occtl_prim_spline_info_init

(

occtl_prim_spline_info_t *

info

)

Runtime initialiser for occtl_prim_spline_info_t.

Sets all fields to OCCTL_PRIM_SPLINE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_spline

occtl_prim_trace_info_init()

void occtl_prim_trace_info_init

(

occtl_prim_trace_info_t *

info

)

Runtime initialiser for occtl_prim_trace_info_t.

Sets all fields to OCCTL_PRIM_TRACE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_trace

occtl_prim_tube_info_init()

void occtl_prim_tube_info_init

(

occtl_prim_tube_info_t *

info

)

Runtime initialiser for occtl_prim_tube_info_t.

Sets all fields to OCCTL_PRIM_TUBE_INFO_INIT.

Parameters

[out]

info

Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also

occtl_prim_make_tube
