occtl_topo_axis_hit Struct Reference

#include <occtl_topo_relation.h>

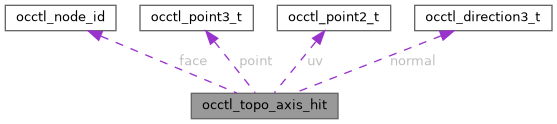

Collaboration diagram for occtl_topo_axis_hit:

Public Attributes
occtl_node_id_t	face
occtl_point3_t	point
occtl_point2_t	uv
double	parameter
occtl_direction3_t	normal
int32_t	has_normal
occtl_topo_point_class_t	location

Detailed Description

One intersection between an axis and a face under a graph root.

Member Data Documentation

face

occtl_node_id_t occtl_topo_axis_hit::face

Face node hit by the axis.

has_normal

int32_t occtl_topo_axis_hit::has_normal

1 when normal is valid, 0 otherwise.

location

occtl_topo_point_class_t occtl_topo_axis_hit::location

OCCT face-state classification for the hit.

normal

occtl_direction3_t occtl_topo_axis_hit::normal

Oriented face normal at uv when has_normal != 0.

parameter

double occtl_topo_axis_hit::parameter

Signed axis parameter from the axis location.

point

occtl_point3_t occtl_topo_axis_hit::point

3D hit point.

uv

occtl_point2_t occtl_topo_axis_hit::uv

Surface parameters on face.

---

The documentation for this struct was generated from the following file:

• include/occtl/occtl_topo_relation.h
