OCCT-Light: Topology relation queries, hit tests, and contact analysis. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_geom.h"
#include "occtl_topo_types.h"

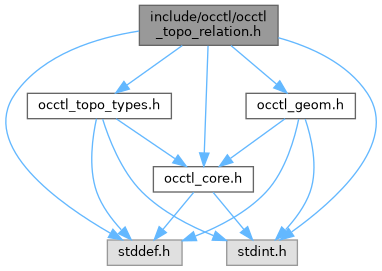

Include dependency graph for occtl_topo_relation.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_oriented_node

struct	occtl_topo_child_explorer_config

struct	occtl_topo_parent_explorer_config

struct	occtl_topo_relation_options

struct	occtl_topo_distance_pair

struct	occtl_topo_axis_hit

struct	occtl_topo_touch_hit

Macros
#define	OCCTL_TOPO_CHILD_EXPLORER_CONFIG_VERSION_1 1u

#define	OCCTL_TOPO_CHILD_EXPLORER_CONFIG_INIT

#define	OCCTL_TOPO_PARENT_EXPLORER_CONFIG_VERSION_1 1u

#define	OCCTL_TOPO_PARENT_EXPLORER_CONFIG_INIT

#define	OCCTL_TOPO_RELATION_OPTIONS_VERSION_1 1u

#define	OCCTL_TOPO_RELATION_OPTIONS_INIT {OCCTL_TOPO_RELATION_OPTIONS_VERSION_1, NULL, 1.0e-7, 1, 1, 1}

Typedefs
typedef enum occtl_shape_continuity	occtl_shape_continuity_t

typedef enum occtl_orientation	occtl_orientation_t

typedef struct occtl_oriented_node	occtl_oriented_node_t

typedef struct occtl_topo_explorer_iter	occtl_topo_explorer_iter_t

typedef enum occtl_topo_explorer_traversal	occtl_topo_explorer_traversal_t

typedef struct occtl_topo_child_explorer_config	occtl_topo_child_explorer_config_t

typedef struct occtl_topo_parent_explorer_config	occtl_topo_parent_explorer_config_t

typedef struct occtl_topo_related_iter	occtl_topo_related_iter_t

typedef struct occtl_topo_axis_hit_iter	occtl_topo_axis_hit_iter_t

typedef struct occtl_topo_relation_options	occtl_topo_relation_options_t

typedef struct occtl_topo_touch_iter	occtl_topo_touch_iter_t

typedef struct occtl_topo_intersection_iter	occtl_topo_intersection_iter_t

typedef enum occtl_relation_kind	occtl_relation_kind_t

typedef enum occtl_topo_point_class	occtl_topo_point_class_t

typedef struct occtl_topo_distance_pair	occtl_topo_distance_pair_t

typedef struct occtl_topo_axis_hit	occtl_topo_axis_hit_t

typedef struct occtl_topo_touch_hit	occtl_topo_touch_hit_t

Enumerations
enum	occtl_shape_continuity { OCCTL_CONTINUITY_C0 = 0 , OCCTL_CONTINUITY_C1 = 1 , OCCTL_CONTINUITY_C2 = 2 , OCCTL_CONTINUITY_C3 = 3 , OCCTL_CONTINUITY_CN = 4 , OCCTL_CONTINUITY_G1 = 5 , OCCTL_CONTINUITY_G2 = 6 , OCCTL_CONTINUITY_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_orientation { OCCTL_ORIENTATION_FORWARD = 0 , OCCTL_ORIENTATION_REVERSED = 1 , OCCTL_ORIENTATION_INTERNAL = 2 , OCCTL_ORIENTATION_EXTERNAL = 3 , OCCTL_ORIENTATION_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_topo_explorer_traversal { OCCTL_TOPO_EXPLORER_RECURSIVE = 0 , OCCTL_TOPO_EXPLORER_DIRECT_CHILDREN = 1 , OCCTL_TOPO_EXPLORER_TRAVERSAL_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_relation_kind { OCCTL_RELATION_BOUNDARY_EDGE = 0 , OCCTL_RELATION_ADJACENT_FACE = 1 , OCCTL_RELATION_OUTER_WIRE = 2 , OCCTL_RELATION_REFERENCED_BY = 3 , OCCTL_RELATION_INCIDENT_VERTEX = 4 , OCCTL_RELATION_WIRE_COEDGE = 5 , OCCTL_RELATION_OWNING_FACE = 6 , OCCTL_RELATION_INCIDENT_EDGE = 7 , OCCTL_RELATION_PARENT_EDGE = 8 , OCCTL_RELATION_SEAM_PAIR = 9 , OCCTL_RELATION_KIND_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_topo_point_class { OCCTL_TOPO_POINT_CLASS_IN = 0 , OCCTL_TOPO_POINT_CLASS_OUT = 1 , OCCTL_TOPO_POINT_CLASS_ON = 2 , OCCTL_TOPO_POINT_CLASS_UNKNOWN = 3 , OCCTL_TOPO_POINT_CLASS_RESERVED_FUTURE = 0x7fffffff }

Functions
occtl_status_t	occtl_topo_wire_order_edges (const occtl_graph_t graph, occtl_node_id_t wire, occtl_oriented_node_t out_buf, size_t cap, size_t *out_count)

void	occtl_topo_child_explorer_config_init (occtl_topo_child_explorer_config_t *config)

occtl_status_t	occtl_topo_child_explorer_create (const occtl_graph_t graph, occtl_node_id_t root, const occtl_topo_child_explorer_config_t config, occtl_topo_explorer_iter_t **out_iter)

void	occtl_topo_parent_explorer_config_init (occtl_topo_parent_explorer_config_t *config)

occtl_status_t	occtl_topo_parent_explorer_create (const occtl_graph_t graph, occtl_node_id_t node, const occtl_topo_parent_explorer_config_t config, occtl_topo_explorer_iter_t **out_iter)

occtl_status_t	occtl_topo_explorer_iter_next (occtl_topo_explorer_iter_t iter, occtl_node_id_t out_node, occtl_transform_t out_transform, occtl_orientation_t out_orientation)

void	occtl_topo_explorer_iter_free (occtl_topo_explorer_iter_t *iter)

void	occtl_topo_relation_options_init (occtl_topo_relation_options_t *options)

occtl_status_t	occtl_topo_related_iter_create (const occtl_graph_t graph, occtl_node_id_t node, occtl_topo_related_iter_t *out_iter)

occtl_status_t	occtl_topo_distance_pair (const occtl_graph_t graph, occtl_node_id_t node_a, occtl_node_id_t node_b, occtl_topo_distance_pair_t out_pair)

occtl_status_t	occtl_topo_closest_point_to_point (const occtl_graph_t graph, occtl_node_id_t node, occtl_point3_t point, occtl_point3_t out_closest, double *out_distance)

occtl_status_t	occtl_topo_axis_intersect_faces (const occtl_graph_t graph, occtl_node_id_t root, occtl_axis1_placement_t axis, double min_parameter, double max_parameter, double tolerance, occtl_topo_axis_hit_iter_t *out_iter)

occtl_status_t	occtl_topo_touch_iter_create (const occtl_graph_t graph, occtl_node_id_t node_a, occtl_node_id_t node_b, const occtl_topo_relation_options_t options, occtl_topo_touch_iter_t **out_iter)

occtl_status_t	occtl_topo_intersection_iter_create (occtl_graph_t graph, occtl_node_id_t node_a, occtl_node_id_t node_b, const occtl_topo_relation_options_t options, occtl_topo_intersection_iter_t **out_iter)

occtl_status_t	occtl_topo_is_same_geometry (const occtl_graph_t graph, occtl_node_id_t node_a, occtl_node_id_t node_b, double tolerance, int32_t out_is_same_geometry)

occtl_status_t	occtl_topo_common_vertices (const occtl_graph_t graph, occtl_node_id_t node_a, occtl_node_id_t node_b, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_topo_adjacent_edges (const occtl_graph_t graph, occtl_node_id_t edge, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_topo_adjacent_faces (const occtl_graph_t graph, occtl_node_id_t face, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_topo_connected_edges (const occtl_graph_t graph, occtl_node_id_t seed_edge, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_topo_connected_faces (const occtl_graph_t graph, occtl_node_id_t seed_face, occtl_node_id_t out_buf, size_t cap, size_t *out_count)

occtl_status_t	occtl_topo_graph_distance (const occtl_graph_t graph, occtl_node_id_t root, const occtl_node_id_t sources, size_t source_count, occtl_node_id_t target, int32_t *out_distance)

occtl_status_t	occtl_topo_classify_point (const occtl_graph_t graph, occtl_node_id_t solid, occtl_point3_t point, double tolerance, occtl_topo_point_class_t out_class)

occtl_status_t	occtl_topo_is_inside (const occtl_graph_t graph, occtl_node_id_t solid, occtl_point3_t point, double tolerance, int32_t include_boundary, int32_t out_is_inside)

occtl_status_t	occtl_topo_axis_hit_iter_next (occtl_topo_axis_hit_iter_t iter, occtl_topo_axis_hit_t out_hit)

void	occtl_topo_axis_hit_iter_free (occtl_topo_axis_hit_iter_t *iter)

occtl_status_t	occtl_topo_touch_iter_next (occtl_topo_touch_iter_t iter, occtl_topo_touch_hit_t out_hit)

void	occtl_topo_touch_iter_free (occtl_topo_touch_iter_t *iter)

occtl_status_t	occtl_topo_intersection_iter_next (occtl_topo_intersection_iter_t iter, occtl_node_id_t out_node)

void	occtl_topo_intersection_iter_free (occtl_topo_intersection_iter_t *iter)

occtl_status_t	occtl_topo_related_iter_next (occtl_topo_related_iter_t iter, occtl_node_id_t out_node, occtl_relation_kind_t *out_kind)

void	occtl_topo_related_iter_free (occtl_topo_related_iter_t *iter)

Detailed Description

OCCT-Light: Topology relation queries, hit tests, and contact analysis.

Defines enums, structs, iterators, and functions for computing spatial relationships between topology entities: distance pairs, adjacency, connectivity, axis hits, touch points, intersection tests, and geometric classification.

Macro Definition Documentation

◆ OCCTL_TOPO_CHILD_EXPLORER_CONFIG_INIT

#define OCCTL_TOPO_CHILD_EXPLORER_CONFIG_INIT

Value:

  {OCCTL_TOPO_CHILD_EXPLORER_CONFIG_VERSION_1,                                                     \
   NULL,                                                                                           \
   OCCTL_TOPO_EXPLORER_RECURSIVE,                                                                  \
   OCCTL_KIND_INVALID,                                                                             \
   OCCTL_KIND_INVALID,                                                                             \
   0,                                                                                              \
   1,                                                                                              \
   1}

◆ OCCTL_TOPO_PARENT_EXPLORER_CONFIG_INIT

#define OCCTL_TOPO_PARENT_EXPLORER_CONFIG_INIT

Value:

  {OCCTL_TOPO_PARENT_EXPLORER_CONFIG_VERSION_1,                                                    \
   NULL,                                                                                           \
   OCCTL_TOPO_EXPLORER_RECURSIVE,                                                                  \
   OCCTL_KIND_INVALID,                                                                             \
   OCCTL_KIND_INVALID,                                                                             \
   0}

Typedef Documentation

◆ occtl_orientation_t

typedef enum occtl_orientation occtl_orientation_t

Orientation used when placing a child entity inside its parent.

Values mirror TopAbs_Orientation 1:1 in numeric order so conversion is a static_cast (with a sanity assert in debug).

◆ occtl_oriented_node_t

typedef struct occtl_oriented_node occtl_oriented_node_t

(NodeId, orientation) pair used in builder info structs and ordered traversal results to specify a child entity and its parent orientation.

Passed by value; embedded in spans inside info structs. Not versioned.

◆ occtl_relation_kind_t

typedef enum occtl_relation_kind occtl_relation_kind_t

Semantic relation between two nodes in the graph.

◆ occtl_shape_continuity_t

typedef enum occtl_shape_continuity occtl_shape_continuity_t

Shape continuity level, mirroring GeomAbs_Shape.

Describes the geometric continuity at an edge between two adjacent faces.

◆ occtl_topo_axis_hit_iter_t

typedef struct occtl_topo_axis_hit_iter occtl_topo_axis_hit_iter_t

Opaque iterator over axis/face intersection hits.

Created by occtl_topo_axis_intersect_faces and released with occtl_topo_axis_hit_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators are safe when the owning graph is not mutated.

◆ occtl_topo_axis_hit_t

typedef struct occtl_topo_axis_hit occtl_topo_axis_hit_t

One intersection between an axis and a face under a graph root.

◆ occtl_topo_child_explorer_config_t

typedef struct occtl_topo_child_explorer_config occtl_topo_child_explorer_config_t

Configuration for occtl_topo_child_explorer_create.

◆ occtl_topo_distance_pair_t

typedef struct occtl_topo_distance_pair occtl_topo_distance_pair_t

Closest-distance result between two graph nodes.

Support nodes are best-effort mappings from OCCT's support shapes back to graph node IDs. They are OCCTL_NODE_ID_INVALID when OCCT reports a support that is not represented by an active graph node.

◆ occtl_topo_explorer_iter_t

typedef struct occtl_topo_explorer_iter occtl_topo_explorer_iter_t

Opaque iterator over accumulated-location/orientation graph traversal.

Created by occtl_topo_child_explorer_create and occtl_topo_parent_explorer_create. Each yield includes the current node's definition ID, accumulated transform, and accumulated orientation. Release with occtl_topo_explorer_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators over the same graph are safe when the graph is not mutated.

See also: occtl_topo_child_explorer_create, occtl_topo_parent_explorer_create

◆ occtl_topo_explorer_traversal_t

typedef enum occtl_topo_explorer_traversal occtl_topo_explorer_traversal_t

Traversal mode for child and parent explorers.

◆ occtl_topo_intersection_iter_t

typedef struct occtl_topo_intersection_iter occtl_topo_intersection_iter_t

Opaque iterator over topology generated by an intersection query.

Created by occtl_topo_intersection_iter_create and released with occtl_topo_intersection_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators are safe when the owning graph is not mutated.

◆ occtl_topo_parent_explorer_config_t

typedef struct occtl_topo_parent_explorer_config occtl_topo_parent_explorer_config_t

Configuration for occtl_topo_parent_explorer_create.

◆ occtl_topo_point_class_t

typedef enum occtl_topo_point_class occtl_topo_point_class_t

Point classification result for graph topology.

◆ occtl_topo_related_iter_t

typedef struct occtl_topo_related_iter occtl_topo_related_iter_t

Opaque iterator over a node's semantic neighbours and their relation kinds.

Created by occtl_topo_related_iter_create. Release with occtl_topo_related_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators over the same graph are safe when the graph is not mutated.

◆ occtl_topo_relation_options_t

typedef struct occtl_topo_relation_options occtl_topo_relation_options_t

Options for relation/contact queries.

The first version is used by occtl_topo_touch_iter_create. Tangent contacts are distance-zero solutions reported by OCCT. Overlap solutions are included when include_overlaps is 1; set it to 0 to suppress OCCT inner-overlap reports.

◆ occtl_topo_touch_hit_t

typedef struct occtl_topo_touch_hit occtl_topo_touch_hit_t

One contact solution between two graph nodes.

Support node IDs are best-effort mappings from OCCT support shapes back to original graph nodes. They may be OCCTL_NODE_ID_INVALID when OCCT reports a support that is not represented directly by an active graph node.

◆ occtl_topo_touch_iter_t

typedef struct occtl_topo_touch_iter occtl_topo_touch_iter_t

Opaque iterator over contact solutions between two graph nodes.

Created by occtl_topo_touch_iter_create and released with occtl_topo_touch_iter_free.

\par Thread Safety No — single-owner; concurrent reads on distinct iterators are safe when the owning graph is not mutated.

Enumeration Type Documentation

◆ occtl_orientation

enum occtl_orientation

Orientation used when placing a child entity inside its parent.

Values mirror TopAbs_Orientation 1:1 in numeric order so conversion is a static_cast (with a sanity assert in debug).

Enumerator
OCCTL_ORIENTATION_FORWARD	Forward orientation.
OCCTL_ORIENTATION_REVERSED	Reversed orientation.
OCCTL_ORIENTATION_INTERNAL	Internal orientation.
OCCTL_ORIENTATION_EXTERNAL	External orientation.

◆ occtl_relation_kind

enum occtl_relation_kind

Semantic relation between two nodes in the graph.

Enumerator
OCCTL_RELATION_BOUNDARY_EDGE	Boundary edge of a face.
OCCTL_RELATION_ADJACENT_FACE	Face adjacent via shared edge.
OCCTL_RELATION_OUTER_WIRE	Outer wire of a face.
OCCTL_RELATION_REFERENCED_BY	Face referenced by this coedge.
OCCTL_RELATION_INCIDENT_VERTEX	Vertex incident to this edge.
OCCTL_RELATION_WIRE_COEDGE	Coedge belonging to this wire.
OCCTL_RELATION_OWNING_FACE	Face owning this coedge/wire.
OCCTL_RELATION_INCIDENT_EDGE	Edge incident to this vertex.
OCCTL_RELATION_PARENT_EDGE	Parent edge of this coedge.
OCCTL_RELATION_SEAM_PAIR	Seam-pair coedge.

◆ occtl_shape_continuity

enum occtl_shape_continuity

Shape continuity level, mirroring GeomAbs_Shape.

Describes the geometric continuity at an edge between two adjacent faces.

Enumerator
OCCTL_CONTINUITY_C0	Positional continuity only.
OCCTL_CONTINUITY_C1	First-derivative continuity.
OCCTL_CONTINUITY_C2	Second-derivative continuity.
OCCTL_CONTINUITY_C3	Third-derivative continuity.
OCCTL_CONTINUITY_CN	Infinite (analytical) continuity.
OCCTL_CONTINUITY_G1	Tangent (geometric) continuity.
OCCTL_CONTINUITY_G2	Curvature (geometric) continuity.

◆ occtl_topo_explorer_traversal

enum occtl_topo_explorer_traversal

Traversal mode for child and parent explorers.

Enumerator
OCCTL_TOPO_EXPLORER_RECURSIVE	Recursive depth-first traversal.
OCCTL_TOPO_EXPLORER_DIRECT_CHILDREN	Direct children only.

◆ occtl_topo_point_class

enum occtl_topo_point_class

Point classification result for graph topology.

Enumerator
OCCTL_TOPO_POINT_CLASS_IN	Point is inside the target.
OCCTL_TOPO_POINT_CLASS_OUT	Point is outside the target.
OCCTL_TOPO_POINT_CLASS_ON	Point lies on the target boundary.
OCCTL_TOPO_POINT_CLASS_UNKNOWN	Classification failed or is undefined.

Function Documentation

◆ occtl_topo_adjacent_edges()

occtl_status_t occtl_topo_adjacent_edges	(	const occtl_graph_t *	graph,
		occtl_node_id_t	edge,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists edges adjacent to edge through shared vertices.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

The input edge itself is not included.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	edge	Edge node ID.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`edge` is invalid or removed.
OCCTL_WRONG_KIND	`edge` is not an edge.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_connected_edges, occtl_topo_adjacent_faces

◆ occtl_topo_adjacent_faces()

occtl_status_t occtl_topo_adjacent_faces	(	const occtl_graph_t *	graph,
		occtl_node_id_t	face,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists faces adjacent to face through shared edges.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

The input face itself is not included.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	face	Face node ID.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`face` is invalid or removed.
OCCTL_WRONG_KIND	`face` is not a face.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_connected_faces, occtl_topo_adjacent_edges

◆ occtl_topo_axis_hit_iter_free()

void occtl_topo_axis_hit_iter_free ( occtl_topo_axis_hit_iter_t * iter )

Releases an axis-hit iterator.

Parameters

[in] iter Owns it. May be NULL.

\par Thread Safety Yes.

See also: occtl_topo_axis_intersect_faces

◆ occtl_topo_axis_hit_iter_next()

occtl_status_t occtl_topo_axis_hit_iter_next	(	occtl_topo_axis_hit_iter_t *	iter,
		occtl_topo_axis_hit_t *	out_hit
	)

Advances an axis-hit iterator.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_hit	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next hit written.
OCCTL_NOT_FOUND	Iterator exhausted.
OCCTL_INVALID_ARGUMENT	`iter` or `out_hit` is NULL.

\par Thread Safety No (mutates iterator).

See also: occtl_topo_axis_intersect_faces, occtl_topo_axis_hit_iter_free

◆ occtl_topo_axis_intersect_faces()

occtl_status_t occtl_topo_axis_intersect_faces	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		occtl_axis1_placement_t	axis,
		double	min_parameter,
		double	max_parameter,
		double	tolerance,
		occtl_topo_axis_hit_iter_t **	out_iter
	)

Creates an iterator over faces intersected by an axis under root.

The calculation is delegated to OCCT's face/curve intersector. Hits are ordered by signed axis parameter and include the hit point, UV parameters, and a best-effort oriented surface normal.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root shape node whose faces are tested.
[in]	axis	Directed axis used as the query line.
[in]	min_parameter	Inclusive lower signed axis parameter.
[in]	max_parameter	Inclusive upper signed axis parameter.
[in]	tolerance	Intersection tolerance. Must be non-negative.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, `tolerance` is negative, the parameter interval is invalid, or `axis` direction is zero/non-finite.
OCCTL_NOT_FOUND	`root` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not complete the intersection.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph; uses local OCCT intersector state).

See also: occtl_topo_axis_hit_iter_next, occtl_topo_axis_hit_iter_free

◆ occtl_topo_child_explorer_config_init()

void occtl_topo_child_explorer_config_init ( occtl_topo_child_explorer_config_t * config )

Initialises config to default values via OCCTL_TOPO_CHILD_EXPLORER_CONFIG_INIT.

NULL-tolerant.

Parameters

[out] config Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_child_explorer_create

◆ occtl_topo_child_explorer_create()

occtl_status_t occtl_topo_child_explorer_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const occtl_topo_child_explorer_config_t *	config,
		occtl_topo_explorer_iter_t **	out_iter
	)

Creates a downward depth-first child explorer starting from root.

The explorer accumulates location and orientation along reference chains and yields each visited node with its accumulated transform and orientation. Use occtl_topo_explorer_iter_next to step and occtl_topo_explorer_iter_free to release.

Parameters

[in]	graph	Must be non-NULL.
[in]	root	Root node ID for the traversal.
[in]	config	Borrows it. May be NULL for defaults (recursive, all kinds, location+orientation accumulated).
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or `config->p_next` is non-NULL.
OCCTL_NOT_FOUND	`root` is invalid or removed.
OCCTL_VERSION_MISMATCH	`config->struct_version` unsupported.
OCCTL_OUT_OF_RANGE	`config->mode`, `config->target_kind`, or `config->avoid_kind` is not valid.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_explorer_iter_next, occtl_topo_parent_explorer_create

◆ occtl_topo_classify_point()

occtl_status_t occtl_topo_classify_point	(	const occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_point3_t	point,
		double	tolerance,
		occtl_topo_point_class_t *	out_class
	)

Classifies a 3D point relative to a solid node.

Classification is graph-native and delegates to OCCT BRepGraphAlgo_SolidClassifier.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	solid	Solid node to classify against.
[in]	point	Point to classify.
[in]	tolerance	Tolerance for boundary detection. Must be non-negative.
[out]	out_class	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_class` is NULL, or `tolerance` is negative.
OCCTL_NOT_FOUND	`solid` is invalid or removed.
OCCTL_WRONG_KIND	`solid` is not a solid.

\par Thread Safety Yes (read-only on graph; may build classifier-local caches).

See also: occtl_topo_is_inside, occtl_topo_distance_pair

◆ occtl_topo_closest_point_to_point()

occtl_status_t occtl_topo_closest_point_to_point	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_point3_t	point,
		occtl_point3_t *	out_closest,
		double *	out_distance
	)

Finds the closest point on a graph node to a world-space point.

The graph is not mutated. The returned point lies on node, and out_distance receives the world-space distance from point when requested.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node	Node to search.
[in]	point	Query point.
[out]	out_closest	Borrows it. Must be non-NULL. Receives the closest point on `node`.
[out]	out_distance	Borrows it. May be NULL. Receives the minimum distance.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_closest` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute a closest solution.

\par Thread Safety Yes (read-only on graph; may populate internal shape caches).

See also: occtl_topo_distance_pair, occtl_graph_pair_distance_get

◆ occtl_topo_common_vertices()

occtl_status_t occtl_topo_common_vertices	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node_a,
		occtl_node_id_t	node_b,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists vertex nodes common to two graph roots.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

The order follows the first root's OCCT vertex traversal order. Duplicate vertex uses are collapsed.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node_a	First root node.
[in]	node_b	Second root node.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`node_a` or `node_b` is invalid or removed.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety No (may update OCCT internal caches).

See also: occtl_graph_descendant_vertices_get, occtl_topo_related_iter_create

◆ occtl_topo_connected_edges()

occtl_status_t occtl_topo_connected_edges	(	const occtl_graph_t *	graph,
		occtl_node_id_t	seed_edge,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists all edges connected to seed_edge through shared vertices.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

The seed edge is included in the result.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	seed_edge	Edge where the walk starts.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`seed_edge` is invalid or removed.
OCCTL_WRONG_KIND	`seed_edge` is not an edge.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_connected_faces, occtl_topo_common_vertices

◆ occtl_topo_connected_faces()

occtl_status_t occtl_topo_connected_faces	(	const occtl_graph_t *	graph,
		occtl_node_id_t	seed_face,
		occtl_node_id_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists all faces connected to seed_face through shared edges.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_node_id_t entries.

The seed face is included in the result.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	seed_face	Face where the walk starts.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`seed_face` is invalid or removed.
OCCTL_WRONG_KIND	`seed_face` is not a face.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_connected_edges, occtl_topo_common_vertices

◆ occtl_topo_distance_pair()

occtl_status_t occtl_topo_distance_pair	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node_a,
		occtl_node_id_t	node_b,
		occtl_topo_distance_pair_t *	out_pair
	)

Computes the closest-distance pair between two graph nodes.

The calculation is delegated to OCCT and returns the minimum distance, closest points, and best-effort support-node IDs for the first closest solution.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node_a	First node to query.
[in]	node_b	Second node to query.
[out]	out_pair	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_pair` is NULL.
OCCTL_NOT_FOUND	`node_a` or `node_b` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute a closest solution.

\par Thread Safety Yes (read-only on graph; may populate internal shape caches).

See also: occtl_topo_related_iter_create, occtl_graph_pair_distance_get

◆ occtl_topo_explorer_iter_free()

void occtl_topo_explorer_iter_free ( occtl_topo_explorer_iter_t * iter )

Releases an explorer iterator.

Parameters

[in] iter Owns it. NULL is a no-op.

\par Thread Safety Yes.

See also: occtl_topo_explorer_iter_next

◆ occtl_topo_explorer_iter_next()

occtl_status_t occtl_topo_explorer_iter_next	(	occtl_topo_explorer_iter_t *	iter,
		occtl_node_id_t *	out_node,
		occtl_transform_t *	out_transform,
		occtl_orientation_t *	out_orientation
	)

Advances the explorer iterator to the next node.

Writes the current node's definition ID, accumulated transform, and accumulated orientation.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_node	Borrows it. Must be non-NULL.
[out]	out_transform	Borrows it. Must be non-NULL.
[out]	out_orientation	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next value written.
OCCTL_NOT_FOUND	Exhausted; out params set to invalid/identity.
OCCTL_INVALID_ARGUMENT	An out-param is NULL.

\par Thread Safety No (mutates iter; concurrent reads on distinct iters OK).

See also: occtl_topo_child_explorer_create, occtl_topo_parent_explorer_create, occtl_topo_explorer_iter_free

◆ occtl_topo_graph_distance()

occtl_status_t occtl_topo_graph_distance	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const occtl_node_id_t *	sources,
		size_t	source_count,
		occtl_node_id_t	target,
		int32_t *	out_distance
	)

Computes same-kind topological graph distance under a shared root.

Distance is the minimum number of adjacency hops from any source node to target while walking only peers of the same kind reachable from root. Supported peer kinds are Vertex, Edge, Wire, Face, Shell, and Solid. Vertex/Edge/Wire peers connect through shared vertices; Face peers connect through shared edges; Shell/Solid peers connect through shared faces.

A source node has distance 0 from itself. If target is reachable from root but not connected to any source peer, the function succeeds and writes -1 to out_distance.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root that defines the peer set. Must be active.
[in]	sources	Borrows it. Array of source nodes. Must be non-NULL and contain `source_count` entries.
[in]	source_count	Number of entries in `sources`. Must be non-zero.
[in]	target	Target node. Must have the same kind as all sources.
[out]	out_distance	Borrows it. Must be non-NULL. Receives the hop count, or -1 when unreachable within the peer graph.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph`, `sources`, or `out_distance` is NULL, or `source_count` is zero.
OCCTL_NOT_FOUND	`root`, `target`, or a source is invalid, removed, or not reachable from `root`.
OCCTL_WRONG_KIND	Sources and target are not the same kind, or the kind is not supported for this query.

\par Thread Safety No (may populate graph caches for descendant vertices).

See also: occtl_topo_connected_edges, occtl_topo_connected_faces, occtl_topo_common_vertices

◆ occtl_topo_intersection_iter_create()

occtl_status_t occtl_topo_intersection_iter_create	(	occtl_graph_t *	graph,
		occtl_node_id_t	node_a,
		occtl_node_id_t	node_b,
		const occtl_topo_relation_options_t *	options,
		occtl_topo_intersection_iter_t **	out_iter
	)

Creates an iterator over topology generated by intersecting two graph nodes.

The calculation is delegated to OCCT section/common algorithms. Generated intersection topology is inserted into graph as fresh topology roots so returned NodeIds are meaningful in the caller's graph. Section edges and vertices are returned first. When options is NULL or include_overlaps is 1, an OCCT common result is also used to return overlap faces when the two inputs have area/volume overlap. The iterator is valid but empty when no requested intersection topology is produced.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	node_a	First node to intersect.
[in]	node_b	Second node to intersect.
[in]	options	Borrows it. May be NULL for defaults.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or `options` contains an invalid `p_next`, tolerance, or 0/1 flag.
OCCTL_VERSION_MISMATCH	`options` has an unsupported `struct_version`.
OCCTL_NOT_FOUND	`node_a` or `node_b` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute the intersection.
OCCTL_TOPOLOGY_INVALID	the generated topology could not be inserted.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (may mutate graph by inserting generated topology).

See also: occtl_topo_intersection_iter_next, occtl_topo_intersection_iter_free, occtl_topo_touch_iter_create

◆ occtl_topo_intersection_iter_free()

void occtl_topo_intersection_iter_free ( occtl_topo_intersection_iter_t * iter )

Releases an intersection iterator.

Parameters

[in] iter Owns it. May be NULL.

\par Thread Safety Yes.

See also: occtl_topo_intersection_iter_create

◆ occtl_topo_intersection_iter_next()

occtl_status_t occtl_topo_intersection_iter_next	(	occtl_topo_intersection_iter_t *	iter,
		occtl_node_id_t *	out_node
	)

Advances an intersection iterator.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_node	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next generated node written.
OCCTL_NOT_FOUND	Iterator exhausted.
OCCTL_INVALID_ARGUMENT	`iter` or `out_node` is NULL.

\par Thread Safety No (mutates iterator).

See also: occtl_topo_intersection_iter_create, occtl_topo_intersection_iter_free

◆ occtl_topo_is_inside()

occtl_status_t occtl_topo_is_inside	(	const occtl_graph_t *	graph,
		occtl_node_id_t	solid,
		occtl_point3_t	point,
		double	tolerance,
		int32_t	include_boundary,
		int32_t *	out_is_inside
	)

Tests whether a 3D point is inside a solid node.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	solid	Solid node to test.
[in]	point	Point to test.
[in]	tolerance	Tolerance for boundary detection. Must be non-negative.
[in]	include_boundary	1 treats boundary points as inside; 0 does not.
[out]	out_is_inside	Borrows it. Receives 1 or 0. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_is_inside` is NULL, `tolerance` is negative, or `include_boundary` is not 0 or 1.
OCCTL_NOT_FOUND	`solid` is invalid or removed.
OCCTL_WRONG_KIND	`solid` is not a solid.

\par Thread Safety Yes (read-only on graph; may build classifier-local caches).

See also: occtl_topo_classify_point

◆ occtl_topo_is_same_geometry()

occtl_status_t occtl_topo_is_same_geometry	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node_a,
		occtl_node_id_t	node_b,
		double	tolerance,
		int32_t *	out_is_same_geometry
	)

Tests whether two edge or face nodes share the same geometric support.

This is a geometry predicate, not topological identity: two different bounded edges/faces may compare equal when OCCT reports coincident support within tolerance. Node kinds must match and must be Edge or Face.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node_a	First edge or face node.
[in]	node_b	Second edge or face node.
[in]	tolerance	Linear tolerance. Must be non-negative.
[out]	out_is_same_geometry	Borrows it. Receives 1 for same geometry, 0 otherwise. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_is_same_geometry` is NULL, or `tolerance` is negative/non-finite.
OCCTL_NOT_FOUND	`node_a` or `node_b` is invalid or removed.
OCCTL_WRONG_KIND	Nodes are not both edges or both faces.

\par Thread Safety Yes (read-only on graph; may use local OCCT projection state).

See also: occtl_topo_distance_pair, occtl_topo_axis_intersect_faces

◆ occtl_topo_parent_explorer_config_init()

void occtl_topo_parent_explorer_config_init ( occtl_topo_parent_explorer_config_t * config )

Initialises config to default values via OCCTL_TOPO_PARENT_EXPLORER_CONFIG_INIT.

NULL-tolerant.

Parameters

[out] config Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_topo_parent_explorer_create

◆ occtl_topo_parent_explorer_create()

occtl_status_t occtl_topo_parent_explorer_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node,
		const occtl_topo_parent_explorer_config_t *	config,
		occtl_topo_explorer_iter_t **	out_iter
	)

Creates an upward parent explorer starting from node.

The explorer walks the reverse reference indices upward from the starting node, accumulating location and orientation along each parent chain.

Parameters

[in]	graph	Must be non-NULL.
[in]	node	Starting node ID.
[in]	config	Borrows it. May be NULL for defaults.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or `config->p_next` is non-NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_VERSION_MISMATCH	`config->struct_version` unsupported.
OCCTL_OUT_OF_RANGE	`config->mode`, `config->target_kind`, or `config->avoid_kind` is not valid.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_explorer_iter_next, occtl_topo_child_explorer_create

◆ occtl_topo_related_iter_create()

occtl_status_t occtl_topo_related_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node,
		occtl_topo_related_iter_t **	out_iter
	)

Creates an iterator over the semantic neighbours of node.

Neighbours are definition IDs without accumulated location or orientation. Each yield includes a occtl_relation_kind_t that describes the semantic relationship.

Parameters

[in]	graph	Must be non-NULL.
[in]	node	Node to query neighbours for.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL.
OCCTL_NOT_FOUND	`node` is invalid or removed.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_related_iter_next, occtl_topo_related_iter_free

◆ occtl_topo_related_iter_free()

void occtl_topo_related_iter_free ( occtl_topo_related_iter_t * iter )

Releases a related-iterator.

Parameters

[in] iter Owns it. NULL is a no-op.

\par Thread Safety Yes.

See also: occtl_topo_related_iter_next

◆ occtl_topo_related_iter_next()

occtl_status_t occtl_topo_related_iter_next	(	occtl_topo_related_iter_t *	iter,
		occtl_node_id_t *	out_node,
		occtl_relation_kind_t *	out_kind
	)

Advances the related-iterator to the next semantic neighbour.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_node	Borrows it. Must be non-NULL.
[out]	out_kind	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next value written.
OCCTL_NOT_FOUND	Exhausted; out params set to invalid.
OCCTL_INVALID_ARGUMENT	An out-param is NULL.

\par Thread Safety No (mutates iter; concurrent reads on distinct iters OK).

See also: occtl_topo_related_iter_create, occtl_topo_related_iter_free

◆ occtl_topo_relation_options_init()

void occtl_topo_relation_options_init ( occtl_topo_relation_options_t * options )

Runtime initialiser for occtl_topo_relation_options_t.

Sets all fields to OCCTL_TOPO_RELATION_OPTIONS_INIT.

Parameters

[out] options Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_topo_touch_iter_create

◆ occtl_topo_touch_iter_create()

occtl_status_t occtl_topo_touch_iter_create	(	const occtl_graph_t *	graph,
		occtl_node_id_t	node_a,
		occtl_node_id_t	node_b,
		const occtl_topo_relation_options_t *	options,
		occtl_topo_touch_iter_t **	out_iter
	)

Creates an iterator over contact solutions between two graph nodes.

The calculation is delegated to OCCT BRepExtrema_DistShapeShape. When the minimum distance is greater than the requested tolerance, the iterator is valid but empty. Results are original-graph support nodes plus the OCCT contact / closest points; the queried graph is not mutated.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	node_a	First node to query.
[in]	node_b	Second node to query.
[in]	options	Borrows it. May be NULL for defaults.
[out]	out_iter	Owns it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_iter` is NULL, or `options` contains an invalid `p_next`, tolerance, or 0/1 flag.
OCCTL_VERSION_MISMATCH	`options` has an unsupported `struct_version`.
OCCTL_NOT_FOUND	`node_a` or `node_b` is invalid or removed.
OCCTL_GEOMETRY_INVALID	OCCT could not compute distance/contact solutions.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety Yes (read-only on graph; may populate internal shape caches).

See also: occtl_topo_touch_iter_next, occtl_topo_touch_iter_free, occtl_topo_distance_pair

◆ occtl_topo_touch_iter_free()

void occtl_topo_touch_iter_free ( occtl_topo_touch_iter_t * iter )

Releases a touch iterator.

Parameters

[in] iter Owns it. May be NULL.

\par Thread Safety Yes.

See also: occtl_topo_touch_iter_create

◆ occtl_topo_touch_iter_next()

occtl_status_t occtl_topo_touch_iter_next	(	occtl_topo_touch_iter_t *	iter,
		occtl_topo_touch_hit_t *	out_hit
	)

Advances a touch iterator.

Parameters

[in,out]	iter	Borrows it. Must be non-NULL.
[out]	out_hit	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	Next hit written.
OCCTL_NOT_FOUND	Iterator exhausted.
OCCTL_INVALID_ARGUMENT	`iter` or `out_hit` is NULL.

\par Thread Safety No (mutates iterator).

See also: occtl_topo_touch_iter_create, occtl_topo_touch_iter_free

◆ occtl_topo_wire_order_edges()

occtl_status_t occtl_topo_wire_order_edges	(	const occtl_graph_t *	graph,
		occtl_node_id_t	wire,
		occtl_oriented_node_t *	out_buf,
		size_t	cap,
		size_t *	out_count
	)

Lists a wire's edges in endpoint-chaining order.

Two-call buffer (§10.1): pass out_buf as NULL with cap = 0 to learn the required count in out_count, then reissue with a buffer of at least that many occtl_oriented_node_t entries.

Each returned entry contains an Edge node ID and the coedge orientation of that edge inside wire. The order matches occtl_topo_wire_explorer_create.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	wire	Wire node ID.
[out]	out_buf	Borrows it. May be NULL on the sizing call.
[in]	cap	Capacity of `out_buf` in entries.
[out]	out_count	Borrows it. Must be non-NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_count` is NULL.
OCCTL_NOT_FOUND	`wire` is invalid or removed.
OCCTL_WRONG_KIND	`wire` is not a wire.
OCCTL_BUFFER_TOO_SMALL	`out_buf` is non-NULL and `cap` is too small.

\par Thread Safety Yes (read-only on graph).

See also: occtl_topo_wire_explorer_create, occtl_topo_make_wire

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ OCCTL_TOPO_CHILD_EXPLORER_CONFIG_INIT

◆ OCCTL_TOPO_PARENT_EXPLORER_CONFIG_INIT

Typedef Documentation

◆ occtl_orientation_t

◆ occtl_oriented_node_t

◆ occtl_relation_kind_t

◆ occtl_shape_continuity_t

◆ occtl_topo_axis_hit_iter_t

◆ occtl_topo_axis_hit_t

◆ occtl_topo_child_explorer_config_t

◆ occtl_topo_distance_pair_t

◆ occtl_topo_explorer_iter_t

◆ occtl_topo_explorer_traversal_t

◆ occtl_topo_intersection_iter_t

◆ occtl_topo_parent_explorer_config_t

◆ occtl_topo_point_class_t

◆ occtl_topo_related_iter_t

◆ occtl_topo_relation_options_t

◆ occtl_topo_touch_hit_t

◆ occtl_topo_touch_iter_t

Enumeration Type Documentation

◆ occtl_orientation

◆ occtl_relation_kind

◆ occtl_shape_continuity

◆ occtl_topo_explorer_traversal

◆ occtl_topo_point_class

Function Documentation

◆ occtl_topo_adjacent_edges()

◆ occtl_topo_adjacent_faces()

◆ occtl_topo_axis_hit_iter_free()

◆ occtl_topo_axis_hit_iter_next()

◆ occtl_topo_axis_intersect_faces()

◆ occtl_topo_child_explorer_config_init()

◆ occtl_topo_child_explorer_create()

◆ occtl_topo_classify_point()

◆ occtl_topo_closest_point_to_point()

◆ occtl_topo_common_vertices()

◆ occtl_topo_connected_edges()

◆ occtl_topo_connected_faces()

◆ occtl_topo_distance_pair()

◆ occtl_topo_explorer_iter_free()

◆ occtl_topo_explorer_iter_next()

◆ occtl_topo_graph_distance()

◆ occtl_topo_intersection_iter_create()

◆ occtl_topo_intersection_iter_free()

◆ occtl_topo_intersection_iter_next()

◆ occtl_topo_is_inside()

◆ occtl_topo_is_same_geometry()

◆ occtl_topo_parent_explorer_config_init()

◆ occtl_topo_parent_explorer_create()

◆ occtl_topo_related_iter_create()

◆ occtl_topo_related_iter_free()

◆ occtl_topo_related_iter_next()

◆ occtl_topo_relation_options_init()

◆ occtl_topo_touch_iter_create()

◆ occtl_topo_touch_iter_free()

◆ occtl_topo_touch_iter_next()

◆ occtl_topo_wire_order_edges()
