occtl_io_brep.h File Reference

OCCT-Light: native OCCT BRep file I/O. More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

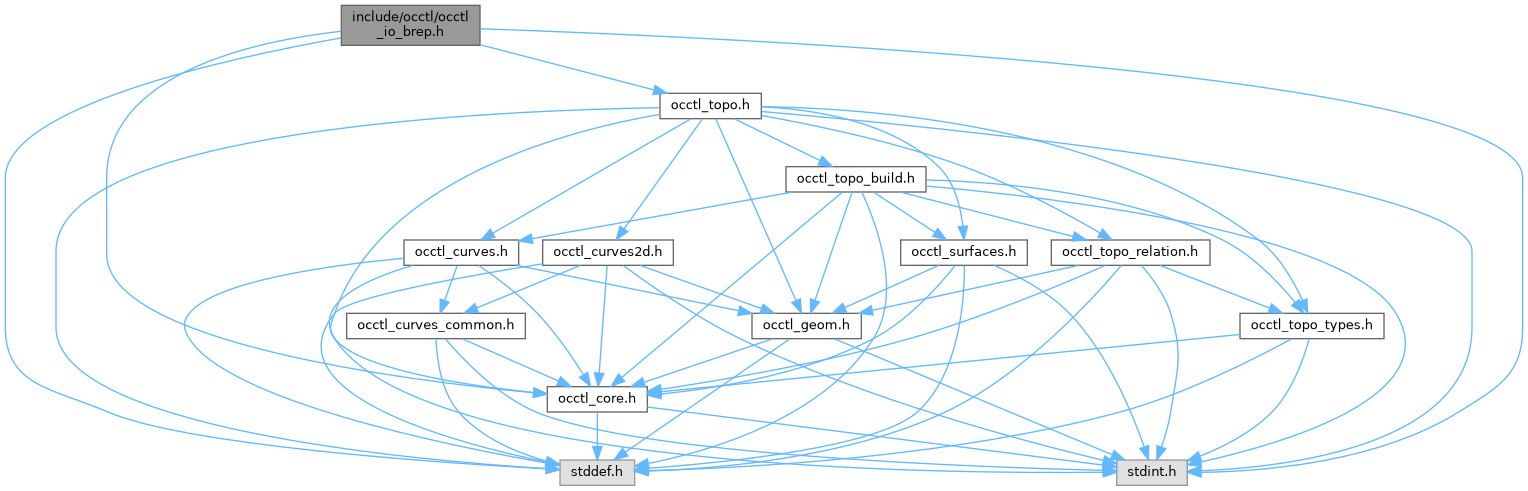

Include dependency graph for occtl_io_brep.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_io_brep_write_options

Macros
#define	OCCTL_IO_BREP_WRITE_OPTIONS_VERSION_1   1u
#define	OCCTL_IO_BREP_WRITE_OPTIONS_INIT   {OCCTL_IO_BREP_WRITE_OPTIONS_VERSION_1, NULL, 1}

Typedefs
typedef struct occtl_io_brep_write_options	occtl_io_brep_write_options_t

Functions
void	occtl_io_brep_write_options_init (occtl_io_brep_write_options_t *options)
occtl_status_t	occtl_io_brep_read (const char *path, occtl_graph_t **out_graph, occtl_node_id_t *out_root)
occtl_status_t	occtl_io_brep_write (const occtl_graph_t *graph, occtl_node_id_t root, const char *path, const occtl_io_brep_write_options_t *options)

Detailed Description

OCCT-Light: native OCCT BRep file I/O.

Read and write .brep files via OCCT's DEBREP_Provider / DEBREP_ConfigurationNode. The provider round-trips through OCCT's internal shape representation.

Typedef Documentation

occtl_io_brep_write_options_t

typedef struct occtl_io_brep_write_options occtl_io_brep_write_options_t

Options for occtl_io_brep_write. Pass NULL for defaults (binary output, triangulations included). The format flavour (binary vs ASCII) is determined by the DEBREP_Provider from its configuration — the caller can rely on OCCT's default binary encoding without setting it explicitly here.

Function Documentation

occtl_io_brep_read()

occtl_status_t occtl_io_brep_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Reads a BRep file and ingests it into a freshly-created graph.

The returned graph contains the topology rooted at out_root. Caller owns the graph and must release it via occtl_graph_free.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	path, out_graph, or out_root is NULL.
OCCTL_IO_ERROR	Filesystem failure or unreadable file.
OCCTL_FORMAT_ERROR	File contents were not a valid BRep stream.

\par Thread Safety Yes.

See also

occtl_io_brep_write, occtl_de_read

occtl_io_brep_write()

occtl_status_t occtl_io_brep_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_brep_write_options_t *	options
	)

Writes the topology rooted at root to a BRep file.

Triangulation policy is taken from options; pass NULL for defaults (binary, triangulations included). The output format (binary / ASCII) is managed by the DEBREP_Provider internally.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	graph or path is NULL; or options has invalid fields (non-NULL p_next, write_triangulation not in {0,1}).
OCCTL_NOT_FOUND	root is invalid or has been removed.
OCCTL_VERSION_MISMATCH	options has an unsupported struct_version.
OCCTL_IO_ERROR	Filesystem failure or unwritable file.

\par Thread Safety Yes (read-only on graph).

See also

occtl_io_brep_read, occtl_de_write

occtl_io_brep_write_options_init()

void occtl_io_brep_write_options_init

(

occtl_io_brep_write_options_t *

options

)

Initialises options to default values matching OCCTL_IO_BREP_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out]

options

Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also

occtl_io_brep_write
