OCCT-Light: STEP file I/O (ISO 10303-21). More...

#include <stddef.h>
#include <stdint.h>
#include "occtl_core.h"
#include "occtl_topo.h"

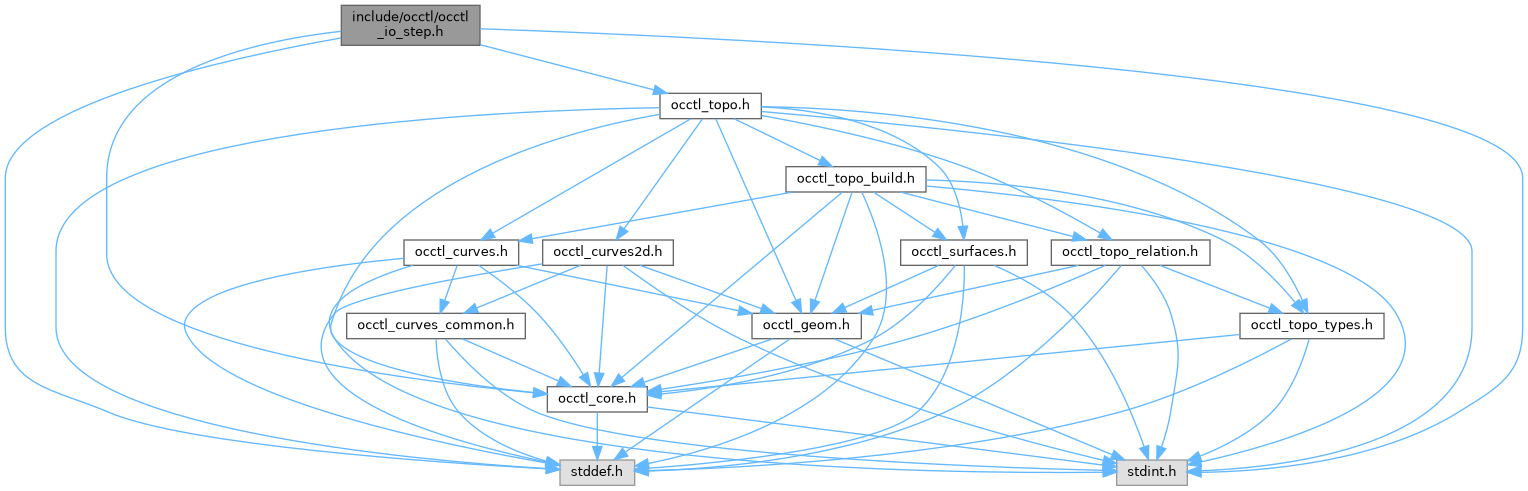

Include dependency graph for occtl_io_step.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	occtl_io_step_read_options

struct	occtl_io_step_write_options

Macros
#define	OCCTL_IO_STEP_READ_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_STEP_WRITE_OPTIONS_VERSION_1 1u

#define	OCCTL_IO_STEP_READ_OPTIONS_INIT {OCCTL_IO_STEP_READ_OPTIONS_VERSION_1, NULL, 1, 1, 1}

#define	OCCTL_IO_STEP_WRITE_OPTIONS_INIT

Typedefs
typedef enum occtl_io_step_length_unit	occtl_io_step_length_unit_t

typedef enum occtl_io_step_schema	occtl_io_step_schema_t

typedef struct occtl_io_step_read_options	occtl_io_step_read_options_t

typedef struct occtl_io_step_write_options	occtl_io_step_write_options_t

Enumerations
enum	occtl_io_step_length_unit { OCCTL_IO_STEP_UNIT_MM = 0 , OCCTL_IO_STEP_UNIT_M = 1 , OCCTL_IO_STEP_UNIT_INCH = 2 , OCCTL_IO_STEP_UNIT_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_io_step_schema { OCCTL_IO_STEP_SCHEMA_AP203 = 0 , OCCTL_IO_STEP_SCHEMA_AP214 = 1 , OCCTL_IO_STEP_SCHEMA_AP242 = 2 , OCCTL_IO_STEP_SCHEMA_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_io_step_read_options_init (occtl_io_step_read_options_t *options)

void	occtl_io_step_write_options_init (occtl_io_step_write_options_t *options)

occtl_status_t	occtl_io_step_read (const char path, occtl_graph_t out_graph, occtl_node_id_t out_root, const occtl_io_step_read_options_t *options)

occtl_status_t	occtl_io_step_read_memory (const uint8_t data, size_t size, occtl_graph_t out_graph, occtl_node_id_t out_root, const occtl_io_step_read_options_t *options)

occtl_status_t	occtl_io_step_write (const occtl_graph_t graph, occtl_node_id_t root, const char path, const occtl_io_step_write_options_t *options)

occtl_status_t	occtl_io_step_write_memory (const occtl_graph_t graph, occtl_node_id_t root, const occtl_io_step_write_options_t options, uint8_t out_data, size_t capacity, size_t out_size)

Detailed Description

OCCT-Light: STEP file I/O (ISO 10303-21).

Reads and writes STEP AP203 / AP214 / AP242 files via OCCT's DESTEP_Provider / DESTEP_ConfigurationNode. OCAF is linked privately and never reaches the public surface.

UIDs are not preserved across the round-trip — the STEP file format has its own entity-id metadata. Use occtl_uid_to_bytes / occtl_uid_from_bytes for an out-of-band UID handshake if persistent identity is required.

Macro Definition Documentation

◆ OCCTL_IO_STEP_WRITE_OPTIONS_INIT

#define OCCTL_IO_STEP_WRITE_OPTIONS_INIT

Value:

  {OCCTL_IO_STEP_WRITE_OPTIONS_VERSION_1,                                                          \
   NULL,                                                                                           \
   OCCTL_IO_STEP_UNIT_MM,                                                                          \
   OCCTL_IO_STEP_SCHEMA_AP242,                                                                     \
   1,                                                                                              \
   1}

Typedef Documentation

◆ occtl_io_step_length_unit_t

typedef enum occtl_io_step_length_unit occtl_io_step_length_unit_t

Length unit for STEP file I/O.

◆ occtl_io_step_read_options_t

typedef struct occtl_io_step_read_options occtl_io_step_read_options_t

Options for occtl_io_step_read. Pass NULL for defaults.

◆ occtl_io_step_schema_t

typedef enum occtl_io_step_schema occtl_io_step_schema_t

STEP schema version for write.

◆ occtl_io_step_write_options_t

typedef struct occtl_io_step_write_options occtl_io_step_write_options_t

Options for occtl_io_step_write. Pass NULL for defaults.

Enumeration Type Documentation

◆ occtl_io_step_length_unit

enum occtl_io_step_length_unit

Length unit for STEP file I/O.

Enumerator
OCCTL_IO_STEP_UNIT_MM	Millimetres (default).
OCCTL_IO_STEP_UNIT_M	Metres.
OCCTL_IO_STEP_UNIT_INCH	Inches.

◆ occtl_io_step_schema

enum occtl_io_step_schema

STEP schema version for write.

Enumerator
OCCTL_IO_STEP_SCHEMA_AP203	AP203 (configuration-controlled 3D design).
OCCTL_IO_STEP_SCHEMA_AP214	AP214 (core data for automotive).
OCCTL_IO_STEP_SCHEMA_AP242	AP242 (managed model-based 3D engineering, default).

Function Documentation

◆ occtl_io_step_read()

occtl_status_t occtl_io_step_read	(	const char *	path,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_step_read_options_t *	options
	)

Reads a STEP file and ingests it into a freshly-created graph.

Parameters

[in]	path	Borrows it. NUL-terminated UTF-8 path to the file. Must be non-NULL.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`path`, `out_graph`, or `out_root` is NULL; or `options` has invalid fields (non-NULL `p_next`, non-0/1 flags).
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_IO_ERROR	File not found or unreadable.
OCCTL_FORMAT_ERROR	File contents were not a valid STEP stream.

\par Thread Safety Yes.

See also: occtl_io_step_write, occtl_de_read

◆ occtl_io_step_read_memory()

occtl_status_t occtl_io_step_read_memory	(	const uint8_t *	data,
		size_t	size,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root,
		const occtl_io_step_read_options_t *	options
	)

Reads a STEP payload from caller-owned memory into a freshly-created graph.

Caller owns the returned graph and must release it via occtl_graph_free.

Parameters

[in]	data	Borrows it. Readable byte buffer containing STEP data. Must be non-NULL when `size` is non-zero.
[in]	size	Number of bytes available at `data`. Must be > 0.
[out]	out_graph	Owns it. Receives a new graph on success; NULL on failure.
[out]	out_root	Borrows it. Receives the NodeId of the root entity.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`data`, `out_graph`, or `out_root` is NULL, or `size` is zero; or `options` has invalid fields (non-NULL `p_next`, non-0/1 flags).
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_IO_ERROR	Temporary stream failure.
OCCTL_FORMAT_ERROR	Payload contents were not a valid STEP stream.
OCCTL_TOPOLOGY_INVALID	Payload decoded but could not be ingested into BRepGraph.

\par Thread Safety Yes.

See also: occtl_io_step_write_memory, occtl_io_step_read

◆ occtl_io_step_read_options_init()

void occtl_io_step_read_options_init ( occtl_io_step_read_options_t * options )

Initialises options to default values matching OCCTL_IO_STEP_READ_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_step_read

◆ occtl_io_step_write()

occtl_status_t occtl_io_step_write	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const char *	path,
		const occtl_io_step_write_options_t *	options
	)

Writes the topology rooted at root to a STEP file.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	path	Borrows it. NUL-terminated UTF-8 path; existing file is overwritten.
[in]	options	Borrows it. May be NULL for defaults.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `path` is NULL; or `options` has invalid fields (non-NULL `p_next`, non-0/1 flags).
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	`options` has unsupported unit or schema enum.
OCCTL_IO_ERROR	Filesystem failure or unwritable file.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_step_read, occtl_de_write

◆ occtl_io_step_write_memory()

occtl_status_t occtl_io_step_write_memory	(	const occtl_graph_t *	graph,
		occtl_node_id_t	root,
		const occtl_io_step_write_options_t *	options,
		uint8_t *	out_data,
		size_t	capacity,
		size_t *	out_size
	)

Writes the topology rooted at root to caller-owned memory.

Two-call buffer pattern: call with out_data == NULL and capacity == 0 to learn the required byte count in out_size, allocate a buffer, then call again with capacity at least out_size.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	root	Root node id to serialise.
[in]	options	Borrows it. May be NULL for defaults.
[out]	out_data	Borrows it. Writable output buffer, or NULL for sizing.
[in]	capacity	Size of `out_data` in bytes.
[out]	out_size	Borrows it. Receives the required byte count.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	`graph` or `out_size` is NULL; or `options` has invalid fields (non-NULL `p_next`, non-0/1 flags).
OCCTL_NOT_FOUND	`root` is invalid or has been removed.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_OUT_OF_RANGE	`options` has unsupported unit or schema enum.
OCCTL_BUFFER_TOO_SMALL	`out_data` is non-NULL and `capacity` is smaller than `out_size`.
OCCTL_IO_ERROR	OCCT failed to serialise the shape.

\par Thread Safety Yes (read-only on graph).

See also: occtl_io_step_read_memory, occtl_io_step_write

◆ occtl_io_step_write_options_init()

void occtl_io_step_write_options_init ( occtl_io_step_write_options_t * options )

Initialises options to default values matching OCCTL_IO_STEP_WRITE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_io_step_write
