OCCT-Light: feature and recipe-based model construction API. More...

#include "occtl_core.h"
#include "occtl_curves2d.h"
#include "occtl_geom.h"
#include "occtl_surfaces.h"
#include "occtl_topo.h"

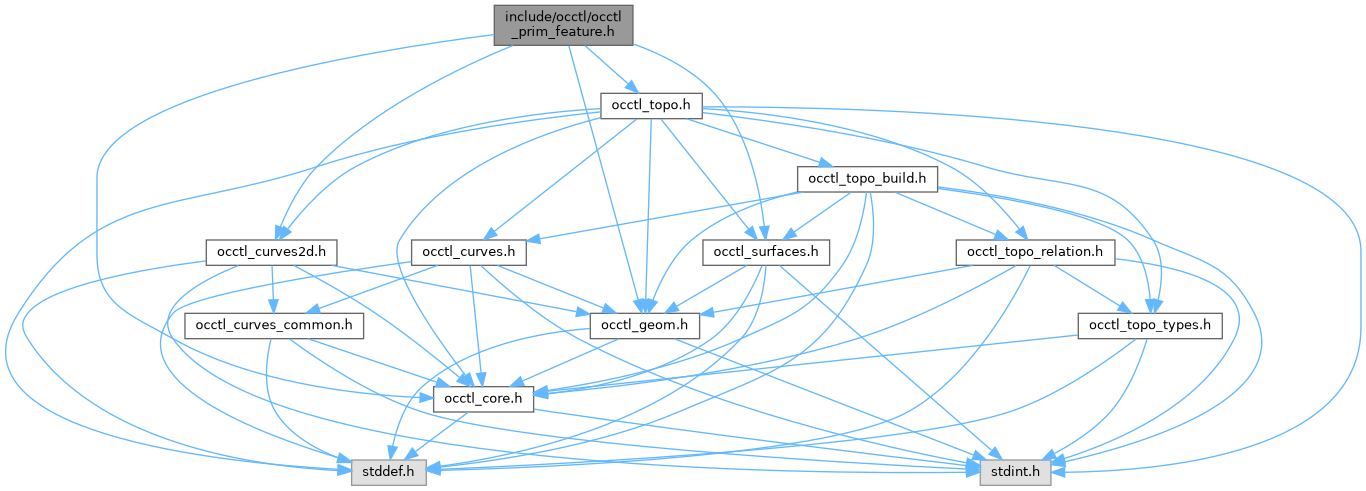

Include dependency graph for occtl_prim_feature.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	occtl_prim_face_from_surface_options

struct	occtl_prim_face_from_point_grid_options

struct	occtl_prim_face_from_boundary_curves_options

struct	occtl_prim_face_from_curve_grid_options

struct	occtl_prim_brake_formed_options

struct	occtl_prim_draft_prism_info

struct	occtl_prim_extrude_tapered_info

struct	occtl_prim_ruled_surface_info

struct	occtl_prim_feat_prism_info

struct	occtl_prim_extrude_until_info

struct	occtl_prim_feat_draft_prism_info

struct	occtl_prim_cylindrical_hole_info

Macros
#define	OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_VERSION_1 1u

#define	OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_INIT

#define	OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_VERSION_1 1u

#define	OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_INIT

#define	OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_VERSION_1 1u

#define	OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_INIT

#define	OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_VERSION_1 1u

#define	OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_INIT

#define	OCCTL_PRIM_BRAKE_FORMED_OPTIONS_VERSION_1 1u

#define	OCCTL_PRIM_BRAKE_FORMED_OPTIONS_INIT

#define	OCCTL_PRIM_DRAFT_PRISM_INFO_VERSION_1 1u

#define	OCCTL_PRIM_DRAFT_PRISM_INFO_INIT {OCCTL_PRIM_DRAFT_PRISM_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, 1.0, 0.0}

#define	OCCTL_PRIM_EXTRUDE_TAPERED_INFO_VERSION_1 1u

#define	OCCTL_PRIM_EXTRUDE_TAPERED_INFO_INIT {OCCTL_PRIM_EXTRUDE_TAPERED_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, 1.0, 0.0}

#define	OCCTL_PRIM_RULED_SURFACE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_RULED_SURFACE_INFO_INIT {OCCTL_PRIM_RULED_SURFACE_INFO_VERSION_1, NULL, OCCTL_NODE_ID_INVALID, OCCTL_NODE_ID_INVALID}

#define	OCCTL_PRIM_FEAT_PRISM_INFO_VERSION_1 1u

#define	OCCTL_PRIM_FEAT_PRISM_INFO_INIT

#define	OCCTL_PRIM_EXTRUDE_UNTIL_INFO_VERSION_1 1u

#define	OCCTL_PRIM_EXTRUDE_UNTIL_INFO_INIT

#define	OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_VERSION_1 1u

#define	OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_INIT

#define	OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_VERSION_1 1u

#define	OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_INIT

Typedefs
typedef struct occtl_prim_face_from_surface_options	occtl_prim_face_from_surface_options_t

typedef struct occtl_prim_face_from_point_grid_options	occtl_prim_face_from_point_grid_options_t

typedef struct occtl_prim_face_from_boundary_curves_options	occtl_prim_face_from_boundary_curves_options_t

typedef struct occtl_prim_face_from_curve_grid_options	occtl_prim_face_from_curve_grid_options_t

typedef enum occtl_prim_brake_side	occtl_prim_brake_side_t

typedef struct occtl_prim_brake_formed_options	occtl_prim_brake_formed_options_t

typedef struct occtl_prim_draft_prism_info	occtl_prim_draft_prism_info_t

typedef struct occtl_prim_extrude_tapered_info	occtl_prim_extrude_tapered_info_t

typedef struct occtl_prim_ruled_surface_info	occtl_prim_ruled_surface_info_t

typedef enum occtl_prim_until_kind	occtl_prim_until_kind_t

typedef enum occtl_prim_feat_combine	occtl_prim_feat_combine_t

typedef struct occtl_prim_feat_prism_info	occtl_prim_feat_prism_info_t

typedef enum occtl_prim_extrude_until_side	occtl_prim_extrude_until_side_t

typedef struct occtl_prim_extrude_until_info	occtl_prim_extrude_until_info_t

typedef struct occtl_prim_feat_draft_prism_info	occtl_prim_feat_draft_prism_info_t

typedef enum occtl_prim_cylindrical_hole_kind	occtl_prim_cylindrical_hole_kind_t

typedef struct occtl_prim_cylindrical_hole_info	occtl_prim_cylindrical_hole_info_t

Enumerations
enum	occtl_prim_brake_side { OCCTL_PRIM_BRAKE_SIDE_LEFT = 0 , OCCTL_PRIM_BRAKE_SIDE_RIGHT = 1 , OCCTL_PRIM_BRAKE_SIDE_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_prim_until_kind { OCCTL_UNTIL_LENGTH = 0 , OCCTL_UNTIL_SHAPE = 1 , OCCTL_UNTIL_THRU_ALL = 2 , OCCTL_UNTIL_HEIGHT = 3 , OCCTL_UNTIL_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_prim_feat_combine { OCCTL_FEAT_SEPARATE = 0 , OCCTL_FEAT_CUT = 1 , OCCTL_FEAT_FUSE = 2 , OCCTL_FEAT_COMBINE_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_prim_extrude_until_side { OCCTL_EXTRUDE_UNTIL_NEXT = 0 , OCCTL_EXTRUDE_UNTIL_LAST = 1 , OCCTL_EXTRUDE_UNTIL_PREVIOUS = 2 , OCCTL_EXTRUDE_UNTIL_FIRST = 3 , OCCTL_EXTRUDE_UNTIL_RESERVED_FUTURE = 0x7fffffff }

enum	occtl_prim_cylindrical_hole_kind { OCCTL_CYLINDRICAL_HOLE_THROUGH_ALL , OCCTL_CYLINDRICAL_HOLE_BETWEEN_PARAMS , OCCTL_CYLINDRICAL_HOLE_THRU_NEXT = 2 , OCCTL_CYLINDRICAL_HOLE_UNTIL_END = 3 , OCCTL_CYLINDRICAL_HOLE_BLIND = 4 , OCCTL_CYLINDRICAL_HOLE_RESERVED_FUTURE = 0x7fffffff }

Functions
void	occtl_prim_face_from_surface_options_init (occtl_prim_face_from_surface_options_t *options)

occtl_status_t	occtl_prim_make_face_from_surface (occtl_graph_t graph, const occtl_prim_face_from_surface_options_t options, occtl_node_id_t *out_face)

void	occtl_prim_face_from_point_grid_options_init (occtl_prim_face_from_point_grid_options_t *options)

occtl_status_t	occtl_prim_make_face_from_point_grid (occtl_graph_t graph, const occtl_prim_face_from_point_grid_options_t options, occtl_node_id_t *out_face)

void	occtl_prim_face_from_boundary_curves_options_init (occtl_prim_face_from_boundary_curves_options_t *options)

occtl_status_t	occtl_prim_make_face_from_boundary_curves (occtl_graph_t graph, const occtl_prim_face_from_boundary_curves_options_t options, occtl_node_id_t *out_face)

void	occtl_prim_face_from_curve_grid_options_init (occtl_prim_face_from_curve_grid_options_t *options)

occtl_status_t	occtl_prim_make_face_from_curve_grid (occtl_graph_t graph, const occtl_prim_face_from_curve_grid_options_t options, occtl_node_id_t *out_face)

void	occtl_prim_brake_formed_options_init (occtl_prim_brake_formed_options_t *opts)

occtl_status_t	occtl_prim_make_brake_formed (const occtl_graph_t graph, const occtl_prim_brake_formed_options_t options, occtl_graph_t *out_graph, occtl_node_id_t out_root)

void	occtl_prim_draft_prism_info_init (occtl_prim_draft_prism_info_t *info)

occtl_status_t	occtl_prim_make_draft_prism (occtl_graph_t graph, const occtl_prim_draft_prism_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_extrude_tapered_info_init (occtl_prim_extrude_tapered_info_t *info)

occtl_status_t	occtl_prim_make_extrude_tapered (occtl_graph_t graph, const occtl_prim_extrude_tapered_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_ruled_surface_info_init (occtl_prim_ruled_surface_info_t *info)

occtl_status_t	occtl_prim_make_ruled_surface (occtl_graph_t graph, const occtl_prim_ruled_surface_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_feat_prism_info_init (occtl_prim_feat_prism_info_t *info)

occtl_status_t	occtl_prim_make_feat_prism (occtl_graph_t graph, const occtl_prim_feat_prism_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_extrude_until_info_init (occtl_prim_extrude_until_info_t *info)

occtl_status_t	occtl_prim_make_extrude_until (occtl_graph_t graph, const occtl_prim_extrude_until_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_feat_draft_prism_info_init (occtl_prim_feat_draft_prism_info_t *info)

occtl_status_t	occtl_prim_make_feat_draft_prism (occtl_graph_t graph, const occtl_prim_feat_draft_prism_info_t info, occtl_node_id_t *out_shape)

void	occtl_prim_cylindrical_hole_info_init (occtl_prim_cylindrical_hole_info_t *info)

occtl_status_t	occtl_prim_make_cylindrical_hole (occtl_graph_t graph, const occtl_prim_cylindrical_hole_info_t info, occtl_node_id_t *out_shape)

Detailed Description

OCCT-Light: feature and recipe-based model construction API.

Macro Definition Documentation

◆ OCCTL_PRIM_BRAKE_FORMED_OPTIONS_INIT

#define OCCTL_PRIM_BRAKE_FORMED_OPTIONS_INIT

Value:

  {OCCTL_PRIM_BRAKE_FORMED_OPTIONS_VERSION_1,                                                      \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   1.0,                                                                                            \
   NULL,                                                                                           \
   0,                                                                                              \
   OCCTL_PRIM_BRAKE_SIDE_LEFT,                                                                     \
   OCCTL_TOPO_WIRE_OFFSET_2D_JOIN_ARC,                                                             \
   0,                                                                                              \
   1.0e-6}

◆ OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_INIT

#define OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_INIT

Value:

  {OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_VERSION_1,                                                     \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   {{0.0, 0.0, 0.0}, {0.0, 0.0, 1.0}},                                                             \
   0.0,                                                                                            \
   OCCTL_CYLINDRICAL_HOLE_THROUGH_ALL,                                                             \
   0.0,                                                                                            \
   0.0,                                                                                            \
   0.0,                                                                                            \
   1}

◆ OCCTL_PRIM_EXTRUDE_UNTIL_INFO_INIT

#define OCCTL_PRIM_EXTRUDE_UNTIL_INFO_INIT

Value:

  {OCCTL_PRIM_EXTRUDE_UNTIL_INFO_VERSION_1,                                                        \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   {0.0, 0.0, 1.0},                                                                                \
   OCCTL_EXTRUDE_UNTIL_NEXT,                                                                       \
   OCCTL_FEAT_FUSE,                                                                                \
   1,                                                                                              \
   0.0}

◆ OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_INIT

#define OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_INIT

Value:

  {OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_VERSION_1,                                         \
   NULL,                                                                                           \
   OCCTL_SURFACE_BOUNDARY_CURVES_CREATE_INFO_INIT,                                                 \
   1.0e-6}

◆ OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_INIT

#define OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_INIT

Value:

  {OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_VERSION_1,                                              \
   NULL,                                                                                           \
   OCCTL_SURFACE_CURVE_GRID_CREATE_INFO_INIT,                                                      \
   1.0e-6}

◆ OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_INIT

#define OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_INIT

Value:

  {OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_VERSION_1,                                              \
   NULL,                                                                                           \
   OCCTL_SURFACE_POINT_GRID_CREATE_INFO_INIT,                                                      \
   1.0e-6}

◆ OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_INIT

#define OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_INIT

Value:

  {OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_VERSION_1,                                                 \
   NULL,                                                                                           \
   OCCTL_REP_ID_INVALID,                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   NULL,                                                                                           \
   0,                                                                                              \
   1.0e-6}

◆ OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_INIT

#define OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_INIT

Value:

  {OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_VERSION_1,                                                     \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   0.0,                                                                                            \
   OCCTL_FEAT_FUSE,                                                                                \
   1,                                                                                              \
   OCCTL_UNTIL_LENGTH,                                                                             \
   OCCTL_NODE_ID_INVALID,                                                                          \
   0.0}

◆ OCCTL_PRIM_FEAT_PRISM_INFO_INIT

#define OCCTL_PRIM_FEAT_PRISM_INFO_INIT

Value:

  {OCCTL_PRIM_FEAT_PRISM_INFO_VERSION_1,                                                           \
   NULL,                                                                                           \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   OCCTL_NODE_ID_INVALID,                                                                          \
   {0.0, 0.0, 1.0},                                                                                \
   OCCTL_FEAT_FUSE,                                                                                \
   1,                                                                                              \
   OCCTL_UNTIL_LENGTH,                                                                             \
   OCCTL_NODE_ID_INVALID,                                                                          \
   0.0}

Typedef Documentation

◆ occtl_prim_brake_formed_options_t

typedef struct occtl_prim_brake_formed_options occtl_prim_brake_formed_options_t

Configuration for occtl_prim_make_brake_formed.

Builds a sheet-metal style solid from a planar bend line. station_widths may contain one width reused for every bend-line station, or one width per station vertex in line.

◆ occtl_prim_brake_side_t

typedef enum occtl_prim_brake_side occtl_prim_brake_side_t

Offset side for occtl_prim_make_brake_formed.

◆ occtl_prim_cylindrical_hole_info_t

typedef struct occtl_prim_cylindrical_hole_info occtl_prim_cylindrical_hole_info_t

Info for occtl_prim_make_cylindrical_hole.

Cuts one cylindrical hole feature from base_shape. axis.location is the start point for directed modes and axis.direction gives the drilling direction. The result is inserted as a new topology root; the input body is left unchanged in the graph.

◆ occtl_prim_cylindrical_hole_kind_t

typedef enum occtl_prim_cylindrical_hole_kind occtl_prim_cylindrical_hole_kind_t

Cylindrical-hole termination mode for occtl_prim_make_cylindrical_hole.

Selects how far the cylindrical cutting volume extends along the supplied axis. The default through-all mode cuts with an infinite cylinder.

◆ occtl_prim_draft_prism_info_t

typedef struct occtl_prim_draft_prism_info occtl_prim_draft_prism_info_t

Info for occtl_prim_make_draft_prism.

Builds a tapered solid from one planar Face using OCCT LocOpe_DPrism. This is the accurate fast path for draft/tapered extrusion of a single closed profile.

◆ occtl_prim_extrude_tapered_info_t

typedef struct occtl_prim_extrude_tapered_info occtl_prim_extrude_tapered_info_t

Info for occtl_prim_make_extrude_tapered.

Semantic wrapper for tapered extrusion of one Face profile. The taper follows the profile Face normal.

◆ occtl_prim_extrude_until_info_t

typedef struct occtl_prim_extrude_until_info occtl_prim_extrude_until_info_t

Info for occtl_prim_make_extrude_until.

Builds a feature extrusion from profile on base_shape until target_shape. FIRST/PREVIOUS map to the opposite of direction, and NEXT/LAST map to direction.

◆ occtl_prim_extrude_until_side_t

typedef enum occtl_prim_extrude_until_side occtl_prim_extrude_until_side_t

Target side for occtl_prim_make_extrude_until.

◆ occtl_prim_face_from_boundary_curves_options_t

typedef struct occtl_prim_face_from_boundary_curves_options occtl_prim_face_from_boundary_curves_options_t

Configuration for occtl_prim_make_face_from_boundary_curves.

Builds a B-spline surface from two, three, or four contiguous boundary curves and inserts a Face using the generated surface's natural bounds.

◆ occtl_prim_face_from_curve_grid_options_t

typedef struct occtl_prim_face_from_curve_grid_options occtl_prim_face_from_curve_grid_options_t

Configuration for occtl_prim_make_face_from_curve_grid.

Builds a Gordon B-spline surface from an intersecting U/V curve network and inserts a Face using the generated surface's natural bounds.

◆ occtl_prim_face_from_point_grid_options_t

typedef struct occtl_prim_face_from_point_grid_options occtl_prim_face_from_point_grid_options_t

Configuration for occtl_prim_make_face_from_point_grid.

Builds a B-spline surface from a row-major point grid and inserts a Face using the generated surface's natural bounds. This is the graph-facing counterpart to occtl_surface_create_from_point_grid.

◆ occtl_prim_face_from_surface_options_t

typedef struct occtl_prim_face_from_surface_options occtl_prim_face_from_surface_options_t

Configuration for occtl_prim_make_face_from_surface.

Builds a Face from a surface rep and optional boundary wires. When outer_wire is invalid, no boundary wires may be supplied and OCCT builds a face from the surface's natural bounds. When outer_wire is valid, it is used as the outer boundary and inner_wires, if any, are added as holes.

◆ occtl_prim_feat_combine_t

typedef enum occtl_prim_feat_combine occtl_prim_feat_combine_t

Combine-mode for feature operations.

Controls how the produced material interacts with the base shape.

◆ occtl_prim_feat_draft_prism_info_t

typedef struct occtl_prim_feat_draft_prism_info occtl_prim_feat_draft_prism_info_t

Info for occtl_prim_make_feat_draft_prism.

Builds a draft prism feature on an existing body. Unlike occtl_prim_make_draft_prism, this operation delegates to OCCT BRepFeat_MakeDPrism and combines the tapered feature with base_shape.

◆ occtl_prim_feat_prism_info_t

typedef struct occtl_prim_feat_prism_info occtl_prim_feat_prism_info_t

Info for occtl_prim_make_feat_prism.

Builds a feature prism on an existing body: extrudes profile and combines the result with base_shape (fuse / cut / separate). Supports termination by target shape or height.

◆ occtl_prim_ruled_surface_info_t

typedef struct occtl_prim_ruled_surface_info occtl_prim_ruled_surface_info_t

Info for occtl_prim_make_ruled_surface.

Builds a ruled surface between two existing graph sections using OCCT BRepFill. Both sections must have the same topological kind: Edge + Edge produces a Face, while Wire + Wire produces a Shell.

◆ occtl_prim_until_kind_t

typedef enum occtl_prim_until_kind occtl_prim_until_kind_t

Until-mode for occtl_prim_make_feat_prism.

Selects how the extrusion is terminated (fixed length, until a target shape, all the way through, or until a target capped at a length).

Enumeration Type Documentation

◆ occtl_prim_brake_side

enum occtl_prim_brake_side

Offset side for occtl_prim_make_brake_formed.

Enumerator
OCCTL_PRIM_BRAKE_SIDE_LEFT	Offset to OCCT's positive planar-wire side.
OCCTL_PRIM_BRAKE_SIDE_RIGHT	Offset to OCCT's negative planar-wire side.

◆ occtl_prim_cylindrical_hole_kind

enum occtl_prim_cylindrical_hole_kind

Cylindrical-hole termination mode for occtl_prim_make_cylindrical_hole.

Selects how far the cylindrical cutting volume extends along the supplied axis. The default through-all mode cuts with an infinite cylinder.

Enumerator
OCCTL_CYLINDRICAL_HOLE_THROUGH_ALL	Cut all material intersected by the infinite cylinder.
OCCTL_CYLINDRICAL_HOLE_BETWEEN_PARAMS	Cut between `p_from` and `p_to` along `axis`.
OCCTL_CYLINDRICAL_HOLE_THRU_NEXT	Cut to the next encountered boundary along `axis`.
OCCTL_CYLINDRICAL_HOLE_UNTIL_END	Cut all material after the axis origin.
OCCTL_CYLINDRICAL_HOLE_BLIND	Cut a blind hole of `length` from the axis origin.

◆ occtl_prim_extrude_until_side

enum occtl_prim_extrude_until_side

Target side for occtl_prim_make_extrude_until.

Enumerator
OCCTL_EXTRUDE_UNTIL_NEXT	Extrude along `direction` to the target.
OCCTL_EXTRUDE_UNTIL_LAST	Extrude along `direction` to the target.
OCCTL_EXTRUDE_UNTIL_PREVIOUS	Extrude opposite `direction` to the target.
OCCTL_EXTRUDE_UNTIL_FIRST	Extrude opposite `direction` to the target.

◆ occtl_prim_feat_combine

enum occtl_prim_feat_combine

Combine-mode for feature operations.

Controls how the produced material interacts with the base shape.

Enumerator
OCCTL_FEAT_SEPARATE	Produce a separate body — no Boolean against `base_shape`.
OCCTL_FEAT_CUT	Subtract the produced material from `base_shape`.
OCCTL_FEAT_FUSE	Add the produced material to `base_shape`.

◆ occtl_prim_until_kind

enum occtl_prim_until_kind

Until-mode for occtl_prim_make_feat_prism.

Selects how the extrusion is terminated (fixed length, until a target shape, all the way through, or until a target capped at a length).

Enumerator
OCCTL_UNTIL_LENGTH	Extrude a fixed length along `direction`.
OCCTL_UNTIL_SHAPE	Extrude until the result meets `until_shape`.
OCCTL_UNTIL_THRU_ALL	Extrude through all of `base_shape`.
OCCTL_UNTIL_HEIGHT	Extrude until `until_shape`, capped at `length`.

Function Documentation

◆ occtl_prim_brake_formed_options_init()

void occtl_prim_brake_formed_options_init ( occtl_prim_brake_formed_options_t * opts )

Initialises opts to default values matching OCCTL_PRIM_BRAKE_FORMED_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] opts Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_prim_make_brake_formed

◆ occtl_prim_cylindrical_hole_info_init()

void occtl_prim_cylindrical_hole_info_init ( occtl_prim_cylindrical_hole_info_t * info )

Runtime initialiser for occtl_prim_cylindrical_hole_info_t.

Sets all fields to OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_cylindrical_hole

◆ occtl_prim_draft_prism_info_init()

void occtl_prim_draft_prism_info_init ( occtl_prim_draft_prism_info_t * info )

Runtime initialiser for occtl_prim_draft_prism_info_t.

Sets all fields to OCCTL_PRIM_DRAFT_PRISM_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_draft_prism

◆ occtl_prim_extrude_tapered_info_init()

void occtl_prim_extrude_tapered_info_init ( occtl_prim_extrude_tapered_info_t * info )

Runtime initialiser for occtl_prim_extrude_tapered_info_t.

Sets all fields to OCCTL_PRIM_EXTRUDE_TAPERED_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_extrude_tapered

◆ occtl_prim_extrude_until_info_init()

void occtl_prim_extrude_until_info_init ( occtl_prim_extrude_until_info_t * info )

Runtime initialiser for occtl_prim_extrude_until_info_t.

Sets all fields to OCCTL_PRIM_EXTRUDE_UNTIL_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_extrude_until

◆ occtl_prim_face_from_boundary_curves_options_init()

void occtl_prim_face_from_boundary_curves_options_init ( occtl_prim_face_from_boundary_curves_options_t * options )

Initialises options to defaults matching OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_prim_make_face_from_boundary_curves

◆ occtl_prim_face_from_curve_grid_options_init()

void occtl_prim_face_from_curve_grid_options_init ( occtl_prim_face_from_curve_grid_options_t * options )

Initialises options to defaults matching OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_prim_make_face_from_curve_grid

◆ occtl_prim_face_from_point_grid_options_init()

void occtl_prim_face_from_point_grid_options_init ( occtl_prim_face_from_point_grid_options_t * options )

Initialises options to defaults matching OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_prim_make_face_from_point_grid

◆ occtl_prim_face_from_surface_options_init()

void occtl_prim_face_from_surface_options_init ( occtl_prim_face_from_surface_options_t * options )

Initialises options to defaults matching OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_INIT.

NULL-tolerant.

Parameters

[out] options Borrows it. May be NULL (no-op).

\par Thread Safety Yes.

See also: occtl_prim_make_face_from_surface

◆ occtl_prim_feat_draft_prism_info_init()

void occtl_prim_feat_draft_prism_info_init ( occtl_prim_feat_draft_prism_info_t * info )

Runtime initialiser for occtl_prim_feat_draft_prism_info_t.

Sets all fields to OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_feat_draft_prism

◆ occtl_prim_feat_prism_info_init()

void occtl_prim_feat_prism_info_init ( occtl_prim_feat_prism_info_t * info )

Runtime initialiser for occtl_prim_feat_prism_info_t.

Sets all fields to OCCTL_PRIM_FEAT_PRISM_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_feat_prism

◆ occtl_prim_make_brake_formed()

occtl_status_t occtl_prim_make_brake_formed	(	const occtl_graph_t *	graph,
		const occtl_prim_brake_formed_options_t *	options,
		occtl_graph_t **	out_graph,
		occtl_node_id_t *	out_root
	)

Builds a sheet-metal brake-formed solid from a planar bend line.

The operation offsets line by thickness, creates station sections between the original and offset stations, extends those sections by the supplied station widths, and delegates solid skinning to OCCT.

Parameters

[in]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL and carry a supported `struct_version`.
[out]	out_graph	Owns it. Receives a new graph on success.
[out]	out_root	Borrows it. Receives the brake-formed Solid NodeId.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any required pointer is NULL, `p_next` is non-NULL, thickness / tolerance / widths are invalid, or side / join flags are unknown.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_NOT_FOUND	`line` is invalid or removed.
OCCTL_WRONG_KIND	`line` is neither an Edge nor a Wire.
OCCTL_GEOMETRY_INVALID	Offset, station construction, or solid skinning failed.
OCCTL_TOPOLOGY_INVALID	The result could not be ingested into the output graph.

\par Thread Safety No. Allocates a new graph.

See also: occtl_topo_make_face_extrusion

◆ occtl_prim_make_cylindrical_hole()

occtl_status_t occtl_prim_make_cylindrical_hole	(	occtl_graph_t *	graph,
		const occtl_prim_cylindrical_hole_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Cuts a cylindrical hole feature into an existing shape.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Shape NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, `p_next` is non-NULL, `axis` contains non-finite components, `with_control` is not 0/1, `radius` is non-positive, `axis.direction` has zero length, `p_from` or `p_to` is non-finite, `p_to` <= p_from in BETWEEN_PARAMS mode, `length` is non-positive in BLIND mode, or `kind` is unknown.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	`base_shape` refers to a removed / absent node.
OCCTL_GEOMETRY_INVALID	OCCT rejected the hole placement or failed to build the feature.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_feat_prism, occtl_prim_make_thick_solid

◆ occtl_prim_make_draft_prism()

occtl_status_t occtl_prim_make_draft_prism	(	occtl_graph_t *	graph,
		const occtl_prim_draft_prism_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a tapered prism solid from one Face profile.

The result is inserted into graph as a new topology root. The input profile is not modified.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Solid NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, or `height` is non-positive.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	`profile` refers to a removed / absent node.
OCCTL_WRONG_KIND	`profile` is not a Face.
OCCTL_GEOMETRY_INVALID	OCCT rejected the draft prism.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_prism

◆ occtl_prim_make_extrude_tapered()

occtl_status_t occtl_prim_make_extrude_tapered	(	occtl_graph_t *	graph,
		const occtl_prim_extrude_tapered_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a tapered extrusion from one Face profile.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Solid NodeId.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, `p_next` is non-NULL, or `height` is non-positive.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	`profile_face` refers to a removed / absent node.
OCCTL_WRONG_KIND	`profile_face` is not a Face.
OCCTL_GEOMETRY_INVALID	OCCT rejected the tapered extrusion.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_draft_prism

◆ occtl_prim_make_extrude_until()

occtl_status_t occtl_prim_make_extrude_until	(	occtl_graph_t *	graph,
		const occtl_prim_extrude_until_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a feature extrusion until a target shape.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Shape NodeId.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, `p_next` is non-NULL, `direction` is zero, `side` / `combine` / `modify` is invalid, or `limit` is negative.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	A node id refers to a removed / absent node.
OCCTL_WRONG_KIND	`sketch_face` is not a Face.
OCCTL_GEOMETRY_INVALID	OCCT rejected the feature extrusion.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_feat_prism, occtl_prim_make_draft_prism

◆ occtl_prim_make_face_from_boundary_curves()

occtl_status_t occtl_prim_make_face_from_boundary_curves	(	occtl_graph_t *	graph,
		const occtl_prim_face_from_boundary_curves_options_t *	options,
		occtl_node_id_t *	out_face
	)

Builds a graph Face directly from boundary-curve surface filling.

The operation delegates surface construction to OCCT through occtl_surface_create_from_boundary_curves, delegates face construction to OCCT, and inserts the resulting Face topology into graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL and carry a supported `struct_version`.
[out]	out_face	Borrows it. Must be non-NULL. Receives the new Face.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL, `p_next` is non-NULL, `tolerance` is invalid, or the embedded boundary-curve options are invalid.
OCCTL_VERSION_MISMATCH	`options` or the embedded surface options have an unsupported `struct_version`.
OCCTL_GEOMETRY_INVALID	OCCT rejected the boundary curves or face build.
OCCTL_TOPOLOGY_INVALID	The result could not be ingested as a Face.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_prim_make_face_from_surface, occtl_surface_create_from_boundary_curves

◆ occtl_prim_make_face_from_curve_grid()

occtl_status_t occtl_prim_make_face_from_curve_grid	(	occtl_graph_t *	graph,
		const occtl_prim_face_from_curve_grid_options_t *	options,
		occtl_node_id_t *	out_face
	)

Builds a graph Face directly from a curve-grid Gordon surface.

The operation delegates surface construction to OCCT through occtl_surface_create_from_curve_grid, delegates face construction to OCCT, and inserts the resulting Face topology into graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL and carry a supported `struct_version`.
[out]	out_face	Borrows it. Must be non-NULL. Receives the new Face.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL, `p_next` is non-NULL, `tolerance` is invalid, or the embedded curve-grid options are invalid.
OCCTL_VERSION_MISMATCH	`options` or the embedded surface options have an unsupported `struct_version`.
OCCTL_GEOMETRY_INVALID	OCCT rejected the curve grid or face build.
OCCTL_TOPOLOGY_INVALID	The result could not be ingested as a Face.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_prim_make_face_from_surface, occtl_surface_create_from_curve_grid

◆ occtl_prim_make_face_from_point_grid()

occtl_status_t occtl_prim_make_face_from_point_grid	(	occtl_graph_t *	graph,
		const occtl_prim_face_from_point_grid_options_t *	options,
		occtl_node_id_t *	out_face
	)

Builds a graph Face directly from a point-grid B-spline surface.

The operation delegates surface fitting to OCCT through occtl_surface_create_from_point_grid, delegates face construction to OCCT, and inserts the resulting Face topology into graph.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL and carry a supported `struct_version`.
[out]	out_face	Borrows it. Must be non-NULL. Receives the new Face.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL, `p_next` is non-NULL, `tolerance` is invalid, or the embedded point-grid surface options are invalid.
OCCTL_VERSION_MISMATCH	`options` or the embedded surface options have an unsupported `struct_version`.
OCCTL_GEOMETRY_INVALID	OCCT rejected the point grid or face build.
OCCTL_TOPOLOGY_INVALID	The result could not be ingested as a Face.
OCCTL_OUT_OF_MEMORY	Allocation failed.

\par Thread Safety No (mutates graph).

See also: occtl_prim_make_face_from_surface, occtl_surface_create_from_point_grid

◆ occtl_prim_make_face_from_surface()

occtl_status_t occtl_prim_make_face_from_surface	(	occtl_graph_t *	graph,
		const occtl_prim_face_from_surface_options_t *	options,
		occtl_node_id_t *	out_face
	)

Builds a Face from a surface handle and optional boundary wires.

The operation inserts a Face node into graph from a graph-owned surface rep and optional boundary Wires. The source surface handle and boundary wires are not modified.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	options	Borrows it. Must be non-NULL and carry a supported `struct_version`.
[out]	out_face	Borrows it. Must be non-NULL. Receives the new Face.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	A required pointer is NULL, `p_next` is non-NULL, `tolerance` is invalid, or inner wires are supplied without an outer wire.
OCCTL_VERSION_MISMATCH	`options` has an unsupported struct_version.
OCCTL_NOT_FOUND	A boundary Wire node is invalid or removed.
OCCTL_WRONG_KIND	A boundary node is not a Wire.
OCCTL_GEOMETRY_INVALID	OCCT rejected the surface/wire combination.
OCCTL_TOPOLOGY_INVALID	The result could not be ingested as a Face.

\par Thread Safety No (mutates graph).

See also: occtl_topo_make_filling_patch, occtl_surface_create_interpolated

◆ occtl_prim_make_feat_draft_prism()

occtl_status_t occtl_prim_make_feat_draft_prism	(	occtl_graph_t *	graph,
		const occtl_prim_feat_draft_prism_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a draft-prism feature on an existing body.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version` and NULL `p_next`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Shape NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, `p_next` is non-NULL, `length` is non-positive for LENGTH/HEIGHT modes, `taper_angle` is not finite, or an enum value is unknown.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	A node id refers to a removed / absent node.
OCCTL_WRONG_KIND	`profile_face` or `sketch_face` is not a Face, or `until_shape` is required but has wrong kind.
OCCTL_GEOMETRY_INVALID	Construction failed.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_feat_prism, occtl_prim_make_draft_prism

◆ occtl_prim_make_feat_prism()

occtl_status_t occtl_prim_make_feat_prism	(	occtl_graph_t *	graph,
		const occtl_prim_feat_prism_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a feature prism — the canonical "extrude profile on existing body until …" operation.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Shape NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, or `length` is non-positive for LENGTH/HEIGHT modes, or `direction` has zero length.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	A node id refers to a removed / absent node.
OCCTL_WRONG_KIND	`sketch_face` is not a Face, or `until_shape` is required but missing / has wrong kind.
OCCTL_GEOMETRY_INVALID	Construction failed.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_prism

◆ occtl_prim_make_ruled_surface()

occtl_status_t occtl_prim_make_ruled_surface	(	occtl_graph_t *	graph,
		const occtl_prim_ruled_surface_info_t *	info,
		occtl_node_id_t *	out_shape
	)

Builds a ruled Face or Shell between two Edge or Wire sections.

The result is inserted into graph as a new topology root. The input sections are not modified. Wire sections must be compatible for OCCT ruled-shell construction, including matching edge counts.

Parameters

[in,out]	graph	Borrows it. Must be non-NULL.
[in]	info	Borrows it. Must be non-NULL with a recognised `struct_version`.
[out]	out_shape	Borrows it. Must be non-NULL. On success receives the new Face or Shell NodeId; on failure set to OCCTL_NODE_ID_INVALID.

Return values

OCCTL_OK	On success.
OCCTL_INVALID_ARGUMENT	Any pointer is NULL, `p_next` is non-NULL, or the sections do not have the same kind.
OCCTL_VERSION_MISMATCH	`struct_version` is unrecognised.
OCCTL_NOT_FOUND	A section refers to a removed / absent node.
OCCTL_WRONG_KIND	A section is neither an Edge nor a Wire.
OCCTL_GEOMETRY_INVALID	OCCT rejected the ruled surface.
OCCTL_TOPOLOGY_INVALID	The resulting topology was rejected.
OCCTL_INTERNAL	An unexpected internal error occurred.

\par Thread Safety No.

See also: occtl_prim_make_loft, occtl_prim_make_planar_face

◆ occtl_prim_ruled_surface_info_init()

void occtl_prim_ruled_surface_info_init ( occtl_prim_ruled_surface_info_t * info )

Runtime initialiser for occtl_prim_ruled_surface_info_t.

Sets all fields to OCCTL_PRIM_RULED_SURFACE_INFO_INIT.

Parameters

[out] info Borrows it. NULL-tolerant; no-op when NULL.

\par Thread Safety Yes.

See also: occtl_prim_make_ruled_surface

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ OCCTL_PRIM_BRAKE_FORMED_OPTIONS_INIT

◆ OCCTL_PRIM_CYLINDRICAL_HOLE_INFO_INIT

◆ OCCTL_PRIM_EXTRUDE_UNTIL_INFO_INIT

◆ OCCTL_PRIM_FACE_FROM_BOUNDARY_CURVES_OPTIONS_INIT

◆ OCCTL_PRIM_FACE_FROM_CURVE_GRID_OPTIONS_INIT

◆ OCCTL_PRIM_FACE_FROM_POINT_GRID_OPTIONS_INIT

◆ OCCTL_PRIM_FACE_FROM_SURFACE_OPTIONS_INIT

◆ OCCTL_PRIM_FEAT_DRAFT_PRISM_INFO_INIT

◆ OCCTL_PRIM_FEAT_PRISM_INFO_INIT

Typedef Documentation

◆ occtl_prim_brake_formed_options_t

◆ occtl_prim_brake_side_t

◆ occtl_prim_cylindrical_hole_info_t

◆ occtl_prim_cylindrical_hole_kind_t

◆ occtl_prim_draft_prism_info_t

◆ occtl_prim_extrude_tapered_info_t

◆ occtl_prim_extrude_until_info_t

◆ occtl_prim_extrude_until_side_t

◆ occtl_prim_face_from_boundary_curves_options_t

◆ occtl_prim_face_from_curve_grid_options_t

◆ occtl_prim_face_from_point_grid_options_t

◆ occtl_prim_face_from_surface_options_t

◆ occtl_prim_feat_combine_t

◆ occtl_prim_feat_draft_prism_info_t

◆ occtl_prim_feat_prism_info_t

◆ occtl_prim_ruled_surface_info_t

◆ occtl_prim_until_kind_t

Enumeration Type Documentation

◆ occtl_prim_brake_side

◆ occtl_prim_cylindrical_hole_kind

◆ occtl_prim_extrude_until_side

◆ occtl_prim_feat_combine

◆ occtl_prim_until_kind

Function Documentation

◆ occtl_prim_brake_formed_options_init()

◆ occtl_prim_cylindrical_hole_info_init()

◆ occtl_prim_draft_prism_info_init()

◆ occtl_prim_extrude_tapered_info_init()

◆ occtl_prim_extrude_until_info_init()

◆ occtl_prim_face_from_boundary_curves_options_init()

◆ occtl_prim_face_from_curve_grid_options_init()

◆ occtl_prim_face_from_point_grid_options_init()

◆ occtl_prim_face_from_surface_options_init()

◆ occtl_prim_feat_draft_prism_info_init()

◆ occtl_prim_feat_prism_info_init()

◆ occtl_prim_make_brake_formed()

◆ occtl_prim_make_cylindrical_hole()

◆ occtl_prim_make_draft_prism()

◆ occtl_prim_make_extrude_tapered()

◆ occtl_prim_make_extrude_until()

◆ occtl_prim_make_face_from_boundary_curves()

◆ occtl_prim_make_face_from_curve_grid()

◆ occtl_prim_make_face_from_point_grid()

◆ occtl_prim_make_face_from_surface()

◆ occtl_prim_make_feat_draft_prism()

◆ occtl_prim_make_feat_prism()

◆ occtl_prim_make_ruled_surface()

◆ occtl_prim_ruled_surface_info_init()
